Carrier 24APA7 Performance Product Data

Page 1

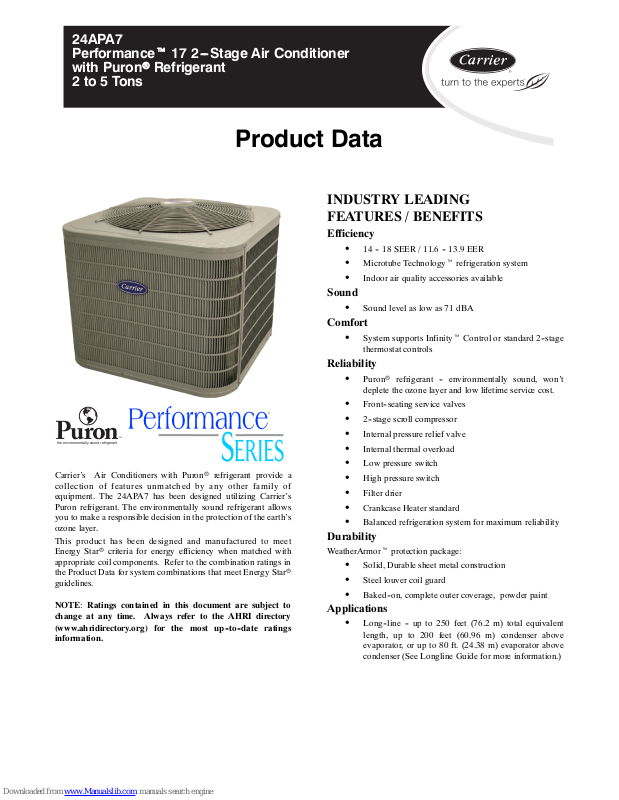

24APA7 Performancet 17 2---Stage Air Conditioner with Puronr Refrigerant 2to5Tons

Product Data

the environmentally sound refrigerant

Carrier’s Air Conditioners with Puronr refrigerant provide a collection of features unmatched by any other family of equipment. The 24APA7 has been designed utilizing Carrier’s Puron refrigerant. The environmentally sound refrigerant allows you to make a responsible decision in the protection of the earth’s ozone layer.

This product has been designed and manufactured to meet Energy Starr criteria for energy efficiency when matched with appropriate coil components. Refer to the combination ratings in the Product Data for system combinations that meet Energy Starr guidelines.

NOTE: Ratings contained in this document are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most up--to--date ratings information.

INDUSTRY LEADING FEATURES / BENEFITS

Efficiency

14 -- 18 SEER / 11.6 -- 13.9 EER

S S Microtube Technologyt refrigeration system S Indoor air quality accessories available

Sound

Sound level as low as 71 dBA

Comfort

System supports Infinityt Control or standard 2--stage

thermostat controls

Reliability

Puronr refrigerant -- environmentally sound, won’t deplete the ozone layer and low lifetime service cost.

S Front--seating service valves S 2--stage scroll compressor S Internal pressure relief valve S Internal thermal overload S Low pressure switch S High pressure switch S Filter drier S Crankcase Heater standard S Balanced refrigeration system for maximum reliability

Durability

WeatherArmort protection package:

S Solid, Durable sheet metal construction S Steel louver coil guard S Baked--on, complete outer coverage, powder paint

Applications

Long--line -- up to 250 feet (76.2 m) total equivalent

length, up to 200 feet (60.96 m) condenser above evaporator, or up to 80 ft. (24.38 m) evaporator above condenser (See Longline Guide for more information.)

Page 2

MODEL NUMBER NOMENCLATURE

12 3

NN A

567

A/N N N A/N A/N A/N N N

24 A P A 7 3

Product

Series

24=AC A=RES AC P =

Product

Family

Tier Major

Series

A=Puron 7=17

Performance

Nominal

the environmentally sound refrigerant

24APA7

Use of the AHRI Certified TM Mark indicates a manufacturer’s participation in the program For verification of certification for individual products, go to www.ahridirectory.org.

SEER Cooling

Capacity

SEER

91011 12 13

A00 3 0

Variations Open Open Voltage Minor

A=Standard 0=Not

Defined

0=Not

3=208/230---1

Defined

This produc t h as been desi gned an d m anufactu red t o meet Energy St ar® criteria f or energy efficiency when matched wi th appropriate coi l com ponents. However, proper refri gerant charge and proper ai r f low are criti cal to achieve rated capacity and eff iciency. Installation of this product should follow all manufacturing refri gerant charging and air flow instructions. Failure to confirm

proper charge and air flow may reduce energy efficiency and shorten equipment life.

Series

0, 1, 2...

STANDARD FEATURES

FEATURES

24--- 30 36--- 30 48--- 31 60--- 31

Puron Refrigerant X X X X

Maximum SEER Rating* 17.0 18.0 17.5 17.0

2--- Stage Scroll Compressor X X X X

Crankcase Heater w/Temperature Switch X X X X

Long line Capability X X X X

Low Ambient Capability to 0_F (---17.8_C) w/Infinity Control X X X X

Enhanced Diagnostics w/Infinity Control X X X X

Utility Interface Connection X X X X

Louvered Coil Guard X X X X

FieldInstalledFilterDrier X X X X

Front Seating Service Valves X X X X

Internal Pressure Relief Valve X X X X

Internal Thermal Overload X X X X

Long Line capability X X X X

Low Pressure Switch X X X X

High Pressure Switch X X X X

Unit Size --- Voltage, Series

Sound Blanket X X X X

X=Standard * With approved combinations

Page 3

REFRIGERANT PIPING LENGTH LIMITATIONS

Liquid Line Sizing and Maximum Total Equivalent Lengths

The maximum allowable length of a residential split system depends on the liquid line diameter and vertical separation between indoor and outdoor units.

See Table below for liquid line sizing and maximum lengths :

Maximum Total Equivalent Length Outdoor Unit BELOW Indoor Unit

Liquid

Size

024

AC with

Puron

036

AC with

Puron

048

AC with

Puron

060

AC with

Puron

* Maximum actual length not to exceed 200 ft (61 m) { Total equivalent length accounts for losses due to elbows or fitting. See the Long Line Guideline for details.

--- --- = o u t s i d e a c c e p t a b l e r a n g e

Liquid Line

Connection

3/8

3/8 3/8 250* 250* 250* 250* 250* 250* 230 160 --- ---

3/8 3/8 250* 250* 250* 225* 190 150 110 --- --- --- ---

Line

Diam.

w/TXV

1/4 75 75 75 50 50 --- --- --- --- --- --- --- ---

5/16 250* 250* 250* 250* 250* 225* 175 125 100

3/8 250* 250* 250* 250* 250* 250* 250* 250* 250*

5/16 175 150 150 100 100 100 75 --- --- --- ---

3/8 250* 250* 250* 250* 250* 250* 250* 250* 250*

(0--- 1.5)

AC with Puron Refrigerant Maximum Total Equivalent Length{: Outdoor unit BELOW Indoor

0 --- 5

6 --- 1 0

(1.8--- 3.0)

11--- 20

(3.4--- 6.1)

{

for Cooling Only Systems with Puronr Refrigerant:

Vertical Separation ft (m)

21--- 30

(6.4--- 9.1)

31--- 40

(9.4--- 12.2)

41--- 50

(12.5--- 15.2)

51--- 60

(15.5--- 18.3)

61--- 70

(18.6--- 21.3)

71--- 80

(21.6--- 24.4)

24APA7

Maximum Total Equivalent Length

Outdoor Unit ABOVE Indoor Unit

Liquid

Size

024

AC with

Puron

036

AC with

Puron

048

AC with

Puron

060

AC with

Puron

* Maximum actual length not to exceed 200 ft (61 m) { Total equivalent length accounts for losses due to elbows or fitting. See the Long Line Guideline for details.

Liquid Line

Connection

3/8

3/8 3/8 250* 250* 250* 250* 250* 250* 250* 250*

Line

Diam.

w/TXV

1/4 100 125 175 200 225* 250* 250* 250*

5/16 250* 250* 250* 250* 250* 250* 250* 250*

3/8 250* 250* 250* 250* 250* 250* 250* 250*

5/16 225* 250* 250* 250* 250* 250* 250* 250*

3/8 250* 250* 250* 250* 250* 250* 250* 250*

AC with Puron Refrigerant Maximum Total Equivalent Length{: Outdoor unit ABOVE Indoor

(7.6)

26--- 50

(7.9--- 15.2)

51--- 75

(15.5--- 22.9)

Vertical Separation ft (m)

76--- 100

(23.2--- 30.5)

101--- 125

(30.8--- 38.1)

126--- 150

(38.4--- 45.7)

151--- 175

(46.0--- 53.3)

176--- 200

(53.6--- 61.0)

REFRIGERANT CHARGE ADJUSTMENTS

Liquid Line Size Puron Charge oz/ft (g/m)

3/8

5/16 0.40 (11.83)

1/4 0.27 (7.98)

(Factory charge for lineset = 9 oz / 266.16 g)

0.60 (17.74)

Units are factory charged for 15 ft (4.6 m) of 3/8” liquid line. The factory charge for 3/8” lineset 9 oz.(266.16 g). When using other length or diameter liquid lines, charge adjustments are required per the chart above.

Charging

Formula:

[(Lineset oz/ft x total length) – (factory charge for lineset)] = charge adjustment Example 1: System has 15 ft of line set using existing 1/4“ liquid line. What charge adjustment is required?

Formula: (.27 oz/ft x 15ft) – (9 oz) = (-4.95) oz. Net result is to remove 4.95 oz of refrigerant from the system

Example 2: System has 45 ft of existing 5/16” liquid line. What is the charge adjustment?

Formula: (.40 oz/ft. x 45ft) – (9 oz.) = 9 oz. Net result is to add 9 oz of refrigerant to the system

Page 4

LONG LINE APPLICATIONS

An application is considered Long Line, when the refrigerant level in the system requires the use of accessories to maintain acceptable refrigerant management for systems reliability. See Accessory Usage Guideline table for required accessories. Defining a system as long line depends on the liquid line diameter, actual length of the tubing, and vertical separation between the indoor and outdoor units.

For Air Conditioner systems, the chart below shows when an application is considered Long Line.

AC WITH PURONr REFRIGERANT LONG LINE DESCRIPTION ft (m)

Beyond these lengths, long line accessories are required

Liquid Line Size Units On Same Level Outdoor Below Indoor Outdoor Above Indoor

1/4

5/16 120 (36.6) 50 (15.2) vertical or 120 (36.6) total 120 (36.6)

3/8 80 (24.4) 35 (10.7) vertical or 80 24.4) total 80 (24.4)

Note: SeeLongLineGuidelinefordetails

No accessories needed within allowed lengths

175 (53.3)

VAPOR LINE SIZING AND COOLING CAPACITY LOSS

Acceptable vapor line diameters provide adequate oil return to the compressor while avoiding excessive capacity loss. The suction line diameters shown in the chart below are acceptable for AC systems with Puron refrigerant:

24APA7

Nominal

Size (Btuh)

2 --- S t a g e

Puron

2 --- S t a g e

Puron

2 --- S t a g e

Puron

2 --- S t a g e

Puron

Applications in this area may be long line and may have height r estrictions. See the Residential Piping and Long Line Guideline. — Applications in this area are not recommended due to insufficient oil return

Vapor Line Sizing and Cooling Capacity Losses — Puronr Refrigerant 2--Stage Air Conditioner Applications

Unit

024

AC 036

048

AC 060

Maximum

Liquid

Line

Diameters

(In. OD)

3/8

Vapo r L ine

Diameters

(In.) OD

5/8 0 1 1 2 3 3 4 4 5

3/4 0 0 0 0 1 1 1 1 1

5/8 1 2 4 5 6 7 9 10 11

3/4 0 0 1 1 2 2 3 3 4

7/8 0 0 0 0 1 1 1 1 2

3/4 1 2 2 3 4 5 6 7 7

7/8 0 1 1 2 2 2 3 3 3

1 --- 1 / 8 0 0 — — — — — — —

3/4 1 2 4 5 6 7 9 10 11

7/8 0 1 2 2 3 4 4 5 5

1 --- 1 / 8 0 0 0 1 1 1 1 1 1

26--- 50

(7.9--- 15.2)

51--- 80

(15.5--- 24.4)

81--- 100

(24.7--- 30.5)

Cooling Capacity Loss (%)

Total Equivalent Line Length ft. (m)

101--- 125

(30.8--- 38.1)

126--- 150

(38.4--- 45.7)

151--- 175

(46.0--- 50.3)

176--- 200

(53.6--- 60.0)

201--- 225

(61.3--- 68.6)

PHYSICAL DATA

UNIT SIZE --- VOLTAGE, SERIES 24--- 30 36 --- 30 48--- 31 60--- 31 Operating Weight lb (kg) 204 (93) 204 (93) 306 (139) 316 (143) Shipping Weight lb (kg) 243 (110) 243 (110) 363 (165) 373 (169) Compressor Type 2 --- S t a g e S c r o l l REFRIGERANT Puron (R ---410A)

Control TXV (Puron Hard Shutoff) Charge lb (kg) 6.63 (3.01) 6.88 (3.12) 11.63 (5.27) 15.13 (6.86)

COND FAN Propeller Type, Direct Drive

Air Discharge Vertical Air Qty (CFM) 3100 3400 4300 4450 Motor HP 1/10 1/5 1/4 1/4 Motor RPM 800 800 800 800

COND COIL

Face Are a (Sq ft) 21.56 21.56 25.15 30.18 Fins per In. 25 25 20 20 Rows 1 1 2 2

Circuits 4 4 7 8

VALVECONNECT.(In.ID)

Vapor 3/4 7/8 7/8 7/8 Liquid 3/8

REFRIGERANT TUBES (In. OD)

Rated Vapor* 3/4 7/8 1 --- 1 / 8 1 --- 1 / 8 Liquid 3/8

*Units are rated with 25 ft (7.6 m) of lineset length. See Vapor Line Sizing and Cooling Capacity Loss table when using other sizes and lengths of lineset.

226--- 250

(68.9--- 76.2)

Page 5

ELECTRICAL DATA

U n i t S i z e ---

Volt age ,

Series

24--- 30 208/230

36--- 30 208/230 16.70 82.0 1.2 22.08 12.00 12.00 57 (17.4) 54 (16.5) 35

48--- 31 208/230 21.20 96.0 1.3 27.80 10.00 10.00 72 (21.9) 68 (20.7) 40

60--- 31 208/230 23.00 118.0 1.3 30.06 8.00 10.00 93 (28.3) 57 (17.4) 50

* Permissible limits of the voltage r ange at which the unit will operate satisfactorily { If wire is applied at ambien t greater th an 30_C, consult table 310 ---16 of the NEC (NFPA 70). The ampacity of non ---metallic---sheathed cable (NM), trade

name ROMEX, shall be that of 60_C conditions, per the NEC (NFPA 70) Article 336 ---26. If other than uncoated (no ---plated), 60 or 75_C insulation, copper wire (solid wire for 10 AWG or smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the NEC (NFPA 70).

} Length shown is as measured one way along wire path between unit and service panel for voltage drop not to exceed 2%. * * T i m e --- D e l a y f u s e .

FLA --- F u l l L o a d A m ps LRA --- L o c k e d R o t o r A m p s MCA --- Minimum Circuit Amps RLA ---RatedLoadAmps NOTE: Control circuit is 24---V on all units and requires external power source. Copper wire must be used from service disconnect to unit.

All motors/compressors contain internal overload protection.

Complies with 2007 requirements of ASHRAE Standards 90.1

V/PH

OPER VOLTS* COMPR FA N

MIN MAX RLA LRA FLA 60° C 75° C 60° C 75° C

10.30 52.0 0.7 13.58 14.00 14.00 60 (18.3) 57 (17.4) 20

187 253

MCA

MIN

WIRE

SIZE{

MIN

WIRE

SIZE{

MAX

LENGTH

ft. (m)}

MAX

LENGTH

ft. (m)}

MAX

FUSE** or

CKT BRK

AMPS

A--WEIGHTED SOUND POWER (dBA)

U n i t S i z e ---

Voltage, Series

24 --- 30

36 --- 30

48 --- 31

60 --- 31

NOTE: Tested in accordance with AHRI Standard 270 ---08. (Not listed with AHRI).

Standard Rating

(dBA)

7 1 --- l o w s t a g e 49.4 61.4 60.8 61.5 55.5 46.9

7 2 --- h i g h s t a g e 49.9 58.4 61.8 60.0 56.0 50.4

7 2 --- l o w s t a g e 48.9 57.9 64.3 62.0 55.5 50.9

7 4 --- h i g h s t a g e 49.4 59.4 62.3 64.0 56.5 52.4

7 4 --- l o w s t a g e 53.9 63.9 61.8 64.0 56.0 47.9

7 4 --- h i g h s t a g e 52.9 60.9 61.8 64.0 60.0 48.9

7 3 --- l o w s t a g e 51.9 58.9 65.3 61.5 55.0 48.4

7 3 --- h i g h s t a g e 52.4 61.4 62.3 64.0 56.0 49.9

125 250 500 1000 4000 8000

TYPICAL OCTAVE BAND SPECTRUM (dBA, without tone adjustment)

24APA7

CHARGING SUBCOOLING (TXV--TYPE EXPANSION DEVICE)

UNIT SIZE--- VOLTAGE, SERIES REQUIRED SUBCOOLING _F(_C)

24--- 30 10 (5.6)

36--- 30 10 (5.6)

48--- 31 10 (5.6)

60--- 31 10 (5.6)

CONTROLS / THERMOSTATS

Infinity Controls DESCRIPTION

SYSTXCCUIZ01 --- B Infinity System Zone Control User Interface

SYSTXCCUID01 --- B Infinity System Non --- Zone Control User Interface

THERMOSTAT / SUBBASE

PKG.

T P --- P R H 0 1 --- A Programmable Thermidistat T P --- N R H 0 1 --- A Non--- programmable Thermidistat T P --- P H P 0 1 * Performance Series Programmable HP Stat T P --- N H P 0 1 * Performance Series Non --- programmable HP Stat T C --- P H P 0 1 * Comfort Series Programmable HP Stat T C --- N H P 0 1 * Comfort Series Non --- programmable HP Stat

*Serial numbers beginning with 2909 and thereafter.

DESCRIPTION

Page 6

ACCESSORIES

ORDER NUMBER

KSAHS2301AAA HARD START KIT X KSAHS2401AAA HARD START KIT X KSAHS2501AAA HARD START KIT X KSAHS2601AAA HARD START KIT X KSASF0101AAA SUPPORT FEET X X X X KSATX0201PUR TXV PURON HSO X KSATX0301PUR TXV PURON HSO X KSATX0401PUR TXV PURON HSO X KSATX0501PUR TXV PURON HSO X

x = Accessory

DESCRIPTION 24 -- -30 36--- 30 48 -- -31 60--- 31

ACCESSORY USAGE GUIDELINE

REQUIRED FOR

ACCESSORY

Crankcase Heater Standard Standard Standard

Evaporator Freeze Protection

Liquid--- Line Solenoid Valve No No No

24APA7

* For tubing set lengths between 80 and 200 ft. (24.38 and 60.96 m) horizontal or 35 ft. (10.7 m) vertical differential (total equivalent length), refer to the Long

{ Required on all indoor units. Standard on all new Puron refrigerant fan coils and furnace coils.

Low--- Ambient Control

Puron Refrigerant Balance Port Hard---

ShutOff TXV

Support Feet Recommended No Recommended

Winter Start Control

Line Guideline—Air Conditioners and Heat Pumps using Puron® Refrigerant.

L O W --- A M B I E N T C O O L I N G

APPLICATIONS

(Below 55°F/12.8_C)

Standard with Infinityt Control (Low Ambient not allowed with

non---communicating thermostat)

Standard with Infinity Control

(Low ambient not allowed with

non---communicating thermostat)

Ye s{

Standard with Infinity Control

(Low Ambient not allowed with

non---communicating thermostat)

REQUIRED FOR LONG LINE AP-

PLICATIONS*

(Over 80 ft/24.38 m)

No No

Ye s{

No No

REQUIRED FOR SEA COAST

APPLICATIONS (Within 2

miles/3.22 km)

Ye s{

Accessory Description and Usage (Listed Alphabetically)

1. Compressor Start Assist -- Capacitor and Relay

Start capacitor and relay gives a ”hard” boost to compressor motor at each start up.

Usage Guideline: Not required on this unit since compressor always starts

unloaded. Available if required by local codes.

2. Crankcase Heater

An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication on restart and minimizes the chance of liquid slugging.

Usage Guideline:

Required in low ambient cooling applications. Required in long line applications. Suggested in all commercial applications.

3. Support Feet

Four stick--on plastic feet that raise the unit 4 in. (101.6 mm) above the mounting pad. This allows sand, dirt, and other debris to be flushed from the unit base, minimizing corrosion.

Usage Guideline: Suggested in the following applications: Coastal installations. Windy areas or where debris is normally circulating. Rooftop installations. For improved sound ratings.

4. Thermostatic Expansion Valve (TXV)

A modulating flow--control valve which meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving the evaporator.

Kit includes valve, adapter tubes, and external equalizer tube. Hard shut off types are available.

NOTE: When using a hard shut off TXV with single phase reciprocating compressors, a Compressor Start Assist Capacitor and Relay is required.

Usage Guideline:

Required to achieve AHRI ratings in certain equipment combinations. Refer to combination ratings.

Hard shut off TXV or LLS required in air conditioner long line applications.

Page 7

SHIPPING

AIR IN

DIMENSIONS (L x W x H)

SHIPPING

WEIGHT (lbs)

OPERATING

WEIGHT (lbs)

AIR

AIR IN

DISCHARGE

AIR IN

24APA7

(2) PLACES

5/16"

3/8" TIEDOWN KNOCKOUTS

ABCDEFGKLMNP

ELECTRICAL

CHARACTERISTICS

X = YES

O = NO

460-3-60

208/230-3-60

230-1-60

208-230-1-60

SQ.

AIR DISCHARGE

7/8" HOLE

SUPPLY CONN.

FIELD CONTROL

FIELD POWER SUPPLY CONN.

3/8"

7/8" HOLE WITH

1 1/8" KNOCKOUT

1 7/8"

3 1/2"

LIQUID LINE CONN.

MINIMUM

VAPOR LINE CONN.

DIMENSIONS

MOUNTING PAD

24, 36 31 1/2" X 31 1/2"

48, 60 35" X 35"

UNIT SIZE

UNIT SERIES

24APA724 0 X O O O 31 3/16" 39 1/8" 3 7/8" 3/4" 6 9/16" 24 11/16" 9 1/8" 2 15/16" 5/8" 14 1/4" 17 1/4" 19 1/4" 204 243 32 3/8" X 35 1/2" X 42 3/4"

24APA760 0, 1 X O O O 35" 45 7/8" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 17 7/8" 18 5/8" 20 1/4" 316 373 36 1/8" X 39 5/16" X 46 3/16"

24APA748 0, 1 X O O O 35" 39 1/8" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 18" 17 1/2" 19 1/2" 306 263 36 1/8" X 39 5/16" X 42 3/4"

24APA736 0 X O O O 31 3/16" 39 1/8" 3 7/8" 7/8" 6 9/16" 24 11/16" 9 1/8" 2 15/16" 5/8" 14 1/4" 17 1/4" 19 1/4" 206 243 32 3/8" X 35 1/2" X 42 3/4"

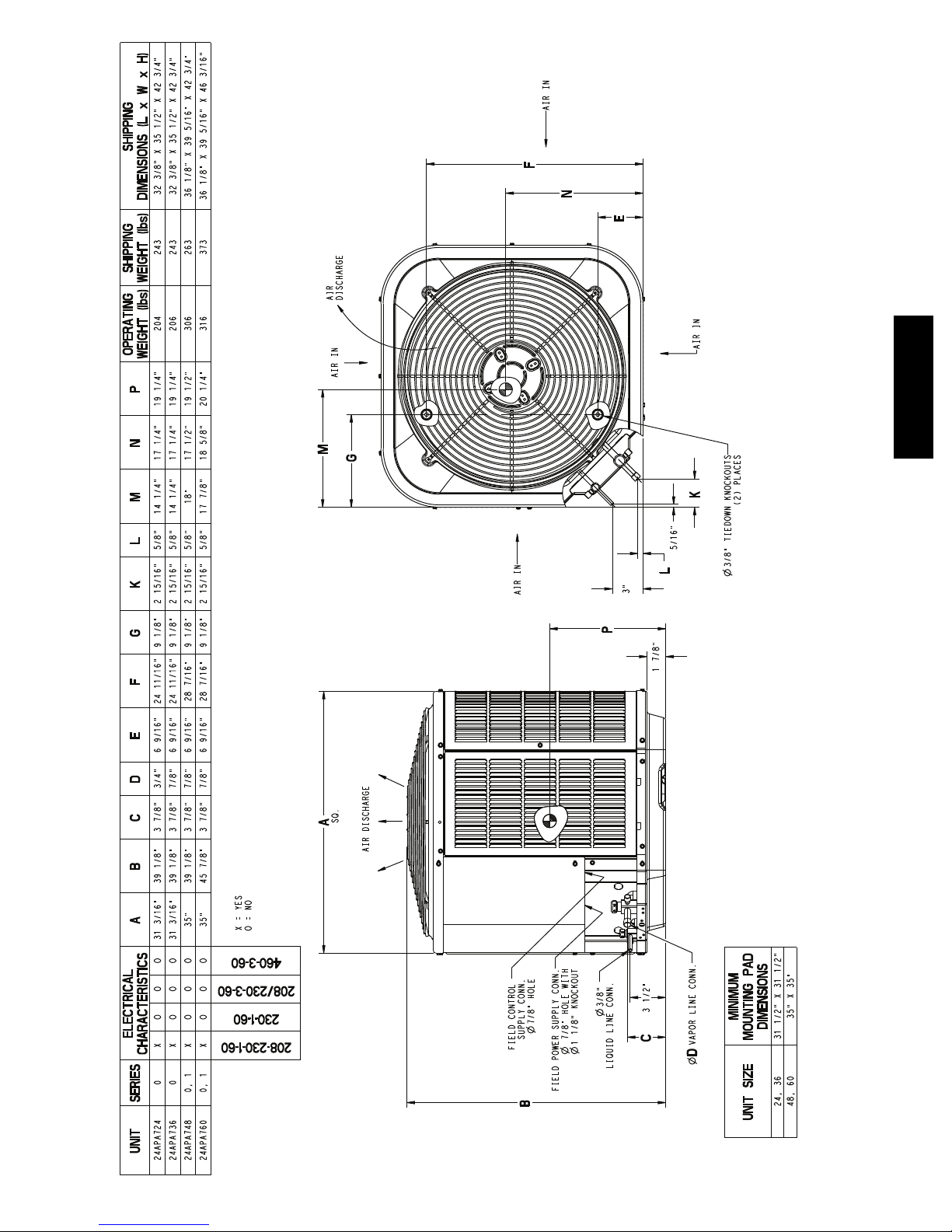

DIMENSIONS -- ENGLISH

Page 8

AIR IN

SHIPPING

DIMENSIONS (L x W x H)

SHIPPING

WEIGHT (Kgs)

OPERATING

WEIGHT (Kgs)

AIR

DISCHARGE

AIR IN

24APA7

(2) PLACES

8.0

9.53 TIEDOWN KNOCKOUTS

AIR IN

76.2

47.6

SQ.

ABCDEFGKLMNP

X = YES

O = NO

AIR DISCHARGE

460-3-60

208/230-3-60

9.53

88.9

LIQUID LINE CONN.

VAPOR LINE CONN.

MINIMUM

DIMENSIONS

MOUNTING PAD

24,36 800.1 X 800.1

48,60 889.0 X 889.0

ELECTRICAL

CHARACTERISTICS

230-1-60

208-230-1-60

22.23 HOLE

SUPPLY CONN.

FIELD CONTROL

FIELD POWER SUPPLY CONN.

28.58 KNOCKOUT

22.23 HOLE WITH

UNIT SIZE

UNIT SERIES

24APA760 0, 1 X O O O 889.0 1165.2 98.4 22.2 166.7 722.3 231.8 74.6 15.9 454.0 473.1 514.4 143 169 917.6 X 998.5 X 1173.2

24APA748 0, 1 X O O O 889.0 993.8 98.4 22.2 166.7 722.3 231.8 74.6 15.9 457.2 444.5 495.3 139 119 917.6 X 998.5 X 1085.9

24APA736 0 X O O O 792.2 993.8 98.4 22.2 166.7 627.1 231.8 74.6 15.9 362.0 438.2 489.0 93 110 822.3 X 901.7 X 1085.9

24APA724 0 X O O O 792.2 993.8 98.4 19.1 166.7 627.1 231.8 74.6 15.9 362.0 438.2 489.0 93 110 822.3 X 901.7 X 1085.9

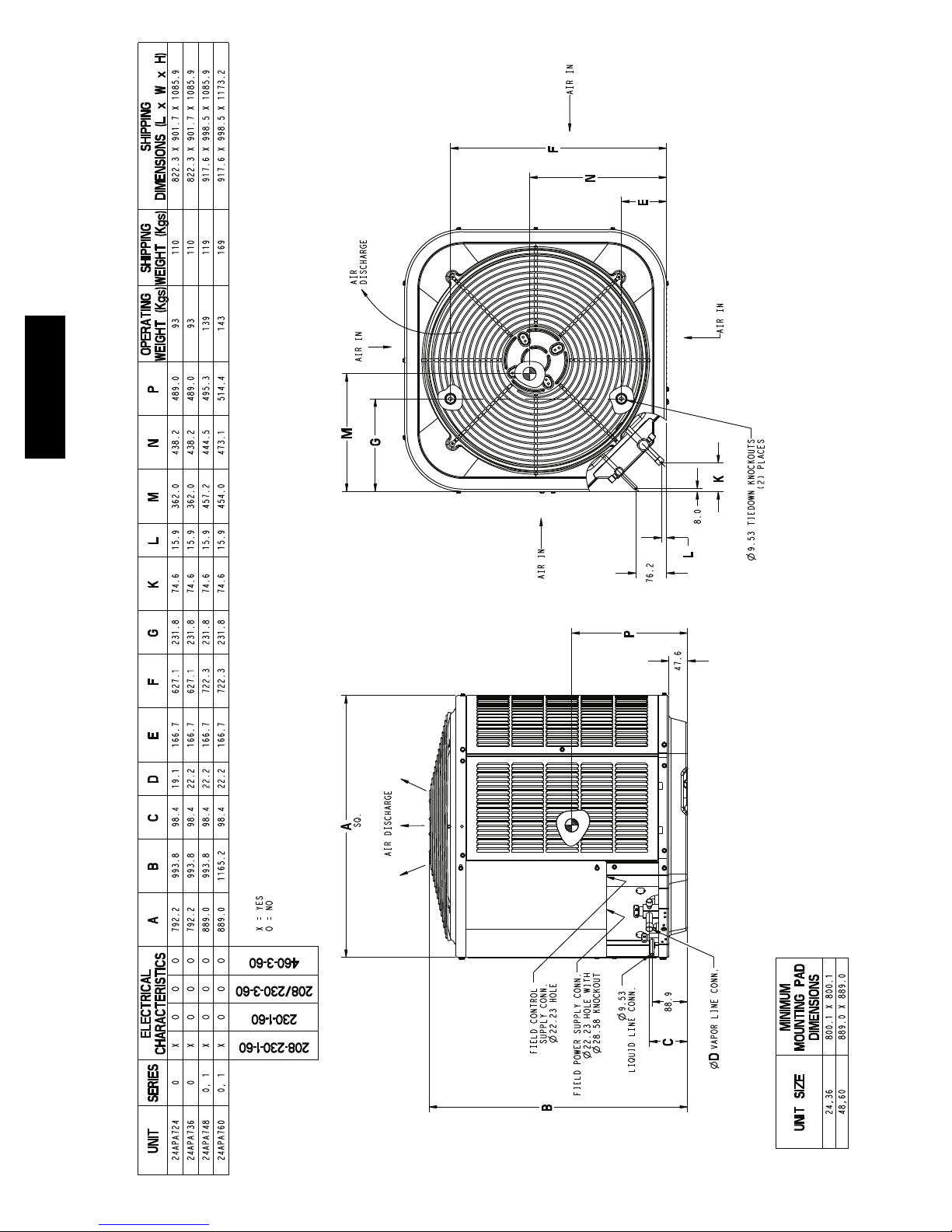

DIMENSIONS -- SI

Page 9

Wall

6”

A07833

(152.4)

24”

Wall

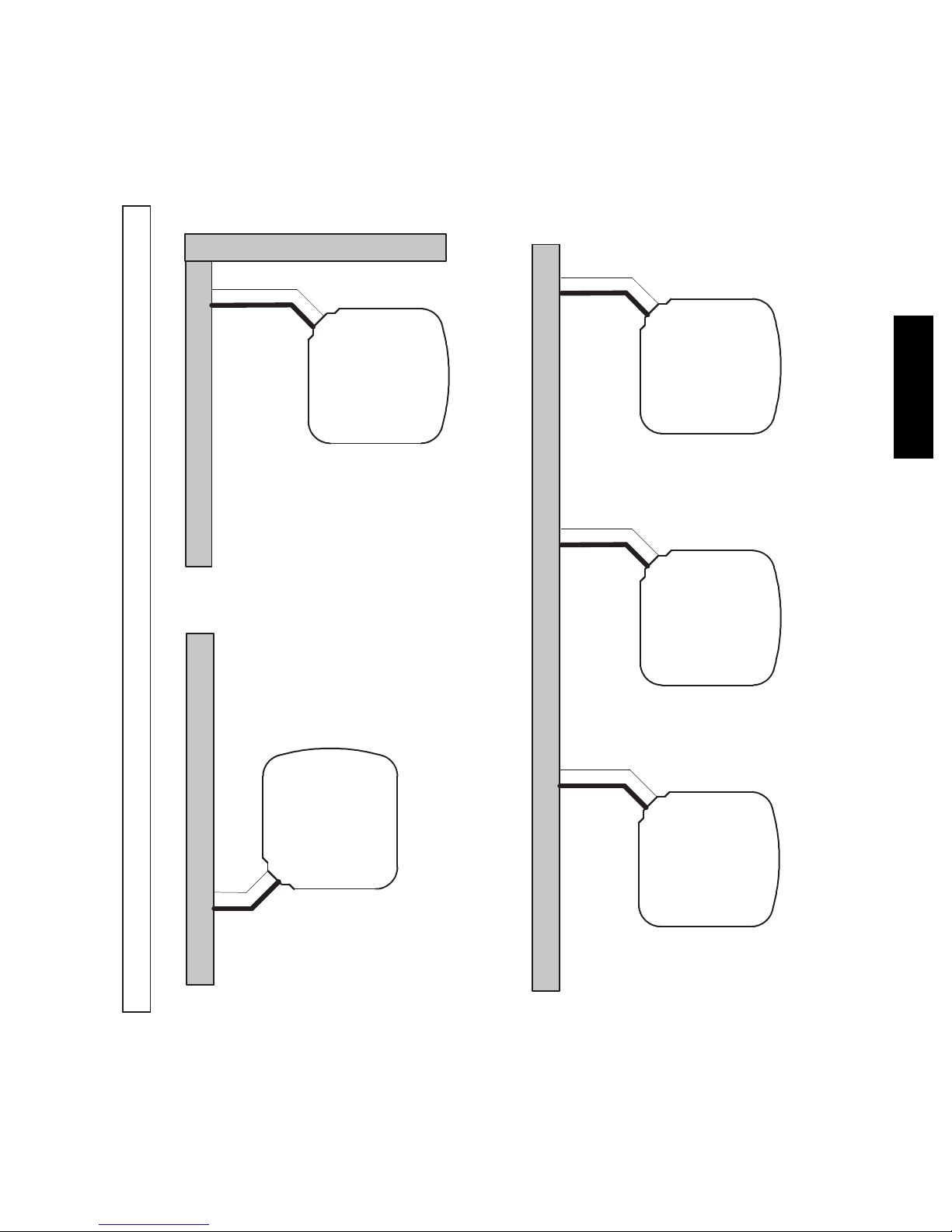

Clearances (various examples)

Service

12”

(304.8)

6”

Wall

(152.4 mm)

12”

(304.8)

12”

(304.8)

12”

(304.8)

Wall

24”

(609.6)

24”

(609.6)

24”

(609.6)

Service

24APA7

24”

(609.6)

24”

(609.6)

24”

CLEARANCES

(609.6)

Service

24”

Note: Numbers in ( ) = mm

(609.6)

IMPORTANT: When installing multiple units in an alcove, roof well, or partially enclosed area, ensure there is adequate ventilation to prevent re--circulation of discharge air.

Page 10

COMBINATION RATINGS

Ref. No.

3483687 24APA724A30 †CNPV*4217A** 58PH*045--- 08 25,200 21,000 13.2 16.0 715 585 3483688 24APA724A30 CAP**2414A**+TDR 24,200 20,000 11.8 14.0 700 560 3613515 24APA724A30 CAP**2417A** 58ME(B,C)040--- 12 25,200 21,200 13.3 16.5 765 655 3483781 24APA724A30 CAP**2417A** 58ME(B,C)060--- 12 25,200 21,000 13.3 16.5 780 625 3483780 24APA724A30 CAP**2417A** 58MEB040 --- 12 25,200 21,200 13.3 16.5 765 655 3877989 24APA724A30 CAP**2417A** 58UVB060 ---14 24,800 20,600 13.2 16.0 725 580 3563730 24APA724A30 CAP**2417A** 58VLR105---12 24,800 20,600 13.2 16.5 715 585 3563729 24APA724A30 CAP**2417A** 58VMR105--- 12 24,600 20,200 13.0 16.0 660 520 4213144 24APA724A30 CAP**2417A** OVLAAB036098 24,800 19,800 12.5 16.0 865 530 4213143 24APA724A30 CAP**2417A** OVMAAB036098 24,400 20,000 12.7 16.2 725 550 4213145 24APA724A30 CAP**2417A** OVMAAB042112 24,400 20,200 13.0 16.2 690 580 3483689 24APA724A30 CAP**2417A**+TDR 24,200 20,000 11.8 14.0 700 560 3483691 24APA724A30 CAP**2417A**+UI 58CV(A,X)090 ---16 24,600 20,400 13.2 16.0 670 535 3483690 24APA724A30 CAP**2417A**+UI 58MV(B,C)060---14 24,800 20,600 13.2 16.0 725 580 3483694 24APA724A30 CAP**3014A** 58PH*045--- 08 25,000 20,600 13.0 16.0 720 585 3483692 24APA724A30 CAP**3014A**+TDR 24,400 20,000 11.9 14.0 700 560 3483693 24APA724A30 CAP**3014A**+UI 58CV(A,X)070 ---12 24,600 20,200 13.1 16.0 660 530 3613512 24APA724A30 CAP**3017A** 58ME(B,C)040--- 12 25,400 21,200 13.5 16.5 785 680 3483785 24APA724A30 CAP**3017A** 58ME(B,C)060--- 12 25,400 21,200 13.4 16.5 795 650 3483784 24APA724A30 CAP**3017A** 58MEB040 --- 12 25,400 21,200 13.5 16.5 785 680

24APA7

3877990 24APA724A30 CAP**3017A** 58UVB060 ---14 25,000 20,600 13.3 16.5 725 580 3563732 24APA724A30 CAP**3017A** 58VLR105 ---12 25,000 20,600 13.0 16.5 715 585 3563731 24APA724A30 CAP**3017A** 58VMR105--- 12 24,600 20,200 13.0 16.0 660 520 4213147 24APA724A30 CAP**3017A** OVLAAB036098 25,000 19,800 12.7 16.2 865 530 4213146 24APA724A30 CAP**3017A** OVMAAB036098 24,600 20,000 12.7 16.2 725 550 4213148 24APA724A30 CAP**3017A** OVMAAB042112 24,400 20,200 13.0 16.5 690 580 3483695 24APA724A30 CAP**3017A**+TDR 24,400 20,000 11.9 14.0 700 560 3483697 24APA724A30 CAP**3017A**+UI 58CV(A,X)090 ---16 24,800 20,400 13.3 16.0 670 535 3483696 24APA724A30 CAP**3017A**+UI 58MV(B,C)060---14 25,000 20,600 13.3 16.5 725 580 3483700 24APA724A30 CAP**3614A** 58PH*045--- 08 25,000 20,800 13.1 16.0 725 590 3483698 24APA724A30 CAP**3614A**+TDR 24,400 20,200 11.9 14.0 700 560 3483699 24APA724A30 CAP**3614A**+UI 58CV(A,X)070 ---12 24,800 20,400 13.1 16.0 660 530 3613513 24APA724A30 CAP**3617A** 58ME(B,C)040--- 12 25,400 21,400 13.5 17.0 790 695 3483789 24APA724A30 CAP**3617A** 58ME(B,C)060--- 12 25,600 21,200 13.5 16.5 805 660 3483788 24APA724A30 CAP**3617A** 58MEB040 --- 12 25,400 21,400 13.5 17.0 790 695 3877991 24APA724A30 CAP**3617A** 58UVB060 ---14 25,200 20,800 13.4 16.5 725 580 4213150 24APA724A30 CAP**3617A** OVLAAB036098 25,200 20,000 12.7 16.2 865 530 4213149 24APA724A30 CAP**3617A** OVMAAB036098 24,600 20,200 12.7 16.2 725 550 4213151 24APA724A30 CAP**3617A** OVMAAB042112 24,600 20,400 13.2 16.5 690 580 3483701 24APA724A30 CAP**3617A**+TDR 24,400 20,200 11.9 14.0 700 560 3483703 24APA724A30 CAP**3617A**+UI 58CV(A,X)090 ---16 24,800 20,400 13.3 16.5 670 535 3483702 24APA724A30 CAP**3617A**+UI 58MV(B,C)060---14 25,200 20,800 13.4 16.5 725 580 3563746 24APA724A30 CAP**3619A** 58HDV040 --- --- 12 25,000 20,600 13.0 16.0 765 595 3563747 24APA724A30 CAP**3619A** 58HDV060 --- --- 12 25,000 21,000 13.0 16.0 820 640 4213156 24APA724A30 CAP**3619A** OVLAAB036098 25,200 20,000 12.7 16.2 865 530 4213155 24APA724A30 CAP**3619A** OVMAAB036098 24,600 20,200 12.7 16.2 725 550 4213157 24APA724A30 CAP**3619A** OVMAAB042112 24,600 20,400 13.2 16.5 690 580 3594971 24APA724A30 CAP**3619A**+TDR 24,000 20,000 11.8 14.0 700 560 3483790 24APA724A30 CAP**3621A** 58ME(B,C)060--- 12 25,600 21,400 13.6 17.0 820 695 3877992 24APA724A30 CAP**3621A** 58UVB080 ---14 24,800 20,400 13.3 16.5 660 530 3877993 24APA724A30 CAP**3621A** 58UVB080 ---20 24,600 20,200 13.2 16.0 630 505 3877994 24APA724A30 CAP**3621A** 58UVB100 ---20 24,800 20,400 13.3 16.5 665 530 4213153 24APA724A30 CAP**3621A** OVLAAB036098 25,200 20,000 12.7 16.2 865 530 4213152 24APA724A30 CAP**3621A** OVMAAB036098 24,600 20,200 13.0 16.2 725 550 4213154 24APA724A30 CAP**3621A** OVMAAB042112 24,600 20,400 13.2 16.5 690 580 3483704 24APA724A30 CAP**3621A**+TDR 24,400 20,200 11.9 14.0 700 560 3483708 24APA724A30 CAP**3621A**+UI 58CV(A,X)110 ---20 24,800 20,400 13.3 16.5 675 540 3483705 24APA724A30 CAP**3621A**+UI 58MV(B,C)080---14 24,800 20,400 13.3 16.5 660 530 3483706 24APA724A30 CAP**3621A**+UI 58MV(B,C)080---20 24,600 20,200 13.2 16.0 630 505 3483707 24APA724A30 CAP**3621A**+UI 58MV(B,C)100---20 24,800 20,400 13.3 16.5 665 530 3613517 24APA724A30 CNPH*2417A** 58ME(B,C)040---12 25,000 21,000 13.2 16.5 725 610 3483803 24APA724A30 CNPH*2417A** 58ME(B,C)060---12 25,000 20,800 13.2 16.5 735 575 3483802 24APA724A30 CNPH*2417A** 58MEB040--- 12 25,000 21,000 13.2 16.5 725 610 3483732 24APA724A30 CNPH*2417A** 58PH*045--- 08 24,600 20,600 12.9 16.0 695 565 4213178 24APA724A30 CNPH*2417A** OVLAAB036098 24,800 20,000 12.2 16.0 865 530 4213177 24APA724A30 CNPH*2417A** OVMAAB036098 24,400 20,000 12.5 16.0 725 550 4213179 24APA724A30 CNPH*2417A** OVMAAB042112 24,200 20,400 12.7 16.2 690 580 3483726 24APA724A30 CNPH*2417A**+TDR 24,200 20,200 11.8 14.0 700 560 3483730 24APA724A30 CNPH*2417A**+UI 58CV(A,X)070--- 12 24,400 20,200 13.0 16.0 660 530 3483731 24APA724A30 CNPH*2417A**+UI 58CV(A,X)090--- 16 24,600 20,400 13.1 16.0 670 535 3483728 24APA724A30 CNPH*2417A**+UI 58MV(B,C)060 ---14 24,800 20,600 13.1 16.0 725 580

See notes on page 21

AHRI

Model Number

Coil

Model Number

Furnace

Model Number

Cooling

Capacity

High Low High Low

EER SEER

ID CFM

Page 11

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3483729 24APA724A30 CNPH*2417A**+UI 58MV(B,C)080 ---14 24,600 20,400 13.0 16.0 660 530 3483727 24APA724A30 CNPH*2417A**+UI 58MVB040 ---14 24,600 20,400 12.9 16.0 675 540 3613518 24APA724A30 CNPH*3017A** 58ME(B,C)040---12 25,400 21,200 13.4 16.5 775 675 3483805 24APA724A30 CNPH*3017A** 58ME(B,C)060---12 25,400 21,200 13.4 16.5 790 645 3483804 24APA724A30 CNPH*3017A** 58MEB040--- 12 25,400 21,200 13.4 16.5 775 675 3483739 24APA724A30 CNPH*3017A** 58PH*045--- 08 25,000 20,800 13.1 16.0 730 595 4213181 24APA724A30 CNPH*3017A** OVLAAB036098 25,200 20,000 12.7 16.2 865 530 4213180 24APA724A30 CNPH*3017A** OVMAAB036098 24,600 20,000 12.7 16.2 725 550 4213182 24APA724A30 CNPH*3017A** OVMAAB042112 24,400 20,400 13.0 16.5 690 580 3483733 24APA724A30 CNPH*3017A**+TDR 24,400 20,000 11.9 14.0 700 560 3483737 24APA724A30 CNPH*3017A**+UI 58CV(A,X)070--- 12 24,600 20,200 13.1 16.0 660 530 3483738 24APA724A30 CNPH*3017A**+UI 58CV(A,X)090--- 16 24,800 20,400 13.3 16.5 670 535 3483735 24APA724A30 CNPH*3017A**+UI 58MV(B,C)060 ---14 25,000 20,600 13.3 16.5 725 580 3483736 24APA724A30 CNPH*3017A**+UI 58MV(B,C)080 ---14 24,600 20,200 13.2 16.0 660 530 3483734 24APA724A30 CNPH*3017A**+UI 58MVB040 ---14 24,800 20,400 13.1 16.0 675 540 4213184 24APA724A30 CNPH*3117A** OVLAAB036098 25,600 20,400 13.0 16.5 865 530 4213183 24APA724A30 CNPH*3117A** OVMAAB036098 25,000 20,400 13.0 16.5 725 550 4213185 24APA724A30 CNPH*3117A** OVMAAB042112 25,000 20,800 13.2 16.7 690 580 3483806 24APA724A30 CNPH*3617A** 58ME(B,C)060---12 25,200 21,200 13.4 16.5 790 645 3483748 24APA724A30 CNPH*3617A** 58PH*045--- 08 25,000 20,800 13.1 16.0 730 595 4213187 24APA724A30 CNPH*3617A** OVLAAB036098 25,200 20,000 12.7 16.2 865 530 4213186 24APA724A30 CNPH*3617A** OVMAAB036098 24,600 20,000 12.7 16.2 725 550 4213188 24APA724A30 CNPH*3617A** OVMAAB042112 24,400 20,400 13.0 16.5 690 580 3483742 24APA724A30 CNPH*3617A**+TDR 24,400 20,000 11.9 14.0 700 560 3483746 24APA724A30 CNPH*3617A**+UI 58CV(A,X)070--- 12 24,600 20,200 13.1 16.0 660 530 3483747 24APA724A30 CNPH*3617A**+UI 58CV(A,X)090--- 16 24,800 20,400 13.3 16.5 670 535 3483744 24APA724A30 CNPH*3617A**+UI 58MV(B,C)060 ---14 25,000 20,600 13.3 16.5 725 580 3483745 24APA724A30 CNPH*3617A**+UI 58MV(B,C)080 ---14 24,600 20,200 13.2 16.0 660 530 3483743 24APA724A30 CNPH*3617A**+UI 58MVB040 ---14 24,800 20,400 13.1 16.0 675 540 3483711 24APA724A30 CNPV*2414A** 58PH*045 ---08 24,600 20,600 12.9 16.0 695 565 3483709 24APA724A30 CNPV*2414A**+TDR 24,200 20,200 11.8 14.0 700 560 3483710 24APA724A30 CNPV*2414A**+UI 58CV(A,X)070 ---12 24,400 20,200 13.0 16.0 660 530 3613514 24APA724A30 CNPV*2417A** 58ME(B,C)040 ---12 25,000 21,000 13.2 16.5 725 610 3483794 24APA724A30 CNPV*2417A** 58ME(B,C)060 ---12 25,000 20,800 13.1 16.5 735 575 3483793 24APA724A30 CNPV*2417A** 58MEB040--- 12 25,000 21,000 13.2 16.5 725 610 3877995 24APA724A30 CNPV*2417A** 58UVB060 ---14 24,800 20,600 13.0 16.0 725 580 3563734 24APA724A30 CNPV*2417A** 58VLR105 ---12 24,800 20,800 13.0 16.5 715 585 3563733 24APA724A30 CNPV*2417A** 58VMR105---12 24,400 20,200 12.8 16.0 660 520 4213160 24APA724A30 CNPV*2417A** OVLAAB036098 24,800 20,000 12.2 16.0 865 530 4213158 24APA724A30 CNPV*2417A** OVMAAB036098 24,400 20,000 12.5 16.0 725 550 4213161 24APA724A30 CNPV*2417A** OVMAAB042112 24,200 20,400 12.7 16.2 690 580 3483712 24APA724A30 CNPV*2417A**+TDR 24,200 20,200 11.8 14.0 700 560 3483714 24APA724A30 CNPV*2417A**+UI 58CV(A,X)090 ---16 24,600 20,400 13.1 16.0 670 535 3483713 24APA724A30 CNPV*2417A**+UI 58MV(B,C)060--- 14 24,800 20,600 13.0 16.0 725 580 3483717 24APA724A30 CNPV*3014A** 58PH*045 ---08 24,800 20,600 13.0 16.0 705 580 3483715 24APA724A30 CNPV*3014A**+TDR 24,400 20,000 11.9 14.0 700 560 3483716 24APA724A30 CNPV*3014A**+UI 58CV(A,X)070 ---12 24,600 20,200 13.1 16.0 660 530 3483797 24APA724A30 CNPV*3017A** 58ME(B,C)060 ---12 25,400 21,200 13.4 16.5 790 645 3877987 24APA724A30 CNPV*3017A** 58UVB060 ---14 25,000 20,600 13.3 16.5 725 580 3563736 24APA724A30 CNPV*3017A** 58VLR105 ---12 25,000 20,800 13.0 16.5 715 585 3563735 24APA724A30 CNPV*3017A** 58VMR105---12 24,600 20,200 13.0 16.0 660 520 4213163 24APA724A30 CNPV*3017A** OVLAAB036098 25,200 20,000 12.7 16.2 865 530 4213162 24APA724A30 CNPV*3017A** OVMAAB036098 24,600 20,000 12.7 16.2 725 550 4213164 24APA724A30 CNPV*3017A** OVMAAB042112 24,400 20,400 13.0 16.5 690 580 3483718 24APA724A30 CNPV*3017A**+TDR 24,400 20,000 11.9 14.0 700 560 3483720 24APA724A30 CNPV*3017A**+UI 58CV(A,X)090 ---16 24,800 20,400 13.3 16.5 670 535 3483719 24APA724A30 CNPV*3017A**+UI 58MV(B,C)060--- 14 25,000 20,600 13.3 16.5 725 580 3483798 24APA724A30 CNPV*3117A** 58ME(B,C)060 ---12 25,600 21,600 13.7 17.0 800 655 3878044 24APA724A30 CNPV*3117A** 58UVB060 ---14 25,600 21,200 13.6 16.5 725 580 3563738 24APA724A30 CNPV*3117A** 58VLR105 ---12 25,600 21,200 13.5 16.5 715 585 3563737 24APA724A30 CNPV*3117A** 58VMR105---12 25,200 20,600 13.0 16.5 660 520 4213166 24APA724A30 CNPV*3117A** OVLAAB036098 25,600 20,400 13.0 16.5 865 530 4213165 24APA724A30 CNPV*3117A** OVMAAB036098 25,000 20,400 13.0 16.5 725 550 4213167 24APA724A30 CNPV*3117A** OVMAAB042112 25,000 20,800 13.2 16.7 690 580 3747702 24APA724A30 CNPV*3117A** 24,800 20,600 12.1 14.5 700 560 3483721 24APA724A30 CNPV*3117A**+TDR 24,800 20,600 12.1 14.5 700 560 3484271 24APA724A30 CNPV*3117A**+UI 58CV(A,X)090 ---16 25,200 20,800 13.5 16.5 670 535 3484270 24APA724A30 CNPV*3117A**+UI 58MV(B,C)060--- 14 25,600 21,200 13.6 16.5 725 580 3877988 24APA724A30 CNPV*3617A** 58UVB060 ---14 25,000 20,600 13.3 16.5 725 580 3563740 24APA724A30 CNPV*3617A** 58VLR105 ---12 25,000 20,800 13.0 16.5 715 585 3563739 24APA724A30 CNPV*3617A** 58VMR105---12 24,600 20,200 13.0 16.0 660 520

See notes on page 21

Model Number

Coil

Model Number

Furnace

Model Number

Cooling

Capacity

High Low High Low

EER SEER

ID CFM

24APA7

Page 12

COMBINATION RATINGS CONTINUED

Ref. No.

4213169 24APA724A30 CNPV*3617A** OVLAAB036098 25,200 20,000 12.7 16.2 865 530 4213168 24APA724A30 CNPV*3617A** OVMAAB036098 24,600 20,000 12.7 16.2 725 550 4213170 24APA724A30 CNPV*3617A** OVMAAB042112 24,400 20,400 13.0 16.5 690 580 3483722 24APA724A30 CNPV*3617A**+TDR 24,400 20,000 11.9 14.0 700 560 3483724 24APA724A30 CNPV*3617A**+UI 58CV(A,X)090 ---16 24,800 20,400 13.3 16.5 670 535 3483723 24APA724A30 CNPV*3617A**+UI 58MV(B,C)060--- 14 25,000 20,600 13.3 16.5 725 580 3613516 24APA724A30 CNPV*3621A** 58ME(B,C)040 ---12 25,400 21,400 13.5 16.5 780 680 3483800 24APA724A30 CNPV*3621A** 58ME(B,C)060 ---12 25,400 21,200 13.4 16.5 790 650 3483799 24APA724A30 CNPV*3621A** 58MEB040--- 12 25,400 21,400 13.5 16.5 780 680 3895971 24APA724A30 CNPV*3621A** 58MV(B,C)080 ---14 24,000 19,200 13.0 16.0 660 490 3895970 24APA724A30 CNPV*3621A** 58UVB080 ---14 24,000 19,200 13.0 16.0 660 490 4213172 24APA724A30 CNPV*3621A** OVLAAB036098 25,200 20,000 12.7 16.2 865 530 4213171 24APA724A30 CNPV*3621A** OVMAAB036098 24,600 20,000 12.7 16.2 725 550 4213173 24APA724A30 CNPV*3621A** OVMAAB042112 24,400 20,400 13.0 16.5 690 580 4213198 24APA724A30 CNPV*3621A**+UI 58MV(B,C)100--- 20 24,600 20,800 13.0 16.5 700 680 3483801 24APA724A30 CNPV*3717A** 58ME(B,C)060 ---12 26,200 22,000 13.9 17.0 810 680 3878038 24APA724A30 CNPV*3717A** 58UVB060 ---14 25,800 21,400 13.7 17.0 725 580 3563742 24APA724A30 CNPV*3717A** 58VLR105 ---12 25,800 21,400 13.5 16.5 715 585 3563741 24APA724A30 CNPV*3717A** 58VMR105---12 25,400 20,800 13.5 16.5 660 520 4213175 24APA724A30 CNPV*3717A** OVLAAB036098 26,000 20,600 13.2 16.7 865 530

24APA7

4213174 24APA724A30 CNPV*3717A** OVMAAB036098 25,400 20,600 13.2 16.7 725 550 4213176 24APA724A30 CNPV*3717A** OVMAAB042112 25,200 21,000 13.5 17.0 690 580 3483725 24APA724A30 CNPV*3717A**+TDR 25,200 20,800 12.2 14.5 700 560 3484273 24APA724A30 CNPV*3717A**+UI 58CV(A,X)090 ---16 25,400 21,000 13.6 16.5 670 535 3484272 24APA724A30 CNPV*3717A**+UI 58MV(B,C)060--- 14 25,800 21,400 13.7 17.0 725 580 3483757 24APA724A30 CSPH*2412A** 58HDV040 --- ---12 24,800 20,600 12.7 16.0 705 540 3483758 24APA724A30 CSPH*2412A** 58HDV060 --- ---12 25,000 20,800 12.8 16.0 735 565 3613519 24APA724A30 CSPH*2412A** 58ME(B,C)040 ---12 25,200 21,000 13.3 16.5 710 585 3483808 24APA724A30 CSPH*2412A** 58ME(B,C)060 ---12 25,200 20,600 13.2 16.5 725 545 3483807 24APA724A30 CSPH*2412A** 58MEB040 ---12 25,200 21,000 13.3 16.5 710 585 3483756 24APA724A30 CSPH*2412A** 58PH*045 ---08 24,800 20,600 13.0 16.0 685 555 3563743 24APA724A30 CSPH*2412A** 58VMR105 ---12 24,800 20,400 13.0 16.0 660 520 4213190 24APA724A30 CSPH*2412A** OVLAAB036098 25,000 20,200 12.2 16.0 865 530 4213189 24APA724A30 CSPH*2412A** OVMAAB036098 24,600 20,200 12.7 16.2 725 550 4213191 24APA724A30 CSPH*2412A** OVMAAB042112 24,600 20,600 12.7 16.2 690 580 3483751 24APA724A30 CSPH*2412A**+TDR 24,600 20,400 12.0 14.5 700 560 3483754 24APA724A30 CSPH*2412A**+UI 58CV(A,X)070 ---12 24,800 20,400 13.0 16.0 660 530 3483755 24APA724A30 CSPH*2412A**+UI 58CV(A,X)090 ---16 24,800 20,600 13.2 16.0 670 535 3483753 24APA724A30 CSPH*2412A**+UI 58MV(B,C)060 ---14 25,200 20,800 13.1 16.0 725 580 3483752 24APA724A30 CSPH*2412A**+UI 58MVB040--- 14 24,800 20,600 13.0 16.0 675 540 3483765 24APA724A30 CSPH*3012A** 58HDV040 --- ---12 25,000 20,600 12.8 16.0 735 570 3483766 24APA724A30 CSPH*3012A** 58HDV060 --- ---12 25,200 20,800 12.9 16.0 780 605 3613520 24APA724A30 CSPH*3012A** 58ME(B,C)040 ---12 25,400 21,200 13.4 16.5 750 640 3483810 24APA724A30 CSPH*3012A** 58ME(B,C)060 ---12 25,400 21,000 13.4 16.5 765 605 3483809 24APA724A30 CSPH*3012A** 58MEB040 ---12 25,400 21,200 13.4 16.5 750 640 3483764 24APA724A30 CSPH*3012A** 58PH*045 ---08 25,000 20,800 13.1 16.0 715 580 3563744 24APA724A30 CSPH*3012A** 58VMR105 ---12 24,800 20,200 13.0 16.0 660 520 4213193 24APA724A30 CSPH*3012A** OVLAAB036098 25,200 20,200 12.7 16.2 865 530 4213192 24APA724A30 CSPH*3012A** OVMAAB036098 24,800 20,400 12.7 16.5 725 550 4213194 24APA724A30 CSPH*3012A** OVMAAB042112 24,600 20,600 13.0 16.5 690 580 3483759 24APA724A30 CSPH*3012A**+TDR 24,600 20,200 11.9 14.0 700 560 3483762 24APA724A30 CSPH*3012A**+UI 58CV(A,X)070 ---12 24,800 20,400 13.1 16.0 660 530 3483763 24APA724A30 CSPH*3012A**+UI 58CV(A,X)090 ---16 24,800 20,400 13.3 16.0 670 535 3483761 24APA724A30 CSPH*3012A**+UI 58MV(B,C)060 ---14 25,200 20,800 13.3 16.5 725 580 3483760 24APA724A30 CSPH*3012A**+UI 58MVB040--- 14 24,800 20,400 13.1 16.0 675 540 3483774 24APA724A30 CSPH*3612A** 58HDV040 --- ---12 25,600 21,000 13.1 16.5 755 585 3483775 24APA724A30 CSPH*3612A** 58HDV060 --- ---12 25,800 21,400 13.2 16.5 815 630 3613521 24APA724A30 CSPH*3612A** 58ME(B,C)040 ---12 25,800 21,800 13.7 17.0 780 675 3483812 24APA724A30 CSPH*3612A** 58ME(B,C)060 ---12 26,000 21,600 13.7 17.0 795 640 3483811 24APA724A30 CSPH*3612A** 58MEB040 ---12 25,800 21,800 13.7 17.0 780 675 3483773 24APA724A30 CSPH*3612A** 58PH*045 ---08 25,400 21,200 13.3 16.5 735 590 3563745 24APA724A30 CSPH*3612A** 58VMR105 ---12 25,200 20,600 13.0 16.5 660 520 4213196 24APA724A30 CSPH*3612A** OVLAAB036098 25,600 20,200 13.0 16.2 865 530 4213195 24APA724A30 CSPH*3612A** OVMAAB036098 25,000 20,400 13.0 16.5 725 550 4213197 24APA724A30 CSPH*3612A** OVMAAB042112 25,000 20,600 13.2 16.7 690 580 3483767 24APA724A30 CSPH*3612A**+TDR 24,800 20,400 12.1 14.5 700 560 3483771 24APA724A30 CSPH*3612A**+UI 58CV(A,X)070 ---12 25,000 20,600 13.3 16.5 660 530 3483772 24APA724A30 CSPH*3612A**+UI 58CV(A,X)090 ---16 25,200 20,800 13.5 16.5 670 535 3483769 24APA724A30 CSPH*3612A**+UI 58MV(B,C)060 ---14 25,600 21,000 13.5 16.5 725 580 3483770 24APA724A30 CSPH*3612A**+UI 58MV(B,C)080 ---14 25,200 20,600 13.4 16.5 660 530 3483768 24APA724A30 CSPH*3612A**+UI 58MVB040--- 14 25,200 20,800 13.3 16.5 675 540

See notes on page 21

AHRI

Model Number

Coil

Model Number

Furnace

Model Number

Cooling

Capacity

High Low High Low

EER SEER

ID CFM

Page 13

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3483777 24APA724A30 FE4AN(B,F)003+UI 25,000 20,800 13.5 17.0 700 560 3483776 24APA724A30 FE4ANF002+UI 25,000 20,800 13.3 16.5 700 560 3483779 24APA724A30 FV4CN(B,F)003 25,000 20,800 13.5 16.5 700 560 3483778 24APA724A30 FV4CNF002 25,000 20,800 13.3 16.5 700 560

3483813 24APA736A30 †CNPV*4821A** 58PH*090--- 16 36,600 30,400 13.2 16.5 1,090 960 3483814 24APA736A30 CAP**3614A**+TDR 34,800 28,600 11.8 14.5 1,050 840 3483815 24APA736A30 CAP**3614A**+UI 58CV(A,X)070 ---12 35,600 28,800 12.4 16.0 1,005 805 3483951 24APA736A30 CAP**3617A** 58ME(B,C)060--- 12 36,000 29,600 12.7 16.5 1,080 955 3483952 24APA736A30 CAP**3617A** 58ME(B,C)080--- 12 36,000 29,600 12.7 16.5 1,055 925 3483953 24APA736A30 CAP**3617A** 58ME(B,C)080--- 16 36,000 29,800 12.7 16.0 1,080 985 3877996 24APA736A30 CAP**3617A** 58UVB060 ---14 36,000 29,200 12.7 16.5 1,055 845 3563751 24APA736A30 CAP**3617A** 58VLR105 ---12 36,000 29,400 12.5 16.0 1,065 880 3563750 24APA736A30 CAP**3617A** 58VMR105--- 12 35,600 28,800 12.6 16.0 975 800 4213199 24APA736A30 CAP**3617A** OVMAAB042112 35,400 28,600 12.2 16.2 1,035 825 3483816 24APA736A30 CAP**3617A**+TDR 35,400 28,600 11.8 14.5 1,050 840 4230276 24APA736A30 CAP**3617A**+UI 58CV(A,X)070 ---12 35,400 28,800 12.2 16.2 1,050 840 3483818 24APA736A30 CAP**3617A**+UI 58CV(A,X)090 ---16 35,800 29,000 12.8 16.5 1,005 805 3483817 24APA736A30 CAP**3617A**+UI 58MV(B,C)060---14 36,000 29,200 12.7 16.5 1,055 845 3563786 24APA736A30 CAP**3619A** 58HDV040 --- --- 12 35,000 28,000 12.0 16.0 1,055 815 3563787 24APA736A30 CAP**3619A** 58HDV060 --- --- 12 35,000 28,000 12.5 16.5 1,100 780 4213212 24APA736A30 CAP**3619A** OVLAAB048112 35,600 29,000 12.2 16.0 1,085 880 4213211 24APA736A30 CAP**3619A** OVMAAB042112 35,400 28,600 12.2 16.2 1,035 825 3594966 24APA736A30 CAP**3619A**+TDR 35,400 28,600 11.8 14.0 1,050 840 3483823 24APA736A30 CAP**3621A** 58PH*090--- 16 36,200 29,600 12.9 16.5 1,085 955 3877997 24APA736A30 CAP**3621A** 58UVB080 ---20 35,800 29,000 12.5 16.5 1,010 810 3877998 24APA736A30 CAP**3621A** 58UVB100 ---20 36,000 29,000 12.8 16.5 1,040 830 3563753 24APA736A30 CAP**3621A** 58VLR105 ---12 36,000 29,400 12.5 16.0 1,065 880 3563755 24APA736A30 CAP**3621A** 58VLR120 ---20 36,400 30,000 12.5 16.5 1,170 1,005 3563752 24APA736A30 CAP**3621A** 58VMR105--- 12 35,600 29,000 12.5 16.5 975 800 3563754 24APA736A30 CAP**3621A** 58VMR120--- 20 36,400 29,800 12.5 16.0 1,155 1,000 4213201 24APA736A30 CAP**3621A** OVLAAB048112 35,600 29,000 12.2 16.2 1,085 880 4213200 24APA736A30 CAP**3621A** OVMAAB042112 35,400 28,600 12.2 16.2 1,035 825 3483819 24APA736A30 CAP**3621A**+TDR 35,400 28,600 11.8 14.5 1,050 840 3483822 24APA736A30 CAP**3621A**+UI 58CV(A,X)110 ---20 35,800 29,000 12.8 16.5 1,020 815 3483820 24APA736A30 CAP**3621A**+UI 58MV(B,C)080---20 35,800 29,000 12.5 16.5 1,010 810 3483821 24APA736A30 CAP**3621A**+UI 58MV(B,C)100---20 36,000 29,000 12.8 16.5 1,040 830 3483828 24APA736A30 CAP**4221A** 58PH*090--- 16 36,400 29,800 13.0 16.5 1,085 950 3877999 24APA736A30 CAP**4221A** 58UVB080 ---20 36,000 29,200 12.8 16.5 1,010 810 3878000 24APA736A30 CAP**4221A** 58UVB100 ---20 36,200 29,200 12.8 16.5 1,040 830 3563757 24APA736A30 CAP**4221A** 58VLR105 ---12 36,200 29,600 12.5 16.5 1,065 880 3563759 24APA736A30 CAP**4221A** 58VLR120 ---20 36,800 30,200 12.8 16.5 1,170 1,005 3563756 24APA736A30 CAP**4221A** 58VMR105--- 12 35,800 29,200 12.6 16.5 975 800 3563758 24APA736A30 CAP**4221A** 58VMR120--- 20 36,600 30,000 12.7 16.5 1,155 1,000 4213203 24APA736A30 CAP**4221A** OVLAAB048112 35,800 29,200 12.2 16.2 1,085 880 4213202 24APA736A30 CAP**4221A** OVMAAB042112 35,800 28,800 12.5 16.5 1,035 825 3483824 24APA736A30 CAP**4221A**+TDR 35,600 28,800 11.9 14.5 1,050 840 3483827 24APA736A30 CAP**4221A**+UI 58CV(A,X)110 ---20 36,200 29,200 12.9 16.5 1,020 815 3483825 24APA736A30 CAP**4221A**+UI 58MV(B,C)080---20 36,000 29,200 12.8 16.5 1,010 810 3483826 24APA736A30 CAP**4221A**+UI 58MV(B,C)100---20 36,200 29,200 12.8 16.5 1,040 830 3483833 24APA736A30 CAP**4224A** 58HDV100 --- --- 20 36,600 29,800 12.8 16.5 1,140 900 3878001 24APA736A30 CAP**4224A** 58UVB120 ---20 36,200 29,200 13.0 16.5 1,010 810 4213204 24APA736A30 CAP**4224A** OVLAAB048112 36,000 29,200 12.5 16.2 1,085 880 4213205 24APA736A30 CAP**4224A** OVLAAB060154 36,600 29,800 12.7 16.7 1,250 1,020 3483829 24APA736A30 CAP**4224A**+TDR 35,600 28,800 11.9 14.5 1,050 840 3483831 24APA736A30 CAP**4224A**+UI 58CV(A,X)135 ---22 36,200 29,200 13.0 16.5 1,010 810 3483832 24APA736A30 CAP**4224A**+UI 58CV(A,X)155 ---22 36,200 29,200 13.2 17.0 1,015 810 3483830 24APA736A30 CAP**4224A**+UI 58MV(B,C)120---20 36,200 29,200 13.0 16.5 1,010 810 3483954 24APA736A30 CAP**4817A** 58ME(B,C)060--- 12 37,400 30,600 13.0 17.0 1,085 960 3483955 24APA736A30 CAP**4817A** 58ME(B,C)080--- 12 37,200 30,400 13.1 17.0 1,060 925 3483956 24APA736A30 CAP**4817A** 58ME(B,C)080--- 16 37,400 30,600 13.0 16.5 1,085 990 3878002 24APA736A30 CAP**4817A** 58UVB060 ---14 37,200 30,000 13.0 17.0 1,055 845 3563761 24APA736A30 CAP**4817A** 58VLR105 ---12 37,200 30,000 12.9 16.5 1,065 880 3563760 24APA736A30 CAP**4817A** 58VMR105--- 12 36,600 29,600 12.9 16.5 975 800 4213206 24APA736A30 CAP**4817A** OVMAAB042112 36,600 29,400 12.7 16.7 1,035 825 3483834 24APA736A30 CAP**4817A**+TDR 36,600 29,400 12.1 15.0 1,050 840 4230277 24APA736A30 CAP**4817A**+UI 58CV(A,X)070 ---12 36,600 29,600 12.7 16.7 1,050 840 3483836 24APA736A30 CAP**4817A**+UI 58CV(A,X)090 ---16 37,000 29,800 13.1 17.0 1,005 805 3483835 24APA736A30 CAP**4817A**+UI 58MV(B,C)060---14 37,200 30,000 13.0 17.0 1,055 845 3878003 24APA736A30 CAP**4821A** 58UVB080 ---14 36,600 29,600 12.8 16.5 1,030 825 3878004 24APA736A30 CAP**4821A** 58UVB080 ---20 36,600 29,400 12.9 16.5 1,010 810

See notes on page 21

Model Number

Coil

Model Number

Furnace

Model Number

Cooling

Capacity

High Low High Low

EER SEER

ID CFM

24APA7

Page 14

COMBINATION RATINGS CONTINUED

Ref. No.

3878005 24APA736A30 CAP**4821A** 58UVB100 ---20 36,800 29,600 13.0 16.5 1,040 830 3563763 24APA736A30 CAP**4821A** 58VLR105 ---12 36,800 29,800 12.8 16.5 1,065 880 3563762 24APA736A30 CAP**4821A** 58VMR105--- 12 36,400 29,400 12.8 16.5 975 800 4213208 24APA736A30 CAP**4821A** OVLAAB048112 36,400 29,600 12.5 16.5 1,085 880 4213207 24APA736A30 CAP**4821A** OVMAAB042112 36,200 29,200 12.5 16.7 1,035 825 3483837 24APA736A30 CAP**4821A**+TDR 36,200 29,200 12.0 14.5 1,050 840 3483841 24APA736A30 CAP**4821A**+UI 58CV(A,X)110 ---20 36,800 29,600 13.0 16.5 1,020 815 3483838 24APA736A30 CAP**4821A**+UI 58MV(B,C)080---14 36,600 29,600 12.8 16.5 1,030 825 3483839 24APA736A30 CAP**4821A**+UI 58MV(B,C)080---20 36,600 29,400 12.9 16.5 1,010 810 3483840 24APA736A30 CAP**4821A**+UI 58MV(B,C)100---20 36,800 29,600 13.0 16.5 1,040 830 3563789 24APA736A30 CAP**4823A** 58HDV040 --- --- 12 36,000 29,000 12.5 16.5 1,070 825 3563790 24APA736A30 CAP**4823A** 58HDV060 --- --- 12 36,000 29,000 12.8 16.5 1,115 795 3563791 24APA736A30 CAP**4823A** 58HDV080 --- --- 20 37,000 30,000 13.0 16.5 1,200 935 4213213 24APA736A30 CAP**4823A** OVLAAB048112 36,400 29,600 12.5 16.5 1,085 880 3594967 24APA736A30 CAP**4823A**+TDR 36,200 29,200 12.0 14.5 1,050 840 3878006 24APA736A30 CAP**4824A** 58UVB120 ---20 36,800 29,600 13.1 17.0 1,010 810 4213209 24APA736A30 CAP**4824A** OVLAAB048112 36,600 29,600 12.5 16.5 1,085 880 4213210 24APA736A30 CAP**4824A** OVLAAB060154 37,400 30,200 12.7 17.0 1,250 1,020 3483842 24APA736A30 CAP**4824A**+TDR 36,200 29,200 12.0 14.5 1,050 840 3483844 24APA736A30 CAP**4824A**+UI 58CV(A,X)135 ---22 36,800 29,600 13.2 17.0 1,010 810

24APA7

3483845 24APA736A30 CAP**4824A**+UI 58CV(A,X)155 ---22 36,800 29,600 13.3 17.0 1,015 810 3483843 24APA736A30 CAP**4824A**+UI 58MV(B,C)120---20 36,800 29,600 13.1 17.0 1,010 810 3594396 24APA736A30 CAP**6025A** 58HDV080 --- --- 20 38,000 30,400 13.0 17.0 1,220 950 3594397 24APA736A30 CAP**6025A** 58HDV100 --- --- 20 37,000 30,200 13.0 17.0 1,140 900 3483966 24APA736A30 CNPH*3617A** 58ME(B,C)060---12 35,800 29,600 12.6 16.0 1,055 935 3483967 24APA736A30 CNPH*3617A** 58ME(B,C)080---12 35,800 29,400 12.7 16.0 1,035 905 3483968 24APA736A30 CNPH*3617A** 58ME(B,C)080---16 35,800 29,600 12.6 16.0 1,055 965 3483880 24APA736A30 CNPH*3617A** 58PH*090--- 16 35,800 29,400 12.7 16.0 1,035 905 4213228 24APA736A30 CNPH*3617A** OVLAAB048112 35,400 28,800 12.0 15.7 1,085 880 4213229 24APA736A30 CNPH*3617A** OVLAAB060154 36,200 29,600 12.2 16.2 1,250 1,020 4213227 24APA736A30 CNPH*3617A** OVMAAB042112 35,200 28,600 12.2 16.2 1,035 825 3483872 24APA736A30 CNPH*3617A**+TDR 35,400 28,600 11.8 14.5 1,050 840 4230281 24APA736A30 CNPH*3617A**+UI 58CV(A,X)070--- 12 35,400 28,600 12.2 16.2 1,050 840 3483878 24APA736A30 CNPH*3617A**+UI 58CV(A,X)090--- 16 35,600 28,800 12.7 16.5 1,005 805 3483879 24APA736A30 CNPH*3617A**+UI 58CV(A,X)155--- 22 35,800 29,000 12.8 16.5 1,015 810 3483873 24APA736A30 CNPH*3617A**+UI 58MV(B,C)060 ---14 35,800 29,000 12.5 16.0 1,055 845 3483874 24APA736A30 CNPH*3617A**+UI 58MV(B,C)080 ---14 35,600 29,000 12.4 16.0 1,030 825 3483875 24APA736A30 CNPH*3617A**+UI 58MV(B,C)080 ---20 35,600 28,800 12.5 16.0 1,010 810 3483876 24APA736A30 CNPH*3617A**+UI 58MV(B,C)100 ---20 35,800 29,000 12.6 16.0 1,040 830 3483877 24APA736A30 CNPH*3617A**+UI 58MV(B,C)120 ---20 35,800 29,000 12.7 16.5 1,010 810 3483969 24APA736A30 CNPH*4221A** 58ME(B,C)060---12 36,400 30,000 12.8 16.5 1,080 950 3483970 24APA736A30 CNPH*4221A** 58ME(B,C)080---12 36,400 29,800 12.8 16.5 1,055 920 3483971 24APA736A30 CNPH*4221A** 58ME(B,C)080---16 36,400 30,000 12.8 16.5 1,075 980 3483891 24APA736A30 CNPH*4221A** 58PH*090--- 16 36,400 29,800 12.9 16.5 1,055 925 4213231 24APA736A30 CNPH*4221A** OVLAAB048112 35,800 29,200 12.2 16.2 1,085 880 4213232 24APA736A30 CNPH*4221A** OVLAAB060154 36,800 29,800 12.5 16.5 1,250 1,020 4213230 24APA736A30 CNPH*4221A** OVMAAB042112 35,800 29,000 12.2 16.2 1,035 825 3483883 24APA736A30 CNPH*4221A**+TDR 35,800 28,800 11.9 14.5 1,050 840 3483888 24APA736A30 CNPH*4221A**+UI 58CV(A,X)070--- 12 36,000 29,200 12.6 16.0 1,005 805 3483889 24APA736A30 CNPH*4221A**+UI 58CV(A,X)090--- 16 36,200 29,200 12.9 16.5 1,005 805 3483890 24APA736A30 CNPH*4221A**+UI 58CV(A,X)110--- 20 36,200 29,200 12.9 16.5 1,020 815 3483884 24APA736A30 CNPH*4221A**+UI 58MV(B,C)060 ---14 36,400 29,400 12.8 16.5 1,055 845 3483885 24APA736A30 CNPH*4221A**+UI 58MV(B,C)080 ---14 36,200 29,200 12.6 16.5 1,030 825 3483886 24APA736A30 CNPH*4221A**+UI 58MV(B,C)080 ---20 36,000 29,200 12.7 16.5 1,010 810 3483887 24APA736A30 CNPH*4221A**+UI 58MV(B,C)100 ---20 36,200 29,200 12.8 16.0 1,040 830 4213234 24APA736A30 CNPH*4321A** OVLAAB048112 37,000 30,000 12.7 16.7 1,085 880 4213235 24APA736A30 CNPH*4321A** OVLAAB060154 38,000 30,800 13.0 17.2 1,250 1,020 4213233 24APA736A30 CNPH*4321A** OVMAAB042112 36,800 29,600 12.7 17.0 1,035 825 4230282 24APA736A30 CNPH*4321A**+UI 58CV(A,X)070--- 12 37,000 29,800 13.0 17.0 1,050 840 3483972 24APA736A30 CNPH*4821A** 58ME(B,C)060---12 37,200 30,600 13.1 17.0 1,115 985 3483973 24APA736A30 CNPH*4821A** 58ME(B,C)080---12 37,200 30,400 13.1 17.0 1,085 945 3483974 24APA736A30 CNPH*4821A** 58ME(B,C)080---16 37,200 30,600 13.1 16.5 1,110 1,010 4213237 24APA736A30 CNPH*4821A** OVLAAB048112 36,600 29,600 12.5 16.5 1,085 880 4213238 24APA736A30 CNPH*4821A** OVLAAB060154 37,400 30,400 12.7 17.0 1,250 1,020 4213236 24APA736A30 CNPH*4821A** OVMAAB042112 36,400 29,400 12.7 16.7 1,035 825 3483893 24APA736A30 CNPH*4821A**+TDR 36,400 29,200 12.1 14.5 1,050 840 4230283 24APA736A30 CNPH*4821A**+UI 58CV(A,X)070--- 12 36,400 29,400 12.7 16.7 1,050 840 3483898 24APA736A30 CNPH*4821A**+UI 58CV(A,X)090--- 16 36,800 29,600 13.1 17.0 1,005 805 3483899 24APA736A30 CNPH*4821A**+UI 58CV(A,X)110--- 20 36,800 29,600 13.1 17.0 1,020 815 3483900 24APA736A30 CNPH*4821A**+UI 58CV(A,X)135--- 22 36,800 29,600 13.2 17.0 1,010 810 3483901 24APA736A30 CNPH*4821A**+UI 58CV(A,X)155--- 22 37,000 29,800 13.4 17.0 1,015 810

See notes on page 21

AHRI

Model Number

Coil

Model Number

Furnace

Model Number

Cooling

Capacity

High Low High Low

EER SEER

ID CFM

Page 15

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3483894 24APA736A30 CNPH*4821A**+UI 58MV(B,C)080 ---14 36,800 29,800 12.9 16.5 1,030 825 3483895 24APA736A30 CNPH*4821A**+UI 58MV(B,C)080 ---20 36,800 29,600 13.0 16.5 1,010 810 3483896 24APA736A30 CNPH*4821A**+UI 58MV(B,C)100 ---20 36,800 29,800 13.0 16.5 1,040 830 3483897 24APA736A30 CNPH*4821A**+UI 58MV(B,C)120 ---20 36,800 29,600 13.2 17.0 1,010 810 3483957 24APA736A30 CNPV*3617A** 58ME(B,C)060 ---12 35,800 29,600 12.6 16.0 1,055 935 3483958 24APA736A30 CNPV*3617A** 58ME(B,C)080 ---12 35,800 29,400 12.7 16.0 1,035 905 3483959 24APA736A30 CNPV*3617A** 58ME(B,C)080 ---16 35,800 29,600 12.6 16.0 1,055 965 3878007 24APA736A30 CNPV*3617A** 58UVB060 ---14 35,800 29,000 12.5 16.0 1,055 845 3563765 24APA736A30 CNPV*3617A** 58VLR105 ---12 35,800 29,200 12.4 16.0 1,065 880 3563764 24APA736A30 CNPV*3617A** 58VMR105---12 35,400 28,800 12.4 16.0 975 800 4213214 24APA736A30 CNPV*3617A** OVMAAB042112 35,200 28,600 12.2 16.2 1,035 825 3483846 24APA736A30 CNPV*3617A**+TDR 35,400 28,600 11.8 14.5 1,050 840 4230278 24APA736A30 CNPV*3617A**+UI 58CV(A,X)070 ---12 35,400 28,600 12.2 16.2 1,050 840 3483848 24APA736A30 CNPV*3617A**+UI 58CV(A,X)090 ---16 35,600 28,800 12.7 16.5 1,005 805 3483847 24APA736A30 CNPV*3617A**+UI 58MV(B,C)060--- 14 35,800 29,000 12.5 16.0 1,055 845 3483854 24APA736A30 CNPV*3621A** 58PH*090 ---16 36,000 29,400 12.8 16.0 1,045 910 3878008 24APA736A30 CNPV*3621A** 58UVB080 ---14 35,600 29,000 12.4 16.0 1,030 825 3878009 24APA736A30 CNPV*3621A** 58UVB080 ---20 35,600 28,800 12.5 16.0 1,010 810 3878010 24APA736A30 CNPV*3621A** 58UVB100 ---20 35,800 29,000 12.6 16.0 1,040 830 3563767 24APA736A30 CNPV*3621A** 58VLR105 ---12 35,800 29,200 12.4 16.0 1,065 880 3563766 24APA736A30 CNPV*3621A** 58VMR105---12 35,400 28,800 12.5 16.0 975 800 4213216 24APA736A30 CNPV*3621A** OVLAAB048112 35,400 28,800 12.0 15.7 1,085 880 4213215 24APA736A30 CNPV*3621A** OVMAAB042112 35,400 28,600 12.2 16.2 1,035 825 3483849 24APA736A30 CNPV*3621A**+TDR 35,400 28,600 11.8 14.5 1,050 840 3483853 24APA736A30 CNPV*3621A**+UI 58CV(A,X)110 ---20 35,800 29,000 12.7 16.5 1,020 815 3483850 24APA736A30 CNPV*3621A**+UI 58MV(B,C)080--- 14 35,600 29,000 12.4 16.0 1,030 825 3483851 24APA736A30 CNPV*3621A**+UI 58MV(B,C)080--- 20 35,600 28,800 12.5 16.0 1,010 810 3483852 24APA736A30 CNPV*3621A**+UI 58MV(B,C)100--- 20 35,800 29,000 12.6 16.0 1,040 830 3483960 24APA736A30 CNPV*3717A** 58ME(B,C)060 ---12 37,600 30,800 13.1 17.0 1,090 965 3483961 24APA736A30 CNPV*3717A** 58ME(B,C)080 ---12 37,400 30,600 13.2 17.0 1,060 930 3483962 24APA736A30 CNPV*3717A** 58ME(B,C)080 ---16 37,600 30,800 13.1 17.0 1,085 990 3878039 24APA736A30 CNPV*3717A** 58UVB060 ---14 37,400 30,200 13.1 17.0 1,055 845 3563769 24APA736A30 CNPV*3717A** 58VLR105 ---12 37,400 30,400 13.0 16.5 1,065 880 3563768 24APA736A30 CNPV*3717A** 58VMR105---12 36,800 29,800 13.0 16.5 975 800 4213217 24APA736A30 CNPV*3717A** OVMAAB042112 36,800 29,600 12.7 16.7 1,035 825 3483855 24APA736A30 CNPV*3717A**+TDR 36,800 29,600 12.0 15.0 1,050 840 4230279 24APA736A30 CNPV*3717A**+UI 58CV(A,X)070 ---12 37,000 29,800 13.0 16.7 1,050 840 3484275 24APA736A30 CNPV*3717A**+UI 58CV(A,X)090 ---16 37,200 30,000 13.2 17.0 1,005 805 3484274 24APA736A30 CNPV*3717A**+UI 58MV(B,C)060--- 14 37,400 30,200 13.1 17.0 1,055 845 3483963 24APA736A30 CNPV*4217A** 58ME(B,C)060 ---12 36,800 30,200 12.9 16.5 1,075 950 3483964 24APA736A30 CNPV*4217A** 58ME(B,C)080 ---12 36,600 30,000 12.9 16.5 1,050 920 3483965 24APA736A30 CNPV*4217A** 58ME(B,C)080 ---16 36,800 30,200 12.9 16.5 1,075 980 3878011 24APA736A30 CNPV*4217A** 58UVB060 ---14 36,600 29,600 12.8 16.0 1,055 845 3563771 24APA736A30 CNPV*4217A** 58VLR105 ---12 36,600 29,800 12.5 16.5 1,065 880 3563770 24APA736A30 CNPV*4217A** 58VMR105---12 36,200 29,400 12.7 16.5 975 800 4213218 24APA736A30 CNPV*4217A** OVMAAB042112 36,000 29,200 12.5 16.5 1,035 825 3483856 24APA736A30 CNPV*4217A**+TDR 36,000 29,000 12.0 14.5 1,050 840 4230280 24APA736A30 CNPV*4217A**+UI 58CV(A,X)070 ---12 36,200 29,200 12.5 16.5 1,050 840 3483858 24APA736A30 CNPV*4217A**+UI 58CV(A,X)090 ---16 36,400 29,400 12.9 16.5 1,005 805 3483857 24APA736A30 CNPV*4217A**+UI 58MV(B,C)060--- 14 36,600 29,600 12.8 16.0 1,055 845 3680497 24APA736A30 CNPV*4221A** 58CV(A,X)090 ---16 36,000 29,000 12.8 16.5 1,005 835 3878012 24APA736A30 CNPV*4221A** 58UVB080 ---14 36,200 29,400 12.6 16.0 1,030 840 3878013 24APA736A30 CNPV*4221A** 58UVB080 ---20 36,000 29,200 12.7 16.5 1,010 825 3878014 24APA736A30 CNPV*4221A** 58UVB100 ---20 36,200 29,200 12.8 16.5 1,040 810 3563775 24APA736A30 CNPV*4221A** 58VLR105 ---12 36,200 29,600 12.6 16.0 1,065 880 3563777 24APA736A30 CNPV*4221A** 58VLR120 ---20 36,800 30,200 12.7 16.5 1,170 1,005 3563774 24APA736A30 CNPV*4221A** 58VMR105---12 35,800 29,200 12.6 16.5 975 800 3563776 24APA736A30 CNPV*4221A** 58VMR120---20 36,600 30,000 12.5 16.0 1,155 1,000 4213220 24APA736A30 CNPV*4221A** OVLAAB048112 35,800 29,200 12.2 16.2 1,085 880 4213219 24APA736A30 CNPV*4221A** OVMAAB042112 35,800 29,000 12.2 16.2 1,035 825 3483859 24APA736A30 CNPV*4221A**+TDR 35,800 28,800 11.9 14.5 1,050 840 3747877 24APA736A30 CNPV*4221A**+UI 58CV(A,X)090 ---16 36,000 29,000 12.8 16.5 1,005 835 3483860 24APA736A30 CNPV*4221A**+UI 58MV(B,C)080--- 14 36,200 29,400 12.6 16.0 1,030 840 3483861 24APA736A30 CNPV*4221A**+UI 58MV(B,C)080--- 20 36,000 29,200 12.7 16.5 1,010 825 3483862 24APA736A30 CNPV*4221A**+UI 58MV(B,C)100--- 20 36,200 29,200 12.8 16.5 1,040 810 4213221 24APA736A30 CNPV*4324A** OVLAAB048112 37,200 30,000 12.7 16.7 1,085 880 4213222 24APA736A30 CNPV*4324A** OVLAAB060154 38,000 30,800 13.0 17.2 1,250 1,020 3483978 24APA736A30 CNPV*4821A** 58ME(B,C)060 ---12 37,200 29,800 13.1 17.0 1,115 835 3483975 24APA736A30 CNPV*4821A** 58ME(B,C)080 ---16 37,000 30,600 13.0 16.5 1,090 995 3878018 24APA736A30 CNPV*4821A** 58UVB080 ---14 36,800 29,600 12.9 16.5 1,030 820 3878015 24APA736A30 CNPV*4821A** 58UVB080 ---20 36,800 29,600 13.0 16.5 1,010 810

See notes on page 21

Model Number

Coil

Model Number

Furnace

Model Number

Cooling

Capacity

High Low High Low

EER SEER

ID CFM

24APA7

Page 16

COMBINATION RATINGS CONTINUED

Ref. No.

3878016 24APA736A30 CNPV*4821A** 58UVB100 ---20 36,800 29,800 13.0 16.5 1,040 830 3563783 24APA736A30 CNPV*4821A** 58VLR105 ---12 37,000 30,000 12.9 16.5 1,065 880 3563785 24APA736A30 CNPV*4821A** 58VLR120 ---20 37,600 30,600 13.0 16.5 1,170 1,005 3563782 24APA736A30 CNPV*4821A** 58VMR105---12 36,400 29,600 12.9 16.5 975 800 3563784 24APA736A30 CNPV*4821A** 58VMR120---20 37,400 30,600 13.0 16.5 1,155 1,000 4213224 24APA736A30 CNPV*4821A** OVLAAB048112 36,600 29,600 12.5 16.5 1,085 880 4213223 24APA736A30 CNPV*4821A** OVMAAB042112 36,400 29,400 12.7 16.7 1,035 825 3483864 24APA736A30 CNPV*4821A**+TDR 36,400 29,200 12.1 14.5 1,050 840 3483977 24APA736A30 CNPV*4821A**+UI 58CV(A,X)090 ---16 36,800 29,800 13.1 17.0 1,005 835 3483867 24APA736A30 CNPV*4821A**+UI 58CV(A,X)110 ---20 36,800 29,600 13.1 17.0 1,020 815 3483976 24APA736A30 CNPV*4821A**+UI 58MV(B,C)080--- 14 36,800 29,600 12.9 16.5 1,030 820 3483865 24APA736A30 CNPV*4821A**+UI 58MV(B,C)080--- 20 36,800 29,600 13.0 16.5 1,010 810 3483866 24APA736A30 CNPV*4821A**+UI 58MV(B,C)100--- 20 36,800 29,800 13.0 16.5 1,040 830 3878019 24APA736A30 CNPV*4824A** 58UVB080 ---14 36,800 29,600 12.9 16.5 1,030 820 3878020 24APA736A30 CNPV*4824A** 58UVB080 ---20 36,600 29,800 13.0 16.5 1,010 840 3878021 24APA736A30 CNPV*4824A** 58UVB100 ---20 36,800 29,600 13.1 16.5 1,040 800 3878017 24APA736A30 CNPV*4824A** 58UVB120 ---20 36,800 29,600 13.1 17.0 1,010 810 4213225 24APA736A30 CNPV*4824A** OVLAAB048112 36,600 29,600 12.5 16.5 1,085 880 4213226 24APA736A30 CNPV*4824A** OVLAAB060154 37,400 30,400 12.7 17.0 1,250 1,020 3483868 24APA736A30 CNPV*4824A**+TDR 36,400 29,200 12.1 14.5 1,050 840

24APA7

3483870 24APA736A30 CNPV*4824A**+UI 58CV(A,X)135 ---22 36,800 29,600 13.2 17.0 1,010 810 3483871 24APA736A30 CNPV*4824A**+UI 58CV(A,X)155 ---22 37,000 29,800 13.4 17.0 1,015 810 3483979 24APA736A30 CNPV*4824A**+UI 58MV(B,C)080--- 14 36,800 29,600 12.9 16.5 1,030 820 3483980 24APA736A30 CNPV*4824A**+UI 58MV(B,C)080--- 20 36,600 29,800 13.0 16.5 1,010 840 3483981 24APA736A30 CNPV*4824A**+UI 58MV(B,C)100--- 20 36,800 29,600 13.1 16.5 1,040 800 3483869 24APA736A30 CNPV*4824A**+UI 58MV(B,C)120--- 20 36,800 29,600 13.1 17.0 1,010 810 3483920 24APA736A30 CSPH*3612A** 58HDV060 --- ---12 36,800 29,200 12.5 16.0 1,100 775 3483917 24APA736A30 CSPH*3612A** 58ME(B,C)060 ---12 37,000 29,600 13.0 17.0 1,080 805 3483918 24APA736A30 CSPH*3612A** 58ME(B,C)080 ---12 36,800 30,200 13.0 16.5 1,055 920 3483919 24APA736A30 CSPH*3612A** 58ME(B,C)080 ---16 37,000 30,400 12.9 16.5 1,080 980 3483916 24APA736A30 CSPH*3612A** 58PH*090 ---16 37,000 30,200 13.1 16.5 1,060 925 4213240 24APA736A30 CSPH*3612A** OVLAAB048112 36,400 29,600 12.5 16.2 1,085 880 4213241 24APA736A30 CSPH*3612A** OVLAAB060154 37,200 30,200 12.7 16.7 1,250 1,020 4213239 24APA736A30 CSPH*3612A** OVMAAB042112 36,200 29,200 12.5 16.5 1,035 825 3483907 24APA736A30 CSPH*3612A**+TDR 36,200 29,200 12.1 14.5 1,050 840 3483911 24APA736A30 CSPH*3612A**+UI 58CV(A,X)070 ---12 36,400 29,400 12.8 16.5 1,005 805 3483912 24APA736A30 CSPH*3612A**+UI 58CV(A,X)090 ---16 36,600 29,600 13.0 16.5 1,005 805 3483913 24APA736A30 CSPH*3612A**+UI 58CV(A,X)110 ---20 36,600 29,600 13.0 16.5 1,020 815 3483914 24APA736A30 CSPH*3612A**+UI 58CV(A,X)135 ---22 36,600 29,600 13.1 17.0 1,010 810 3483915 24APA736A30 CSPH*3612A**+UI 58CV(A,X)155 ---22 36,800 29,600 13.2 17.0 1,015 810 3483908 24APA736A30 CSPH*3612A**+UI 58MV(B,C)080 ---20 36,600 29,600 12.9 16.5 1,010 810 3483909 24APA736A30 CSPH*3612A**+UI 58MV(B,C)100 ---20 36,800 29,600 12.9 16.5 1,040 830 3483910 24APA736A30 CSPH*3612A**+UI 58MV(B,C)120 ---20 36,600 29,600 13.0 16.5 1,010 810 3483935 24APA736A30 CSPH*4212A** 58HDV060 --- ---12 37,000 29,400 12.5 16.5 1,110 785 3483932 24APA736A30 CSPH*4212A** 58ME(B,C)060 ---12 37,200 29,800 13.1 17.0 1,095 815 3483933 24APA736A30 CSPH*4212A** 58ME(B,C)080 ---12 37,200 29,600 13.1 17.0 1,065 780 3483934 24APA736A30 CSPH*4212A** 58ME(B,C)080 ---16 37,200 30,600 13.0 16.5 1,090 990 3483931 24APA736A30 CSPH*4212A** 58PH*090 ---16 37,200 30,400 13.2 16.5 1,070 935 4213243 24APA736A30 CSPH*4212A** OVLAAB048112 36,600 29,600 12.5 16.5 1,085 880 4213244 24APA736A30 CSPH*4212A** OVLAAB060154 37,600 30,400 12.7 16.7 1,250 1,020 4213242 24APA736A30 CSPH*4212A** OVMAAB042112 36,400 29,400 12.7 16.7 1,035 825 3483921 24APA736A30 CSPH*4212A**+TDR 36,400 29,400 12.1 15.0 1,050 840 3483926 24APA736A30 CSPH*4212A**+UI 58CV(A,X)070 ---12 36,800 29,600 12.9 16.5 1,005 805 3483927 24APA736A30 CSPH*4212A**+UI 58CV(A,X)090 ---16 36,800 29,600 13.1 17.0 1,005 805 3483928 24APA736A30 CSPH*4212A**+UI 58CV(A,X)110 ---20 37,000 29,800 13.1 17.0 1,020 815 3483929 24APA736A30 CSPH*4212A**+UI 58CV(A,X)135 ---22 36,800 29,800 13.2 17.0 1,010 810 3483930 24APA736A30 CSPH*4212A**+UI 58CV(A,X)155 ---22 37,000 29,800 13.3 17.0 1,015 810 3483922 24APA736A30 CSPH*4212A**+UI 58MV(B,C)080 ---14 36,800 29,800 12.9 16.5 1,030 825 3483923 24APA736A30 CSPH*4212A**+UI 58MV(B,C)080 ---20 36,800 29,600 13.0 16.5 1,010 810 3483924 24APA736A30 CSPH*4212A**+UI 58MV(B,C)100 ---20 37,000 29,800 13.0 16.5 1,040 830 3483925 24APA736A30 CSPH*4212A**+UI 58MV(B,C)120 ---20 36,800 29,800 13.1 17.0 1,010 810 3483950 24APA736A30 CSPH*4812A** 58HDV060 --- ---12 37,200 29,600 12.6 16.5 1,110 790 3483947 24APA736A30 CSPH*4812A** 58ME(B,C)060 ---12 37,400 30,000 13.1 17.0 1,095 820 3483948 24APA736A30 CSPH*4812A** 58ME(B,C)080 ---12 37,400 30,600 13.1 17.0 1,065 930 3483949 24APA736A30 CSPH*4812A** 58ME(B,C)080 ---16 37,400 30,800 13.1 16.5 1,090 990 3483946 24APA736A30 CSPH*4812A** 58PH*090 ---16 37,400 30,600 13.2 16.5 1,070 940 4213246 24APA736A30 CSPH*4812A** OVLAAB048112 36,800 29,800 12.5 16.5 1,085 880 4213247 24APA736A30 CSPH*4812A** OVLAAB060154 37,600 30,600 12.7 17.0 1,250 1,020 4213245 24APA736A30 CSPH*4812A** OVMAAB042112 36,600 29,600 12.7 16.7 1,035 825 3483936 24APA736A30 CSPH*4812A**+TDR 36,600 29,400 12.2 15.0 1,050 840 3483941 24APA736A30 CSPH*4812A**+UI 58CV(A,X)070 ---12 36,800 29,800 12.9 16.5 1,005 805

See notes on page 21

AHRI

Model Number

Coil

Model Number

Furnace

Model Number

Cooling

Capacity

High Low High Low

EER SEER

ID CFM

Page 17

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3483942 24APA736A30 CSPH*4812A**+UI 58CV(A,X)090 ---16 37,000 29,800 13.1 17.0 1,005 805 3483943 24APA736A30 CSPH*4812A**+UI 58CV(A,X)110 ---20 37,000 29,800 13.1 17.0 1,020 815 3483944 24APA736A30 CSPH*4812A**+UI 58CV(A,X)135 ---22 37,000 29,800 13.2 17.0 1,010 810 3483945 24APA736A30 CSPH*4812A**+UI 58CV(A,X)155 ---22 37,200 30,200 13.3 17.0 1,015 810 3483937 24APA736A30 CSPH*4812A**+UI 58MV(B,C)080 ---14 37,000 29,800 12.9 16.5 1,030 825 3483938 24APA736A30 CSPH*4812A**+UI 58MV(B,C)080 ---20 37,000 29,800 13.0 16.5 1,010 810 3483939 24APA736A30 CSPH*4812A**+UI 58MV(B,C)100 ---20 37,200 30,000 13.1 16.5 1,040 830 3483940 24APA736A30 CSPH*4812A**+UI 58MV(B,C)120 ---20 37,000 29,800 13.2 17.0 1,010 810 3483982 24APA736A30 FE4AN(B,F)003+UI 36,400 29,400 13.0 17.0 1,100 875 3483983 24APA736A30 FE4AN(B,F)005+UI 37,800 30,200 13.5 17.5 1,100 875 3483984 24APA736A30 FE4ANB006+UI 38,500 30,800 13.8 17.5 1,200 925 3850575 24APA736A30 FE4ANF002+UI 36,400 29,600 12.3 16.0 1,200 925 3483985 24APA736A30 FE5ANB004+UI 38,500 31,000 13.7 18.0 1,200 925 3483904 24APA736A30 FV4CN(B,F)003 36,200 29,200 13.0 17.0 1,050 840 3483905 24APA736A30 FV4CN(B,F)005 37,600 30,000 13.5 17.5 1,050 840 3483906 24APA736A30 FV4CNB006 38,000 30,200 13.7 17.5 1,050 840 3584911 24APA736A30 FV4CNF002 35,800 29,200 12.6 16.0 1,050 840

3638145 24APA748A**31 †CNPH*6124A**+UI 58MV(B,C)100---20 50,000 41,000 13.2 16.5 1,395 1,115 3638020 24APA748A**31 CAP**4817A**+TDR 47,500 39,000 12.0 14.5 1,400 1,120 3638039 24APA748A**31 CAP**4817A**+UI 58CV(A,X)090 ---16 47,500 39,000 12.5 16.0 1,345 1,075 3638117 24APA748A**31 CAP**4821A** 58ME(B,C)080--- 16 47,500 39,000 12.3 16.0 1,430 1,105 3638118 24APA748A**31 CAP**4821A** 58ME(B,C)100--- 20 47,500 39,000 12.6 16.0 1,385 1,050 3638042 24APA748A**31 CAP**4821A** 58PH*110--- 20 47,500 39,000 12.7 16.0 1,350 1,110 3877980 24APA748A**31 CAP**4821A** 58UVB080 ---20 47,000 38,500 12.3 15.5 1,310 1,050 3877981 24APA748A**31 CAP**4821A** 58UVB100 ---20 47,000 39,000 12.2 15.5 1,395 1,115 3638155 24APA748A**31 CAP**4821A** 58VLR120 ---20 47,000 39,000 12.2 15.5 1,350 1,170 3638154 24APA748A**31 CAP**4821A** 58VMR120 ---20 47,000 39,000 12.1 15.5 1,355 1,155 4213273 24APA748A**31 CAP**4821A** OVLAAB048112 47,500 39,500 12.2 15.7 1,450 1,170 3638021 24APA748A**31 CAP**4821A**+TDR 48,000 38,500 12.0 14.5 1,600 1,120 3638040 24APA748A**31 CAP**4821A**+UI 58MV(B,C)080 ---20 47,000 38,500 12.3 15.5 1,310 1,050 3638041 24APA748A**31 CAP**4821A**+UI 58MV(B,C)100 ---20 47,000 39,000 12.2 15.5 1,395 1,115 3638171 24APA748A**31 CAP**4823A** 58HDV080 --- --- 20 46,000 39,000 11.8 15.0 1,470 1,160 4213253 24APA748A**31 CAP**4823A** OVLAAB048112 47,500 39,500 12.2 15.7 1,450 1,170 3638030 24APA748A**31 CAP**4823A**+TDR 46,000 38,000 11.8 14.5 1,400 1,120 3638119 24APA748A**31 CAP**4824A** 58ME(B,C)100--- 20 47,500 39,000 12.7 16.0 1,410 1,065 3638120 24APA748A**31 CAP**4824A** 58ME(B,C)120--- 20 48,000 40,000 12.8 16.0 1,425 1,260 3638046 24APA748A**31 CAP**4824A** 58PH*090--- 16 47,500 39,000 12.5 16.0 1,415 1,100 3638047 24APA748A**31 CAP**4824A** 58PH*110--- 20 47,500 39,500 12.8 16.0 1,375 1,130 3877982 24APA748A**31 CAP**4824A** 58UVB120 ---20 47,500 39,000 12.5 16.0 1,360 1,090 3638157 24APA748A**31 CAP**4824A** 58VLR120 ---20 47,000 39,500 12.2 15.5 1,350 1,170 3638156 24APA748A**31 CAP**4824A** 58VMR120 ---20 47,000 39,000 12.2 15.5 1,355 1,155 4213248 24APA748A**31 CAP**4824A** OVLAAB048112 48,000 39,500 12.2 15.7 1,450 1,170 4213249 24APA748A**31 CAP**4824A** OVLAAB060154 48,500 40,000 13.0 16.7 1,445 1,170 3638022 24APA748A**31 CAP**4824A**+TDR 47,000 38,500 12.0 14.5 1,400 1,120 3638044 24APA748A**31 CAP**4824A**+UI 58CV(A,X)110 ---20 47,500 39,000 12.6 16.0 1,355 1,085 3638045 24APA748A**31 CAP**4824A**+UI 58CV(A,X)135 ---22 47,500 39,000 12.8 16.0 1,355 1,085 3638043 24APA748A**31 CAP**4824A**+UI 58MV(B,C)120 ---20 47,500 39,000 12.5 16.0 1,360 1,090 3638051 24APA748A**31 CAP**6021A** 58PH*090--- 16 48,500 39,500 12.8 16.0 1,410 1,100 3638052 24APA748A**31 CAP**6021A** 58PH*110--- 20 48,500 39,500 13.0 16.5 1,370 1,125 3877983 24APA748A**31 CAP**6021A** 58UVB080 ---20 48,000 39,000 12.6 16.0 1,310 1,050 3877984 24APA748A**31 CAP**6021A** 58UVB100 ---20 48,500 39,500 12.5 16.0 1,395 1,115 3638159 24APA748A**31 CAP**6021A** 58VLR120 ---20 47,000 39,000 12.7 15.5 1,350 1,170 3638158 24APA748A**31 CAP**6021A** 58VMR120 ---20 48,000 39,000 12.4 15.5 1,355 1,155 4213250 24APA748A**31 CAP**6021A** OVLAAB048112 49,000 40,000 12.5 16.0 1,450 1,170 3638023 24APA748A**31 CAP**6021A**+TDR 48,000 39,000 12.3 14.5 1,400 1,120 3638050 24APA748A**31 CAP**6021A**+UI 58CV(A,X)110 ---20 48,500 39,500 12.8 16.0 1,355 1,085 3638048 24APA748A**31 CAP**6021A**+UI 58MV(B,C)080 ---20 48,000 39,000 12.6 16.0 1,310 1,050 3638049 24APA748A**31 CAP**6021A**+UI 58MV(B,C)100 ---20 48,500 39,500 12.5 16.0 1,395 1,115 3638121 24APA748A**31 CAP**6024A** 58ME(B,C)100--- 20 48,500 39,500 12.9 16.5 1,410 1,070 3638122 24APA748A**31 CAP**6024A** 58ME(B,C)120--- 20 49,000 40,500 13.0 16.5 1,425 1,260 3638057 24APA748A**31 CAP**6024A** 58PH*110--- 20 48,500 40,000 13.1 16.5 1,380 1,130 3638058 24APA748A**31 CAP**6024A** 58PH*135--- 20 48,500 40,000 12.9 16.0 1,400 1,235 3877985 24APA748A**31 CAP**6024A** 58UVB120 ---20 48,500 39,500 12.8 16.0 1,360 1,090 4213251 24APA748A**31 CAP**6024A** OVLAAB048112 49,000 40,000 12.5 16.0 1,450 1,170 4213252 24APA748A**31 CAP**6024A** OVLAAB060154 49,500 40,500 13.2 16.7 1,445 1,170 3638054 24APA748A**31 CAP**6024A**+UI 58CV(A,X)110 ---20 48,500 39,500 12.8 16.0 1,355 1,085 3638055 24APA748A**31 CAP**6024A**+UI 58CV(A,X)135 ---22 48,500 39,500 13.0 16.5 1,355 1,085 3638056 24APA748A**31 CAP**6024A**+UI 58CV(A,X)155 ---22 48,500 39,500 13.1 16.5 1,365 1,090 3638053 24APA748A**31 CAP**6024A**+UI 58MV(B,C)120 ---20 48,500 39,500 12.8 16.0 1,360 1,090 3638170 24APA748A**31 CAP**6025A** 58HDV080 --- --- 20 47,500 40,000 12.2 16.0 1,495 1,185

See notes on page 21

Model Number

Coil

Model Number

Furnace

Model Number

Cooling

Capacity

High Low High Low

EER SEER

ID CFM

24APA7

Page 18

COMBINATION RATINGS CONTINUED

Ref. No.

3638172 24APA748A**31 CAP**6025A** 58HDV100 --- --- 20 47,000 39,000 12.2 15.5 1,430 1,120 4213254 24APA748A**31 CAP**6025A** OVLAAB048112 49,000 40,000 12.5 16.0 1,450 1,170 4213255 24APA748A**31 CAP**6025A** OVLAAB060154 49,500 40,500 13.2 16.7 1,445 1,170 3638031 24APA748A**31 CAP**6025A**+TDR 47,000 38,000 12.0 14.5 1,400 1,120 3638092 24APA748A**31 CNPH*4821A** 58HDV080 --- --- 20 48,000 39,500 12.3 16.0 1,495 1,185 3638093 24APA748A**31 CNPH*4821A** 58HDV100 --- --- 20 47,500 39,500 12.4 16.0 1,430 1,125 3638130 24APA748A**31 CNPH*4821A** 58ME(B,C)080---16 47,500 38,500 12.4 16.0 1,450 1,020 3638131 24APA748A**31 CNPH*4821A** 58ME(B,C)100---20 47,500 39,000 12.7 16.5 1,410 1,070 3638132 24APA748A**31 CNPH*4821A** 58ME(B,C)120---20 48,000 40,000 12.8 16.0 1,425 1,260 3638090 24APA748A**31 CNPH*4821A** 58PH*090---16 47,500 39,500 12.6 16.0 1,420 1,105 3638091 24APA748A**31 CNPH*4821A** 58PH*110---20 48,000 39,500 12.8 16.0 1,380 1,130 4213263 24APA748A**31 CNPH*4821A** OVLAAB048112 48,000 40,000 12.2 15.7 1,450 1,170 4213264 24APA748A**31 CNPH*4821A** OVLAAB060154 48,500 40,000 13.0 16.7 1,445 1,170 3638028 24APA748A**31 CNPH*4821A**+TDR 47,000 38,500 12.1 14.5 1,400 1,120 4000159 24APA748A**31 CNPH*4821A**+UI 58CV(A,X)090 ---16 47,500 39,500 13.0 16.0 1,400 1,120 3638089 24APA748A**31 CNPH*4821A**+UI 58CV(A,X)110 ---20 47,500 39,000 12.6 16.0 1,355 1,085 3638087 24APA748A**31 CNPH*4821A**+UI 58MV(B,C)080 ---20 47,000 39,000 12.4 16.0 1,310 1,050 3638088 24APA748A**31 CNPH*4821A**+UI 58MV(B,C)100 ---20 47,500 39,000 12.3 15.5 1,395 1,115 3638035 24APA748A**31 CNPH*6024A** 58HDV100 --- --- 20 48,500 40,000 12.6 16.0 1,440 1,135 3638133 24APA748A**31 CNPH*6024A** 58ME(B,C)080---16 48,500 39,500 12.6 16.0 1,455 1,130

24APA7

3638134 24APA748A**31 CNPH*6024A** 58ME(B,C)100---20 48,500 39,500 12.9 16.5 1,425 1,085 3638135 24APA748A**31 CNPH*6024A** 58ME(B,C)120---20 49,000 40,500 13.0 16.5 1,440 1,275 3638033 24APA748A**31 CNPH*6024A** 58PH*110---20 48,500 40,000 13.1 16.5 1,395 1,145 3638034 24APA748A**31 CNPH*6024A** 58PH*135---20 48,500 40,500 12.9 16.0 1,420 1,255 4213265 24APA748A**31 CNPH*6024A** OVLAAB048112 49,000 40,000 12.5 16.2 1,450 1,170 4213266 24APA748A**31 CNPH*6024A** OVLAAB060154 49,500 40,500 13.2 17.0 1,445 1,170 3638029 24APA748A**31 CNPH*6024A**+TDR 48,000 39,000 12.2 14.5 1,400 1,120 3638095 24APA748A**31 CNPH*6024A**+UI 58CV(A,X)135 ---22 48,500 39,500 13.0 16.5 1,355 1,085 3638096 24APA748A**31 CNPH*6024A**+UI 58CV(A,X)155 ---22 48,500 39,500 13.2 16.5 1,365 1,090 3638115 24APA748A**31 CNPH*6024A**+UI 58MV(B,C)080 ---20 48,000 39,000 12.7 16.0 1,310 1,050 3638116 24APA748A**31 CNPH*6024A**+UI 58MV(B,C)100 ---20 48,500 39,500 12.6 16.0 1,395 1,115 3638094 24APA748A**31 CNPH*6024A**+UI 58MV(B,C)120 ---20 48,000 39,500 12.8 16.5 1,360 1,090 3638038 24APA748A**31 CNPH*6124A** 58HDV100 --- --- 20 50,500 41,500 13.3 17.0 1,420 1,115 3638136 24APA748A**31 CNPH*6124A** 58ME(B,C)080---16 50,500 40,500 13.2 17.0 1,445 1,010 3638137 24APA748A**31 CNPH*6124A** 58ME(B,C)100---20 50,500 41,000 13.6 17.5 1,400 1,060 3638138 24APA748A**31 CNPH*6124A** 58ME(B,C)120---20 50,500 42,000 13.7 17.0 1,420 1,250 3638111 24APA748A**31 CNPH*6124A** 58PH*090---16 50,500 41,000 13.4 17.0 1,410 1,095 3638036 24APA748A**31 CNPH*6124A** 58PH*110---20 50,500 41,500 13.7 17.5 1,370 1,120 3638037 24APA748A**31 CNPH*6124A** 58PH*135---20 50,500 42,000 13.5 17.0 1,390 1,220 4213267 24APA748A**31 CNPH*6124A** OVLAAB048112 49,000 40,500 12.5 16.0 1,450 1,170 4213268 24APA748A**31 CNPH*6124A** OVLAAB060154 49,500 40,500 13.2 17.0 1,445 1,170 3638152 24APA748A**31 CNPH*6124A**+UI 58CV(A,X)110 ---20 50,000 41,000 13.5 17.0 1,355 1,085 3638153 24APA748A**31 CNPH*6124A**+UI 58CV(A,X)135 ---22 50,500 41,000 13.6 17.0 1,355 1,085 3638151 24APA748A**31 CNPH*6124A**+UI 58MV(B,C)120 ---20 50,000 41,000 13.4 17.0 1,360 1,090 3638123 24APA748A**31 CNPV*4821A** 58ME(B,C)080---16 47,500 39,500 12.4 16.0 1,450 1,120 3638124 24APA748A**31 CNPV*4821A** 58ME(B,C)100---20 48,000 39,000 12.7 16.5 1,410 1,070 3638062 24APA748A**31 CNPV*4821A** 58PH*110---20 47,500 39,500 12.8 16.0 1,380 1,130 3877986 24APA748A**31 CNPV*4821A** 58UVB080 ---20 47,000 39,000 12.4 16.0 1,310 1,050 3877967 24APA748A**31 CNPV*4821A** 58UVB100 ---20 47,500 39,000 12.3 15.5 1,395 1,115 3638161 24APA748A**31 CNPV*4821A** 58VLR120 ---20 47,000 39,000 12.3 15.5 1,350 1,170 3638160 24APA748A**31 CNPV*4821A** 58VMR120--- 20 47,000 39,000 12.2 15.5 1,355 1,155 4213256 24APA748A**31 CNPV*4821A** OVLAAB048112 48,000 40,000 12.2 15.7 1,450 1,170 3638024 24APA748A**31 CNPV*4821A**+TDR 47,000 38,500 12.1 14.5 1,400 1,120 3638061 24APA748A**31 CNPV*4821A**+UI 58CV(A,X)110 ---20 47,500 39,000 12.6 16.0 1,355 1,085 3638059 24APA748A**31 CNPV*4821A**+UI 58MV(B,C)080 ---20 47,000 39,000 12.4 16.0 1,310 1,050 3638060 24APA748A**31 CNPV*4821A**+UI 58MV(B,C)100 ---20 47,500 39,000 12.3 15.5 1,395 1,115 3638125 24APA748A**31 CNPV*4824A** 58ME(B,C)100---20 48,000 39,000 12.7 16.5 1,410 1,070 3638068 24APA748A**31 CNPV*4824A** 58ME(B,C)120---20 48,000 40,000 12.8 16.0 1,425 1,265 3638066 24APA748A**31 CNPV*4824A** 58PH*110---20 48,000 39,500 12.8 16.0 1,380 1,130 3638067 24APA748A**31 CNPV*4824A** 58PH*135---20 47,500 40,000 12.7 16.0 1,400 1,235 3638163 24APA748A**31 CNPV*4824A** 58VLR120 ---20 47,000 39,000 12.3 15.5 1,350 1,170 3638162 24APA748A**31 CNPV*4824A** 58VMR120--- 20 47,000 39,000 12.1 15.5 1,355 1,155 4213257 24APA748A**31 CNPV*4824A** OVLAAB048112 48,000 40,000 12.2 15.7 1,450 1,170 4213258 24APA748A**31 CNPV*4824A** OVLAAB060154 48,500 40,000 13.0 16.7 1,445 1,170 3638025 24APA748A**31 CNPV*4824A**+TDR 47,000 38,500 12.1 14.5 1,400 1,120 3638063 24APA748A**31 CNPV*4824A**+UI 58CV(A,X)110 ---20 47,500 39,000 12.6 16.0 1,355 1,085 3638064 24APA748A**31 CNPV*4824A**+UI 58CV(A,X)135 ---22 47,500 39,000 12.8 16.0 1,355 1,085 3638065 24APA748A**31 CNPV*4824A**+UI 58CV(A,X)155 ---22 47,500 39,500 12.9 16.5 1,365 1,090 4149555 24APA748A**31 CNPV*6024A** 58HDV100 --- --- 20 48,500 40,000 12.6 16.0 1,440 1,115

3747710 24APA748A**31 CNPV*6024A**

See notes on page 21

AHRI

Model Number

Coil

Model Number

Furnace

Model Number

58HDV100--- ---20 (DWNFLWONLY)

Cooling

Capacity

High Low High Low

48,500 40,000 12.6 16.0 1,440 1,115

EER SEER

ID CFM

Page 19

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3638126 24APA748A**31 CNPV*6024A** 58ME(B,C)100---20 48,500 39,500 12.9 16.5 1,425 1,085 3638127 24APA748A**31 CNPV*6024A** 58ME(B,C)120---20 49,000 40,500 13.1 16.5 1,440 1,275 3638072 24APA748A**31 CNPV*6024A** 58PH*110---20 48,500 40,000 13.1 16.5 1,395 1,145 3638073 24APA748A**31 CNPV*6024A** 58PH*135---20 48,500 40,500 12.9 16.0 1,420 1,255 3877968 24APA748A**31 CNPV*6024A** 58UVB080 ---20 48,000 39,000 12.6 16.0 1,310 1,050 3877969 24APA748A**31 CNPV*6024A** 58UVB100 ---20 48,500 39,500 12.6 16.0 1,395 1,115 3877970 24APA748A**31 CNPV*6024A** 58UVB120 ---20 48,500 39,500 12.8 16.0 1,360 1,090 3638165 24APA748A**31 CNPV*6024A** 58VLR120 ---20 48,000 40,000 12.6 16.0 1,350 1,170 3638164 24APA748A**31 CNPV*6024A** 58VMR120--- 20 48,000 39,000 12.5 16.0 1,355 1,155 4213259 24APA748A**31 CNPV*6024A** OVLAAB048112 49,000 40,000 12.5 16.2 1,450 1,170 4213260 24APA748A**31 CNPV*6024A** OVLAAB060154 49,500 40,500 13.2 17.0 1,445 1,170 3638026 24APA748A**31 CNPV*6024A**+TDR 48,000 39,000 12.2 14.5 1,400 1,120 3638069 24APA748A**31 CNPV*6024A**+UI 58CV(A,X)110 ---20 48,500 39,500 12.9 16.5 1,355 1,085 3638070 24APA748A**31 CNPV*6024A**+UI 58CV(A,X)135 ---22 48,500 39,500 13.0 16.5 1,355 1,085 3638071 24APA748A**31 CNPV*6024A**+UI 58CV(A,X)155 ---22 48,500 39,500 13.2 16.5 1,365 1,090 3638112 24APA748A**31 CNPV*6024A**+UI 58MV(B,C)080 ---20 48,000 39,000 12.6 16.0 1,310 1,050 3638113 24APA748A**31 CNPV*6024A**+UI 58MV(B,C)100 ---20 48,500 39,500 12.6 16.0 1,395 1,115 3638114 24APA748A**31 CNPV*6024A**+UI 58MV(B,C)120 ---20 48,500 39,500 12.8 16.0 1,360 1,090 3638032 24APA748A**31 CNPV*6124A** 58CV(A,X)155 ---22 51,000 41,500 13.9 18.0 1,365 1,090 3638128 24APA748A**31 CNPV*6124A** 58ME(B,C)100---20 51,000 41,500 13.7 17.5 1,430 1,095 3638129 24APA748A**31 CNPV*6124A** 58ME(B,C)120---20 51,000 42,500 13.8 17.5 1,445 1,285 3638110 24APA748A**31 CNPV*6124A** 58PH*090---16 51,000 42,000 13.6 17.5 1,435 1,125 3638085 24APA748A**31 CNPV*6124A** 58PH*110---20 51,000 42,000 13.8 17.5 1,400 1,160 3638086 24APA748A**31 CNPV*6124A** 58PH*135---20 51,000 41,000 13.7 17.5 1,425 1,265 3877971 24APA748A**31 CNPV*6124A** 58UVB100 ---20 50,500 41,500 13.4 17.0 1,395 1,115 3877972 24APA748A**31 CNPV*6124A** 58UVB120 ---20 50,500 41,500 13.6 17.5 1,360 1,090 3638167 24APA748A**31 CNPV*6124A** 58VLR120 ---20 48,000 42,000 13.5 16.5 1,350 1,170 3638166 24APA748A**31 CNPV*6124A** 58VMR120--- 20 48,000 42,000 13.2 16.5 1,355 1,155 4213261 24APA748A**31 CNPV*6124A** OVLAAB048112 49,500 41,000 12.7 16.2 1,450 1,170 4213262 24APA748A**31 CNPV*6124A** OVLAAB060154 50,000 41,000 13.5 17.2 1,445 1,170 3638018 24APA748A**31 CNPV*6124A**+TDR 50,500 41,000 13.0 15.5 1,400 1,120 3638148 24APA748A**31 CNPV*6124A**+UI 58CV(A,X)110 ---20 50,500 41,500 13.7 17.5 1,355 1,085 3638149 24APA748A**31 CNPV*6124A**+UI 58CV(A,X)135 ---22 50,500 41,500 13.8 17.5 1,355 1,085 3638150 24APA748A**31 CNPV*6124A**+UI 58CV(A,X)155 ---22 51,000 41,500 13.9 17.0 1,365 1,090 3638146 24APA748A**31 CNPV*6124A**+UI 58MV(B,C)100 ---20 50,500 41,500 13.4 17.0 1,395 1,115 3638147 24APA748A**31 CNPV*6124A**+UI 58MV(B,C)120 ---20 50,500 41,500 13.6 17.5 1,360 1,090 3638080 24APA748A**31 CSPH*4812A** 58HDV080 --- ---20 48,000 40,000 12.3 16.0 1,465 1,160 3638081 24APA748A**31 CSPH*4812A** 58HDV100 --- ---20 48,000 39,500 12.5 16.0 1,400 1,100 3638139 24APA748A**31 CSPH*4812A** 58ME(B,C)080 ---16 48,000 39,500 12.4 16.0 1,425 1,100 3638140 24APA748A**31 CSPH*4812A** 58ME(B,C)100 ---20 48,000 39,000 12.8 16.5 1,380 1,045 3638141 24APA748A**31 CSPH*4812A** 58ME(B,C)120 ---20 48,000 40,500 12.9 16.0 1,395 1,230 3638077 24APA748A**31 CSPH*4812A** 58PH*090 ---16 48,000 39,500 12.6 16.0 1,390 1,080 3638078 24APA748A**31 CSPH*4812A** 58PH*110 ---20 48,000 39,500 12.9 16.5 1,340 1,105 3638079 24APA748A**31 CSPH*4812A** 58PH*135 ---20 48,000 40,000 12.7 16.0 1,360 1,200 3638168 24APA748A**31 CSPH*4812A** 58VMR120 ---20 47,000 40,000 12.2 15.5 1,355 1,155 4213269 24APA748A**31 CSPH*4812A** OVLAAB048112 48,500 40,000 12.2 15.7 1,450 1,170 4213270 24APA748A**31 CSPH*4812A** OVLAAB060154 49,000 40,500 13.0 16.7 1,445 1,170 3638019 24APA748A**31 CSPH*4812A**+TDR 47,500 39,000 12.2 14.5 1,400 1,120 3638074 24APA748A**31 CSPH*4812A**+UI 58CV(A,X)090 ---16 47,500 39,000 12.5 15.5 1,345 1,075 3638075 24APA748A**31 CSPH*4812A**+UI 58CV(A,X)110 ---20 48,000 39,500 12.6 15.5 1,355 1,085 3638076 24APA748A**31 CSPH*4812A**+UI 58CV(A,X)135 ---22 48,000 39,500 12.8 16.0 1,355 1,085 3638104 24APA748A**31 CSPH*6012A** 58HDV080 --- ---20 49,000 40,500 12.6 16.0 1,510 1,190 3638105 24APA748A**31 CSPH*6012A** 58HDV100 --- ---20 49,000 40,000 12.7 16.5 1,440 1,130 3638142 24APA748A**31 CSPH*6012A** 58ME(B,C)080 ---16 49,000 40,000 12.6 16.0 1,460 1,125 3638143 24APA748A**31 CSPH*6012A** 58ME(B,C)100 ---20 49,000 40,000 13.0 16.5 1,425 1,075 3638144 24APA748A**31 CSPH*6012A** 58ME(B,C)120 ---20 49,000 41,000 13.1 16.5 1,440 1,270 3638101 24APA748A**31 CSPH*6012A** 58PH*090 ---16 49,000 40,000 12.9 16.5 1,430 1,110 3638102 24APA748A**31 CSPH*6012A** 58PH*110 ---20 49,000 40,000 13.1 16.5 1,395 1,135 3638103 24APA748A**31 CSPH*6012A** 58PH*135 ---20 49,000 40,500 13.0 16.5 1,420 1,250 3638169 24APA748A**31 CSPH*6012A** 58VMR120 ---20 48,000 40,000 12.8 16.0 1,355 1,155 4213271 24APA748A**31 CSPH*6012A** OVLAAB048112 49,000 40,500 12.7 16.2 1,450 1,170 4213272 24APA748A**31 CSPH*6012A** OVLAAB060154 49,500 41,000 13.2 17.0 1,445 1,170 3638027 24APA748A**31 CSPH*6012A**+TDR 48,500 39,500 12.3 15.0 1,400 1,120 3638097 24APA748A**31 CSPH*6012A**+UI 58CV(A,X)090 ---16 48,500 39,500 12.8 16.5 1,345 1,075 3638098 24APA748A**31 CSPH*6012A**+UI 58CV(A,X)110 ---20 48,500 40,000 12.9 16.5 1,355 1,085 3638099 24APA748A**31 CSPH*6012A**+UI 58CV(A,X)135 ---22 48,500 40,000 13.1 16.5 1,355 1,085 3638100 24APA748A**31 CSPH*6012A**+UI 58CV(A,X)155 ---22 49,000 40,000 13.2 16.5 1,365 1,090 3638082 24APA748A**31 CSPH*6012A**+UI 58MV(B,C)080--- 20 48,000 39,500 12.7 16.0 1,310 1,050 3638083 24APA748A**31 CSPH*6012A**+UI 58MV(B,C)100--- 20 48,500 40,000 12.6 16.0 1,395 1,115 3638084 24APA748A**31 CSPH*6012A**+UI 58MV(B,C)120--- 20 48,500 40,000 12.9 16.5 1,360 1,090 3638106 24APA748A**31 FE4AN(B,F)005+UI 48,500 40,000 13.1 16.5 1,400 1,120

See notes on page 21

Model Number

Coil

Model Number

Furnace

Model Number

Cooling

Capacity

High Low High Low

EER SEER

ID CFM

24APA7

Page 20

COMBINATION RATINGS CONTINUED

Ref. No.

3638107 24APA748A**31 FE4ANB006+UI 49,500 40,500 13.4 17.0 1,400 1,120 3638108 24APA748A**31 FV4CN(B,F)005 48,500 40,000 13.1 16.5 1,400 1,120 3638109 24APA748A**31 FV4CNB006 49,500 40,500 13.4 17.0 1,400 1,120

3638181 24APA760A**31 †CNPH*6124A** 58PH*110 --- 20 59,000 47,000 13.0 16.5 1,675 1,245 3638211 24APA760A**31 CAP**6021A** 58ME(B,C)100--- 20 58,000 46,500 12.9 16.0 1,620 1,255 3638185 24APA760A**31 CAP**6021A** 58PH*110--- 20 58,500 46,500 13.0 16.5 1,670 1,250 3877973 24APA760A**31 CAP**6021A** 58UVB080 ---20 58,000 46,500 12.0 15.5 1,730 1,310 3877974 24APA760A**31 CAP**6021A** 58UVB100 ---20 58,000 47,000 12.3 15.5 1,660 1,395 3638243 24APA760A**31 CAP**6021A** 58VLR120 ---20 58,500 47,000 12.5 16.0 1,735 1,350 3638242 24APA760A**31 CAP**6021A** 58VMR120 ---20 57,500 47,000 12.0 15.5 1,740 1,355 3638173 24APA760A**31 CAP**6021A**+TDR 58,500 46,500 12.6 15.0 1,750 1,400 3638184 24APA760A**31 CAP**6021A**+UI 58CV(A,X)110 ---20 58,500 47,000 12.7 16.0 1,695 1,355 3638182 24APA760A**31 CAP**6021A**+UI 58MV(B,C)080 ---20 58,000 46,500 12.0 15.5 1,730 1,310 3638183 24APA760A**31 CAP**6021A**+UI 58MV(B,C)100 ---20 58,000 47,000 12.3 15.5 1,660 1,395 3638190 24APA760A**31 CAP**6024A** 58HDV100 --- --- 20 58,500 47,500 12.4 15.5 1,775 1,415 3638212 24APA760A**31 CAP**6024A** 58ME(B,C)100--- 20 58,500 46,500 12.9 16.0 1,630 1,260 3638213 24APA760A**31 CAP**6024A** 58ME(B,C)120--- 20 58,500 47,000 13.1 16.5 1,640 1,280 3638189 24APA760A**31 CAP**6024A** 58PH*135--- 20 58,500 46,500 12.9 16.0 1,650 1,260 3877975 24APA760A**31 CAP**6024A** 58UVB120 ---20 58,000 47,000 12.6 15.5 1,680 1,360

24APA7

3638245 24APA760A**31 CAP**6024A** 58VLR120 ---20 58,000 47,000 12.7 16.0 1,735 1,350 3638244 24APA760A**31 CAP**6024A** 58VMR120 ---20 58,000 47,000 12.2 15.5 1,740 1,355 4213274 24APA760A**31 CAP**6024A** OVLAAB060154 58,000 47,000 11.5 15.2 2,110 1,675 3638174 24APA760A**31 CAP**6024A**+TDR 58,500 46,500 12.6 15.0 1,750 1,400 3638187 24APA760A**31 CAP**6024A**+UI 58CV(A,X)135 ---22 58,500 47,000 13.0 16.0 1,685 1,355 3638188 24APA760A**31 CAP**6024A**+UI 58CV(A,X)155 ---22 59,000 47,500 13.1 16.5 1,705 1,365 3638186 24APA760A**31 CAP**6024A**+UI 58MV(B,C)120 ---20 58,000 47,000 12.6 15.5 1,680 1,360 3638251 24APA760A**31 CAP**6025A** 58HDV080 --- --- 20 56,500 46,000 11.6 15.5 1,845 1,445 3638252 24APA760A**31 CAP**6025A** 58HDV100 --- --- 20 56,500 46,500 11.8 15.5 1,775 1,415 4213275 24APA760A**31 CAP**6025A** OVLAAB060154 58,000 47,000 11.5 15.2 2,110 1,675 3638180 24APA760A**31 CAP**6025A**+TDR 57,000 46,000 11.8 14.5 1,750 1,400 3638226 24APA760A**31 CNPH*6024A** 58ME(B,C)100---20 58,500 47,000 13.0 16.5 1,645 1,275 3638227 24APA760A**31 CNPH*6024A** 58ME(B,C)120---20 58,500 47,000 13.0 16.5 1,655 1,290 3638217 24APA760A**31 CNPH*6024A** 58PH*110---20 58,500 47,000 13.0 16.5 1,700 1,275 3638218 24APA760A**31 CNPH*6024A** 58PH*135---20 58,500 47,000 12.9 16.0 1,670 1,280 4213278 24APA760A**31 CNPH*6024A** OVLAAB060154 58,000 47,000 11.5 15.2 2,110 1,675 3638177 24APA760A**31 CNPH*6024A**+TDR 58,500 46,500 12.6 15.0 1,750 1,400 3638198 24APA760A**31 CNPH*6024A**+UI 58CV(A,X)110 ---20 58,500 47,000 12.8 16.0 1,695 1,355 3638199 24APA760A**31 CNPH*6024A**+UI 58CV(A,X)135 ---22 58,500 47,000 13.0 16.0 1,685 1,355 3638200 24APA760A**31 CNPH*6024A**+UI 58CV(A,X)155 ---22 58,500 47,500 13.1 16.5 1,705 1,365 3638196 24APA760A**31 CNPH*6024A**+UI 58MV(B,C)100 ---20 57,500 47,000 12.3 15.5 1,660 1,395 3638197 24APA760A**31 CNPH*6024A**+UI 58MV(B,C)120 ---20 58,000 47,000 12.6 16.0 1,680 1,360 3638220 24APA760A**31 CNPH*6124A** 58HDV100 --- --- 20 58,500 47,500 12.4 15.5 1,765 1,410 3638228 24APA760A**31 CNPH*6124A** 58ME(B,C)100---20 58,500 47,000 13.0 16.5 1,625 1,255 3638229 24APA760A**31 CNPH*6124A** 58ME(B,C)120---20 58,500 47,000 13.1 16.5 1,630 1,270 3638219 24APA760A**31 CNPH*6124A** 58PH*135---20 58,500 47,000 12.9 16.0 1,640 1,245 4213279 24APA760A**31 CNPH*6124A** OVLAAB060154 58,500 47,500 11.5 15.2 2,110 1,675 3638178 24APA760A**31 CNPH*6124A**+TDR 59,000 47,000 12.7 15.0 1,750 1,400 3638235 24APA760A**31 CNPH*6124A**+UI 58CV(A,X)110 ---20 58,500 47,500 12.8 16.0 1,695 1,355 3638236 24APA760A**31 CNPH*6124A**+UI 58CV(A,X)135 ---22 59,000 47,500 13.0 16.0 1,685 1,355 3638237 24APA760A**31 CNPH*6124A**+UI 58CV(A,X)155 ---22 59,000 47,500 13.2 16.5 1,705 1,365 3638233 24APA760A**31 CNPH*6124A**+UI 58MV(B,C)100 ---20 58,000 47,500 12.3 15.5 1,660 1,395 3638234 24APA760A**31 CNPH*6124A**+UI 58MV(B,C)120 ---20 58,500 47,500 12.6 15.5 1,680 1,360 3638214 24APA760A**31 CNPV*6024A** 58ME(B,C)100---20 58,500 47,000 13.0 16.5 1,645 1,275 3638215 24APA760A**31 CNPV*6024A** 58ME(B,C)120---20 58,500 47,000 13.1 16.5 1,655 1,290 3638210 24APA760A**31 CNPV*6024A** 58PH*110---20 58,500 47,500 13.0 16.0 1,700 1,425 3638194 24APA760A**31 CNPV*6024A** 58PH*135---20 58,500 47,000 12.9 16.0 1,670 1,280 3877977 24APA760A**31 CNPV*6024A** 58UVB100 ---20 57,500 47,000 12.3 15.5 1,660 1,395 3877976 24APA760A**31 CNPV*6024A** 58UVB120 ---20 58,000 47,000 12.6 16.0 1,680 1,360 3638247 24APA760A**31 CNPV*6024A** 58VLR120 ---20 58,500 47,000 12.7 16.0 1,735 1,350 3638246 24APA760A**31 CNPV*6024A** 58VMR120--- 20 57,500 47,000 12.2 15.5 1,740 1,355 4213276 24APA760A**31 CNPV*6024A** OVLAAB060154 58,000 47,000 11.5 15.2 2,110 1,675 3638175 24APA760A**31 CNPV*6024A**+TDR 58,500 46,500 12.6 15.0 1,750 1,400 3638209 24APA760A**31 CNPV*6024A**+UI 58CV(A,X)110 ---20 58,500 47,000 12.8 16.0 1,695 1,355 3638192 24APA760A**31 CNPV*6024A**+UI 58CV(A,X)135 ---22 58,500 47,000 13.0 16.0 1,685 1,355 3638193 24APA760A**31 CNPV*6024A**+UI 58CV(A,X)155 ---22 58,500 47,500 13.1 16.5 1,705 1,365 3638208 24APA760A**31 CNPV*6024A**+UI 58MV(B,C)100 ---20 57,500 47,000 12.3 15.5 1,660 1,395 3638191 24APA760A**31 CNPV*6024A**+UI 58MV(B,C)120 ---20 58,000 47,000 12.6 16.0 1,680 1,360 3638216 24APA760A**31 CNPV*6124A** 58ME(B,C)100---20 59,000 47,500 13.1 16.5 1,650 1,285 3638225 24APA760A**31 CNPV*6124A** 58ME(B,C)120---20 58,500 47,000 13.0 16.5 1,660 1,300 3638207 24APA760A**31 CNPV*6124A** 58PH*110---20 59,500 48,500 13.2 16.5 1,710 1,435

See notes on page 21

AHRI

Model Number

Coil

Model Number

Furnace

Model Number

Cooling

Capacity

High Low High Low

EER SEER

ID CFM

Page 21

COMBINATION RATINGS CONTINUED

AHRI

Ref. No.

3638195 24APA760A**31 CNPV*6124A** 58PH*135---20 59,000 47,500 13.1 16.5 1,675 1,290 3877978 24APA760A**31 CNPV*6124A** 58UVB100 ---20 58,500 47,500 12.5 15.5 1,660 1,395 3877979 24APA760A**31 CNPV*6124A** 58UVB120 ---20 59,000 47,500 12.8 16.0 1,680 1,360 3638249 24APA760A**31 CNPV*6124A** 58VLR120 ---20 59,500 47,500 12.9 16.5 1,735 1,350 3638248 24APA760A**31 CNPV*6124A** 58VMR120--- 20 59,000 47,500 12.5 16.0 1,740 1,355 4213277 24APA760A**31 CNPV*6124A** OVLAAB060154 59,000 48,000 11.7 15.5 2,110 1,675 3638176 24APA760A**31 CNPV*6124A**+TDR 59,500 47,500 12.8 15.0 1,750 1,400 3638239 24APA760A**31 CNPV*6124A**+UI 58CV(A,X)110 ---20 59,000 48,000 13.0 16.0 1,695 1,355 3638241 24APA760A**31 CNPV*6124A**+UI 58CV(A,X)135 ---22 59,500 48,000 13.2 16.5 1,685 1,355 3638232 24APA760A**31 CNPV*6124A**+UI 58CV(A,X)155 ---22 59,500 48,000 13.3 16.5 1,705 1,365 3638238 24APA760A**31 CNPV*6124A**+UI 58MV(B,C)100 ---20 58,500 47,500 12.5 15.5 1,660 1,395 3638240 24APA760A**31 CNPV*6124A**+UI 58MV(B,C)120 ---20 59,000 47,500 12.8 16.0 1,680 1,360 3638230 24APA760A**31 CSPH*6012A** 58ME(B,C)100 ---20 58,500 47,000 13.1 16.5 1,650 1,270 3638231 24APA760A**31 CSPH*6012A** 58ME(B,C)120 ---20 59,000 47,000 13.2 16.5 1,660 1,290 3638203 24APA760A**31 CSPH*6012A** 58PH*110 ---20 59,000 47,000 13.1 16.5 1,710 1,270 3638204 24APA760A**31 CSPH*6012A** 58PH*135 ---20 58,500 47,000 13.0 16.5 1,675 1,275 3638250 24APA760A**31 CSPH*6012A** 58VMR120 ---20 58,500 47,500 12.4 16.0 1,740 1,355 4213280 24APA760A**31 CSPH*6012A** OVLAAB060154 58,500 47,500 11.7 15.2 2,110 1,675 3638179 24APA760A**31 CSPH*6012A**+TDR 59,000 47,000 12.7 15.0 1,750 1,400 3638224 24APA760A**31 CSPH*6012A**+UI 58CV(A,X)110 ---20 58,500 47,500 12.9 16.0 1,695 1,355 3638201 24APA760A**31 CSPH*6012A**+UI 58CV(A,X)135 ---22 59,000 47,500 13.1 16.5 1,685 1,355 3638202 24APA760A**31 CSPH*6012A**+UI 58CV(A,X)155 ---22 59,000 47,500 13.2 16.5 1,705 1,365 3638221 24APA760A**31 CSPH*6012A**+UI 58MV(B,C)080--- 20 58,000 47,000 12.2 15.5 1,730 1,310 3638222 24APA760A**31 CSPH*6012A**+UI 58MV(B,C)100--- 20 58,000 47,500 12.4 15.5 1,660 1,395 3638223 24APA760A**31 CSPH*6012A**+UI 58MV(B,C)120--- 20 58,500 47,500 12.7 16.0 1,680 1,360 3638205 24APA760A**31 FE4ANB006+UI 59,500 48,000 13.4 17.0 1,750 1,400 3638206 24APA760A**31 FV4CNB006 59,500 48,000 13.4 16.5 1,750 1,400

EER — Energy Efficiency Ratio SEER — Seasonal Energy Efficiency Ratio TDR — Time--- Delay Relay. In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in performance.

TXV — Thermostatic Expansion Valve UI — User Interface NOTES:

1. Ratings are net values reflecting the effects of circulating fan motor heat. Supplemental electric heat is not included.

2. Tested outdoor/indoor combinations have been tested in accordance with DOE test procedures for central air conditioners. Ratings for other combinations are determined under DOE computer simulation procedures.

3. Determine actual CFM values obtainable for your system by referring to fan performance data in fan coil or furnace coil literature.

4. Do not apply with capillary tube coils as performance and reliability are affected.

Model Number

Use either the accessory Time---Delay Relay KAATD0101TDR or a furnace equipped with TDR. Most Carrier furnaces are equipped with TDR.

Coil

Model Number

Furnace

Model Number

Cooling

Capacity

High Low High Low

EER SEER

ID CFM

24APA7

Page 22

Sys.

Tot a l

KW**

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

Capacity MBtuh

KW**

Sys.

KW**

24APA7

Tot a l

Capacity MBtuh

Sys.

KW**

Sys.

KW**

Sys.

KW**

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C)

Capacity MBtuh

Sys.

24APA724 HI GH Outdoor Section With CN PVP4217 Indoor Section

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ To t a l Sens‡ Tota l Sens‡ To t a l Sens‡ To t a l Sens‡ To t al Sens‡

EWB

°F(°C)

57 (13.9) 22.73 22.73 1.53 22.01 22.01 1.69 21.22 21.22 1.86 20.36 20.36 2.04 19.43 19.43 2.24 18.40 18.40 2.48

62 (16.7) 24.15 20.31 1.54 23.17 19.64 1.70 22.12 18.95 1.86 20.99 18.24 2.05 19.77 17.52 2.25 18.49 16.78 2.48

67 (19.4) 26.66 17.43 1.56 25.58 16.77 1.71 24.42 16.11 1.88 23.17 15.43 2.06 21.85 14.74 2.27 20.40 14.03 2.50

72 (22.2) 29.46 14.50 1.58 28.27 13.87 1.73 27.00 13.23 1.90 25.65 12.59 2.09 24.19 11.93 2.29 22.62 11.25 2.52

57 (13.9) 24.27 24.27 1.56 23.46 23.46 1.72 22.58 22.58 1.89 21.64 21.64 2.07 20.61 20.61 2.28 19.47 19.47 2.51

62 (16.7) 25.08 22.43 1.57 24.03 21.72 1.72 22.91 20.98 1.89 21.73 20.23 2.07 20.64 20.64 2.28 19.51 19.51 2.51

67 (19.4) 27.62 18.98 1.59 26.45 18.30 1.74 25.20 17.60 1.91 23.87 16.89 2.09 22.46 16.18 2.29 20.93 15.44 2.52

72 (22.2) 30.50 15.50 1.61 29.22 14.84 1.76 27.85 14.18 1.93 26.40 13.51 2.11 24.85 12.83 2.32 23.19 12.13 2.55

57 (13.9) 24.68 24.68 1.57 23.85 23.85 1.73 22.95 22.95 1.90 21.97 21.97 2.08 20.92 20.92 2.29 19.76 19.76 2.52

62 (16.7) 25.32 23.05 1.58 24.25 22.33 1.73 23.12 21.58 1.90 22.01 22.01 2.08 20.95 20.95 2.29 19.79 19.79 2.52

67 (19.4) 27.85 19.44 1.59 26.66 18.74 1.75 25.39 18.04 1.92 24.04 17.33 2.10 22.61 16.60 2.30 21.06 15.86 2.53

72 (22.2) 30.75 15.79 1.62 29.44 15.13 1.77 28.06 14.46 1.94 26.58 13.78 2.12 25.01 13.09 2.33 23.32 12.39 2.55

57 (13.9) 25.23 25.23 1.59 24.36 24.36 1.74 23.43 23.43 1.91 22.42 22.42 2.09 21.33 21.33 2.30 20.13 20.13 2.53

63 (17.2)†† 24.66 16.79 1.54 23.66 16.15 1.70 22.58 15.49 1.87 21.42 14.82 2.05 20.18 14.13 2.25 18.83 13.42 2.48

63 (17.2)†† 25.57 18.25 1.57 24.48 17.57 1.73 23.32 16.88 1.89 22.08 16.18 2.08 20.76 15.47 2.28 19.33 14.73 2.51

63 (17.2)†† 25.79 18.67 1.58 24.69 17.99 1.74 23.50 17.29 1.90 22.24 16.58 2.08 20.90 15.86 2.29 19.45 15.12 2.51

62 (16.7) 25.63 23.93 1.59 24.55 23.18 1.74 23.46 23.46 1.91 22.45 22.45 2.10 21.36 21.36 2.30 20.16 20.16 2.53

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C)

Capacity MBtuh

24APA724 LOW Outdoor Section With CNPVP4217 Indoor Section

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ To t a l Sens‡ Tota l Sens‡ To t a l Sens‡ To t a l Sens‡ To t al Sens‡

EWB

67 (19.4) 28.15 20.08 1.61 26.93 19.37 1.76 25.63 18.66 1.93 24.26 17.94 2.11 22.79 17.20 2.31 21.22 16.44 2.54

72 (22.2) 31.08 16.19 1.63 29.73 15.52 1.78 28.31 14.84 1.95 26.81 14.16 2.13 25.21 13.46 2.34 23.49 12.75 2.56

63 (17.2)†† 26.08 19.27 1.59 24.94 18.57 1.75 23.73 17.86 1.91 22.45 17.15 2.10 21.08 16.41 2.30 19.61 15.66 2.52

°F(°C)

57 (13.9) 16.08 16.08 1.00 15.50 15.50 1.16 14.87 14.87 1.35 14.19 14.19 1.56 13.45 13.45 1.81 12.64 12.64 2.10

62 (16.7) 17.21 13.77 1.01 16.42 13.42 1.17 15.57 13.04 1.35 14.66 12.65 1.56 13.67 12.23 1.81 12.67 12.67 2.10

67 (19.4) 19.26 11.92 1.02 18.39 11.56 1.18 17.45 11.19 1.36 16.45 10.80 1.57 15.37 10.38 1.82 14.21 9.93 2.11

72 (22.2) 21.55 10.03 1.04 20.58 9.67 1.19 19.55 9.30 1.37 18.47 8.91 1.58 17.29 8.49 1.82 16.03 8.05 2.12

57 (13.9) 16.84 16.84 1.01 16.22 16.22 1.17 15.55 15.55 1.36 14.82 14.82 1.57 14.03 14.03 1.82 13.17 13.17 2.11

62 (16.7) 17.70 14.66 1.02 16.87 14.29 1.18 15.98 13.91 1.36 15.03 13.50 1.57 14.06 14.06 1.82 13.19 13.19 2.11

67 (19.4) 19.78 12.58 1.03 18.87 12.22 1.19 17.89 11.84 1.37 16.83 11.43 1.58 15.70 11.00 1.82 14.50 10.55 2.12

72 (22.2) 22.13 10.48 1.05 21.12 10.11 1.20 20.05 9.73 1.38 18.90 9.32 1.59 17.66 8.90 1.83 16.34 8.45 2.13

57 (13.9) 17.95 17.95 1.03 17.27 17.27 1.19 16.53 16.53 1.37 15.73 15.73 1.58 14.87 14.87 1.83 13.93 13.93 2.13

62 (16.7) 18.37 16.11 1.04 17.49 15.73 1.19 16.58 16.53 1.37 15.76 15.76 1.58 14.90 14.90 1.83 13.96 13.96 2.13

67 (19.4) 20.49 13.66 1.05 19.51 13.29 1.20 18.46 12.89 1.38 17.34 12.47 1.59 16.14 12.03 1.84 14.88 11.56 2.13

72 (22.2) 22.90 11.19 1.06 21.83 10.81 1.22 20.68 10.41 1.39 19.45 10.00 1.60 18.15 9.56 1.85 16.76 9.10 2.14

57 (13.9) 18.58 18.58 1.04 17.86 17.86 1.20 17.08 17.08 1.38 16.25 16.25 1.59 15.34 15.34 1.84 14.36 14.36 2.14

62 (16.7) 18.74 17.02 1.05 17.89 17.89 1.20 17.11 17.11 1.38 16.28 16.28 1.59 15.36 15.36 1.84 14.38 14.38 2.14

67 (19.4) 20.85 14.34 1.06 19.83 13.95 1.21 18.76 13.55 1.39 17.60 13.12 1.60 16.38 12.67 1.85 15.07 12.20 2.14

63 (17.2)†† 17.63 11.41 1.01 16.83 11.06 1.17 15.96 10.68 1.35 15.03 10.29 1.56 14.01 9.87 1.81 12.93 9.43 2.10

63 (17.2)†† 18.12 12.03 1.02 17.27 11.67 1.18 16.36 11.29 1.36 15.38 10.88 1.57 14.33 10.45 1.82 13.20 10.00 2.11

63 (17.2)†† 18.78 13.04 1.04 17.86 12.67 1.20 16.89 12.27 1.38 15.84 11.84 1.59 14.74 11.41 1.83 13.56 10.94 2.13

72 (22.2) 23.30 11.62 1.07 22.18 11.24 1.23 21.00 10.83 1.40 19.75 10.41 1.61 18.40 9.97 1.85 16.96 9.50 2.15

63 (17.2)†† 19.11 13.67 1.05 18.17 13.29 1.20 17.17 12.88 1.38 16.10 12.46 1.59 14.95 12.01 1.84 13.74 11.53 2.13

EVAPORATOR AIR

CFM

600

715

DETAILED COOLING CAPACITIES#

750

800

EVAPORATOR AIR

CFM

450

500

585

640

Page 23

Power Furn ace Model

Low

Cap.

Speed

Power

High

Cap.

Speed

Model

Cooling Indoor

CAP**3621A** 0.98 0.98 0.97 0.96 58MV(B,C)080---14

CSPH*3012A** 1.00 0.99 0.99 1.00 58MV(B,C)060---14

CSPH*3612A** 1.02 0.99 1.00 0.99 58MV(B,C)060---14

CNPH*2417A** 0.98 0.99 0.97 0.98 58MV(B,C)080---14

CAP**3621A** 0.98 0.98 0.96 0.97 58MV(B,C)080---20

CAP**3621A** 0.98 0.98 0.97 0.96 58MV(B,C)100---20

CNPV*3621A** 0.98 0.99 0.99 0.98 58MV(B,C)100---20

CSPH*3612A** 1.00 0.99 0.98 0.97 58MV(B,C)080---14

CNPH*3017A** 0.98 0.98 0.96 0.96 58MV(B,C)080---14

CNPH*3617A** 0.98 0.98 0.96 0.96 58MV(B,C)080---14

CNPH*2417A** 0.98 1.00 0.97 0.99 58MVB040--- 14

CNPH*3017A** 0.98 0.99 0.97 0.98 58MVB040--- 14

CNPH*3617A** 0.98 0.99 0.97 0.98 58MVB040--- 14

CAP**3014A** 0.99 1.01 0.98 0.99 58PH*045---08

CSPH*2412A** 0.98 1.00 0.98 0.99 58MVB040---14

CAP**3614A** 0.99 1.00 0.99 1.00 58PH*045---08

CSPH*3012A** 0.98 0.99 0.97 0.98 58MVB040---14

CSPH*3612A** 1.00 0.99 0.99 0.99 58MVB040---14

CNPV*2414A** 0.98 1.00 0.98 1.00 58PH*045---08

CNPH*2417A** 0.98 1.00 0.98 1.00 58PH*045---08

CNPV*3014A** 0.98 1.00 0.98 1.00 58PH*045---08

CNPH*3017A** 0.99 1.00 0.99 1.00 58PH*045---08

CNPH*3617A** 0.99 1.00 0.99 1.00 58PH*045---08

CAP**2414A** 0.98 1.00 0.98 0.98 58VLR105---12

CAP**2417A** 0.98 0.98 0.98 0.98 58VLR105---12

CAP**3017A** 0.99 1.01 0.98 0.97 58VLR105---12

CNPV*2417A** 0.98 1.00 0.99 0.99 58VLR105---12

CSPH*2412A** 0.98 1.00 0.98 1.00 58PH*045---08

CSPH*3012A** 0.99 1.00 0.99 1.00 58PH*045---08

CSPH*3612A** 1.01 1.00 1.01 1.00 58PH*045---08

CNPV*3017A** 0.99 1.01 0.99 0.98 58VLR105---12

CAP**2414A** 0.97 0.98 0.96 0.98 58VMR105--- 12

CAP**2417A** 0.98 0.99 0.96 0.97 58VMR105--- 12

CNPV*3117A** 1.02 0.99 1.01 0.98 58VLR105---12

CNPV*3617A** 0.99 1.01 0.99 0.98 58VLR105---12

CAP**3017A** 0.98 0.99 0.96 0.97 58VMR105--- 12

CNPV*3717A** 1.02 1.00 1.02 0.98 58VLR105---12

CNPV*2417A** 0.97 1.00 0.96 0.98 58VMR105--- 12

CNPV*3017A** 0.98 0.99 0.96 0.97 58VMR105--- 12

CNPV*3117A** 1.00 1.02 0.98 0.97 58VMR105--- 12

CNPV*3617A** 0.98 0.99 0.96 0.97 58VMR105--- 12

CNPV*3717A** 1.01 0.99 0.99 0.97 58VMR105--- 12

CAP**2417A** 0.98 1.04 0.94 0.95 OVLAAB036098

CAP**3017A** 0.99 1.03 0.94 0.95 OVLAAB036098

CAP**3617A** 1.00 1.04 0.95 0.95 OVLAAB036098

CAP**3619A** 1.00 1.04 0.95 0.95 OVLAAB036098

CSPH*2412A** 0.98 1.00 0.97 0.98 58VMR105---12

CSPH*3012A** 0.98 1.00 0.96 0.97 58VMR105---12

CSPH*3612A** 1.00 1.02 0.98 0.97 58VMR105---12

CAP**3621A** 1.00 1.04 0.95 0.95 OVLAAB036098

CNPH*2417A** 0.98 1.06 0.95 0.97 OVLAAB036098

CNPH*3017A** 1.00 1.04 0.95 0.95 OVLAAB036098

CNPH*3117A** 1.02 1.03 0.97 0.95 OVLAAB036098

CNPV*2417A** 0.98 1.06 0.95 0.97 OVLAAB036098

CNPH*3617A** 1.00 1.04 0.95 0.95 OVLAAB036098

24APA7

Power Furn ace Model

Low

Cap.

Speed

Power

High

Cap.

Speed

24APA724 Outdoor Section Wit h CNPVP4821 Indoor Section

Model

CAP**3619A** 1.01 1.02 1.00 1.01 58HDV060--- --- 12

Cooling Indoor

CSPH*2412A** 0.98 1.02 0.98 1.01 58HDV040--- --- 12

Power Furn ace Model

Low

Cap.

Speed

Power

High

Cap.

Speed

CAP**3619A** 0.99 1.01 1.00 1.01 58HDV060--- --- 12

CSPH*3012A** 0.99 1.02 0.98 1.00 58HDV040--- --- 12

CSPH*3612A** 1.02 1.02 1.00 1.00 58HDV040--- --- 12

CNPH*3017A** 1.00 1.02 1.00 1.01 58HDV060--- --- 12

CNPH*3617A** 1.00 1.02 1.00 1.01 58HDV060--- --- 12

CAP**2417A** 1.00 0.99 1.00 0.99 58ME(B,C)060---12

CAP**3014A** 1.00 0.99 0.99 0.98 58ME(B,C)060---12

CAP**3017A** 1.01 0.99 1.01 0.99 58ME(B,C)060---12

CAP**3614A** 1.01 0.99 1.00 0.98 58ME(B,C)060---12

CAP**3617A** 1.02 0.99 1.01 0.98 58ME(B,C)060---12

CSPH*2412A** 0.99 1.02 0.99 1.02 58HDV060--- --- 12

CSPH*3012A** 1.00 1.02 0.99 1.01 58HDV060--- --- 12

CSPH*3612A** 1.02 1.02 1.02 1.01 58HDV060--- --- 12

CAP**3621A** 1.02 0.99 1.02 0.99 58ME(B,C)060---12

CNPV*2414A** 0.99 0.99 0.99 0.98 58ME(B,C)060---12

CNPV*2417A** 0.99 1.00 0.99 0.98 58ME(B,C)060---12

CNPV*3014A** 1.00 0.99 0.99 0.98 58ME(B,C)060---12

CNPV*3017A** 1.01 0.99 1.01 0.99 58ME(B,C)060---12

CNPV*3117A** 1.02 0.98 1.03 0.99 58ME(B,C)060---12

CNPV*3621A** 1.01 0.99 1.01 0.99 58ME(B,C)060---12

CNPH*2417A** 0.99 0.99 0.99 0.98 58ME(B,C)060---12

CNPH*3017A** 1.01 0.99 1.01 0.99 58ME(B,C)060---12

CNPH*3617A** 1.00 0.99 1.01 0.99 58ME(B,C)060---12

CNPV*3717A** 1.04 0.99 1.05 0.99 58ME(B,C)060---12

CAP**2417A** 1.00 0.99 1.01 1.00 58MEB040--- 12

CAP**3014A** 1.00 0.99 1.01 1.00 58MEB040--- 12

CAP**3017A** 1.01 0.99 1.01 0.99 58MEB040--- 12

CAP**3614A** 1.01 0.99 1.01 0.99 58MEB040--- 12

CAP**3617A** 1.01 0.99 1.02 0.99 58MEB040--- 12

CNPV*2414A** 0.99 0.99 1.00 0.99 58MEB040--- 12

CNPV*2417A** 0.99 0.99 1.00 0.99 58MEB040--- 12

CNPV*3014A** 1.00 0.99 1.00 0.99 58MEB040--- 12

CSPH*2412A** 1.00 1.00 0.98 0.97 58ME(B,C)060---12

CSPH*3012A** 1.01 0.99 1.00 0.98 58ME(B,C)060---12

CSPH*3612A** 1.03 0.99 1.03 0.99 58ME(B,C)060---12

CNPH*2417A** 0.99 0.99 1.00 0.99 58MEB040--- 12

CNPH*3017A** 1.01 0.99 1.01 0.99 58MEB040--- 12

CNPV*3621A** 1.01 0.99 1.02 1.00 58MEB040--- 12

CAP**2417A** 0.98 0.98 0.98 0.99 58MV(B,C)060---14

CAP**3017A** 0.99 0.98 0.98 0.98 58MV(B,C)060---14

CSPH*2412A** 1.00 0.99 1.00 0.99 58MEB040--- 12

CSPH*3012A** 1.01 0.99 1.01 0.99 58MEB040--- 12

CAP**3617A** 1.00 0.99 0.99 0.99 58MV(B,C)060---14

CSPH*3612A** 1.02 0.99 1.04 1.00 58MEB040--- 12

CNPV*2417A** 0.98 1.00 0.98 0.99 58MV(B,C)060---14

CNPV*3017A** 0.99 0.98 0.98 0.98 58MV(B,C)060---14

CNPV*3117A** 1.02 0.99 1.01 0.99 58MV(B,C)060---14

CNPV*3617A** 0.99 0.98 0.98 0.98 58MV(B,C)060---14

CNPV*3717A** 1.02 0.99 1.02 0.98 58MV(B,C)060---14

CNPH*2417A** 0.98 0.99 0.98 0.99 58MV(B,C)060---14

CNPH*3017A** 0.99 0.98 0.98 0.98 58MV(B,C)060---14

CNPH*3617A** 0.99 0.98 0.98 0.98 58MV(B,C)060---14

CSPH*2412A** 1.00 1.01 0.99 1.00 58MV(B,C)060---14

Model

CAP**2414A** 0.96 1.07 0.95 1.13

CAP**2417A** 0.96 1.07 0.95 1.13

CAP**3014A** 0.97 1.07 0.95 1.13

CAP**3017A** 0.97 1.07 0.95 1.13

CAP**3614A** 0.97 1.07 0.96 1.13

CAP**3617A** 0.97 1.07 0.96 1.13

CAP**3619A** 0.95 1.07 0.95 1.12

Cooling Indoor

DETAILED COOLING CAPACITIES# (CONTINUED)

*CNPV*4217A** 1.00 1.00 1.00 1.00 58PH*045 ---08

CAP**3621A** 0.97 1.07 0.96 1.13

CNPH*2417A** 0.96 1.07 0.96 1.14

CNPH*3017A** 0.97 1.07 0.95 1.13

CNPH*3617A** 0.97 1.07 0.95 1.13

FE4ANF002 0.99 0.98 0.99 0.97

FV4CNF002 0.99 0.98 0.99 0.97

CAP**3014A** 0.98 0.98 0.96 0.98 58CV(A,X)070--- 12

CNPV*2414A** 0.96 1.07 0.96 1.14

CNPV*2417A** 0.96 1.07 0.96 1.14

CNPV*3014A** 0.97 1.07 0.95 1.13

CNPV*3017A** 0.97 1.07 0.95 1.13

CNPV*3117A** 0.98 1.07 0.98 1.14

CNPV*3617A** 0.97 1.07 0.95 1.13

CNPV*3717A** 1.00 1.08 0.99 1.14

FE4AN(B,F)003 0.99 0.97 0.99 0.95

CSPH*2412A** 0.98 1.07 0.97 1.14

CSPH*3012A** 0.98 1.08 0.96 1.13

CSPH*3612A** 0.98 1.07 0.97 1.13

CAP**3614A** 0.98 0.99 0.97 0.98 58CV(A,X)070--- 12

FV4CN(B,F)003 0.99 0.97 0.99 0.96

CNPV*2414A** 0.97 0.98 0.96 0.98 58CV(A,X)070---12

CNPH*2417A** 0.97 0.98 0.96 0.98 58CV(A,X)070--- 12

CNPV*3014A** 0.98 0.98 0.96 0.98 58CV(A,X)070---12

CNPH*3017A** 0.98 0.98 0.96 0.97 58CV(A,X)070--- 12

CNPH*3617A** 0.98 0.98 0.96 0.97 58CV(A,X)070--- 12

CAP**2417A** 0.98 0.98 0.97 0.98 58CV(A,X)090--- 16

CAP**3017A** 0.98 0.98 0.97 0.97 58CV(A,X)090--- 16

CSPH*2412A** 0.98 1.00 0.97 0.99 58CV(A,X)070 ---12

CSPH*3012A** 0.98 0.99 0.97 0.99 58CV(A,X)070 ---12

CAP**3617A** 0.98 0.98 0.97 0.97 58CV(A,X)090--- 16

CSPH*3612A** 0.99 0.98 0.98 0.98 58CV(A,X)070 ---12

CNPV*2417A** 0.98 0.98 0.97 0.98 58CV(A,X)090---16

CNPV*3017A** 0.98 0.98 0.97 0.97 58CV(A,X)090---16

CNPV*3117A** 1.00 0.98 0.99 0.97 58CV(A,X)090---16

CNPV*3617A** 0.98 0.98 0.97 0.97 58CV(A,X)090---16

CNPH*2417A** 0.98 0.98 0.97 0.98 58CV(A,X)090--- 16

CNPH*3017A** 0.98 0.98 0.97 0.97 58CV(A,X)090--- 16

CNPH*3617A** 0.98 0.98 0.97 0.97 58CV(A,X)090--- 16

CNPV*3717A** 1.01 0.98 1.00 0.97 58CV(A,X)090---16

CAP**3621A** 0.98 0.98 0.97 0.96 58CV(A,X)110--- 20

CAP**3619A** 1.00 1.02 0.99 1.00 58HDV040--- --- 12

CSPH*2412A** 0.98 0.98 0.98 0.99 58CV(A,X)090 ---16

CSPH*3012A** 0.98 0.98 0.97 0.97 58CV(A,X)090 ---16

CAP**3619A** 0.99 1.01 0.98 0.99 58HDV040--- --- 12

CSPH*3612A** 1.00 0.98 0.99 0.98 58CV(A,X)090 ---16

CNPH*3017A** 0.99 1.02 0.98 0.99 58HDV040--- --- 12

CNPH*3617A** 0.99 1.02 0.99 1.00 58HDV040--- --- 12

Page 24

24APA7

24APA724 Outdoor Section Wit h CNPVP4821 Indoor Section

Power Furn ace Model

Low

Cap.

Speed

Power

High

Cap.

Speed

Model

CAP**2417A** 0.97 1.01 0.95 0.95 OVMAAB036098

CAP**3017A** 0.98 1.01 0.95 0.95 OVMAAB036098

CAP**3617A** 0.98 1.01 0.96 0.96 OVMAAB036098

CAP**3619A** 0.98 1.01 0.96 0.96 OVMAAB036098

Cooling Indoor

DETAILED COOLING CAPACITIES# (CONTINUED)

CNPV*3017A** 1.00 1.04 0.95 0.95 OVLAAB036098

CNPV*3117A** 1.02 1.03 0.97 0.96 OVLAAB036098

CNPV*3617A** 1.00 1.04 0.95 0.95 OVLAAB036098

CNPV*3621A** 1.00 1.04 0.95 0.95 OVLAAB036098

CNPV*3717A** 1.03 1.03 0.98 0.95 OVLAAB036098

CSPH*2412A** 0.99 1.07 0.96 0.97 OVLAAB036098

CSPH*3012A** 1.00 1.04 0.96 0.96 OVLAAB036098

CSPH*3612A** 1.02 1.03 0.96 0.95 OVLAAB036098

CAP**3621A** 0.98 0.99 0.96 0.95 OVMAAB036098

CNPH*2417A** 0.97 1.02 0.95 0.96 OVMAAB036098

CNPH*3017A** 0.98 1.01 0.95 0.95 OVMAAB036098

CNPH*3117A** 0.99 1.01 0.97 0.95 OVMAAB036098

CNPV*2417A** 0.97 1.02 0.95 0.96 OVMAAB036098

CNPH*3617A** 0.98 1.01 0.95 0.95 OVMAAB036098

CNPV*3017A** 0.98 1.01 0.95 0.95 OVMAAB036098

CNPV*3117A** 0.99 1.01 0.97 0.95 OVMAAB036098

CNPV*3617A** 0.98 1.01 0.95 0.95 OVMAAB036098

CNPV*3621A** 0.98 1.01 0.95 0.95 OVMAAB036098

CNPV*3717A** 1.01 1.01 0.98 0.95 OVMAAB036098

CSPH*2412A** 0.98 1.01 0.96 0.97 OVMAAB036098

CSPH*3012A** 0.98 1.02 0.97 0.96 OVMAAB036098

CSPH*3612A** 0.99 1.01 0.97 0.96 OVMAAB036098

CAP**2417A** 0.97 0.98 0.96 0.96 OVMAAB042112

CAP**3017A** 0.97 0.98 0.96 0.95 OVMAAB042112

CAP**3617A** 0.98 0.98 0.97 0.95 OVMAAB042112

CAP**3619A** 0.98 0.98 0.97 0.95 OVMAAB042112

CAP**3621A** 0.98 0.98 0.97 0.95 OVMAAB042112

CNPH*2417A** 0.96 1.00 0.97 0.97 OVMAAB042112

CNPH*3017A** 0.97 0.98 0.97 0.96 OVMAAB042112

CNPH*3117A** 0.99 0.99 0.99 0.95 OVMAAB042112

CNPV*2417A** 0.96 1.00 0.97 0.97 OVMAAB042112

CNPH*3617A** 0.97 0.98 0.97 0.96 OVMAAB042112

CNPV*3017A** 0.97 0.98 0.97 0.96 OVMAAB042112

CNPV*3117A** 0.99 0.99 0.99 0.96 OVMAAB042112

CNPV*3617A** 0.97 0.98 0.97 0.96 OVMAAB042112

CNPV*3621A** 0.97 0.98 0.97 0.96 OVMAAB042112

CNPV*3717A** 1.00 0.98 1.00 0.95 OVMAAB042112

CSPH*2412A** 0.98 1.01 0.98 0.98 OVMAAB042112

CSPH*3012A** 0.98 0.99 0.98 0.96 OVMAAB042112

CSPH*3612A** 0.99 0.99 0.98 0.95 OVMAAB042112

See notes on page 32

Page 25

Sys.

Tot a l

KW**

Sys.

Tot a l

KW**

Tot a l

Capacity MBtuh

Sys.

KW**

Sys.

KW**

Sys.

KW**

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

24APA7

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C)

Capacity MBtuh

Sys.

24APA736 HI GH Outdoor Section With CN PVP4821 Indoor Section

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ To t a l Sens‡ Tota l Sens‡ To t a l Sens‡ To t a l Sens‡ To t al Sens‡

EWB

°F(°C)

57 (13.9) 33.33 33.33 2.24 32.15 32.15 2.46 30.88 30.88 2.70 29.56 29.56 2.97 28.14 28.14 3.26 26.61 26.61 3.59

62 (16.7) 35.31 29.54 2.26 33.74 28.47 2.48 32.09 27.39 2.72 30.37 26.30 2.98 28.57 25.20 3.27 26.70 26.52 3.59

67 (19.4) 38.95 25.33 2.29 37.22 24.31 2.51 35.42 23.28 2.75 33.52 22.24 3.02 31.52 21.20 3.31 29.38 20.15 3.63

72 (22.2) 42.96 21.05 2.34 41.08 20.07 2.56 39.11 19.10 2.80 37.05 18.12 3.06 34.86 17.13 3.35 32.53 16.13 3.68

57 (13.9) 35.76 35.76 2.29 34.44 34.44 2.51 33.04 33.04 2.75 31.56 31.56 3.02 29.98 29.98 3.31 28.28 28.28 3.64

62 (16.7) 36.78 32.85 2.30 35.11 31.71 2.52 33.37 30.55 2.76 31.63 31.49 3.02 30.03 30.03 3.32 28.33 28.33 3.64

67 (19.4) 40.41 27.76 2.34 38.54 26.68 2.56 36.60 25.60 2.79 34.57 24.52 3.06 32.32 23.39 3.34 30.19 22.33 3.67

72 (22.2) 44.50 22.59 2.38 42.46 21.58 2.60 40.37 20.57 2.84 38.15 19.55 3.10 35.82 18.52 3.39 33.35 17.49 3.72

57 (13.9) 36.91 36.91 2.32 35.51 35.51 2.55 34.05 34.05 2.79 32.47 32.47 3.05 30.83 30.83 3.35 29.05 29.05 3.68

62 (16.7) 37.46 34.64 2.33 35.76 33.44 2.55 34.08 34.08 2.79 32.51 32.51 3.05 30.88 30.88 3.35 29.09 29.09 3.68

67 (19.4) 41.01 29.06 2.37 39.08 27.96 2.58 37.09 26.86 2.82 35.00 25.76 3.08 32.82 24.64 3.37 30.51 23.52 3.70

72 (22.2) 45.14 23.41 2.41 43.08 22.39 2.63 40.87 21.35 2.87 38.60 20.31 3.13 36.21 19.27 3.42 33.67 18.21 3.75

57 (13.9) 38.32 38.32 2.35 36.83 36.83 2.57 35.27 35.27 2.81 33.62 33.62 3.08 31.85 31.85 3.37 29.99 29.99 3.70

63 (17.2)†† 36.04 24.41 2.26 34.43 23.39 2.48 32.74 22.37 2.72 30.96 21.34 2.98 29.09 20.31 3.28 27.10 19.26 3.60

63 (17.2)†† 37.44 26.68 2.30 35.70 25.61 2.52 33.89 24.55 2.76 31.96 23.46 3.02 30.00 22.39 3.32 27.89 21.29 3.64

63 (17.2)†† 38.02 27.90 2.33 36.23 26.81 2.55 34.36 25.72 2.79 32.37 24.61 3.05 30.37 23.52 3.34 28.21 22.39 3.66

62 (16.7) 38.43 38.13 2.35 36.88 36.88 2.57 35.32 35.32 2.81 33.66 33.66 3.08 31.88 31.88 3.37 30.03 30.03 3.70

63 (17.2)†† 38.73 29.56 2.35 36.87 28.44 2.57 34.94 27.32 2.81 32.94 26.19 3.07 30.84 25.05 3.36 28.64 23.89 3.68

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C)

Capacity MBtuh

Sys.

24APA736 HI GH Outdoor Section With CN PVP4821 Indoor Section

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ To t a l Sens‡ Tota l Sens‡ To t a l Sens‡ To t a l Sens‡ To t al Sens‡

EWB

67 (19.4) 41.73 30.84 2.38 39.74 29.71 2.60 37.67 28.58 2.84 35.54 27.44 3.10 33.29 26.29 3.39 30.89 25.11 3.71

72 (22.2) 45.89 24.52 2.43 43.73 23.47 2.65 41.48 22.42 2.89 39.13 21.36 3.15 36.66 20.29 3.44 34.06 19.21 3.76

°F(°C)

57 (13.9) 23.87 23.87 1.49 22.84 22.84 1.67 21.77 21.77 1.86 20.65 20.65 2.09 19.47 19.47 2.34 18.23 18.23 2.64

62 (16.7) 24.93 19.49 1.49 23.58 18.94 1.66 22.19 18.38 1.86 20.78 17.80 2.08 19.51 19.51 2.34 18.26 18.26 2.64

67 (19.4) 27.75 16.65 1.47 26.25 16.10 1.65 24.71 15.54 1.84 23.11 14.97 2.06 21.47 14.39 2.31 19.75 13.79 2.61

72 (22.2) 30.87 13.76 1.46 29.23 13.21 1.63 27.54 12.65 1.82 25.80 12.08 2.03 24.00 11.50 2.28 22.12 10.91 2.57

57 (13.9) 25.59 25.59 1.51 24.45 24.45 1.68 23.26 23.26 1.87 22.01 22.01 2.09 20.71 20.71 2.34 19.34 19.34 2.64

62 (16.7) 25.95 21.71 1.50 24.55 24.32 1.68 23.30 23.30 1.87 22.05 22.05 2.09 20.75 20.75 2.34 19.37 19.37 2.64

67 (19.4) 28.75 18.28 1.49 27.14 17.71 1.66 25.49 17.13 1.86 23.80 16.54 2.07 22.06 15.94 2.33 20.26 15.33 2.62

72 (22.2) 31.95 14.80 1.48 30.19 14.23 1.65 28.38 13.65 1.84 26.52 13.06 2.05 24.61 12.47 2.30 22.64 11.87 2.59

57 (13.9) 26.80 26.80 1.52 25.57 25.57 1.69 24.29 24.29 1.88 22.95 22.95 2.10 21.56 21.56 2.35 20.10 20.10 2.64

62 (16.7) 26.85 26.85 1.52 25.61 25.61 1.69 24.33 24.33 1.88 22.99 22.99 2.10 21.60 21.60 2.35 20.13 20.13 2.64

67 (19.4) 29.37 19.61 1.51 27.70 19.02 1.68 25.98 18.43 1.87 24.23 17.83 2.09 22.43 17.22 2.34 20.58 16.59 2.64

72 (22.2) 32.61 15.63 1.50 30.77 15.05 1.67 28.89 14.46 1.85 26.96 13.86 2.07 24.98 13.26 2.31 22.94 12.65 2.60

57 (13.9) 27.33 27.33 1.53 26.06 26.06 1.70 24.74 24.74 1.89 23.37 23.37 2.11 21.93 21.93 2.36 20.43 20.43 2.65

62 (16.7) 27.38 27.38 1.53 26.10 26.10 1.70 24.77 24.77 1.89 23.40 23.40 2.11 21.96 21.96 2.36 20.46 20.46 2.65

67 (19.4) 29.63 20.25 1.52 27.93 19.66 1.69 26.19 19.07 1.88 24.41 18.46 2.10 22.59 17.84 2.35 20.73 17.19 2.64

63 (17.2)†† 25.49 15.95 1.48 24.11 15.40 1.66 22.67 14.84 1.86 21.19 14.27 2.08 19.65 13.69 2.34 18.05 13.09 2.64

63 (17.2)†† 26.45 17.47 1.50 24.95 16.90 1.68 23.42 16.32 1.87 21.84 15.73 2.10 20.22 15.13 2.35 18.54 14.52 2.66

63 (17.2)†† 27.05 18.71 1.52 25.49 18.13 1.69 23.89 17.53 1.89 22.26 16.93 2.11 20.59 16.32 2.37 18.86 15.68 2.67

72 (22.2) 32.88 16.03 1.51 31.00 15.44 1.68 29.09 14.85 1.86 27.13 14.25 2.07 25.13 13.64 2.32 23.05 13.02 2.61

63 (17.2)†† 27.30 19.31 1.53 25.71 18.72 1.70 24.09 18.12 1.90 22.44 17.51 2.12 20.74 16.88 2.37 19.02 16.22 2.67

EVAPORATOR AIR

CFM

900

1090

DETAILED COOLING CAPACITIES# (CONTINUED)

1200

1350

EVAPORATOR AIR

CFM

700

840

960

1020

See notes on page 32

Page 26

Power Furn ace Model

Low

Cap.

Speed

Power

High

Cap.

Speed

Model

CAP**3617A** 1.00 1.02 0.99 1.01 58ME(B,C)080---12

Cooling Indoor

CNPV*3617A** 0.99 1.03 0.99 1.02 58ME(B,C)060---12

CNPV*3717A** 1.04 1.04 1.03 1.01 58ME(B,C)060---12

CNPV*4217A** 1.02 1.03 1.01 1.01 58ME(B,C)060---12

CNPV*4821A** 1.03 1.03 0.99 0.97 58ME(B,C)060---12

CNPH*3617A** 0.99 1.03 0.99 1.02 58ME(B,C)060---12

CNPH*4221A** 1.01 1.03 1.00 1.02 58ME(B,C)060---12

CNPH*4821A** 1.03 1.03 1.02 1.01 58ME(B,C)060---12

CSPH*3612A** 1.03 1.03 0.99 0.97 58ME(B,C)060---12

CAP**4817A** 1.03 1.03 1.01 1.00 58ME(B,C)080---12

CSPH*4212A** 1.03 1.03 0.99 0.97 58ME(B,C)060---12

CSPH*4812A** 1.04 1.03 1.00 0.97 58ME(B,C)060---12

CNPV*3617A** 0.99 1.02 0.98 1.01 58ME(B,C)080---12

CNPV*3717A** 1.04 1.02 1.02 1.00 58ME(B,C)080---12

CNPH*3617A** 0.99 1.02 0.98 1.01 58ME(B,C)080---12

CNPH*4221A** 1.01 1.03 0.99 1.01 58ME(B,C)080---12

CNPV*4217A** 1.02 1.02 1.00 1.00 58ME(B,C)080---12

CNPH*4821A** 1.03 1.03 1.01 1.00 58ME(B,C)080---12

CAP**3617A** 1.00 1.02 0.99 1.03 58ME(B,C)080---16

CSPH*3612A** 1.02 1.02 1.01 1.01 58ME(B,C)080---12

CAP**4817A** 1.04 1.04 1.02 1.02 58ME(B,C)080---16

CSPH*4212A** 1.03 1.03 0.99 0.97 58ME(B,C)080---12

CSPH*4812A** 1.04 1.03 1.02 1.01 58ME(B,C)080---12

CNPV*3617A** 0.99 1.03 0.99 1.03 58ME(B,C)080---16

CNPV*3717A** 1.04 1.04 1.03 1.02 58ME(B,C)080---16

CNPV*4217A** 1.02 1.03 1.01 1.03 58ME(B,C)080---16

CNPH*3617A** 0.99 1.03 0.99 1.03 58ME(B,C)080---16

CNPH*4221A** 1.01 1.03 1.00 1.03 58ME(B,C)080---16

CNPH*4821A** 1.03 1.03 1.02 1.02 58ME(B,C)080---16

CNPV*4821A** 1.03 1.03 1.02 1.02 58ME(B,C)080---16

CAP**3617A** 1.00 1.02 0.97 0.99 58MV(B,C)060---14

CSPH*3612A** 1.03 1.04 1.01 1.02 58ME(B,C)080---16

CAP**4817A** 1.03 1.03 1.00 0.98 58MV(B,C)060---14

CSPH*4212A** 1.03 1.03 1.02 1.02 58ME(B,C)080---16

CSPH*4812A** 1.04 1.03 1.03 1.03 58ME(B,C)080---16

CNPH*3617A** 0.99 1.03 0.97 0.99 58MV(B,C)060---14

CNPH*4221A** 1.01 1.03 0.98 0.99 58MV(B,C)060---14

CAP**4821A** 1.02 1.03 0.99 0.99 58MV(B,C)080---14

CNPV*3617A** 0.99 1.03 0.97 0.99 58MV(B,C)060---14

CNPV*3717A** 1.04 1.03 1.01 0.98 58MV(B,C)060---14

CNPV*4217A** 1.02 1.03 0.99 0.99 58MV(B,C)060---14

CNPV*3621A** 0.99 1.04 0.97 1.01 58MV(B,C)080---14

CNPV*4221A** 1.01 1.04 0.98 1.01 58MV(B,C)080---14

CNPH*3617A** 0.99 1.04 0.97 1.01 58MV(B,C)080---14

CNPH*4221A** 1.01 1.04 0.97 1.00 58MV(B,C)080---14

CNPV*4821A** 1.02 1.03 0.99 0.98 58MV(B,C)080---14

CNPH*4821A** 1.02 1.03 0.99 0.99 58MV(B,C)080---14

CAP**3621A** 0.99 1.03 0.97 0.99 58MV(B,C)080---20

CAP**4221A** 1.00 1.02 0.97 0.99 58MV(B,C)080---20

CNPV*4824A** 1.02 1.03 0.99 0.98 58MV(B,C)080---14

CSPH*4212A** 1.02 1.03 0.99 1.00 58MV(B,C)080---14

CAP**4821A** 1.02 1.02 0.98 0.98 58MV(B,C)080---20

CSPH*4812A** 1.03 1.04 0.99 0.99 58MV(B,C)080---14

CNPH*3617A** 0.99 1.03 0.96 0.99 58MV(B,C)080---20

CNPH*4221A** 1.00 1.02 0.97 0.99 58MV(B,C)080---20

24APA7

Power Furn ace Model

Low

Cap.

Speed

Power

High

Cap.

Speed

24APA736 Outdoor Section Wit h CNPVP4821 Indoor Section

Model

CAP**3621A** 0.99 1.01 0.97 0.97 58CV(A,X)110--- 20

CAP**4221A** 1.01 1.01 0.97 0.98 58CV(A,X)110--- 20

Cooling Indoor

Power Furn ace Model

Low

Speed

Power

High

Speed

CNPV*3617A** 0.99 1.01 0.96 0.98 58CV(A,X)090---16

CNPV*3717A** 1.03 1.02 1.00 0.98 58CV(A,X)090---16

CNPV*4217A** 1.01 1.02 0.98 0.98 58CV(A,X)090---16

CNPV*4221A** 1.00 1.02 0.97 0.97 58CV(A,X)090---16

CNPV*4821A** 1.02 1.01 0.99 0.98 58CV(A,X)090---16

CSPH*3612A** 1.02 1.02 0.99 0.98 58CV(A,X)090 ---16

CNPH*4221A** 1.01 1.01 0.97 0.98 58CV(A,X)090--- 16

CNPH*4821A** 1.02 1.01 0.99 0.97 58CV(A,X)090--- 16

Cap.

CSPH*4212A** 1.02 1.01 0.99 0.97 58CV(A,X)090 ---16

CAP**4821A** 1.02 1.02 0.99 0.98 58CV(A,X)110--- 20

CNPV*3621A** 0.99 1.02 0.97 0.99 58CV(A,X)110---20

CSPH*4812A** 1.03 1.02 0.99 0.97 58CV(A,X)090 ---16

CNPV*4821A** 1.02 1.01 0.99 0.97 58CV(A,X)110---20

CNPH*4221A** 1.01 1.01 0.97 0.98 58CV(A,X)110--- 20

CNPH*4821A** 1.02 1.01 0.99 0.97 58CV(A,X)110--- 20

CAP**4224A** 1.01 1.01 0.97 0.97 58CV(A,X)135--- 22

CAP**4824A** 1.02 1.01 0.99 0.97 58CV(A,X)135--- 22

CSPH*3612A** 1.02 1.02 0.99 0.98 58CV(A,X)110 ---20

CSPH*4212A** 1.03 1.02 0.99 0.98 58CV(A,X)110 ---20

CSPH*4812A** 1.03 1.02 0.99 0.98 58CV(A,X)110 ---20

CNPV*4824A** 1.02 1.01 0.99 0.96 58CV(A,X)135---22

CNPH*4821A** 1.02 1.01 0.99 0.96 58CV(A,X)135--- 22

CAP**4224A** 1.01 0.99 0.97 0.96 58CV(A,X)155--- 22

CAP**4824A** 1.02 1.00 0.99 0.96 58CV(A,X)155--- 22

CSPH*3612A** 1.02 1.01 0.99 0.98 58CV(A,X)135 ---22

CSPH*4212A** 1.02 1.01 0.99 0.98 58CV(A,X)135 ---22

CSPH*4812A** 1.03 1.01 0.99 0.97 58CV(A,X)135 ---22

CNPV*4824A** 1.03 1.00 0.99 0.96 58CV(A,X)155---22

CNPH*3617A** 0.99 1.01 0.97 0.98 58CV(A,X)155--- 22

CNPH*4821A** 1.03 1.00 0.99 0.96 58CV(A,X)155--- 22

CAP**3619A** 0.99 1.07 0.96 1.03 58HDV040--- --- 12

CAP**3619A** 0.97 1.05 0.93 0.96 58HDV040--- --- 12

CAP**4823A** 1.01 1.08 0.98 1.02 58HDV040--- --- 12

CAP**4823A** 1.00 1.04 0.97 0.97 58HDV040--- --- 12

CAP**3619A** 0.99 1.06 0.96 1.00 58HDV060--- --- 12

CAP**3619A** 0.97 1.01 0.93 0.93 58HDV060--- --- 12

CAP**4823A** 1.02 1.06 0.98 0.99 58HDV060--- --- 12

CSPH*3612A** 1.02 1.01 0.99 0.97 58CV(A,X)155 ---22

CSPH*4212A** 1.03 1.00 0.99 0.97 58CV(A,X)155 ---22

CSPH*4812A** 1.03 1.01 1.01 0.97 58CV(A,X)155 ---22

CAP**4823A** 1.00 1.02 0.97 0.94 58HDV060--- --- 12

CAP**4823A** 1.04 1.06 1.01 1.01 58HDV080--- --- 20

CAP**4823A** 1.03 1.03 1.00 0.96 58HDV080--- --- 20

CAP**6025A** 1.06 1.06 1.01 1.00 58HDV080--- --- 20

CAP**4224A** 1.02 1.03 0.99 0.99 58HDV100--- --- 20

CAP**6025A** 1.03 1.03 1.01 0.99 58HDV100--- --- 20

CAP**3617A** 1.00 1.02 0.99 1.01 58ME(B,C)060---12

CAP**4817A** 1.04 1.04 1.02 1.01 58ME(B,C)060---12

CNPV*4324A** 1.06 1.04 1.02 0.98 58HDV100--- --- 20

CSPH*3612A** 1.02 1.06 0.97 1.00 58HDV060--- --- 12

CSPH*4212A** 1.03 1.07 0.98 0.99 58HDV060--- --- 12

CSPH*4812A** 1.03 1.07 0.99 1.00 58HDV060--- --- 12

CNPV*4824A** 1.04 1.04 1.01 0.99 58HDV100--- --- 20

Model

CAP**3614A** 0.97 1.06 0.95 1.13

CAP**3617A** 0.98 1.08 0.95 1.13

CAP**3619A** 0.98 1.08 0.95 1.13

CAP**3621A** 0.98 1.08 0.95 1.13

CAP**4221A** 0.99 1.08 0.96 1.13

CAP**4224A** 0.99 1.08 0.96 1.13

CAP**4817A** 1.02 1.09 0.98 1.13

CAP**4821A** 1.01 1.09 0.97 1.13

CAP**4823A** 1.01 1.09 0.97 1.13

Cooling Indoor

DETAILED COOLING CAPACITIES# (CONTINUED)

*CNPV*4821A** 1.00 1.00 1.00 1.00 58PH*090 ---16

CAP**4824A** 1.01 1.09 0.97 1.13

CNPH*3617A** 0.98 1.08 0.95 1.13

CNPH*4221A** 0.99 1.09 0.96 1.12

CNPH*4821A** 1.01 1.09 0.97 1.12

FE4ANF002 1.01 1.06 0.99 1.01

FE4ANB006 1.07 1.01 1.03 0.96

CNPV*3617A** 0.98 1.08 0.95 1.13

CNPV*3621A** 0.98 1.08 0.95 1.13

CNPV*3717A** 1.02 1.11 0.99 1.12

CNPV*4217A** 1.00 1.08 0.97 1.12

CNPV*4221A** 0.99 1.09 0.96 1.12

CNPV*4821A** 1.01 1.09 0.97 1.12

CNPV*4824A** 1.01 1.09 0.97 1.12

FE4AN(B,F)003 1.01 1.01 0.98 0.97

CSPH*3612A** 1.01 1.08 0.97 1.13

CSPH*4212A** 1.01 1.09 0.98 1.13

CSPH*4812A** 1.02 1.08 0.98 1.12

FE5ANB004 1.07 1.01 1.03 0.96

FE4AN(B,F)005 1.05 1.01 1.01 0.97

FV4CNF002 0.99 1.03 0.97 0.99

FV4CNB006 1.06 1.00 1.01 0.94

CAP**3614A** 0.99 1.04 0.96 1.00 58CV(A,X)070--- 12

CAP**3614A** 0.98 1.05 0.96 0.98 58CV(A,X)070--- 12

CAP**3617A** 0.98 1.05 0.96 0.98 58CV(A,X)070--- 12

FV4CN(B,F)003 1.01 1.01 0.97 0.96

FV4CN(B,F)005 1.04 1.01 1.00 0.96

CAP**4817A** 1.02 1.04 0.99 0.97 58CV(A,X)070--- 12

CNPH*3617A** 0.98 1.05 0.95 0.98 58CV(A,X)070--- 12

CNPH*4221A** 1.00 1.03 0.97 1.00 58CV(A,X)070--- 12

CNPV*3617A** 0.98 1.05 0.95 0.98 58CV(A,X)070---12

CNPV*3717A** 1.03 1.03 0.99 0.97 58CV(A,X)070---12

CNPV*4217A** 1.01 1.05 0.97 0.98 58CV(A,X)070---12

CSPH*3612A** 1.01 1.03 0.98 1.00 58CV(A,X)070 ---12

CSPH*3612A** 1.01 1.05 0.98 0.98 58CV(A,X)070 ---12

CSPH*4212A** 1.02 1.03 0.99 1.00 58CV(A,X)070 ---12

CNPH*4221A** 0.99 1.03 0.97 0.98 58CV(A,X)070--- 12

CNPH*4321A** 1.03 1.03 0.99 0.97 58CV(A,X)070--- 12

CNPH*4821A** 1.01 1.03 0.98 0.97 58CV(A,X)070--- 12

CSPH*4212A** 1.02 1.04 0.99 0.98 58CV(A,X)070 ---12

CAP**3617A** 0.99 1.01 0.97 0.98 58CV(A,X)090--- 16

CSPH*4812A** 1.02 1.03 0.99 1.00 58CV(A,X)070 ---12

CAP**4817A** 1.03 1.02 0.99 0.98 58CV(A,X)090--- 16

CSPH*4812A** 1.02 1.05 0.99 0.97 58CV(A,X)070 ---12

CSPH*4812A** 1.01 1.03 1.01 1.05 58CV(A,X)070 ---12

CNPH*3617A** 0.99 1.01 0.96 0.98 58CV(A,X)090--- 16

Page 27

Power Furn ace Model

Low

Cap.

Speed

Power

High

Cap.

Speed

Model

Cooling Indoor

CNPV*4217A** 1.00 1.04 0.97 0.98 OVMAAB042112

CNPV*4221A** 0.99 1.06 0.97 0.98 OVMAAB042112

CNPV*4821A** 1.01 1.03 0.98 0.96 OVMAAB042112

CSPH*3612A** 1.01 1.05 0.97 0.97 OVMAAB042112

CSPH*4212A** 1.01 1.03 0.98 0.97 OVMAAB042112

CSPH*4812A** 1.02 1.04 0.99 0.97 OVMAAB042112

See notes on page 32

Power Furn ace Model

Low

Cap.

Speed

24APA7

Power

High

Cap.

Speed

24APA736 Outdoor Section Wit h CNPVP4821 Indoor Section

Model

CAP**4817A** 1.02 1.02 0.99 0.98 58VMR105--- 12

CAP**4821A** 1.01 1.03 0.98 0.98 58VMR105--- 12

Cooling Indoor

Power Furn ace Model

Low

Speed

Power

High

Speed

CNPV*3617A** 0.98 1.03 0.96 1.00 58VMR105--- 12

CNPV*3621A** 0.98 1.02 0.96 0.99 58VMR105--- 12

CNPV*3717A** 1.02 1.02 0.99 0.98 58VMR105--- 12

Cap.

CAP**3621A** 1.01 1.05 0.99 1.03 58VMR120--- 20

CAP**4221A** 1.02 1.04 1.00 1.03 58VMR120--- 20

CAP**3619A** 0.99 1.05 0.97 1.00 OVLAAB048112

CAP**3621A** 0.99 1.05 0.97 0.99 OVLAAB048112

CAP**4221A** 0.99 1.06 0.97 0.99 OVLAAB048112

CAP**4224A** 1.00 1.04 0.97 0.99 OVLAAB048112

CAP**4821A** 1.01 1.05 0.99 1.00 OVLAAB048112

CAP**4823A** 1.01 1.05 0.99 1.00 OVLAAB048112

CNPV*4217A** 1.01 1.03 0.98 0.99 58VMR105--- 12

CNPV*4221A** 0.99 1.03 0.97 0.99 58VMR105--- 12

CNPV*4821A** 1.01 1.02 0.99 0.98 58VMR105--- 12

CNPV*4221A** 1.02 1.06 1.00 1.04 58VMR120--- 20

CNPV*4821A** 1.04 1.04 1.02 1.02 58VMR120--- 20

CAP**4824A** 1.02 1.06 0.99 0.99 OVLAAB048112

CNPH*3617A** 0.98 1.07 0.96 1.01 OVLAAB048112

CNPH*4221A** 0.99 1.06 0.97 1.00 OVLAAB048112

CNPH*4321A** 1.03 1.05 1.00 0.99 OVLAAB048112

CNPV*3621A** 0.98 1.07 0.96 1.01 OVLAAB048112

CNPH*4821A** 1.02 1.06 0.99 0.99 OVLAAB048112

CNPV*4221A** 0.99 1.06 0.97 1.00 OVLAAB048112

CNPV*4324A** 1.03 1.06 1.00 0.98 OVLAAB048112

CNPV*4821A** 1.02 1.06 0.99 0.99 OVLAAB048112

CNPV*4824A** 1.02 1.06 0.99 0.99 OVLAAB048112

CSPH*3612A** 1.01 1.05 0.99 1.00 OVLAAB048112

CSPH*4212A** 1.02 1.06 0.99 0.99 OVLAAB048112

CAP**4224A** 1.02 1.04 0.99 0.99 OVLAAB060154

CSPH*4812A** 1.02 1.06 0.99 0.99 OVLAAB048112

CAP**4824A** 1.04 1.06 1.01 0.99 OVLAAB060154

CNPH*3617A** 1.01 1.07 0.99 1.01 OVLAAB060154

CNPH*4221A** 1.02 1.06 0.99 1.00 OVLAAB060154

CNPH*4321A** 1.06 1.06 1.03 0.99 OVLAAB060154

CNPV*4324A** 1.06 1.06 1.03 0.98 OVLAAB060154

CNPH*4821A** 1.04 1.06 1.01 0.99 OVLAAB060154

CNPV*4824A** 1.04 1.06 1.01 0.99 OVLAAB060154

CSPH*3612A** 1.03 1.06 1.01 1.00 OVLAAB060154

CSPH*4212A** 1.04 1.07 1.01 1.00 OVLAAB060154

CSPH*4812A** 1.04 1.07 1.02 1.00 OVLAAB060154

CAP**3617A** 0.98 1.05 0.95 0.97 OVMAAB042112

CAP**3619A** 0.98 1.05 0.95 0.97 OVMAAB042112

CAP**3621A** 0.98 1.05 0.95 0.96 OVMAAB042112

CAP**4221A** 0.99 1.03 0.96 0.96 OVMAAB042112

CAP**4817A** 1.02 1.04 0.98 0.97 OVMAAB042112

CAP**4821A** 1.01 1.05 0.97 0.96 OVMAAB042112

CNPH*3617A** 0.98 1.04 0.95 0.98 OVMAAB042112

CNPH*4221A** 0.99 1.06 0.97 0.98 OVMAAB042112

CNPH*4321A** 1.02 1.05 0.99 0.96 OVMAAB042112

CNPH*4821A** 1.01 1.03 0.98 0.96 OVMAAB042112

CNPV*3617A** 0.98 1.04 0.95 0.98 OVMAAB042112

CNPV*3621A** 0.98 1.05 0.95 0.98 OVMAAB042112

CNPV*3717A** 1.02 1.05 0.99 0.96 OVMAAB042112

Model

CAP**3621A** 1.00 1.02 0.97 0.99 58MV(B,C)100---20

CAP**4221A** 1.01 1.02 0.97 0.99 58MV(B,C)100---20

Cooling Indoor

DETAILED COOLING CAPACITIES# (CONTINUED)

CNPV*3621A** 0.99 1.03 0.96 0.99 58MV(B,C)080---20

CNPV*4221A** 1.00 1.02 0.97 0.99 58MV(B,C)080---20

CNPV*4821A** 1.02 1.02 0.99 0.98 58MV(B,C)080---20

CNPV*4824A** 1.02 1.02 0.99 0.99 58MV(B,C)080---20

CSPH*3612A** 1.02 1.02 0.99 0.99 58MV(B,C)080---20

CNPH*4821A** 1.02 1.02 0.99 0.98 58MV(B,C)080---20

CSPH*4212A** 1.02 1.02 0.99 0.98 58MV(B,C)080---20

CAP**4821A** 1.02 1.02 0.99 0.99 58MV(B,C)100---20

CSPH*4812A** 1.03 1.03 0.99 0.99 58MV(B,C)080---20

CNPH*3617A** 0.99 1.03 0.97 1.01 58MV(B,C)100---20

CAP**4224A** 1.01 1.01 0.97 0.97 58MV(B,C)120---20

CNPV*3621A** 0.99 1.03 0.97 1.01 58MV(B,C)100---20

CNPV*4221A** 1.01 1.02 0.97 1.00 58MV(B,C)100---20

CNPV*4821A** 1.02 1.02 0.99 0.99 58MV(B,C)100---20

CNPV*4824A** 1.02 1.01 0.99 0.98 58MV(B,C)100---20

CNPH*4221A** 1.01 1.02 0.97 1.00 58MV(B,C)100---20

CNPH*4821A** 1.02 1.02 0.99 0.99 58MV(B,C)100---20

CSPH*3612A** 1.02 1.03 0.99 1.00 58MV(B,C)100---20

CAP**4824A** 1.02 1.01 0.99 0.97 58MV(B,C)120---20

CSPH*4212A** 1.03 1.03 0.99 1.00 58MV(B,C)100---20

CSPH*4812A** 1.03 1.03 1.00 1.00 58MV(B,C)100---20

CNPV*4824A** 1.02 1.01 0.99 0.97 58MV(B,C)120---20

CNPH*3617A** 0.99 1.02 0.97 0.99 58MV(B,C)120---20

CNPH*4821A** 1.02 1.01 0.99 0.97 58MV(B,C)120---20

CAP**3621A** 1.01 1.01 0.99 1.01 58PH*090---16

CAP**4221A** 1.01 1.01 0.99 1.01 58PH*090---16

CSPH*3612A** 1.02 1.02 0.99 0.98 58MV(B,C)120---20

CSPH*4212A** 1.02 1.01 0.99 0.98 58MV(B,C)120---20

CSPH*4812A** 1.03 1.01 0.99 0.97 58MV(B,C)120---20

CNPV*3621A** 1.00 1.02 0.98 1.02 58PH*090---16

CNPH*3617A** 0.99 1.02 0.98 1.02 58PH*090---16

CNPH*4221A** 1.01 1.02 0.99 1.02 58PH*090---16

CAP**3617A** 1.00 1.04 0.98 1.01 58VLR105---12

CAP**3621A** 1.00 1.04 0.98 1.01 58VLR105---12

CAP**4221A** 1.01 1.05 0.99 1.01 58VLR105---12

CAP**4817A** 1.03 1.04 1.00 1.00 58VLR105---12

CAP**4821A** 1.02 1.04 0.99 1.00 58VLR105---12

CNPV*3617A** 0.99 1.04 0.97 1.02 58VLR105---12

CNPV*3621A** 0.99 1.04 0.97 1.02 58VLR105---12

CSPH*3612A** 1.03 1.02 1.01 1.02 58PH*090---16

CSPH*4212A** 1.03 1.02 1.01 1.02 58PH*090---16

CSPH*4812A** 1.04 1.02 1.02 1.02 58PH*090---16

CNPV*3717A** 1.04 1.04 1.01 1.01 58VLR105---12

CAP**3621A** 1.01 1.05 1.00 1.01 58VLR120---20

CAP**4221A** 1.02 1.04 1.01 1.01 58VLR120---20

CAP**3617A** 0.99 1.02 0.96 0.98 58VMR105--- 12

CAP**3621A** 0.99 1.03 0.97 0.98 58VMR105--- 12

CNPV*4217A** 1.02 1.06 0.99 1.01 58VLR105---12

CNPV*4221A** 1.01 1.04 0.99 1.02 58VLR105---12

CNPV*4821A** 1.03 1.04 1.00 1.00 58VLR105---12

CNPV*4221A** 1.02 1.05 1.01 1.02 58VLR120---20

CAP**4221A** 0.99 1.03 0.97 0.98 58VMR105--- 12

CNPV*4821A** 1.04 1.04 1.02 1.01 58VLR120---20

Page 28

Sys.

Tot a l

KW**

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

Capacity MBtuh

KW**

Sys.

KW**

24APA7

Capacity MBtuh

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C)

Capacity MBtuh

Sys.

Tot a l

KW**

24APA748 HI GH Outdoor Section With CN PHP6124 IN DOOR SECTI ON Indoor S ection

Capacity MBtuh

Sys.

Tot a l

KW**

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ To t a l Sens‡ Tota l Sens‡ To t a l Sens‡ To t a l Sens‡ To t al Sens‡

EWB

°F(°C)

57 (13.9) 44.11 44.11 2.98 42.88 42.88 3.26 41.49 41.49 3.57 39.91 39.91 3.91 38.10 38.10 4.27 36.02 36.02 4.68

62 (16.7) 47.19 37.81 3.01 45.48 36.75 3.29 43.59 35.65 3.59 41.47 34.47 3.92 39.11 33.21 4.29 36.46 31.85 4.69

67 (19.4) 52.08 32.59 3.05 50.18 31.55 3.33 48.05 30.44 3.64 45.65 29.25 3.97 42.99 28.01 4.33 39.98 26.67 4.74

72 (22.2) 57.49 27.28 3.10 55.36 26.24 3.38 52.80 25.07 3.68 50.34 23.98 4.02 47.37 22.74 4.39 44.05 21.42 4.79

57 (13.9) 45.88 45.88 3.06 44.56 44.56 3.35 43.06 43.06 3.66 41.36 41.36 3.99 39.42 39.42 4.36 37.19 37.19 4.77

62 (16.7) 48.28 39.97 3.09 46.49 38.89 3.37 44.50 37.75 3.67 42.31 36.53 4.00 39.87 35.21 4.37 37.22 37.22 4.77

67 (19.4) 53.21 34.17 3.13 51.18 33.08 3.41 48.95 31.95 3.71 46.45 30.74 4.05 43.65 29.46 4.41 40.53 28.10 4.82

72 (22.2) 58.71 28.28 3.18 56.43 27.20 3.46 53.95 26.08 3.77 51.17 24.89 4.10 48.08 23.63 4.47 44.63 22.29 4.87

57 (13.9) 48.10 48.10 3.15 46.66 46.66 3.43 45.03 45.03 3.74 43.17 43.17 4.07 41.07 41.07 4.44 38.67 38.67 4.85

62 (16.7) 49.64 42.97 3.16 47.76 41.83 3.44 45.70 40.63 3.75 43.44 39.31 4.08 41.13 41.13 4.44 38.72 38.72 4.85

67 (19.4) 54.55 36.35 3.21 52.38 35.23 3.49 50.03 34.06 3.79 47.39 32.82 4.12 44.47 31.51 4.48 41.22 30.12 4.89

72 (22.2) 60.12 29.67 3.26 57.73 28.57 3.54 55.08 27.41 3.84 52.04 26.15 4.17 48.93 24.90 4.54 45.33 23.53 4.94

57 (13.9) 50.24 50.24 3.24 48.67 48.67 3.52 46.90 46.90 3.83 44.88 44.88 4.16 42.63 42.63 4.53 40.04 40.04 4.94

63 (17.2)†† 48.16 31.42 3.01 46.41 30.39 3.30 44.46 29.30 3.60 42.27 28.15 3.93 39.81 26.91 4.29 37.03 25.59 4.70

63 (17.2)†† 49.24 32.90 3.09 47.38 31.84 3.37 45.32 30.72 3.68 43.02 29.53 4.01 40.45 28.26 4.37 37.58 26.92 4.77

63 (17.2)†† 50.51 34.94 3.17 48.55 33.85 3.45 46.35 32.69 3.75 43.94 31.47 4.08 41.25 30.18 4.44 38.26 28.80 4.85

62 (16.7) 50.97 46.17 3.25 49.03 44.96 3.53 46.92 46.83 3.83 44.95 44.95 4.17 42.68 42.68 4.53 40.09 40.09 4.94

63 (17.2)†† 51.64 37.15 3.25 49.57 36.02 3.53 47.27 34.82 3.83 44.74 33.58 4.16 41.96 32.26 4.52 38.87 30.84 4.93

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C)

Capacity MBtuh

Sys.

Tot a l

KW**

24APA748 LOW Outdoor Section With CNPHP6124 INDOOR SECTION Indoor Section

Capacity MBtuh

Sys.

Tot a l

KW**

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ To t a l Sens‡ Tota l Sens‡ To t a l Sens‡ To t a l Sens‡ To t al Sens‡

EWB

67 (19.4) 55.73 38.71 3.29 53.45 37.55 3.57 50.96 36.35 3.87 48.22 35.09 4.20 45.18 33.75 4.57 41.84 32.33 4.97

72 (22.2) 61.38 31.16 3.34 58.85 30.03 3.62 56.08 28.84 3.92 53.02 27.59 4.26 49.66 26.28 4.62 45.93 24.89 5.02

°F(°C)

57 (13.9) 32.76 32.76 2.04 31.62 31.62 2.30 30.36 30.36 2.59 28.98 28.98 2.91 27.46 27.46 3.28 25.76 25.76 3.70

62 (16.7) 34.58 28.44 2.04 33.05 27.76 2.29 31.40 27.03 2.58 29.61 26.24 2.90 27.69 25.39 3.27 25.81 25.81 3.70

67 (19.4) 38.47 24.43 2.02 36.75 23.73 2.27 34.90 22.99 2.55 32.88 22.19 2.87 30.69 21.34 3.23 28.30 20.43 3.66

72 (22.2) 42.82 20.36 2.01 40.90 19.65 2.25 38.84 18.90 2.53 36.60 18.09 2.83 34.16 17.23 3.19 31.50 16.31 3.61

57 (13.9) 35.07 35.07 2.06 33.79 33.79 2.32 32.38 32.38 2.60 30.84 30.84 2.91 29.15 29.15 3.28 27.27 27.27 3.70

62 (16.7) 35.99 31.46 2.06 34.36 30.73 2.31 32.63 29.95 2.59 30.89 30.89 2.91 29.19 29.19 3.28 27.31 27.31 3.70

67 (19.4) 39.88 26.65 2.05 38.02 25.92 2.29 36.02 25.15 2.57 33.87 24.32 2.88 31.54 23.45 3.25 29.01 22.51 3.67

72 (22.2) 44.36 21.79 2.04 42.29 21.05 2.28 40.06 20.27 2.55 37.53 19.39 2.85 35.06 18.54 3.21 32.24 17.59 3.62

57 (13.9) 36.17 36.17 2.07 34.81 34.81 2.32 33.33 33.33 2.60 31.71 31.71 2.92 29.93 29.93 3.28 27.97 27.97 3.70

62 (16.7) 36.66 33.05 2.07 35.02 32.29 2.32 33.39 33.39 2.60 31.77 31.77 2.92 29.98 29.98 3.28 28.01 28.01 3.70

67 (19.4) 40.49 27.83 2.06 38.57 27.09 2.31 36.51 26.30 2.58 34.29 25.47 2.90 31.90 24.57 3.26 29.32 23.62 3.68

72 (22.2) 45.02 22.54 2.05 42.89 21.79 2.29 40.58 20.99 2.56 38.01 20.11 2.86 35.43 19.24 3.22 32.54 18.28 3.63

57 (13.9) 37.25 37.25 2.09 35.82 35.82 2.34 34.27 34.27 2.61 32.57 32.57 2.93 30.70 30.70 3.29 28.64 28.64 3.71

62 (16.7) 37.39 34.70 2.09 35.88 35.88 2.34 34.32 34.32 2.61 32.62 32.62 2.93 30.75 30.75 3.29 28.68 28.68 3.71

67 (19.4) 41.06 29.09 2.08 39.08 28.33 2.32 36.97 27.54 2.60 34.69 26.69 2.91 32.24 25.78 3.27 29.61 24.81 3.69

63 (17.2)†† 35.34 23.42 2.03 33.77 22.73 2.29 32.06 22.00 2.57 30.21 21.21 2.90 28.19 20.37 3.27 26.00 19.48 3.70

63 (17.2)†† 36.67 25.49 2.06 34.97 24.78 2.31 33.13 24.01 2.59 31.15 23.20 2.91 29.01 22.33 3.28 26.69 21.40 3.71

63 (17.2)†† 37.25 26.59 2.07 35.49 25.86 2.32 33.60 25.09 2.60 31.56 24.26 2.92 29.36 23.38 3.29 26.99 22.43 3.72

72 (22.2) 45.64 23.33 2.07 43.43 22.57 2.31 41.06 21.76 2.57 38.51 20.90 2.88 35.77 19.99 3.23 32.81 19.01 3.64

63 (17.2)†† 37.79 27.77 2.09 35.98 27.03 2.34 34.04 26.24 2.62 31.95 25.40 2.94 29.70 24.50 3.30 27.28 23.53 3.73

EVAPORATOR AIR

CFM

1100

1225

DETAILED COOLING CAPACITIES# (CONTINUED)

1400

1600

EVAPORATOR AIR

CFM

880

1050

1145

1250

See notes on page 32

Page 29

Power Furn ace Model

Low

Cap.

Speed

Power

High

Cap.

Speed

Model

CAP**4824A** 0.95 1.00 0.95 0.93 58PH*090---16

Cooling Indoor

CNPV*6024A** 0.97 1.00 0.96 0.94 58MV(B,C)120---20

CNPH*6124A** 1.00 0.99 1.00 0.97 58MV(B,C)120---20

CAP**6021A** 0.97 1.00 0.96 0.93 58PH*090---16

CNPV*6124A** 1.01 0.98 1.01 0.96 58MV(B,C)120---20

CSPH*6012A** 0.97 0.99 0.98 0.94 58MV(B,C)120---20

CNPH*4821A** 0.95 1.00 0.96 0.94 58PH*090---16

CNPH*6124A** 1.01 0.99 1.00 0.97 58PH*090---16

CAP**4821A** 0.95 0.99 0.95 0.93 58PH*110---20

CAP**4824A** 0.95 0.98 0.96 0.94 58PH*110---20

CAP**6021A** 0.97 0.98 0.96 0.93 58PH*110---20

CNPV*6124A** 1.02 0.99 1.02 0.97 58PH*090---16

CSPH*4812A** 0.96 1.01 0.96 0.94 58PH*090---16

CSPH*6012A** 0.98 1.00 0.98 0.93 58PH*090---16

CAP**6024A** 0.97 0.98 0.98 0.94 58PH*110---20

CNPV*4821A** 0.95 0.98 0.96 0.94 58PH*110---20

CNPV*4824A** 0.96 0.99 0.96 0.94 58PH*110---20

CNPH*4821A** 0.96 0.99 0.96 0.94 58PH*110---20

CNPH*6024A** 0.97 0.98 0.98 0.93 58PH*110---20

CNPV*6024A** 0.97 0.98 0.98 0.93 58PH*110---20

CNPH*6124A** 1.01 0.97 1.01 0.97 58PH*110---20

CAP**6024A** 0.97 0.99 0.98 0.96 58PH*135---20

CNPV*6124A** 1.02 0.98 1.02 0.97 58PH*110---20

CSPH*4812A** 0.96 0.98 0.96 0.93 58PH*110---20

CSPH*6012A** 0.98 0.99 0.98 0.93 58PH*110---20

CNPV*4824A** 0.95 0.99 0.98 0.97 58PH*135---20

CNPV*6024A** 0.97 0.99 0.99 0.97 58PH*135---20

CNPH*6024A** 0.97 0.99 0.99 0.97 58PH*135---20

CNPH*6124A** 1.01 0.99 1.02 1.01 58PH*135---20

CAP**4821A** 0.94 1.02 0.95 0.96 58VLR120---20

CAP**4824A** 0.94 1.02 0.96 0.96 58VLR120---20

CNPV*6124A** 1.02 0.98 1.00 0.96 58PH*135---20

CSPH*4812A** 0.96 1.00 0.98 0.97 58PH*135---20

CAP**6021A** 0.94 0.98 0.95 0.94 58VLR120---20

CSPH*6012A** 0.98 1.00 0.99 0.96 58PH*135---20

CNPV*4821A** 0.94 1.01 0.95 0.94 58VLR120---20

CAP**4821A** 0.94 1.03 0.95 0.96 58VMR120--- 20

CAP**4824A** 0.94 1.02 0.95 0.96 58VMR120--- 20

CNPV*4824A** 0.94 1.01 0.95 0.94 58VLR120---20

CNPV*6024A** 0.96 1.01 0.98 0.95 58VLR120---20

CAP**6021A** 0.96 1.02 0.95 0.95 58VMR120--- 20

CNPV*6124A** 0.96 0.94 1.02 0.98 58VLR120---20

CNPV*4821A** 0.94 1.02 0.95 0.95 58VMR120--- 20

CNPV*4824A** 0.94 1.03 0.95 0.95 58VMR120--- 20

CNPV*6024A** 0.96 1.01 0.95 0.94 58VMR120--- 20

CAP**4821A** 0.95 1.03 0.96 1.01 OVLAAB048112

CAP**4823A** 0.95 1.03 0.96 1.01 OVLAAB048112

CAP**4824A** 0.96 1.04 0.96 1.00 OVLAAB048112

CAP**6021A** 0.98 1.03 0.98 1.00 OVLAAB048112

CAP**6024A** 0.98 1.03 0.98 1.00 OVLAAB048112

CNPV*6124A** 0.96 0.96 1.02 1.00 58VMR120--- 20

CSPH*4812A** 0.94 1.02 0.98 0.98 58VMR120---20

CSPH*6012A** 0.96 0.99 0.98 0.96 58VMR120---20

CAP**6025A** 0.98 1.03 0.98 1.00 OVLAAB048112

CNPH*4821A** 0.96 1.04 0.98 1.01 OVLAAB048112

24APA7

Power Furn ace Model

Low

Cap.

Speed

Power

High

Cap.

Speed

24APA748 Outdoor Section Wit h CNPVP4821 Indoor Section

Model

CAP**6025A** 0.94 1.02 0.95 0.94 58HDV100--- --- 20

CAP**6025A** 0.92 0.98 0.98 0.93 58HDV100--- --- 20

Cooling Indoor

Power Furn ace Model

Low

Speed

Power

High

Speed

CNPV*4824A** 0.98 1.00 0.99 0.98 58HDV100--- --- 20

CNPV*6024A** 0.97 1.02 0.98 0.95 58HDV100--- --- 20

Cap.

CAP**4821A** 0.95 1.02 0.95 0.95 58ME(B,C)080---16

CNPV*6124A** 1.02 1.00 1.02 0.98 58HDV100--- --- 20

CSPH*4812A** 0.96 1.01 0.96 0.95 58HDV100--- --- 20

CSPH*6012A** 0.98 1.02 0.98 0.95 58HDV100--- --- 20

CNPH*4821A** 0.95 1.01 0.94 0.92 58ME(B,C)080---16

CNPH*6024A** 0.97 1.02 0.96 0.94 58ME(B,C)080---16

CNPH*6124A** 1.01 1.01 0.99 0.96 58ME(B,C)080---16

CAP**4821A** 0.95 1.00 0.95 0.93 58ME(B,C)100---20

CAP**4824A** 0.95 0.99 0.95 0.92 58ME(B,C)100---20

CNPV*4821A** 0.95 1.01 0.96 0.96 58ME(B,C)080---16

CSPH*4812A** 0.96 1.02 0.96 0.95 58ME(B,C)080---16

CAP**6024A** 0.97 0.99 0.96 0.92 58ME(B,C)100---20

CSPH*6012A** 0.98 1.03 0.98 0.95 58ME(B,C)080---16

CNPV*4821A** 0.96 1.00 0.95 0.92 58ME(B,C)100---20

CNPV*4824A** 0.96 1.00 0.95 0.92 58ME(B,C)100---20

CNPH*4821A** 0.95 0.99 0.95 0.92 58ME(B,C)100---20

CNPH*6024A** 0.97 0.99 0.96 0.92 58ME(B,C)100---20

CNPV*6024A** 0.97 0.99 0.96 0.92 58ME(B,C)100---20

CNPH*6124A** 1.01 0.98 1.00 0.95 58ME(B,C)100---20

CAP**4824A** 0.96 0.99 0.98 0.96 58ME(B,C)120---20

CNPV*6124A** 1.02 0.98 1.01 0.95 58ME(B,C)100---20

CAP**6024A** 0.98 1.00 0.99 0.96 58ME(B,C)120---20

CSPH*4812A** 0.96 0.99 0.95 0.92 58ME(B,C)100---20

CSPH*6012A** 0.98 1.00 0.98 0.92 58ME(B,C)100---20

CNPV*4824A** 0.96 0.99 0.98 0.96 58ME(B,C)120---20

CNPH*4821A** 0.96 0.99 0.98 0.96 58ME(B,C)120---20

CNPH*6024A** 0.98 1.00 0.99 0.95 58ME(B,C)120---20

CNPV*6024A** 0.98 0.99 0.99 0.95 58ME(B,C)120---20

CNPH*6124A** 1.01 0.97 1.02 0.99 58ME(B,C)120---20

CAP**4821A** 0.94 1.01 0.94 0.95 58MV(B,C)080---20

CNPV*6124A** 1.02 0.98 1.04 0.98 58ME(B,C)120---20

CAP**6021A** 0.96 1.01 0.95 0.95 58MV(B,C)080---20

CSPH*4812A** 0.96 0.98 0.99 0.97 58ME(B,C)120---20

CSPH*6012A** 0.98 0.99 1.00 0.96 58ME(B,C)120---20

CNPH*4821A** 0.94 1.00 0.95 0.95 58MV(B,C)080---20

CNPH*6024A** 0.96 1.00 0.95 0.94 58MV(B,C)080---20

CAP**4821A** 0.94 1.02 0.95 0.97 58MV(B,C)100---20

CNPV*4821A** 0.94 1.00 0.95 0.94 58MV(B,C)080---20

CAP**6021A** 0.97 1.02 0.96 0.97 58MV(B,C)100---20

CNPV*6024A** 0.96 1.01 0.95 0.94 58MV(B,C)080---20

CSPH*6012A** 0.96 1.00 0.96 0.95 58MV(B,C)080---20

CNPV*4821A** 0.95 1.02 0.95 0.97 58MV(B,C)100---20

CNPH*4821A** 0.95 1.02 0.95 0.96 58MV(B,C)100---20

CNPH*6024A** 0.97 1.02 0.96 0.96 58MV(B,C)100---20

CAP**4824A** 0.95 1.00 0.95 0.94 58MV(B,C)120---20

CNPV*6024A** 0.97 1.02 0.96 0.96 58MV(B,C)100---20

CAP**6024A** 0.97 1.00 0.96 0.94 58MV(B,C)120---20

CNPV*6124A** 1.01 0.99 1.01 0.99 58MV(B,C)100---20

CSPH*6012A** 0.97 1.02 0.98 0.96 58MV(B,C)100---20

CNPH*6024A** 0.96 0.99 0.96 0.93 58MV(B,C)120---20

Model

CAP**4817A** 0.95 1.05 0.95 1.05

CAP**4821A** 0.96 1.06 0.94 1.05

CAP**4823A** 0.92 1.03 0.93 1.04

CAP**4824A** 0.94 1.03 0.94 1.05

CAP**6021A** 0.96 1.03 0.95 1.05

Cooling Indoor

DETAILED COOLING CAPACITIES# (CONTINUED)

*CNPH*6124A** 1.00 1.00 1.00 1.00 58MV(B,C)100--- 20

CAP**6025A** 0.94 1.03 0.93 1.03

CNPV*4821A** 0.94 1.03 0.94 1.04

CNPV*4821A** 0.94 1.03 0.94 1.06

CNPH*4821A** 0.94 1.03 0.94 1.04

CNPV*4824A** 0.94 1.03 0.94 1.04

CNPH*6024A** 0.96 1.04 0.95 1.05

FE4ANB006 0.99 0.98 0.99 0.91

FV4CNB006 0.99 0.98 0.99 0.91

CNPV*6024A** 0.96 1.04 0.95 1.05

FE4AN(B,F)005 0.97 0.98 0.98 0.93

CNPV*6124A** 0.97 1.03 0.96 1.05

CSPH*4812A** 0.95 1.03 0.95 1.05

CSPH*6012A** 0.97 1.04 0.96 1.05

CAP**4817A** 0.95 1.00 0.95 0.94 58CV(A,X)090--- 16

FV4CN(B,F)005 0.97 0.98 0.98 0.93

CAP**4824A** 0.95 1.00 0.95 0.94 58CV(A,X)110--- 20

CAP**6021A** 0.97 1.00 0.96 0.94 58CV(A,X)110--- 20

CAP**6024A** 0.97 1.00 0.96 0.94 58CV(A,X)110--- 20

CNPV*4821A** 0.95 1.00 0.95 0.92 58CV(A,X)110---20

CNPV*4824A** 0.95 1.00 0.95 0.94 58CV(A,X)110---20

CSPH*4812A** 0.95 1.00 0.95 0.96 58CV(A,X)090 ---16

CSPH*6012A** 0.97 1.00 0.96 0.93 58CV(A,X)090 ---16

CNPH*4821A** 0.95 0.96 0.96 0.95 58CV(A,X)090--- 16

CNPH*4821A** 0.95 1.00 0.95 0.94 58CV(A,X)110--- 20

CNPV*6024A** 0.97 0.99 0.96 0.93 58CV(A,X)110---20

CNPH*6124A** 1.00 0.98 1.00 0.97 58CV(A,X)110--- 20

CAP**4824A** 0.95 0.98 0.95 0.93 58CV(A,X)135--- 22

CNPV*6124A** 1.01 0.97 1.01 0.96 58CV(A,X)110---20

CAP**6024A** 0.97 0.98 0.96 0.93 58CV(A,X)135--- 22

CNPV*4824A** 0.95 0.98 0.95 0.92 58CV(A,X)135---22

CSPH*4812A** 0.96 1.01 0.96 0.97 58CV(A,X)110 ---20

CSPH*6012A** 0.97 0.99 0.98 0.94 58CV(A,X)110 ---20

CNPV*6024A** 0.97 0.98 0.96 0.92 58CV(A,X)135---22

CNPH*6024A** 0.97 0.98 0.96 0.92 58CV(A,X)135--- 22

CNPH*6124A** 1.01 0.98 1.00 0.96 58CV(A,X)135--- 22

CAP**6024A** 0.97 0.98 0.96 0.92 58CV(A,X)155--- 22

CNPV*6124A** 1.01 0.97 1.01 0.94 58CV(A,X)135---22

CSPH*4812A** 0.96 0.99 0.96 0.96 58CV(A,X)135 ---22

CNPV*4824A** 0.95 0.97 0.96 0.92 58CV(A,X)155---22

CSPH*6012A** 0.97 0.98 0.98 0.93 58CV(A,X)135 ---22

CNPH*6024A** 0.97 0.97 0.96 0.91 58CV(A,X)155--- 22

CAP**4823A** 0.92 1.03 0.95 0.97 58HDV080--- --- 20

CAP**6025A** 0.96 1.04 0.95 0.95 58HDV080--- --- 20

CNPV*6024A** 0.97 0.97 0.96 0.91 58CV(A,X)155---22

CNPV*6124A** 1.02 0.97 1.01 0.94 58CV(A,X)155---22

CAP**6025A** 0.95 1.03 0.98 0.94 58HDV080--- --- 20

CSPH*6012A** 0.98 0.98 0.98 0.92 58CV(A,X)155 ---22

CSPH*4812A** 0.96 1.03 0.98 0.98 58HDV080--- --- 20

CSPH*6012A** 0.98 1.03 0.99 0.97 58HDV080--- --- 20

Page 30

24APA7

24APA748 Outdoor Section Wit h CNPVP4821 Indoor Section

Power Furn ace Model

Low

Cap.

Speed

Power

High

Cap.

Speed

Model

CAP**4824A** 0.97 0.98 0.98 0.96 OVLAAB060154

CAP**6024A** 0.99 0.99 0.99 0.96 OVLAAB060154

Cooling Indoor

DETAILED COOLING CAPACITIES# (CONTINUED)

CNPH*6024A** 0.98 1.03 0.98 0.99 OVLAAB048112

CNPH*6124A** 0.98 1.03 0.99 1.01 OVLAAB048112

CNPV*4821A** 0.96 1.04 0.98 1.01 OVLAAB048112

CNPV*4824A** 0.96 1.04 0.98 1.01 OVLAAB048112

CNPV*6024A** 0.98 1.03 0.98 0.99 OVLAAB048112

CNPV*6124A** 0.99 1.03 1.00 1.00 OVLAAB048112

CSPH*4812A** 0.97 1.05 0.98 1.01 OVLAAB048112

CSPH*6012A** 0.98 1.02 0.99 1.00 OVLAAB048112

CAP**6025A** 0.99 0.99 0.99 0.96 OVLAAB060154

CNPH*4821A** 0.97 0.98 0.98 0.95 OVLAAB060154

CNPH*6024A** 0.99 0.99 0.99 0.95 OVLAAB060154

CNPH*6124A** 0.99 0.99 0.99 0.95 OVLAAB060154

CNPV*4824A** 0.97 0.98 0.98 0.95 OVLAAB060154

CNPV*6024A** 0.99 0.99 0.99 0.95 OVLAAB060154

CNPV*6124A** 1.00 0.98 1.00 0.94 OVLAAB060154

CSPH*4812A** 0.98 1.00 0.99 0.97 OVLAAB060154

CSPH*6012A** 0.99 0.99 1.00 0.96 OVLAAB060154

See notes on page 32

Page 31

Sys.

Tot a l

KW**

Sys.

Tot a l

KW**

Tot a l

Capacity MBtuh

Sys.

KW**

Sys.

KW**

Sys.

KW**

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

24APA7

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C)

Capacity MBtuh

Sys.

Tot a l

KW**

24APA760---H IGH Outdoor Section With C NPHP6124 Indoor Section

Capacity MBtuh

Sys.

Tot a l

KW**

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ To t a l Sens‡ Tota l Sens‡ To t a l Sens‡ To t a l Sens‡ To t al Sens‡

EWB

°F(°C)

57 (13.9) 54.27 54.27 3.61 52.74 52.74 3.98 50.95 50.95 4.38 49.05 49.05 4.82 46.81 46.81 5.30 44.25 44.25 5.83

62 (16.7) 57.18 48.11 3.64 55.08 47.35 4.01 52.75 46.48 4.40 50.22 45.51 4.83 47.39 44.39 5.31 44.31 44.31 5.84

67 (19.4) 63.05 41.02 3.70 60.68 40.18 4.07 58.06 39.24 4.47 55.17 38.22 4.90 51.93 37.06 5.38 48.34 35.79 5.90

72 (22.2) 69.52 33.78 3.78 66.88 32.88 4.15 63.98 31.88 4.55 60.75 30.78 4.98 57.17 29.57 5.46 53.18 28.23 5.99

57 (13.9) 56.76 56.76 3.70 55.08 55.08 4.07 53.17 53.17 4.47 51.02 51.02 4.91 48.63 48.63 5.40 45.87 45.87 5.93

62 (16.7) 58.63 51.57 3.72 56.42 50.77 4.09 54.01 49.87 4.48 51.39 48.81 4.92 48.70 48.70 5.40 45.93 45.93 5.93

67 (19.4) 64.47 43.51 3.79 61.97 42.66 4.16 59.19 41.71 4.55 56.13 40.67 4.98 52.75 39.51 5.46 48.99 38.22 5.98

72 (22.2) 71.04 35.32 3.87 68.25 34.40 4.23 65.17 33.38 4.63 61.79 32.27 5.07 58.01 31.02 5.54 53.89 29.69 6.07

57 (13.9) 58.06 58.06 3.76 56.29 56.29 4.13 54.30 54.30 4.53 52.08 52.08 4.97 49.55 49.55 5.45 46.68 46.68 5.98

62 (16.7) 59.38 53.53 3.77 57.14 52.72 4.14 54.70 51.76 4.53 52.14 52.14 4.97 49.58 49.58 5.45 46.74 46.74 5.98

67 (19.4) 65.16 44.93 3.84 62.57 44.07 4.20 59.71 43.12 4.60 56.59 42.08 5.03 53.13 40.91 5.50 49.31 39.62 6.03

72 (22.2) 71.76 36.19 3.92 68.89 35.26 4.28 65.74 34.24 4.68 62.28 33.12 5.11 58.42 31.86 5.59 54.21 30.52 6.11

57 (13.9) 59.59 59.59 3.83 57.72 57.72 4.20 55.62 55.62 4.60 53.28 53.28 5.04 50.62 50.62 5.52 47.63 47.63 6.05

63 (17.2)†† 58.34 39.49 3.65 56.17 38.66 4.02 53.77 37.73 4.41 50.96 36.64 4.84 48.16 35.56 5.32 44.84 34.30 5.84

63 (17.2)†† 59.71 41.82 3.73 57.41 40.98 4.10 54.85 40.03 4.49 52.06 38.99 4.93 48.95 37.84 5.40 45.51 36.55 5.92

63 (17.2)†† 60.37 43.15 3.78 58.00 42.29 4.15 55.37 41.34 4.54 52.51 40.30 4.97 49.24 39.10 5.44 45.83 37.85 5.96

62 (16.7) 60.30 55.99 3.83 58.01 55.08 4.20 55.69 55.69 4.60 53.35 53.35 5.04 50.69 50.69 5.52 47.68 47.68 6.05

63 (17.2)†† 61.09 44.84 3.84 58.64 43.97 4.21 55.94 43.02 4.60 53.00 41.98 5.03 49.50 40.70 5.50 46.17 39.50 6.02

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C)

Capacity MBtuh

24APA760 LOW Outdoor Section With CNPHP6124 Indoor Sect ion

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ To t a l Sens‡ Tota l Sens‡ To t a l Sens‡ To t a l Sens‡ To t al Sens‡

EWB

67 (19.4) 65.91 46.75 3.90 63.22 45.88 4.26 60.31 44.93 4.66 57.09 43.89 5.09 53.55 42.72 5.56 49.66 41.41 6.09

72 (22.2) 72.57 37.29 3.98 69.61 36.36 4.34 66.35 35.32 4.74 62.79 34.19 5.17 58.84 32.94 5.65 54.49 31.56 6.17

°F(°C)

57 (13.9) 49.86 23.91 2.40 47.66 23.10 2.70 45.29 22.25 3.03 42.73 21.34 3.41 39.96 20.38 3.85 36.97 19.36 4.36

62 (16.7) 44.89 28.95 2.41 42.92 28.16 2.72 40.78 27.32 3.06 38.45 26.41 3.45 35.95 25.45 3.90 33.27 24.43 4.42

67 (19.4) 40.39 33.88 2.43 38.64 33.10 2.74 36.73 32.25 3.09 34.69 31.33 3.49 32.55 32.36 3.95 30.57 30.57 4.47

72 (22.2) 38.60 38.60 2.44 37.27 37.27 2.75 35.79 35.79 3.10 34.18 34.18 3.49 32.43 32.43 3.95 30.51 30.51 4.47

57 (13.9) 51.05 25.10 2.43 48.73 24.28 2.72 46.25 23.41 3.05 43.54 22.47 3.43 40.66 21.49 3.87 37.55 20.44 4.38

62 (16.7) 46.00 30.83 2.44 43.91 30.02 2.74 41.67 29.15 3.08 39.23 28.22 3.47 36.62 27.24 3.91 33.83 26.20 4.44

67 (19.4) 41.54 36.44 2.45 39.68 35.60 2.76 37.75 34.70 3.11 35.78 35.78 3.50 33.89 33.89 3.95 31.81 31.81 4.47

72 (22.2) 40.50 40.50 2.46 39.05 39.05 2.77 37.46 37.46 3.11 35.73 35.73 3.50 33.84 33.84 3.95 31.76 31.76 4.47

57 (13.9) 51.99 26.23 2.45 49.57 25.39 2.75 46.98 24.50 3.08 44.19 23.56 3.45 41.20 22.55 3.89 37.99 21.49 4.40

62 (16.7) 46.87 32.63 2.46 44.69 31.80 2.76 42.36 30.92 3.10 39.84 29.97 3.49 37.15 28.97 3.93 34.27 27.90 4.45

67 (19.4) 42.54 38.84 2.48 40.71 40.48 2.78 38.96 38.96 3.13 37.09 37.09 3.51 35.06 35.06 3.96 32.84 32.84 4.48

72 (22.2) 42.13 42.13 2.48 40.58 40.58 2.78 38.89 38.89 3.13 37.02 37.02 3.51 35.01 35.01 3.96 32.80 32.80 4.48

57 (13.9) 52.50 26.95 2.47 50.03 26.11 2.76 47.39 25.21 3.09 44.54 24.25 3.47 41.49 23.24 3.90 38.22 22.17 4.41

62 (16.7) 47.35 33.80 2.48 45.12 32.96 2.78 42.74 32.06 3.12 40.18 31.10 3.50 37.44 30.08 3.95 34.52 28.99 4.47

67 (19.4) 43.23 43.01 2.49 41.55 41.55 2.80 39.79 39.79 3.14 37.85 37.85 3.52 35.74 35.74 3.97 33.45 33.45 4.48

63 (17.2)†† 41.27 27.74 2.43 39.43 26.95 2.74 37.48 26.12 3.09 35.35 25.23 3.48 33.05 24.28 3.94 30.59 23.28 4.47

63 (17.2)†† 42.33 29.50 2.45 40.40 28.69 2.76 38.35 27.84 3.11 36.05 26.90 3.50 33.72 25.95 3.96 31.15 24.92 4.49

63 (17.2)†† 43.18 31.19 2.47 41.18 30.37 2.78 39.04 29.50 3.13 36.72 28.56 3.52 34.24 27.56 3.98 31.59 26.49 4.51

72 (22.2) 43.11 43.11 2.49 41.49 41.49 2.80 39.73 39.73 3.14 37.79 37.79 3.52 35.69 35.69 3.97 33.40 33.40 4.48

63 (17.2)†† 43.66 32.29 2.49 41.61 31.45 2.80 39.42 30.56 3.14 37.05 29.60 3.53 34.53 28.59 3.99 31.85 27.50 4.52

EVAPORATOR AIR

CFM

1500

1710

DETAILED COOLING CAPACITIES# (CONTINUED)

1835

2000

EVAPORATOR AIR

CFM

1100

1250

1400

1500

Page 32

Power Furn ace Model

Low

Cap.

Speed

Power

High

Cap.

Speed

Model

Cooling Indoor

CAP**6021A** 0.99 0.99 0.99 0.99 58PH*110---20

CNPV*6124A** 1.00 1.02 1.01 1.04 58MV(B,C)120---20

CSPH*6012A** 0.99 1.01 1.01 1.05 58MV(B,C)120---20

CNPH*6024A** 0.99 0.99 1.00 1.00 58PH*110---20

CAP**6024A** 0.99 1.00 0.99 1.00 58PH*135---20

CNPV*6024A** 0.99 0.99 1.01 1.03 58PH*110---20

CNPV*6124A** 1.01 0.99 1.03 1.03 58PH*110---20

CSPH*6012A** 1.00 0.99 1.00 0.99 58PH*110---20

CNPH*6024A** 0.99 1.00 1.00 1.01 58PH*135---20

CNPH*6124A** 0.99 1.00 1.00 1.01 58PH*135---20

CAP**6021A** 0.99 1.03 1.00 1.04 58VLR120---20

CAP**6024A** 0.98 1.01 1.00 1.03 58VLR120---20

CAP**6021A** 0.97 1.06 1.00 1.06 58VMR120--- 20

CNPV*6024A** 0.99 1.00 1.00 1.01 58PH*135---20

CNPV*6124A** 1.00 0.99 1.01 1.00 58PH*135---20

CSPH*6012A** 0.99 0.99 1.00 1.00 58PH*135---20

CAP**6024A** 0.98 1.05 1.00 1.06 58VMR120--- 20

CNPV*6024A** 0.99 1.01 1.00 1.03 58VLR120---20

CNPV*6124A** 1.01 1.02 1.01 1.02 58VLR120---20

CAP**6024A** 0.98 1.11 1.00 1.09 OVLAAB060154

CNPV*6024A** 0.97 1.04 1.00 1.05 58VMR120--- 20

CAP**6025A** 0.98 1.11 1.00 1.09 OVLAAB060154

CNPV*6124A** 1.00 1.04 1.01 1.04 58VMR120--- 20

CSPH*6012A** 0.99 1.04 1.01 1.05 58VMR120---20

CNPH*6024A** 0.98 1.11 1.00 1.09 OVLAAB060154

CNPH*6124A** 0.99 1.12 1.01 1.10 OVLAAB060154

CNPV*6024A** 0.98 1.11 1.00 1.09 OVLAAB060154

CNPV*6124A** 1.00 1.11 1.02 1.09 OVLAAB060154

CSPH*6012A** 0.99 1.10 1.01 1.09 OVLAAB060154

24APA7

Power Furn ace Model

Low

Cap.

Speed

Power

High

Cap.

Speed

24APA760 Outdoor Section Wit h CNPVP4821 Indoor Section

Model

CAP**6025A** 0.96 1.07 0.98 1.05 58HDV080--- --- 20

CAP**6025A** 0.96 1.06 0.99 1.07 58HDV100--- --- 20

CAP**6025A** 0.96 1.06 0.99 1.04 58HDV100--- --- 20

Cooling Indoor

Power Furn ace Model

Low

Cap.

Speed

Power

High

Cap.

Speed

CAP**6024A** 0.99 1.00 0.99 1.00 58ME(B,C)100---20

CNPV*6024A** 0.98 1.03 1.02 1.06 58HDV100--- --- 20

CNPV*6124A** 1.00 1.04 1.03 1.05 58HDV100--- --- 20

CNPH*6024A** 0.99 0.99 1.00 1.01 58ME(B,C)100---20

CNPH*6124A** 0.99 0.99 1.00 1.01 58ME(B,C)100---20

CAP**6024A** 0.99 0.98 1.00 1.00 58ME(B,C)120---20

CNPV*6024A** 0.99 0.99 1.00 1.01 58ME(B,C)100---20

CNPV*6124A** 1.00 0.99 1.01 1.00 58ME(B,C)100---20

CSPH*6012A** 0.99 0.98 1.00 1.00 58ME(B,C)100---20

CNPH*6024A** 0.99 0.99 1.00 1.00 58ME(B,C)120---20

CNPH*6124A** 0.99 0.98 1.00 1.00 58ME(B,C)120---20

CAP**6021A** 0.98 1.06 0.99 1.05 58MV(B,C)080---20

CNPV*6024A** 0.99 0.98 1.00 1.00 58ME(B,C)120---20

CNPV*6124A** 0.99 0.99 1.00 0.98 58ME(B,C)120---20

CAP**6021A** 0.98 1.04 1.00 1.08 58MV(B,C)100---20

CSPH*6012A** 1.00 0.98 1.00 0.99 58ME(B,C)120---20

CSPH*6012A** 0.98 1.05 1.00 1.04 58MV(B,C)080---20

CNPH*6024A** 0.97 1.03 1.00 1.07 58MV(B,C)100---20

CNPH*6124A** 0.98 1.04 1.01 1.09 58MV(B,C)100---20

CAP**6024A** 0.98 1.01 1.00 1.05 58MV(B,C)120---20

CNPV*6024A** 0.97 1.03 1.00 1.07 58MV(B,C)100---20

CNPV*6124A** 0.99 1.03 1.01 1.07 58MV(B,C)100---20

CSPH*6012A** 0.98 1.03 1.01 1.08 58MV(B,C)100---20

CNPV*6024A** 0.98 1.01 1.00 1.04 58MV(B,C)120---20

CNPH*6024A** 0.98 1.01 1.00 1.04 58MV(B,C)120---20

CNPH*6124A** 0.99 1.02 1.01 1.06 58MV(B,C)120---20

Model

Cooling Indoor

DETAILED COOLING CAPACITIES# (CONTINUED)

CAP**6021A** 0.99 1.02 0.99 1.12

CAP**6024A** 0.99 1.02 0.99 1.12

CAP**6025A** 0.97 1.06 0.98 1.14

CNPH*6024A** 0.99 1.02 0.99 1.12

*CNPH*6124A** 1.00 1.00 1.00 1.00 58PH*110--- 20

CNPH*6124A** 1.00 1.02 1.00 1.12

FE4ANB006 1.01 0.98 1.02 1.00

FV4CNB006 1.01 0.98 1.02 1.00

CNPV*6024A** 0.99 1.02 0.99 1.12

CNPV*6124A** 1.01 1.02 1.01 1.13

CAP**6021A** 0.99 1.01 1.00 1.04 58CV(A,X)110--- 20

CSPH*6012A** 1.00 1.02 1.00 1.12

CNPH*6024A** 0.99 1.01 1.00 1.03 58CV(A,X)110--- 20

CNPH*6124A** 0.99 1.01 1.01 1.05 58CV(A,X)110--- 20

(245 kW) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80_F(27_C), or add 835 Btuh (245 kW) per 1000 CFM (480 L/S) of indoor coil air per degree above 80_F(27_C).

CAP**6024A** 0.99 0.99 1.00 1.02 58CV(A,X)135--- 22

CNPV*6024A** 0.99 1.01 1.00 1.03 58CV(A,X)110---20

CNPV*6124A** 1.00 1.00 1.02 1.03 58CV(A,X)110---20

CSPH*6012A** 0.99 1.00 1.01 1.03 58CV(A,X)110 ---20

CNPH*6024A** 0.99 0.99 1.00 1.01 58CV(A,X)135--- 22

CNPH*6124A** 1.00 1.00 1.01 1.03 58CV(A,X)135--- 22

CAP**6024A** 1.00 0.99 1.01 1.02 58CV(A,X)155--- 22

CNPV*6024A** 0.99 0.99 1.00 1.01 58CV(A,X)135---22

CNPV*6124A** 1.01 0.99 1.02 1.02 58CV(A,X)135---22

CSPH*6012A** 1.00 0.99 1.01 1.02 58CV(A,X)135 ---22

CNPV*6024A** 0.99 0.98 1.01 1.01 58CV(A,X)155---22

CNPV*6124A** 1.01 0.99 1.02 1.00 58CV(A,X)155---22

CNPH*6024A** 0.99 0.98 1.01 1.01 58CV(A,X)155--- 22

CSPH*6012A** 1.00 0.98 1.01 1.00 58CV(A,X)155 ---22

CNPH*6124A** 1.00 0.98 1.01 1.02 58CV(A,X)155--- 22

{ Total and sensible capacities are net capacities. Blower motor heat has been subtracted.

} Sensible capacities shown are based on 80_F(27_C) entering air at the indoor coil. For sensible capacities at other than 80_F(27_C), deduct 835 Btuh

may occur.

# Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per AHRI standard 210/240 ---2008. If additional tubing length and/or indoor unit is located above outdoor unit, a slight variation in capacity

** System kw is total of indoor and outdoor unit kilowatts.

EWB — Entering Wet Bulb

NOTE: When the required data fall between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.

Page 33

CONDENSER ONLY RATINGS*

SST

°F(°C)

(--- 1.11)

(1.67)

(4.44)

(7.22)

(10.0)

(12.78)

(15.56)

(--- 1.11)

(1.67)

(4.44)

(7.22)

(10.0)

(12.78)

(15.56)

(--- 1.11)

(1.67)

(4.44)

(7.22)

(10.0)

(12.78)

(15.56)

See notes on page 31

TCG 22.50 21.30 20.20 18.90 17.60 16.30 14.90 13.40

SDT 67.50 77.40 87.20 97.00 106.80 116.70 126.60 136.70

KW 1.00 1.16 1.33 1.50 1.69 1.91 2.15 2.44

TCG 24.90 23.60 22.30 20.90 19.50 18.10 16.50 15.00

SDT 68.70 78.50 88.20 98.00 107.80 117.60 127.50 137.60

KW 1.02 1.18 1.35 1.52 1.72 1.93 2.18 2.47

TCG 27.40 26.00 24.60 23.10 21.50 20.00 18.30 16.60

SDT 70.00 79.70 89.40 99.10 108.80 118.50 128.40 138.50

KW 1.05 1.20 1.37 1.55 1.74 1.96 2.21 2.50

TCG 30.10 28.60 27.00 25.40 23.70 22.00 20.30 18.50

SDT 71.30 80.90 90.50 100.20 109.80 119.60 129.40 139.40

KW 1.07 1.23 1.39 1.57 1.76 1.99 2.24 2.53

TCG 33.10 31.40 29.70 27.90 26.10 24.20 22.40 20.40

SDT 72.60 82.10 91.70 101.30 111.00 120.60 130.40 140.40

KW 1.09 1.25 1.41 1.59 1.79 2.01 2.27 2.57

TCG 36.20 34.40 32.50 30.60 28.60 26.60 24.60 22.50

SDT 74.00 83.50 93.00 102.50 112.10 121.80 131.50 141.40

KW 1.12 1.28 1.44 1.62 1.82 2.04 2.30 2.61

TCG 39.60 37.60 35.50 33.50 31.30 29.20 27.00 24.70

SDT 75.50 84.90 94.30 103.80 113.40 122.90 132.60 142.40

KW 1.15 1.31 1.47 1.65 1.85 2.08 2.34 2.64

TCG 14.10 13.30 12.50 11.6 10.70 9.80 8.80 7.70

SDT 61.60 71.30 81.00 90.8 100.50 110.20 119.90 129.50

KW 0.64 0.78 0.93 1.10 1.26 1.47 1.71 1.99

TCG 16.00 15.10 14.20 13.20 12.20 11.20 10.10 9.00

SDT 62.40 72.10 81.80 91.50 101.20 110.80 120.50 130.10

KW 0.65 0.79 0.94 1.10 1.27 1.48 1.72 2.01

TCG 17.90 17.00 16.00 14.90 13.80 12.70 11.50 10.30

SDT 63.30 72.90 82.60 92.20 101.90 111.50 121.10 130.70

KW 0.67 0.81 0.95 1.11 1.29 1.49 1.73 2.02

TCG 20.10 19.00 17.90 16.80 15.60 14.40 13.10 11.70

SDT 64.20 73.80 83.50 93.10 102.60 112.20 121.80 131.40

KW 0.68 0.82 0.96 1.12 1.30 1.50 1.75 2.03

TCG 22.40 21.30 20.10 18.80 17.50 16.20 14.70 13.30

SDT 65.30 74.80 84.40 93.90 103.50 113.00 122.50 132.00

KW 0.70 0.84 0.98 1.13 1.31 1.51 1.76 2.04

TCG 24.90 23.70 22.40 21.00 19.60 18.10 16.60 15.00

SDT 66.40 75.90 85.30 94.90 104.30 113.70 123.20 132.70

KW 0.73 0.86 1.00 1.15 1.32 1.53 1.77 2.05

TCG 27.70 26.30 24.80 23.30 21.80 20.20 18.50 16.80

SDT 67.60 77.00 86.40 95.80 105.20 114.60 124.00 133.40

KW 0.75 0.88 1.01 1.16 1.34 1.54 1.78 2.06

TCG 32.00 30.20 28.40 26.50 24.50 22.50 20.50 18.40

SDT 71.10 80.40 89.80 99.20 108.60 118.00 127.40 137.00

KW 1.51 1.72 1.95 2.18 2.44 2.73 3.06 3.43

TCG 35.60 33.60 31.60 29.50 27.40 25.20 23.00 20.80

SDT 72.60 81.80 91.20 100.50 109.80 119.20 128.60 138.10

KW 1.55 1.76 1.98 2.22 2.48 2.77 3.11 3.49

TCG 39.40 37.30 35.10 32.80 30.50 28.20 25.80 23.40

SDT 74.20 83.40 92.60 101.90 111.20 120.50 129.80 139.30

KW 1.59 1.80 2.02 2.26 2.52 2.82 3.16 3.54

TCG 43.60 41.20 38.80 36.40 33.90 31.40 28.80 26.30

SDT 76.00 85.10 94.20 103.40 112.60 121.90 131.10 140.50

KW 1.63 1.84 2.06 2.30 2.57 2.87 3.21 3.60

TCG 48.00 45.40 42.80 40.20 37.50 34.80 32.10 29.30

SDT 77.80 86.80 95.90 105.00 114.10 123.30 132.50 141.70

KW 1.68 1.89 2.11 2.35 2.62 2.93 3.27 3.66

TCG 52.70 49.90 47.10 44.30 41.40 38.50 35.60 32.60

SDT 79.80 88.70 97.70 106.70 115.70 124.80 133.80 143.00

KW 1.73 1.94 2.16 2.40 2.68 2.98 3.33 3.72

TCG 57.80 54.70 51.70 48.70 45.60 42.50 39.30 36.10

SDT 81.90 90.70 99.50 108.40 117.30 126.30 135.20 144.20

KW 1.79 1.99 2.21 2.46 2.73 3.04 3.39 3.79

55 (12.78) 65 (18.33) 75 (23.89) 85 (29.44) 95 (35.0) 105 (40.56) 115 (46.11) 125 (51.67)

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C)

24APA724 HI

24APA7

24APA724 LO

24APA736 HI

Page 34

CONDENSER ONLY RATINGS*

SST

°F(°C)

(--- 1.11)

(1.67)

(4.44)

(7.22)

(10.0)

(12.78)

24APA7

(15.56)

(--- 1.11)

(1.67)

(4.44)

(7.22)

(10.0)

(12.78)

(15.56)

(--- 1.11)

(1.67)

(4.44)

(7.22)

(10.0)

(12.78)

(15.56)

See notes on page 31

TCG 20.70 19.30 18.00 16.50 15.10 13.70 12.20 10.70

SDT 65.30 74.80 84.40 93.90 103.50 113.00 122.60 132.20

KW 1.04 1.21 1.39 1.58 1.79 2.04 2.32 2.66

TCG 23.40 21.80 20.30 18.70 17.20 15.60 14.00 12.40

SDT 66.50 76.00 85.40 94.90 104.40 113.90 123.40 133.00

KW 1.04 1.20 1.38 1.56 1.77 2.01 2.29 2.62

TCG 26.20 24.50 22.80 21.10 19.40 17.70 15.90 14.20

SDT 67.80 77.20 86.60 96.00 105.40 114.80 124.30 133.80

KW 1.03 1.20 1.37 1.55 1.75 1.99 2.26 2.59

TCG 29.30 27.40 25.50 23.70 21.80 19.90 18.00 16.10

SDT 69.20 78.50 87.70 97.00 106.40 115.80 125.10 134.60

KW 1.03 1.19 1.36 1.53 1.73 1.96 2.23 2.55

TCG 32.70 30.60 28.50 26.40 24.40 22.30 20.30 18.20

SDT 70.60 79.60 88.80 98.10 107.40 116.70 126.10 135.50

KW 1.04 1.19 1.35 1.52 1.71 1.94 2.21 2.52

TCG 36.20 33.90 31.70 29.40 27.20 25.00 22.70 20.50

SDT 72.00 81.00 90.10 99.40 108.60 117.80 127.10 136.40

KW 1.04 1.19 1.34 1.51 1.70 1.92 2.18 2.48

TCG 40.10 37.50 35.00 32.60 30.20 27.80 25.40 23.00

SDT 73.60 82.50 91.60 100.70 109.80 118.90 128.10 137.40

KW 1.05 1.19 1.34 1.50 1.69 1.90 2.15 2.45

TCG 40.30 38.40 36.30 34.20 31.90 29.50 27.00 24.30

SDT 68.50 77.90 87.20 96.60 106.00 115.30 124.60 133.90

KW 2.39 2.68 2.99 3.31 3.65 4.02 4.43 4.88

TCG 44.80 42.60 40.40 38.10 35.60 33.00 30.20 27.40

SDT 69.90 79.20 88.50 97.80 107.10 116.30 125.60 134.70

KW 2.43 2.73 3.03 3.35 3.69 4.07 4.48 4.94

TCG 49.60 47.20 44.80 42.20 39.60 36.70 33.80 30.70

SDT 71.40 80.60 89.80 99.00 108.20 117.40 126.60 135.70

KW 2.49 2.78 3.08 3.40 3.74 4.12 4.54 5.00

TCG 54.80 52.20 49.50 46.80 43.80 40.80 37.60 34.20

SDT 73.00 82.10 91.20 100.30 109.50 118.60 127.60 136.60

KW 2.54 2.83 3.13 3.45 3.79 4.17 4.59 5.06

TCG 60.40 57.60 54.60 51.60 48.40 45.10 41.60 38.00

SDT 74.60 83.70 92.70 101.60 110.80 119.80 128.80 137.70

KW 2.60 2.89 3.19 3.50 3.85 4.23 4.66 5.12

TCG 66.40 63.30 60.10 56.80 53.30 49.70 46.00 42.00

SDT 76.40 85.30 94.10 103.10 112.10 121.10 130.00 138.80

KW 2.67 2.95 3.24 3.56 3.91 4.30 4.72 5.19

TCG 72.80 69.40 65.90 62.30 58.60 54.70 50.60 46.20

SDT 78.30 87.10 96.00 104.80 113.70 122.50 131.30 139.90

KW 2.75 3.03 3.32 3.64 3.98 4.37 4.79 5.26

TCG 27.40 26.00 24.50 23.00 21.30 19.60 17.70 15.70

SDT 63.50 73.20 82.80 92.40 102.00 111.50 121.00 130.50

KW 1.36 1.61 1.85 2.12 2.42 2.75 3.15 3.61

TCG 30.80 29.30 27.70 25.90 24.10 22.20 20.20 18.00

SDT 64.60 74.10 83.70 93.30 102.80 112.30 121.70 131.20

KW 1.36 1.59 1.84 2.10 2.39 2.72 3.10 3.56

TCG 34.60 32.90 31.10 29.20 27.20 25.10 22.80 20.50

SDT 65.70 75.20 84.70 94.20 103.60 113.10 122.50 131.90

KW 1.35 1.58 1.82 2.07 2.36 2.68 3.06 3.50

TCG 38.70 36.80 34.80 32.70 30.50 28.20 25.80 23.20

SDT 66.90 76.30 85.80 95.20 104.60 113.90 123.30 132.60

KW 1.35 1.58 1.81 2.05 2.33 2.65 3.02 3.45

TCG 43.10 41.00 38.70 36.40 34.00 31.50 28.90 26.10

SDT 68.30 77.60 86.90 96.30 105.50 114.80 124.10 133.30

KW 1.35 1.57 1.79 2.04 2.30 2.61 2.97 3.40

TCG 47.90 45.50 43.00 40.50 37.90 35.10 32.30 29.30

SDT 69.70 78.90 88.10 97.40 106.60 115.80 125.00 134.10

KW 1.36 1.57 1.79 2.02 2.28 2.58 2.93 3.35

TCG 53.00 50.40 47.70 44.90 42.00 39.00 35.90 32.60

SDT 71.20 80.30 89.40 98.60 107.70 116.80 125.90 135.00

KW 1.37 1.57 1.78 2.01 2.26 2.55 2.90 3.30

55 (12.78) 65 (18.33) 75 (23.89) 85 (29.44) 95 (35.0) 105 (40.56) 115 (46.11) 125 (51.67)

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C)

24APA736 LO

24APA748 HI

24APA748 LO

Page 35

CONDENSER ONLY RATINGS*

SST

°F(°C)

(--- 1.11)

(1.67)

(4.44)

(7.22)

(10.0)

(12.78)

(15.56)

(--- 1.11)

(1.67)

(4.44)

(7.22)

(10.0)

(12.78)

(15.56)

TCG 52.30 49.80 47.20 44.50 41.60 38.60 35.40 32.00

SDT 70.40 79.70 89.00 98.30 107.60 116.80 126.00 135.20

KW 2.27 2.61 2.97 3.34 3.74 4.18 4.67 5.21

TCG 58.00 55.20 52.40 49.40 46.20 42.90 39.50 35.80

SDT 72.00 81.20 90.40 99.60 108.80 117.90 127.00 136.10

KW 2.33 2.67 3.02 3.40 3.80 4.24 4.73 5.27

TCG 64.10 61.10 57.90 54.70 51.20 47.70 43.90 39.90

SDT 73.70 82.70 91.80 101.00 110.10 119.10 128.20 137.20

KW 2.40 2.73 3.09 3.46 3.87 4.31 4.81 5.35

TCG 70.60 67.40 63.90 60.30 56.60 52.70 48.60 44.20

SDT 75.40 84.20 93.30 102.20 111.50 120.50 129.40 138.20

KW 2.47 2.80 3.15 3.52 3.94 4.39 4.88 5.42

TCG 77.70 74.10 70.30 66.40 62.30 58.10 53.60 48.80

SDT 77.30 85.90 94.90 103.90 112.90 121.90 130.70 139.40

KW 2.55 2.87 3.22 3.60 4.01 4.47 4.96 5.51

TCG 85.30 81.30 77.20 72.90 68.40 63.70 58.90 53.70

SDT 79.30 88.10 96.90 105.70 114.50 123.20 132.00 140.70

KW 2.64 2.96 3.31 3.69 4.10 4.55 5.05 5.60

TCG 93.30 89.00 84.40 79.70 74.90 69.70 64.40 58.70

SDT 81.40 90.10 98.80 107.40 116.10 124.80 133.40 141.90

KW 2.74 3.06 3.40 3.78 4.19 4.64 5.14 5.70

TCG 34.80 33.30 31.50 29.60 27.50 25.30 23.00 20.60

SDT 64.40 74.00 83.60 93.10 102.70 112.20 121.60 131.10

KW 1.65 1.96 2.27 2.60 2.98 3.41 3.90 4.49

TCG 39.00 37.30 35.30 33.20 30.90 28.50 25.90 23.30

SDT 65.50 75.00 84.50 94.00 103.50 112.90 122.40 131.80

KW 1.64 1.94 2.25 2.57 2.94 3.36 3.85 4.42

TCG 43.60 41.60 39.40 37.10 34.60 31.90 29.20 26.30

SDT 66.70 76.10 85.60 95.00 104.40 113.80 123.20 132.50

KW 1.64 1.93 2.23 2.55 2.90 3.31 3.79 4.35

TCG 48.50 46.30 43.90 41.30 38.50 35.60 32.60 29.40

SDT 68.00 77.30 86.70 96.10 105.40 114.70 124.00 133.20

KW 1.64 1.92 2.21 2.52 2.87 3.27 3.74 4.28

TCG 53.80 51.30 48.70 45.80 42.80 39.60 36.30 32.80

SDT 69.30 78.60 87.90 97.20 106.40 115.60 124.80 134.00

KW 1.64 1.91 2.20 2.50 2.84 3.23 3.68 4.22

TCG 59.50 56.70 53.80 50.70 47.40 43.90 40.20 36.30

SDT 70.80 80.00 89.20 98.30 107.50 116.60 125.80 134.80

KW 1.65 1.91 2.19 2.48 2.81 3.19 3.64 4.16

TCG 65.60 62.50 59.30 55.90 52.20 48.40 44.30 40.00

SDT 72.30 81.40 90.50 99.60 108.60 117.70 126.70 135.70

KW 1.66 1.92 2.18 2.47 2.79 3.16 3.59 4.10

* AHRI listing applies only to systems shown in Combination Ratings table.

KW --- Outdoor Unit Kilowatts Only. SDT --- Saturated Temperature Leaving Compressor (° F) SST --- Saturated Temperature Entering Compressor (° F/° C) TCG --- Gross Cooling Capacity (1000 Btuh)

55 (12.78) 65 (18.33) 75 (23.89) 85 (29.44) 95 (35.0) 105 (40.56) 115 (46.11) 125 (51.67)

CONDENSER ENTERI NG AIR T EMPERATURES ° F (° C)

24APA760 HI

24APA7

24APA760 LO

Page 36

GUIDE SPECIFICATIONS GENERAL

System Description

Outdoor--mounted, air--cooled, split--system air conditioner unit suitablefor ground orrooftopinstallation.Unitconsistsof ahermetic compressor, an air--cooled coil, propeller--type condenser fan, and a control box. Unit will discharge supply air upward as shown on contract drawings. Unit willbe used in a refrigeration circuit to match up to a packaged fan coil or coil unit.

Quality Assurance

— Unit will be rated in accordance with the latest edition of

AHRI Standard 210.

— Unit will be certified for capacity and efficiency, and

listed in the latest AHRI directory.

— Unit construction will comply with latest edition of

ANSI/ ASHRAE and with NEC.

— Unit will be constructed in accordance with UL

standards and will carry the UL label of approval. Unit

24APA7

will have c--UL approval.

— Unit cabinet will be capable of withstanding Federal Test

Method Standard No. 141 (Method 6061) 500--hr salt spray test.

— Air--cooled condenser coils will be leak tested and

pressure tested.

— Unit constructed in ISO9001 approved facility.

Delivery, Storage, and Handling

— Unit will be shipped as single package only and is stored

and handled per unit manufacturer’s recommendations.

Warranty (for inclusion by specifying engineer)

— U.S. and Canada only.

PRODUCTS

Equipment

— Factory assembled, single piece, air--cooled air

conditioner unit. Contained within the unit enclosure is all factory wiring, piping, controls, compressor, refrigerant charge Puronr (R--410A), and special features required prior to field start--up.

Unit Cabinet

— Unit cabinet, including louvered coil guard, will be

constructed of galvanized steel, bonderized, and coated with a powder coat paint.

Fans

— Condenser fan will be direct--drive propeller type,

discharging air upward.

AIR--COOLED, SPLIT--SYSTEM AIR CONDITIONER

24APA7

2 TO 5 NOMINAL TONS

— Condenser fan motors will be totally enclosed, 1--phase

type with class B insulation and permanently lubricated

bearings. Shafts will be corrosion resistant. — Fan blades will be statically and dynamically balanced. — Condenser fan openings will be equipped with coated

steel wire safety guards.

Compressor

— Compressor will be hermetically sealed. — Compressor will be mounted on rubber vibration

isolators.

Condenser Coil

— Condenser coil will be air cooled. — Coil will be constructed of aluminum fins mechanically

bonded to copper tubes which are then cleaned,

dehydrated, and sealed.

Refrigeration Components

— Refrigeration circuit components will include liquid--line

shutoff valve with sweat connections, vapor--line shutoff

valve with sweat connections, system charge of Puronr

(R--410A) refrigerant, and compressor oil. — Unit will be equipped with high--pressure switch, low

pressure switch and filter drier for Puron refrigerant.

Operating Characteristics

— The capacity of the unit will meet or exceed _____ Btuh

at a suction temperature of _____ _F/_C. The power

consumption at full load will not exceed _____ kW. — Combination of the unit and the evaporator or fan coil

unit will have a total net cooling capacity of _____ Btuh

or greater at conditions of _____ CFM entering air

temperature at the evaporator at _____ _F/_C wet bulb

and _____ _F/_C dry bulb, and air entering the unit at

_____ _F/_C. — The system will have a SEER of _____ Btuh/watt or

greater at DOE conditions.

Electrical Requirements

— Nominal unit electrical characteristics will be _____ v,

single phase, 60 hz. The unit will be capable of

satisfactory operation within voltage limits of _____ v to

_____ v. — Unit electrical power will be single point connection. — Control circuit will be 24v.

Special Features

— Refer to section of this literature identifying accessories

and descriptions for specific features and available

enhancements.

Page 37

SYSTEM DESIGN SUMMARY

1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01--in. w.c.

2. This product is qualified for low ambient cooling operation (below 55_F/12.8_C) when used with an Infinity User Interface ONLY.

3. The maximum outdoor operating ambient in cooling mode is 125_F (51.67_C).

4. For reliable operation, unit should be level in all horizontal planes.

5. For interconnecting refrigerant tube lengths greater than 80 ft (23.4 m) and/or 35 ft (10.7 m) vertical differential, consult Residential Piping and Longline Guideline and Service Manual available from equipment distributor.

6. If any refrigerant tubing is buried, provide a 6 in. (152.4 mm) vertical rise to the valve connections at the unit. Refrigerant tubing lengths up to 36 in. (914.4 mm) may be buried without further consideration. Do not bury refrigerant lines longer than 36 in. (914.4 mm).

7. Use only copper wire for electric connection at unit. Aluminum and clad aluminum are not acceptable for the type of connector provided.

8. Do not apply capillary tube indoor coils to these units.

9. Factory--supplied filter drier must be installed.

24APA7

Page 38

24APA7

Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.

Printed in U.S.A. Edition Date: 09/10

Catalog No. 24APA7---5PD

Replaces: 24APA7--- 4PD
