Page 1
Made in China, Huizhou.
# 3 0 1 0 0 5
Montage- und Betriebsanleitung
Assembly and operating instructions
Instructions de montage et d’utilisation
Instrucciones de montaje y de servicio
Istruzioni per il montaggio e l’uso
Montage- en gebruiksaanwijzing
Instruções de montagem e modo de utilização
Monterings- och bruksanvisning
Asennus- ja käyttöohje
Instrukcja montażu i obsługi
Szerelési és használati utasítás
Navodila za montažo in uporabo
Návod k montáži a obsluze
Montajse- og bruksanvisning
Monterings- og driftsvejledning
Οδηγίες συναρμολόγησης και λειτουργίας
Page 2
2
Lieferumfang · Contents of package · Fournitures · Contenido del embalaje
Contenuto della fornitura · Inhoud van de levering · Volume de fornecimento
Leveransomfattning · Toimituslaajuus · Zakres dostawy · Szállítási terjedelem
Vsebina pakiranja · Rozsah dodávky · Leveringsomfang
Leveringsomfang · Παραδοτέος εξοπλισμός
Page 3
8
Dear customer
Congratulations on purchasing a Carrera RC model boat, manufactured in accordance with the latest technology. As it is our constant endeavour to develop and
improve our products, we reserve the right to make modifications, either of a technical
nature or with respect to features, materials, and design, at any time, and without prior
notice. For this reason, no claims will be accepted for any slight deviations in your
product from the data and illustrations contained in these instructions. These operating and assembly instructions are an integral part of the product. Non-observance of
these operating instructions and the safety instructions they contain will render the
guarantee null and void. These instructions are to be kept for future reference and in
the event that the product is passed on to a third party.
Guarantee conditions
A Carrera product is built to high technical standards and is to be treated with care.
Please ensure that you observe all the instructions contained in this guide. All components have been subjected to careful inspection (technical modifications and alterations to the model for the purpose of product improvement are reserved).
Should any faults nevertheless occur, guarantee is assumed within the scope
of the following conditions:
The guarantee covers demonstrable material or manufacturing defects that existed at
the time that the Carrera product was purchased. The guarantee period is 24 months
beginning with the date of purchase. The guarantee does not extend to wearing parts,
damage caused by improper treatment or use, or unauthorised intervention. Repair
may only be performed by Stadlbauer Marketing + Vertrieb GmbH itself or by a company it has authorised to do so. Within the scope of this guarantee, either the product
as a whole or only the defective components will be replaced or equivalent substitution performed, as deemed appropriate by Stadlbauer Marketing + Vertrieb GmbH.
The guarantee does not cover transport, packaging or travel costs or any damage for
which the buyer is responsible. These costs are to be covered by the buyer. Guarantee
claims will only be accepted from the original purchaser of the Carrera product.
Guarantee claims can only be accepted when:
• The card has been filled in properly and sent in together with the defective Carrera
product and the purchase receipt/invoice/cash-register receipt.
• No unauthorised alterations have been made by the buyer to the guarantee card.
• The toy has been treated in accordance with the operating instructions and
subjected to its intended use.
• The damage/faulty operation is not due to acts of God or normal wear and tear.
Guarantee cards cannot be replaced.
Note for EU countries: Reference is hereby made to the seller’s statutory guarantee
obligation, to the extent that this guarantee obligation is not restricted by the product
guarantee.
Declaration of conformity
Stadlbauer Marketing + Vertrieb GmbH hereby declares that this model including the
controller conforms with the fundamental requirements of the following EC directives:
EC Directives 2009/48 and 2004/108/EC regarding electromagnetic compatibility and
the other relevant regulations of Directive 1999/5/EC (R&TTE).
The original declaration of conformity can be requested from carrera-rc.com.
Warning!
WARNING! This toy contains small parts which can be swallowed and
is therefore not suitable for children under 3 years of age. WARNING!
danger of pinching during operation! Remove all packaging materials
and wire fastenings before handing the toy over to the child. Please retain the
packaging and address for information and in the event of any questions.
This symbol, showing refuse bins with a cross
through them, denotes that empty batteries,
rechargeable batteries, button cells, rechargeable battery packs, equipment batteries, disused
electrical equipment, etc. should not be disposed
of in domestic refuse, as they are harmful to the environment and health. Please help to
preserve environment and health and talk to your children about the correct disposal of
used batteries and disused electrical equipment. Batteries and disused electrical equipment should be handed in to the usual collection points where they can be properly
recycled.
Do not mix dissimilar battery types or employ new and used batteries together. Empty
batteries should be removed from the product. Do not attempt to recharge non-rechargeable batteries. Rechargeable batteries should only be charged under adult super vision.
Exhausted batteries are to be removed from the toy. Rechargeable batteries should be
removed from the product before charging. Supply terminal are not to be short-circuited.
Only use the batteries recommended or equivalent types.
If in regular use the charger must be examined for damage to the cord, plug, covers and
all other parts. If any signs of damage are found the charger may only be used again after
repair work has been completed.
Requirement for FCC Part 15
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installe d and used in ac cord ance with the instr ucti ons, may cause har mful inter ference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele vision reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorie nt or relocate the receiving antenna.
• Increase the separation between the equipment and receiver,
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

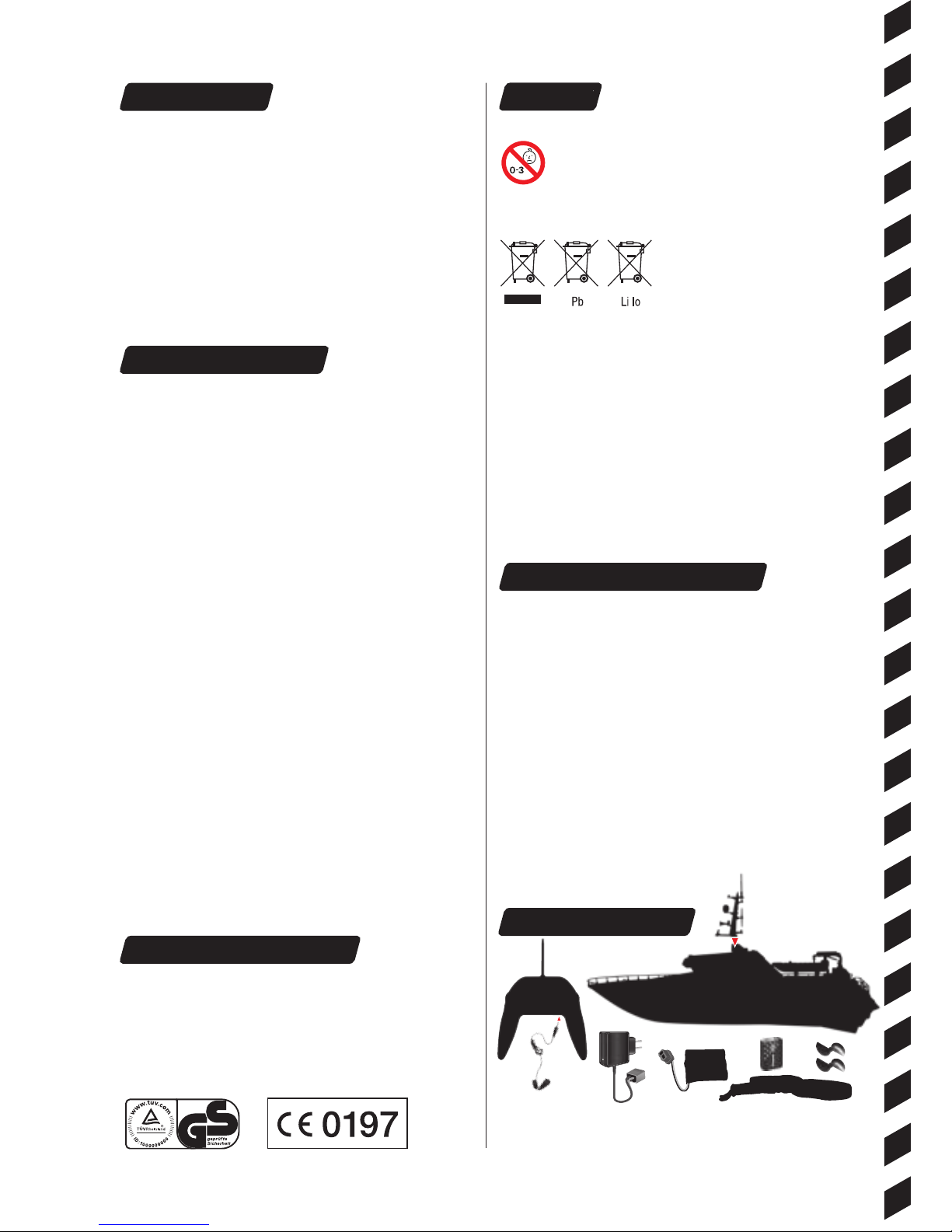

1 x Microphone
1 x Battery Charger
1 x Rechargeable Battery
1 x 9 V Block Battery
(non-rechargeable)
1 x Patrol Boat Falshöft
1 x Aerial mast
1 x Controller
1x Lanyard
1x Replacement pair of propellers
Contents of package
Page 4
8
9
10
11
12
13
7
5
3
4
6
1
1
9
2
1
2
ON
ON
Be sure not to allow the propeller or
the rudder to touch the bed of the
water.
If this is allowed to happen it may
lead to permanent damage and severly
affect the manoeuvrability and speed of
the boat.
If necessary, change the propellers for
the replacement pair.
Feed the antenna cable through the
antenna tube and then fix this to the
Carrera RC-model. Secure the end of
the antenna cable with a Carrera RC
sticker from the logo sheet.
9
Safety instructions
A Carrera RC boat is a remotecontrolled model boat that uses special
rechargeable batteries for this purpose.
Only original Carrera RC Li-Ion
rechargeable batteries may be used.
Rechargeable batteries are to be
removed from the boat before being
charged.
When starting, always switch the
controller on first, then the boat.
When finishing, always reverse the
order of these actions!
The Carrera RC boat must be inspected
before and after operation, each time it
is used, to ensure that it has not become
disassembled. Any screws or nuts that
may have become loosened during
operation must be tightened.
Do not run your boat during a thunderstorm! Atmospheric interference can
lead to malfunctions.
Safety propeller
The propeller switches off on being
taken out of the water.
Please note particularly that the propellers have no function out of the water.
The boat cannot be operated on the
ground.
Do not expose the Carrera RC boat to
direct sunlight.
To avoid the electronics in the boat
overheating, when temperatures are
above 35 °C, regular short pauses in
operation are essential
The toy is to be operated in water only
when fully assembled.
Please ensure your remote control batteries have the required capacity and
make sure the LI-Ion power pack is fully
charged.
Handle the tip of the antenna with care.
Danger of injury!
Never use strong solvents for cleaning
your model.
Please clean the water sensor contacts
regularly with tap water and a little vinegar-based cleaner.
To avoid malfunctions to the control
system resulting in uncontrolled operation of the Carrera RC boat, check that
the controller batteries and the
rechargeable batteries in the boat
have sufficient charge. Supply terminals
are not to be short-circuited.
After each running session, open the
two drainage plugs at the bow and stern
and pour away any condensation which
may have accumulated.
Only replace the plugs in these openings immediately before you use the
boat for another running session.
GREEN = ReadyRED = Chargi ng
Mounting the antenna
Page 5
1
10
1
2
2
1
2
20km/h
1
2
1
2
Always recharge the battery immediately after use to prevent its becoming deep
discharged. Recharge the batter y occasionally (suggested every 2-3 months).
Failure to treat the battery as described above can lead to its becoming defective.
Rechargeable batteries are only to be charged under adult supervision! Rechargeable batteries are only to be charged by adults or by children at least 8 years old.
Switch on the Carrera RC boat using
the ON/OFF switch.
Let’s practise!
GREEN = ReadyRED = Chargi ng
Charging the rechargeable battery
Now you can drive the boat
Installing the rechargeable battery
Using a screwdriver, remove the cover of the
batter y compartment in the Carrera RC boat.
Connect the end of the cable from the
Carrera RC boat with the charged battery.
Put the battery in place.
Replace the compartment cover using
a screwdriver.
Unscrew the cover of the battery compartment in the controller and insert the 9 V
block battery.
When inserting the 9 V block battery,
ensure that the polarit y is correct. Different types of batteries or new and
used batteries are not to be mixed.
Replace the cover using a screwdriver.
First connect the Carrera RC rechargeable
battery to the battery charger supplied. The
connection terminals between the battery
and the charger are designed to prevent
connection with the wrong polarity. Connect
the charger to a power source.
When the battery is properly connected and
charging normally, the red LED is constantly
lit. Once the battery is fully charged, the red
LED switches to green. The battery can now
be disconnected and installed in the Carrera
RC boat.
The boat is now read y for use.
After use, the battery must be allowed to cool
down for at least 20 minutes before it can be
fully recharged. Failure to observe this
pause may damage the battery.
Pull out the antenna of the controller to
its full extent.
Switch on the Carrera RC-controller at
the ON/OFF switc h.
Caution: this boat can reach speeds
up to 20 km/h.
When first starting, be very careful
when operating the gas pedal. Practice
running slowly for at least two to three
full charges of the battery before you
start practising faster manoeuvres.
Note: when the controller remains unused for more than 2 minutes, it switches automatically into “sleep” mode to avoid wasting power in the controller’s 9 V bat tery.
This means the boat receives no more radio signals and behaves as described under
point 5 on page 11 “Range control ”.
• Bring the boat back to the bank after about 20 minutes to change the battery
• Never run more than 2 batteries down one after the other. After running down
two fully-charged batteries , a pause in running for at least 20 minutes is essential.
• Avoid constant motor operation.
• If the model switches itself off several times in quick succession, the battery is
dead. Please recharge the battery.
• To switch off after use, follow the steps in the reverse order.
• After use, remove or disconnect the battery.
• Clean the Carrera RC boat after the running session.
• Always keep the Carrera RC battery stor ed outside the boat .
Inserting the 9 V block battery
Page 6
2
5
1
2
3
4 1
1
11
Acoustic battery condition monitoring
Problem Cause Solution
Boat does not move
Either the switch on the controller or the boat is set to OFF. Switch on.
There is no rechargeable battery in the boat or the battery is too
weak.
Insert charge d batter y.
Signal note is emitted - weak battery in the controller or in the model. Insert new battery or recharged battery.
The contacts of the water sensor are dirty.
Please clean the water sensor contacts regularly with tap water and a
little vinegar-based cleaner.
The boat is very warm. Allow the RC boat to cool down for about 30 minutes.
Boat cannot be controlled
Transmitter antenna is defective. Extend the antenna fully.
Another RC boat is using the same frequency. Wait until the captain of the other ship has finished running.
Boat‘s horn / Loudspeaker
For the latest version of these operating instructions and information on replacement and spare parts available, please visit carrera-rc.com in the ser vice area.
Errors and changes excepted
Col ours / fin al desi gn – chan ges exce pted
Technical changes and design-related changes excepted
Pictograms = symbolic photos
Controller functions
The joysticks can be stored in the special compartment at the back of the
controller.
Then plug the microphone in to the
controller and fasten it to the carrying
strap with the clip.
When the boat’s battery is almost
empty, a continuous signal note is
emitted. Please steer immediately to
the bank, and change the battery.
You can steer the model in any direction using the joysticks:
Joystick on left: forwards/backwards
Joystick on right: left/right
The joysticks are removable.
Range control
When it goes beyond the range of the
radio frequency, or the controller is not
touched for over 2 minutes, the boat sails
in small but ever-increasing circles to try
to regain the radio frequency range. Make
sure you operate the controller once if
necessary to deactivate the “sleep” mode.
See page 10 “Let ’s practise”.
Alternatively, the model can be controlled with the rockers.
The boat‘s horn is sounded when you
press the lef t-hand but ton on the contro ller.
The joysticks can be stored in the special compartment at the back of the
controller.
You can make an announcement over
the boat’s loudspeaker by pressing the
right-hand button on the controller while
speaking into the microphone.
Troubleshooting
Page 7
Stadlbauer Marketing + Vertrieb GmbH · Rennbahn Allee 1 · 5412 Puch / Salzburg · Austria
Loading...
