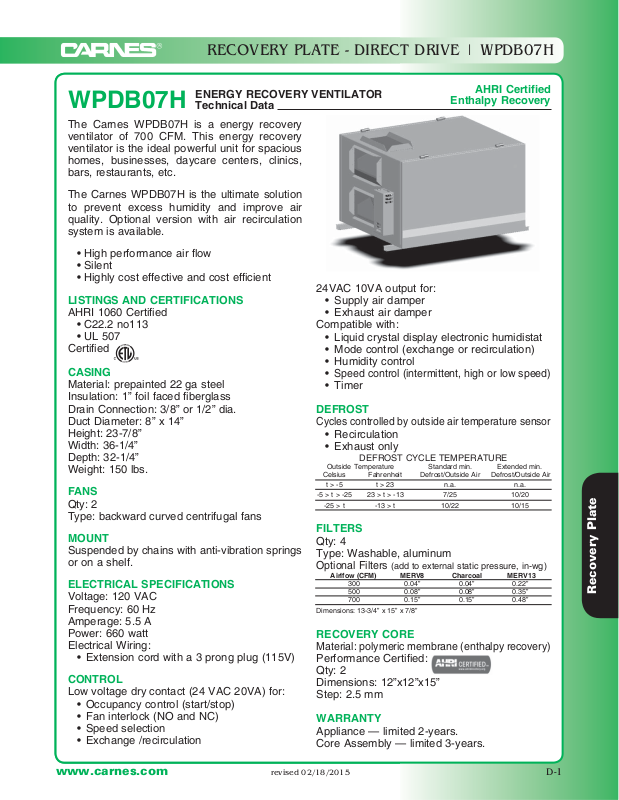

Carnes WPDB07H User Manual

RECOVERY PLATE - DIRECT DRIVE | WPDB07H

RECOVERY PLATE | WP_A

WPDB07H

Technical Data

The Carnes WPDB07H is a energy recovery ventilator of 700 CFM. This energy recovery ventilator is the ideal powerful unit for spacious homes, businesses, daycare centers, clinics, bars, restaurants, etc.

The Carnes WPDB07H is the ultimate solution to prevent excess humidity and improve air quality. Optional version with air recirculation system is available.

• High performance air flow

• Silent

• Highly cost effective and cost efficient

LISTINGS AND CERTIFICATIONS

AHRI 1060 Certified

• C22.2 no113

• UL 507 Certified

CASING

Material: prepainted 22 ga steel Insulation: 1” foil faced fiberglass Drain Connection: 3/8” or 1/2” dia. Duct Diameter: 8” x 14” Height: 23-7/8” Width: 36-1/4” Depth: 32-1/4” Weight: 150 lbs.

FANS

Qty: 2 Type: backward curved centrifugal fans

MOUNT

Suspended by chains with anti-vibration springs or on a shelf.

ELECTRICAL SPECIFICATIONS

Voltage: 120 VAC Frequency: 60 Hz Amperage: 5.5 A Power: 660 watt Electrical Wiring:

• Extension cord with a 3 prong plug (115V)

CONTROL

Low voltage dry contact (24 VAC 20VA) for:

• Occupancy control (start/stop)

• Fan interlock (NO and NC)

• Speed selection

• Exchange /recirculation

ENERGY RECOVERY VENTILATOR

AHRI Certified

Enthalpy Recovery

24VAC 10VA output for:

• Supply air damper

• Exhaust air damper Compatible with:

• Liquid crystal display electronic humidistat

• Mode control (exchange or recirculation)

• Humidity control

•

Speed control (intermittent, high or low speed)

• Timer

DEFROST

Cycles controlled by outside air temperature sensor

• Recirculation

• Exhaust only

Outside Temperature Standard min. Extended min. Celsius Fahrenheit Defrost/Outside Air Defrost/Outside Air

t > -5 t > 23 n.a. n.a.

-5 > t > -25 23 > t > -13 7/25 10/20

-25 > t -13 > t 10/22 10/15

DEFROST CYCLE TEMPERATURE

FILTERS

Qty: 4 Type: Washable, aluminum Optional Filters

Airlfow (CFM) MERV8 Charcoal MERV13

300 0.04” 0.04” 0.22” 500 0.08” 0.08” 0.35” 700 0.15” 0.15” 0.48”

Dimensions: 13-3/4” x 15” x 7/8”

(add to external static pressure, in-wg)

RECOVERY CORE

Material: polymeric membrane (enthalpy recovery) Performance Certified: Qty: 2 Dimensions: 12”x12”x15” Step: 2.5 mm

WARRANTY

Appliance — limited 2-years. Core Assembly — limited 3-years.

Recovery Plate

www.carnes.com revised 02/18/2015 D-1

COMMERCIAL RECOVERY PLATE | WP_A

PERFORMANCES & DIMENSIONS | WPDB07H

ENERGY RECOVERY VENTILATOR

WPDB07H

 Recovery Performances

Technical Data

WPDB07H Enthalpy Efficiency,

 Dimensions

1-5/8”

8”

AHRI 1060 Certified

Sensible (HEATING)

Total (COOLING)

Recirculation Duct

WPDB07H

Fan Curves

High Speed

Medium Speed

Low Speed

Opt Med Speed

Opt Low Speed

Recovery Plate

D-2 revised 02/18/2015 www.carnes.com

OUTSIDE AIR

EXHAUST AIR

36-1/4”

40-3/4” Bolt Pattern (1/2” Dia)

41-3/4”

RETURN

AIR

SUPPLY

AIR

23-7/8”

15”

8”

4”

10-1/2”

14”

24-1/8”

32-1/8”
