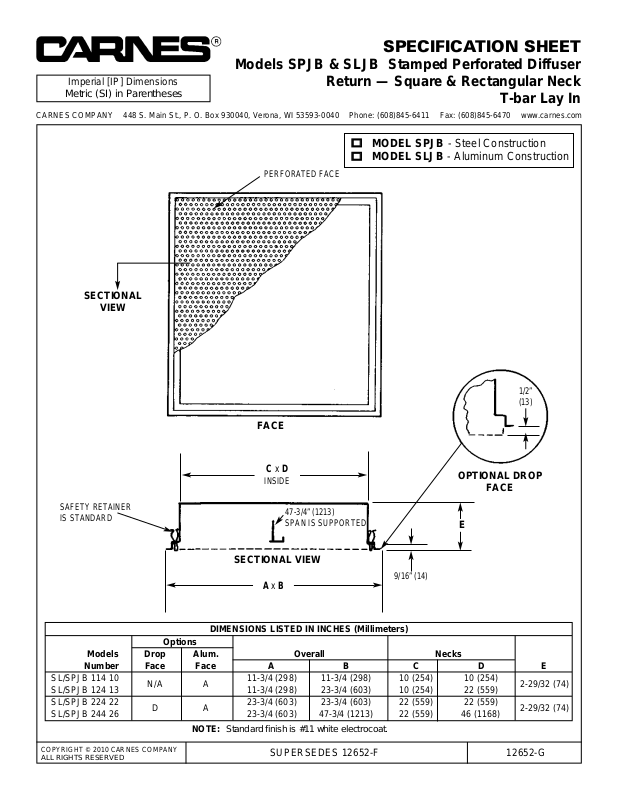

SPECIFICATION SHEET
Models SPJB & SLJB Stamped Perforated Diffuser
Return — Square & Rectangular Neck
T-bar Lay In
COPYRIGHT © 2010 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12652-F 12652-G
PERFORATED FACE
9/16” (14)
SECTIONAL
VIEW
E
NOTE: Standard finish is #11 white electrocoat.
SAFETY RETAINER
IS STANDARD
DIMENSIONS LISTED IN INCHES (Millimeters)
Options
Models Drop Alum. Overall Necks
Number Face Face A B C D E
SL/SPJB 114 10
N/A A
11-3/4 (298) 11-3/4 (298) 10 (254) 10 (254)
2-29/32 (74)
SL/SPJB 124 13 11-3/4 (298) 23-3/4 (603) 10 (254) 22 (559)
SL/SPJB 224 22
DA
23-3/4 (603) 23-3/4 (603) 22 (559) 22 (559)
2-29/32 (74)
SL/SPJB 244 26 23-3/4 (603) 47-3/4 (1213) 22 (559) 46 (1168)
C x D
INSIDE
47-3/4” (1213)
SPAN IS SUPPORTED
SECTIONAL VIEW
A x B
OPTIONAL DROP
FACE
FACE
1/2”
(13)
MODEL SPJB - Steel Construction
MODEL SLJB - Aluminum Construction
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
