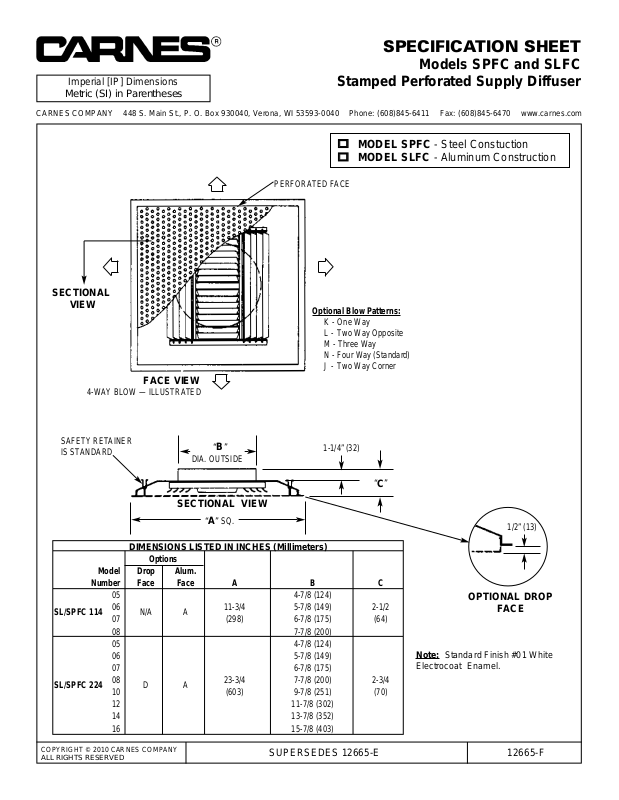

SPECIFICATION SHEET

Models SPFC and SLFC

Stamped Perforated Supply Diffuser

SUPERSEDES 12665-E 12665-F

PERFORATED FACE

4-WAY BLOW — ILLUSTRATED

1-1/4” (32)

Optional Blow Patterns:

K - One Way L - Two Way Opposite M - Three Way N - Four Way (Standard) J - Two Way Corner

SAFETY RETAINER IS STANDARD

FACE VIEW

SECTIONAL VIEW

SECTIONAL

VIEW

OPTIONAL DROP

FACE

“C”

“B”

DIA. OUTSIDE

“A”

SQ.

1/2” (13)

DIMENSIONS LISTED IN INCHES (Millimeters)

Options

Model Drop Alum.

Number Face Face A B C

05 4-7/8 (124)

SL/SPFC 114

N/A A

11-3/4 5-7/8 (149) 2-1/2 07 (298) 6-7/8 (175) (64) 08 7-7/8 (200) 05 4-7/8 (124) 06 5-7/8 (149) 07 6-7/8 (175)

SL/SPFC 224

23-3/4 7-7/8 (200) 2-3/4 10 (603) 9-7/8 (251) (70) 12 11-7/8 (302) 14 13-7/8 (352) 16 15-7/8 (403)

Note: Standard Finish #01 White Electrocoat Enamel.



MODEL SPFC - Steel Constuction



MODEL SLFC - Aluminum Construction

Imperial [IP] Dimensions

Metric (SI) in Parentheses

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
