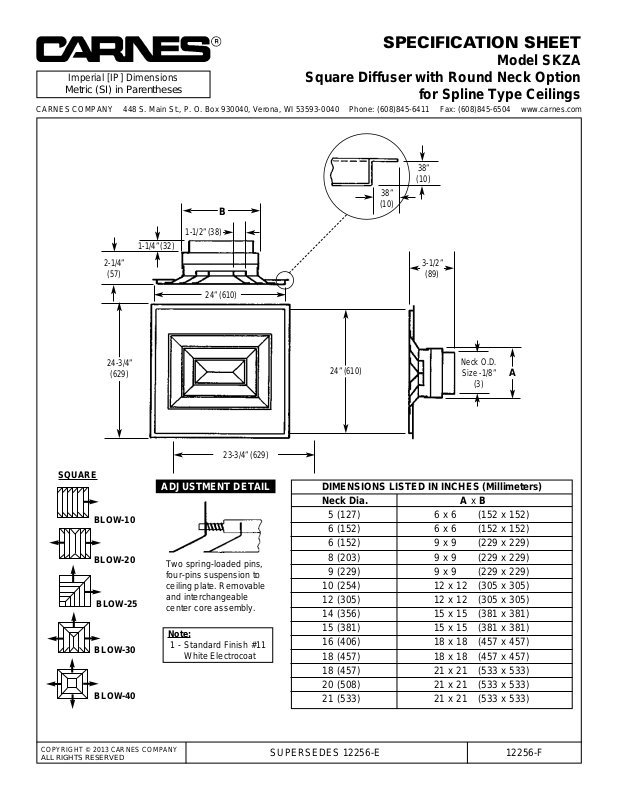

SPECIFICATION SHEET

Model SKZA

Square Diffuser with Round Neck Option

for Spline Type Ceilings

SUPERSEDES 12256-E 12256-F

SQUARE

BLOW-10

BLOW-20

BLOW-25

BLOW-30

BLOW-40

ADJUSTMENT DETAIL

Two spring-loaded pins, four-pins suspension to ceiling plate. Removable and interchangeable center core assembly.

Note:

1 - Standard Finish #11

White Electrocoat

DIMENSIONS LISTED IN INCHES (Millimeters) Neck Dia. A x B

5 (127) 6 x 6 (152 x 152) 6 (152) 6 x 6 (152 x 152) 6 (152) 9 x 9 (229 x 229) 8 (203) 9 x 9 (229 x 229)

9 (229) 9 x 9 (229 x 229) 10 (254) 12 x 12 (305 x 305) 12 (305) 12 x 12 (305 x 305) 14 (356) 15 x 15 (381 x 381) 15 (381) 15 x 15 (381 x 381) 16 (406) 18 x 18 (457 x 457) 18 (457) 18 x 18 (457 x 457) 18 (457) 21 x 21 (533 x 533) 20 (508) 21 x 21 (533 x 533) 21 (533) 21 x 21 (533 x 533)

38”

(10)

38”

(10)

1-1/2” (38)

1-1/4” (32)

2-1/4”

(57)

24” (610)

24-3/4”

(629)

23-3/4” (629)

24” (610)

3-1/2”

(89)

Neck O.D.

Size -1/8”

(3)

Imperial [IP] Dimensions

Metric (SI) in Parentheses

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
