COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12691
12691-A [S]
IP Units (SI Metric on Reverse)

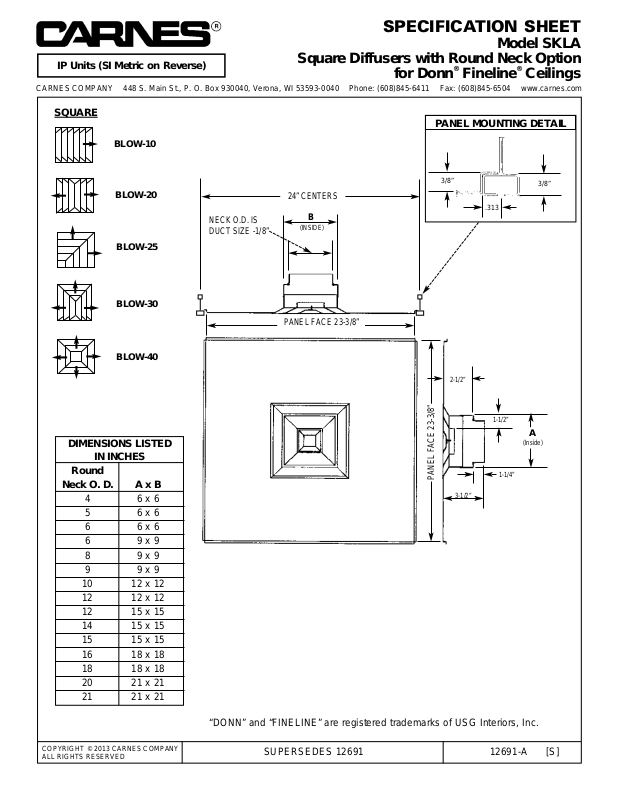

SPECIFICATION SHEET
Model SKLA
Square Diffusers with Round Neck Option
for Donn
®
Fineline®Ceilings
2-1/2”
1-1/2”
1-1/4”
3-1/2”
PANEL FACE 23-3/8”
PANEL FACE 23-3/8”
24” CENTERS
A
(Inside)
SQUARE
BLOW-10
BLOW-25
BLOW-30
BLOW-40
BLOW-20
B
(INSIDE)
3/8”
3/8”
.313
PANEL MOUNTING DETAIL
DIMENSIONS LISTED
IN INCHES
Round
Neck O. D. A x B
4 6 x 6
5 6 x 6
6 6 x 6
6 9 x 9
8 9 x 9
9 9 x 9
10 12 x 12
12 12 x 12
12 15 x 15
14 15 x 15
15 15 x 15
16 18 x 18
18 18 x 18
20 21 x 21
21 21 x 21
“DONN” and “FINELINE” are registered trademarks of USG Interiors, Inc.
NECK O.D. IS
DUCT SIZE -1/8”
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12691
12691-A [M]
SI Metric Units (IP on Reverse)
64
38
32
89
PANEL FACE 594
PANEL FACE 594
610 CENTERS
A
(Inside)
SQUARE
BLOW-10
BLOW-25
BLOW-30
BLOW-40
BLOW-20
B
(INSIDE)
10
10
8
PANEL MOUNTING DETAIL
DIMENSIONS LISTED
IN MILLIMETERS
Round
Neck O. D. A x B
102 152 x 152
127 152 x 152
152 152 x 152
152 229 x 229
203 229 x 229
229 229 x 229
254 305 x 305
305 305 x 305
305 381 x 381
356 381 x 381
381 381 x 381
406 457 x 457
457 457 x 457
508 533 x 533
533 533 x 533
NECK O.D. IS
DUCT SIZE -3.2
SPECIFICATION SHEET
Model SKLA
Square Diffusers with Round Neck Option
for Donn
®
Fineline®Ceilings
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
