Carnes RH-M User Manual
Imperial [IP] Dimensions
Metric (SI) in Parentheses

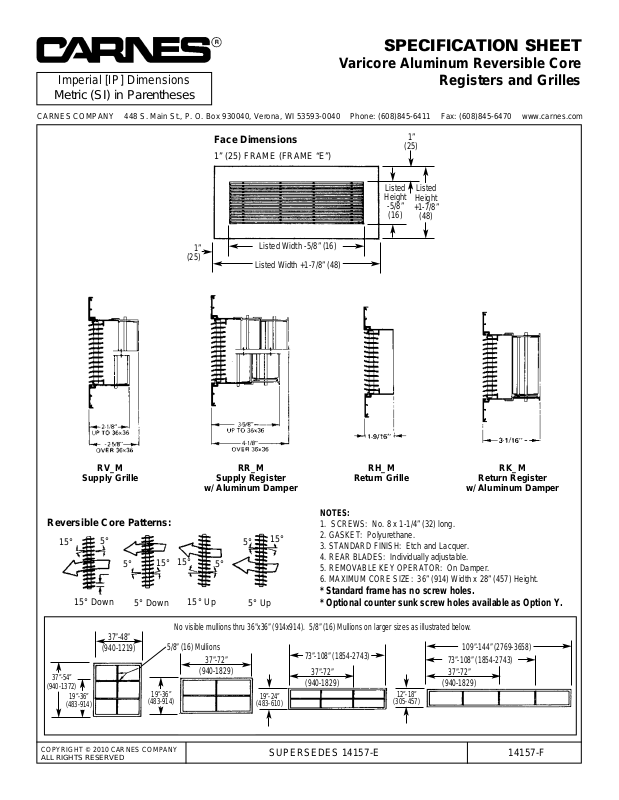

SPECIFICATION SHEET
Varicore Aluminum Reversible Core
Registers and Grilles
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
COPYRIGHT © 2010 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 14157-E 14157-F
Face Dimensions
1” (25) FRAME (FRAME “E”)
Listed
Height
+1-7/8”
(48)
Listed
Height
-5/8”
(16)
Listed Width -5/8” (16)
Listed Width +1-7/8” (48)
1”
(25)
NOTES:
1. SCREWS: No. 8 x 1-1/4” (32) long.
2. GASKET: Polyurethane.
3. STANDARD FINISH: Etch and Lacquer.
4. REAR BLADES: Individually adjustable.
5. REMOVABLE KEY OPERATOR: On Damper.
6. MAXIMUM CORE SIZE: 36” (914) Width x 28” (457) Height.
* Standard frame has no screw holes.
* Optional counter sunk screw holes available as Option Y.
15°
15°
15°
15°
5°
5°
5°
5° Down 5° Up
5°
15° Down
15° Up
5/8” (16) Mullions
No visible mullions thru 36”x36” (914x914). 5/8” (16) Mullions on larger sizes as illustrated below.
37”-72”
(940-1829)
37”-72”
(940-1829)
37”-54”
(940-1372)
19”-36”
(483-914)
19”-24”
(483-610)
19”-36”
(483-914)
37”-48”
(940-1219)
73”-108” (1854-2743)
37”-72”
(940-1829)
12”-18”
(305-457)
73”-108” (1854-2743)
109”-144” (2769-3658)
1”
(25)
RV_M RR_M RH_M RK_M
Supply Grille Supply Register Return Grille Return Register
w/ Aluminum Damper w/ Aluminum Damper
Reversible Core Patterns:
