Carnes RGLA User Manual
Imperial [IP] Dimensions
Metric (SI) in Parentheses

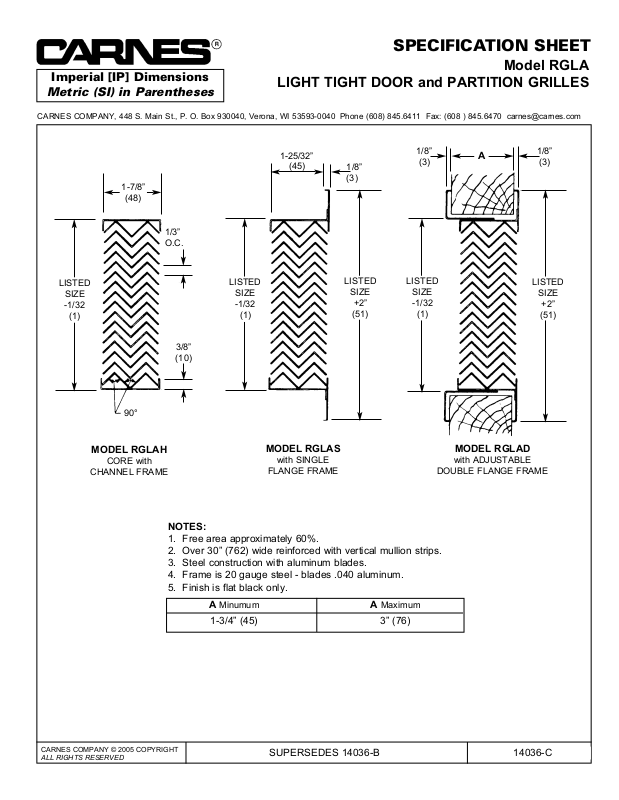

SPECIFICATION SHEET
Model RGLA
LIGHT TIGHT DOOR and PARTITION GRILLES
CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone (608) 845.6411 Fax: (608 ) 845.6470 carnes@carnes.com
CARNES COMPANY © 2005 COPYRIGHT
ALL RIGHTS RESERVED
SUPERSEDES 14036-B 14036-C
LISTED
SIZE
-1/32
(1)
LISTED
SIZE
-1/32
(1)
LISTED
SIZE
+2”
(51)
LISTED
SIZE
-1/32
(1)
1-7/8”
(48)
1-25/32”
(45)
1/3”
O.C.
3/8”
(10)
90°
1/8”
(3)
1/8”
(3)
1/8”
(3)
LISTED
SIZE
+2”
(51)
A
MODEL RGLAH
CORE with
CHANNEL FRAME
MODEL RGLAS
with SINGLE
FLANGE FRAME
MODEL RGLAD
with ADJUSTABLE
DOUBLE FLANGE FRAME
NOTES:
1. Free area approximately 60%.
2. Over 30” (762) wide reinforced with vertical mullion strips.
3. Steel construction with aluminum blades.
4. Frame is 20 gauge steel - blades .040 aluminum.
5. Finish is flat black only.
A
Minumum
A
Maximum
1-3/4” (45) 3” (76)
