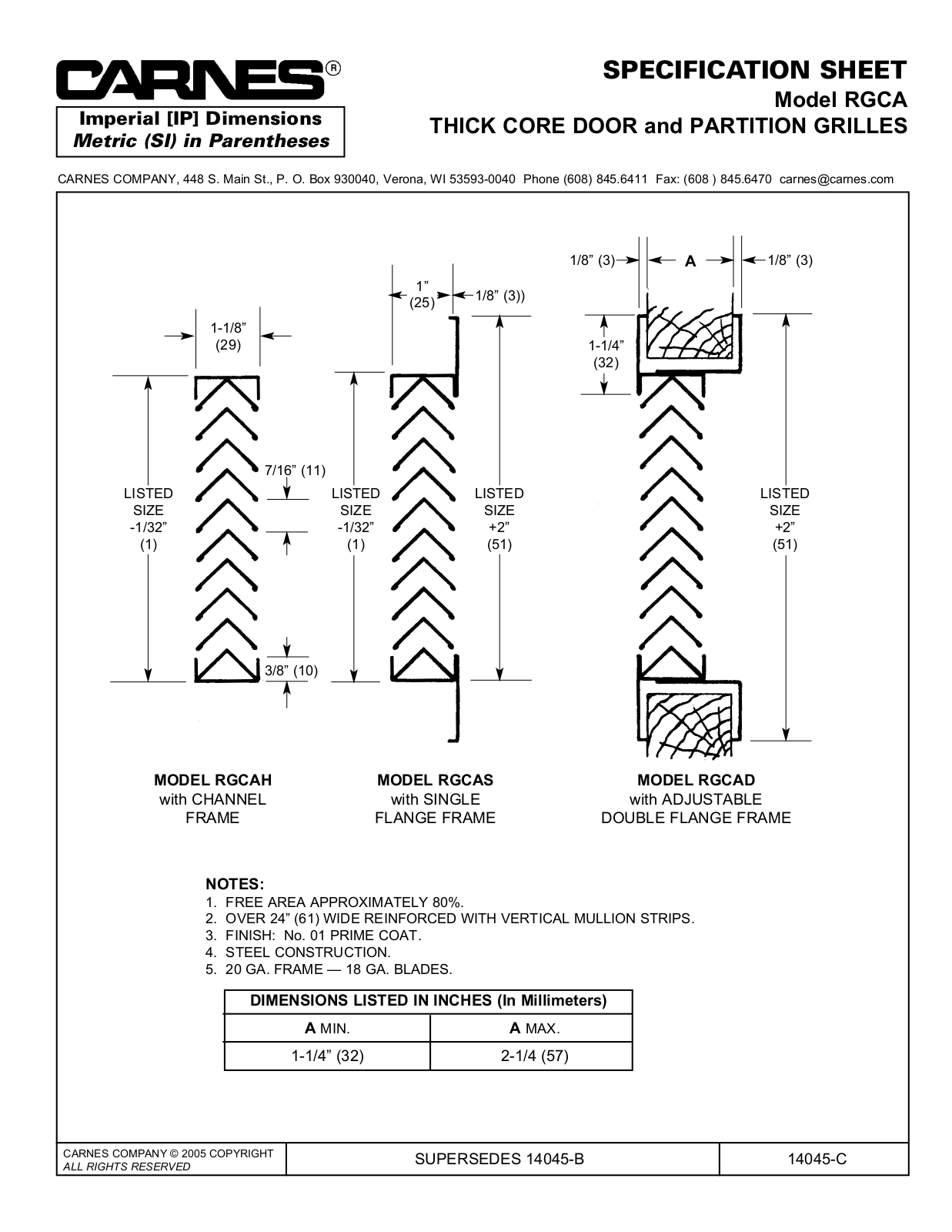

SPECIFICATION SHEET

Model RGCA

THICK CORE DOOR and PARTITION GRILLES

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone [phone] Fax: (608 ) 845.6470 [e-mail]

CARNES COMPANY © 2005 COPYRIGHT

ALL RIGHTS RESERVED

SUPERSEDES 14045-B 14045-C

1-1/8”

(29)

7/16” (11)

LISTED

SIZE

-1/32”
(1)

3/8” (10)

1”

(25)

1/8” (3))

LISTED

SIZE

-1/32”
(1)

LISTED

SIZE

+2”

(51)

A

1-1/4”

(32)

LISTED

SIZE

+2”

(51)

1/8” (3)1/8” (3)

MODEL RGCAH

with CHANNEL

FRAME

MODEL RGCAS

with SINGLE

FLANGE FRAME

MODEL RGCAD

with ADJUSTABLE

DOUBLE FLANGE FRAME

NOTES:

1. FREE AREA APPROXIMATELY 80%.

2. OVER 24” (61) WIDE REINFORCED WITH VERTICAL MULLION STRIPS.

3. FINISH: No. 01 PRIME COAT.

4. STEEL CONSTRUCTION.

5. 20 GA. FRAME — 18 GA. BLADES.

DIMENSIONS LISTED IN INCHES (In Millimeters)

A

MIN.

A

MAX.

1-1/4” (32) 2-1/4 (57)
