Carnes RFJA User Manual
Imperial [IP] Dimensions
Metric (SI) in Parentheses

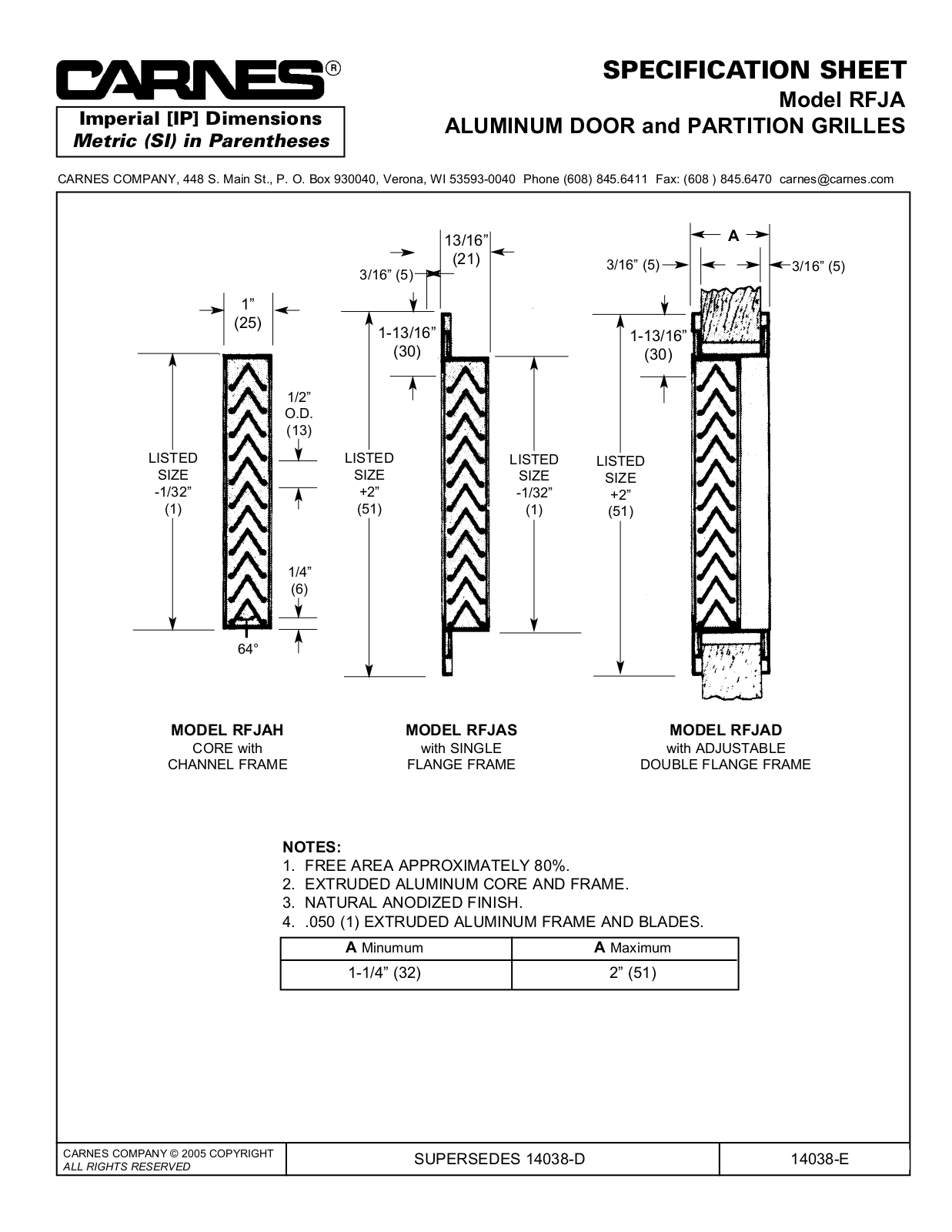

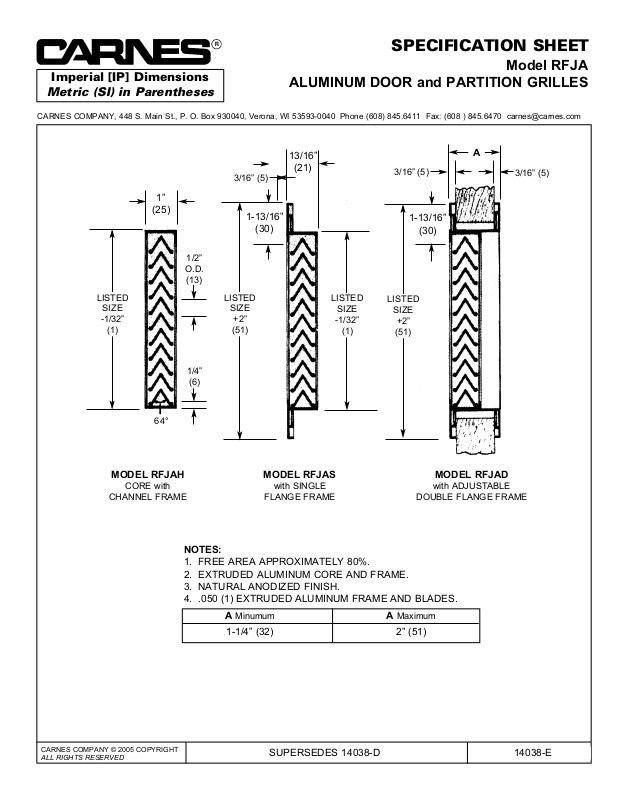

SPECIFICATION SHEET
Model RFJA
ALUMINUM DOOR and PARTITION GRILLES
CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone (608) 845.6411 Fax: (608 ) 845.6470 carnes@carnes.com
CARNES COMPANY © 2005 COPYRIGHT
ALL RIGHTS RESERVED
SUPERSEDES 14038-D 14038-E
1”
(25)
13/16”
(21)
1-13/16”
(30)
LISTED
SIZE
-1/32”
(1)
LISTED
SIZE
+2”
(51)
1-13/16”
(30)
LISTED
SIZE
+2”
(51)
LISTED
SIZE
-1/32”
(1)
1/2”
O.D.
(13)
1/4”
(6)
64°
3/16” (5)
A
3/16” (5)
3/16” (5)
MODEL RFJAH
CORE with
CHANNEL FRAME
MODEL RFJAS
with SINGLE
FLANGE FRAME
MODEL RFJAD
with ADJUSTABLE
DOUBLE FLANGE FRAME
NOTES:
1. FREE AREA APPROXIMATELY 80%.
2. EXTRUDED ALUMINUM CORE AND FRAME.
3. NATURAL ANODIZED FINISH.
4. .050 (1) EXTRUDED ALUMINUM FRAME AND BLADES.
A
Minumum
A
Maximum
1-1/4” (32) 2” (51)
