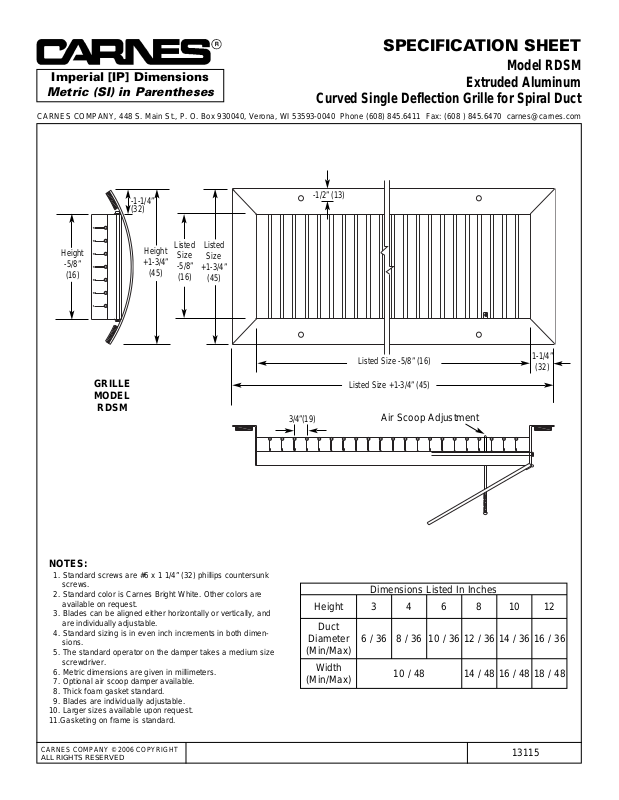

SPECIFICATION SHEET

Model RDSM

Extruded Aluminum

Curved Single Deflection Grille for Spiral Duct

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone [phone] Fax: (608 ) 845.6470 [e-mail]

CARNES COMPANY © 2006 COPYRIGHT

ALL RIGHTS RESERVED

13115

Listed

Size

+1-3/4”

(45)

Listed

Size

-5/8”
(16)

Listed Size -5/8” (16)

1-1/4”

(32)

GRILLE
MODEL

RDSM

NOTES:

1. Standard screws are #6 x 1 1/4” (32) phillips countersunk
screws.

2. Standard color is Carnes Bright White. Other colors are
available on request.

3. Blades can be aligned either horizontally or vertically, and
are individually adjustable.

4. Standard sizing is in even inch increments in both dimen­sions.

5. The standard operator on the damper takes a medium size
screwdriver.

6. Metric dimensions are given in millimeters.

7. Optional air scoop damper available.

8. Thick foam gasket standard.

9. Blades are individually adjustable.

10. Larger sizes available upon request.

11.Gasketing on frame is standard.

Dimensions Listed In Inches

Height 3 4 6 8 10 12

Duct

Diameter

(Min/Max)

6 / 36 8 / 36 10 / 36 12 / 36 14 / 36 16 / 36

Width

(Min/Max)

10 / 48 14 / 48 16 / 48 18 / 48

Listed Size +1-3/4” (45)

Air Scoop Adjustment

3/4”(19)

Height

-5/8”
(16)

Height

+1-3/4”

(45)

-1-1/4”
(32)

-1/2” (13)
