Models RCKA and REKA

Industrial Single Deflection Supply Registers & Grilles

3” Airfoil Blades on 3” Centers

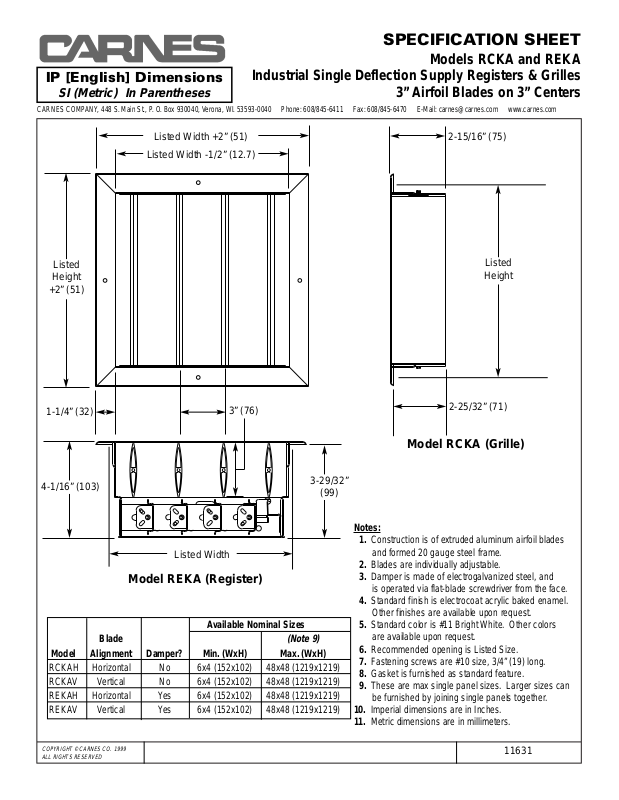

SPECIFICATION SHEET

IP [English] Dimensions

SI (Metric) In Parentheses

3” (76)

1-1/4” (32)

4-1/16” (103)

3-29/32”

(99)

Listed

Height

+2” (51)

Listed Width

Listed Width +2” (51)

Listed Width -1/2” (12.7)

2-15/16” (75)

Listed

Height

2-25/32” (71)

Notes:

1. Construction is of extruded aluminum airfoil blades

and formed 20 gauge steel frame.

2. Blades are individually adjustable.

3. Damper is made of electrogalvanized steel, and

is operated via flat-blade screwdriver from the face.

4. Standard finish is electrocoat acrylic baked enamel.
Other finishes are available upon request.

5. Standard color is #11 Bright White. Other colors
are available upon request.

6. Recommended opening is Listed Size.

7. Fastening screws are #10 size, 3/4” (19) long.

8. Gasket is furnished as standard feature.

9. These are max single panel sizes. Larger sizes can

be furnished by joining single panels together.

10. Imperial dimensions are in Inches.

11. Metric dimensions are in millimeters.

Available Nominal Sizes

Blade

(Note 9)

Model Alignment Damper? Min. (WxH) Max. (WxH)

RCKAH Horizontal No 6x4 (152x102) 48x48 (1219x1219)
RCKAV Vertical No 6x4 (152x102) 48x48 (1219x1219)
REKAH Hor izontal Yes 6x4 (152x102) 48x48 (1219x1219)
REKAV Vertical Yes 6x4 (152x102) 48x48 (1219x1219)

Model REKA (Register)

Model RCKA (Grille)
