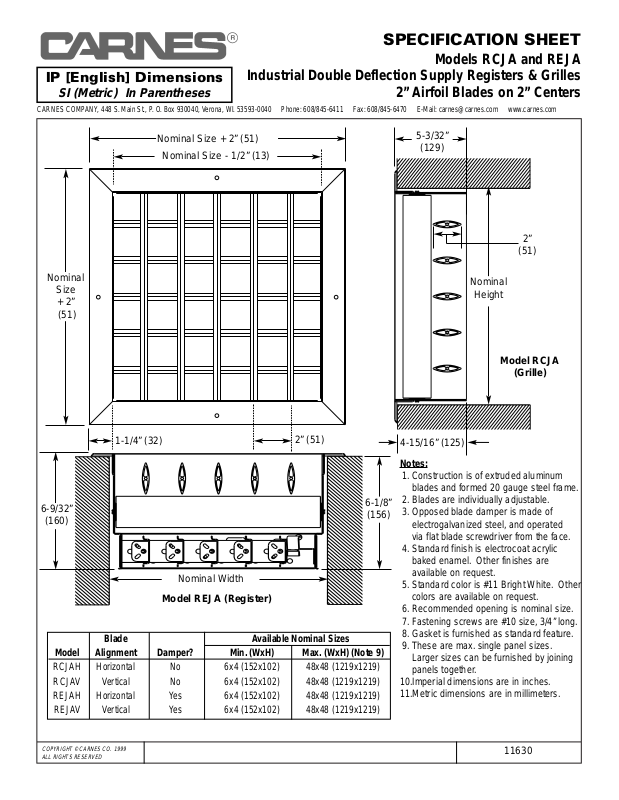

Models RCJA and REJA

Industrial Double Deflection Supply Registers & Grilles

2” Airfoil Blades on 2” Centers

SPECIFICATION SHEET

IP [English] Dimensions

SI (Metric) In Parentheses

Nominal Size + 2” (51)

Nominal

Size

+ 2”

(51)

Nominal Size - 1/2” (13)

5-3/32”

(129)

2”

(51)

Nominal

Height

Model RCJA

(Grille)

2” (51)

1-1/4” (32)

6-9/32”

(160)

6-1/8”

(156)

Nominal Width

Model REJA (Register)

Notes:

1.Construction is of extruded aluminum
blades and formed 20 gauge steel frame.

2.Blades are individually adjustable.

3.Opposed blade damper is made of
electrogalvanized steel, and operated
via flat blade screwdriver from the face.

4.Standard finish is electrocoat acrylic
baked enamel. Other finishes are
available on request.

5.Standard color is #11 Bright White. Other
colors are available on request.

6.Recommended opening is nominal size.

7.Fastening screws are #10 size, 3/4” long.

8.Gasket is furnished as standard feature.

9.These are max. single panel sizes.
Larger sizes can be furnished by joining
panels together.

10.Imperial dimensions are in inches.

11.Metric dimensions are in millimeters.

Blade Available Nominal Sizes

Model Alignment Damper? Min. (WxH) Max. (WxH) (Note 9)

RCJAH Horizontal No 6x4 (152x102) 48x48 (1219x1219)
RCJAV Vertical No 6x4 (152x102) 48x48 (1219x1219)
REJAH Horizontal Yes 6x4 (152x102) 48x48 (1219x1219)

REJAV Vertical Yes 6x4 (152x102) 48x48 (1219x1219)

4-15/16” (125)
