COPYRIGHT © CARNES CO. 1999
ALL RIGHTS RESERVED

SUPERSEDES 14133-E

14133-F

CARNES COMPANY, 448 S.Main St., P.O.Box 930040, Verona, WI. 53593-0040 Phone: [phone] Fax: [phone] E-Mail: [e-mail] www.carnes.com

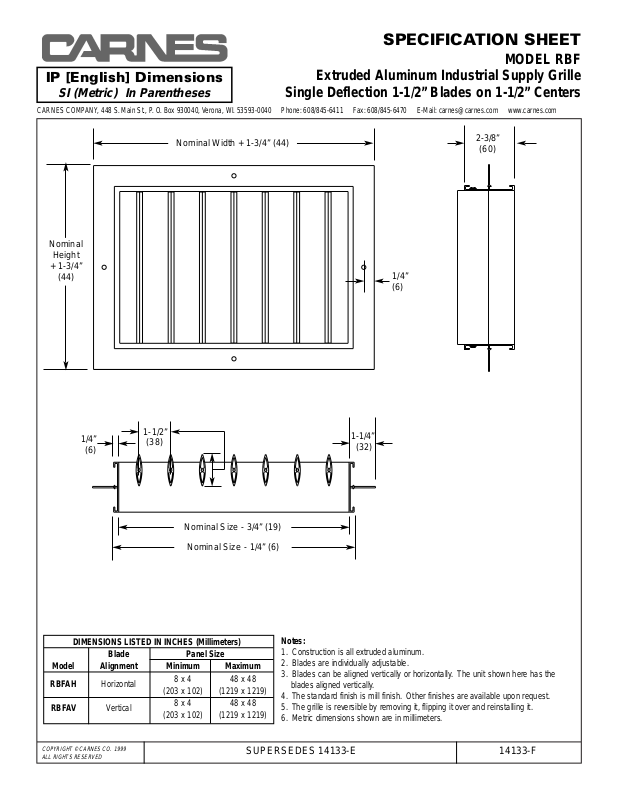

MODEL RBF

Extruded Aluminum Industrial Supply Grille

Single Deflection 1-1/2” Blades on 1-1/2” Centers

SPECIFICATION SHEET

IP [English] Dimensions

SI (Metric) In Parentheses

DIMENSIONS LISTED IN INCHES (Millimeters)

Blade Panel Size

Model Alignment Minimum Maximum

RBFAH Horizontal

8 x 4 48 x 48

(203 x 102) (1219 x 1219)

RBFAV Vertical

8 x 4 48 x 48

(203 x 102) (1219 x 1219)

Notes:

1. Construction is all extruded aluminum.

2. Blades are individually adjustable.

3. Blades can be aligned vertically or horizontally. The unit shown here has the
blades aligned vertically.

4. The standard finish is mill finish. Other finishes are available upon request.

5. The grille is reversible by removing it, flipping it over and reinstalling it.

6. Metric dimensions shown are in millimeters.

Nominal Width + 1-3/4” (44)

Nominal

Height

+ 1-3/4”

(44)

1/4”
(6)

2-3/8”

(60)

1/4”

(6)

1-1/2”

(38)

1-1/4”

(32)

Nominal Size - 3/4” (19)

Nominal Size - 1/4” (6)
