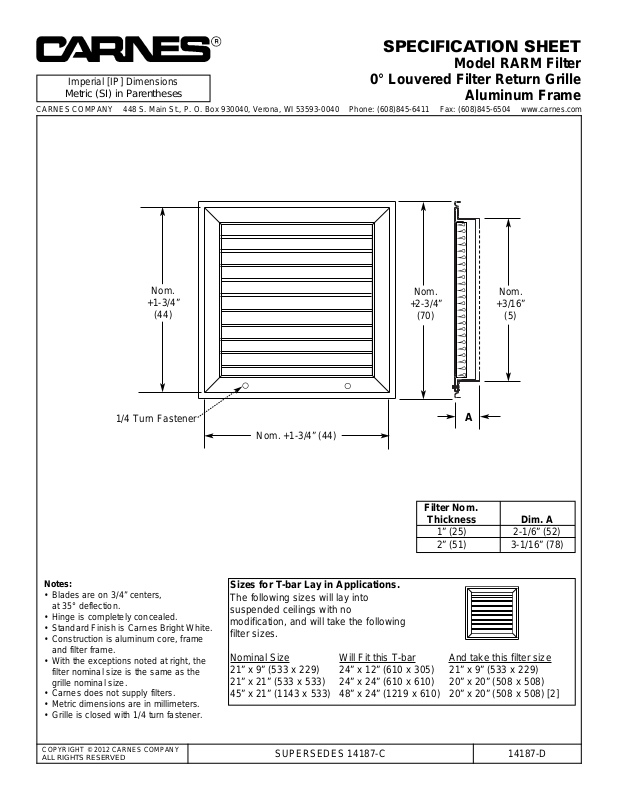

SPECIFICATION SHEET

Model RARM Filter

0° Louvered Filter Return Grille

Aluminum Frame

Notes:

• Blades are on 3/4” centers,
at 35° deflection.

• Hinge is completely concealed.

• Standard Finish is Carnes Bright White.

• Construction is aluminum core, frame
and filter frame.

• With the exceptions noted at right, the
filter nominal size is the same as the
grille nominal size.

• Carnes does not supply filters.

• Metric dimensions are in millimeters.

• Grille is closed with 1/4 turn fastener.

Sizes for T-bar Lay in Applications.

The following sizes will lay into
suspended ceilings with no
modification, and will take the following
filter sizes.

Nominal Size

Will Fit this T-bar And take this filter size
21” x 9” (533 x 229) 24” x 12” (610 x 305) 21” x 9” (533 x 229)
21” x 21” (533 x 533) 24” x 24” (610 x 610) 20” x 20” (508 x 508)
45” x 21” (1143 x 533) 48” x 24” (1219 x 610) 20” x 20” (508 x 508) [2]

Filter Nom.

Thickness Dim. A

1” (25) 2-1/6” (52)
2” (51) 3-1/16” (78)

Nom.

+2-3/4”

(70)

Nom.

+1-3/4”

(44)

Nom.

+3/16”

(5)

Nom. +1-3/4” (44)

1/4 Turn Fastener

A

Imperial [IP] Dimensions

Metric (SI) in Parentheses
