COPYRIGHT © CARNES CO. 2001
ALL RIGHTS RESERVED

14024

CARNES COMPANY, 448 S.Main St., P.O.Box 930040, Verona, WI. 53593-0040 Phone: [phone] Fax: [phone] E-Mail: [e-mail] www.carnes.com

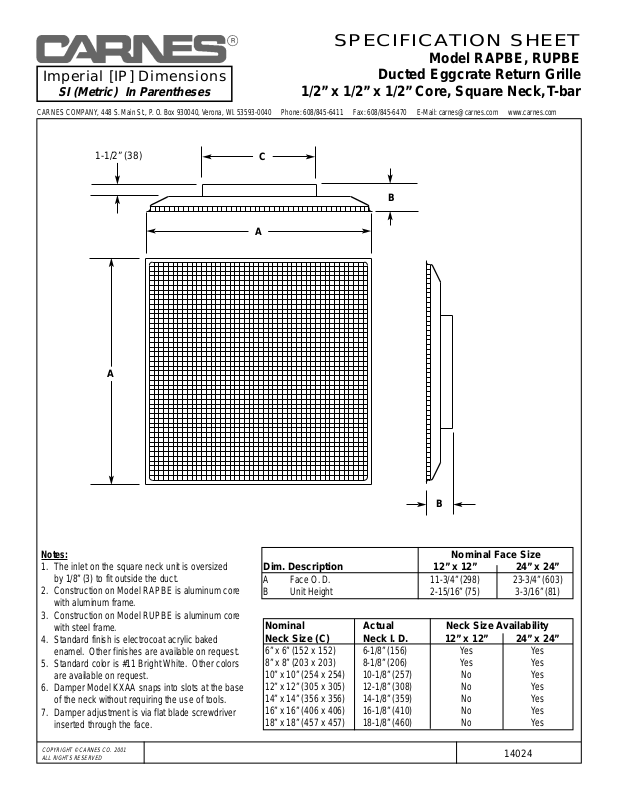

SPECIFICATION SHEET

Model RAPBE, RUPBE

Ducted Eggcrate Return Grille

1/2” x 1/2” x 1/2” Core, Square Neck,T-bar

Imperial [IP] Dimensions

SI (Metric) In Parentheses

Notes:

1. The inlet on the square neck unit is oversized
by 1/8” (3) to fit outside the duct.

2. Construction on Model RAPBE is aluminum core
with aluminum frame.

3. Construction on Model RUPBE is aluminum core
with steel frame.

4. Standard finish is electrocoat acrylic baked
enamel. Other finishes are available on request.

5. Standard color is #11 Bright White. Other colors
are available on request.

6. Damper Model KXAA snaps into slots at the base
of the neck without requiring the use of tools.

7. Damper adjustment is via flat blade screwdriver
inserted through the face.

Nominal Face Size

Dim. Description 12” x 12” 24” x 24”

A Face O.D. 11-3/4” (298) 23-3/4” (603)
B Unit Height 2-15/16” (75) 3-3/16” (81)

Nominal Actual Neck Size Availability
Neck Size (C) Neck I. D. 12” x 12” 24” x 24”

6” x 6” (152 x 152) 6-1/8” (156) Yes Yes
8” x 8” (203 x 203) 8-1/8” (206) Yes Yes
10” x 10” (254 x 254) 10-1/8” (257) No Yes
12” x 12” (305 x 305) 12-1/8” (308) No Yes
14” x 14” (356 x 356) 14-1/8” (359) No Yes
16” x 16” (406 x 406) 16-1/8” (410) No Yes
18” x 18” (457 x 457) 18-1/8” (460) No Yes

B

A

A

C

1-1/2” (38)

B
