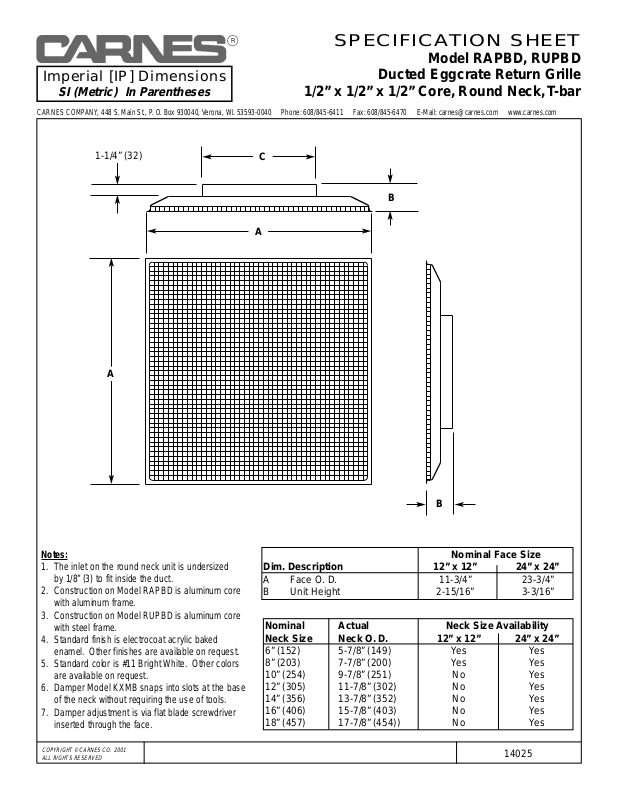

SPECIFICATION SHEET
Model RAPBD, RUPBD
Ducted Eggcrate Return Grille
1/2” x 1/2” x 1/2” Core, Round Neck,T-bar
Imperial [IP] Dimensions
SI (Metric) In Parentheses
Notes:
1. The inlet on the round neck unit is undersized
by 1/8” (3) to fit inside the duct.
2. Construction on Model RAPBD is aluminum core
with aluminum frame.
3. Construction on Model RUPBD is aluminum core
with steel frame.
4. Standard finish is electrocoat acrylic baked
enamel. Other finishes are available on request.
5. Standard color is #11 Bright White. Other colors
are available on request.
6. Damper Model KXMB snaps into slots at the base
of the neck without requiring the use of tools.
7. Damper adjustment is via flat blade screwdriver
inserted through the face.
Nominal Face Size
Dim. Description 12” x 12” 24” x 24”
A Face O.D. 11-3/4” 23-3/4”
B Unit Height 2-15/16” 3-3/16”
Nominal Actual Neck Size Availability
Neck Size Neck O. D. 12” x 12” 24” x 24”
6” (152) 5-7/8” (149) Yes Yes
8” (203) 7-7/8” (200) Yes Yes
10” (254) 9-7/8” (251) No Yes
12” (305) 11-7/8” (302) No Yes
14” (356) 13-7/8” (352) No Yes
16” (406) 15-7/8” (403) No Yes
18” (457) 17-7/8” (454)) No Yes
B
A
A
C
1-1/4” (32)
B
