Models RAPAS

1/2” x 1/2” x 1/2” Eggcrate Return Grille

with Aluminum Spline Frame

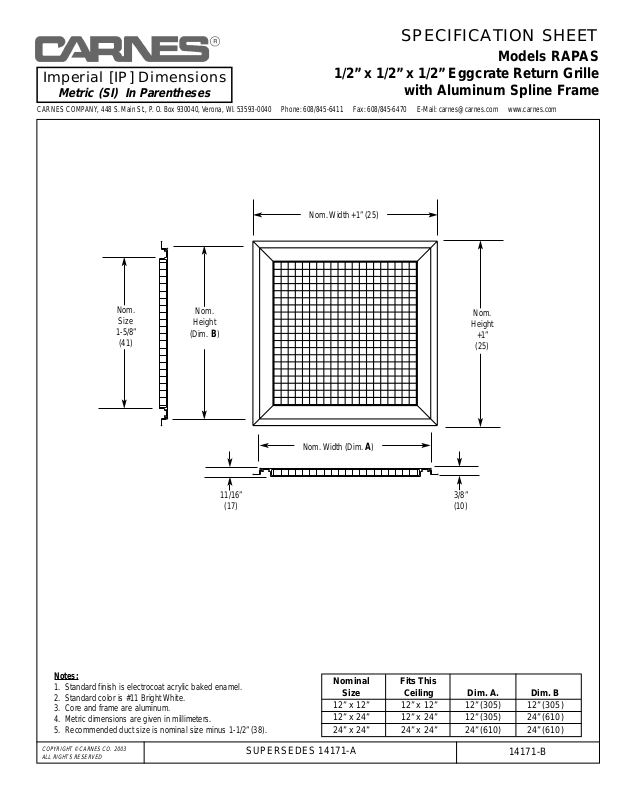

SPECIFICATION SHEET

Imperial [IP] Dimensions

Metric (SI) In Parentheses

Notes:

1. Standard finish is electrocoat acrylic baked enamel.

2. Standard color is #11 Bright White.

3. Core and frame are aluminum.

4. Metric dimensions are given in millimeters.

5. Recommended duct size is nominal size minus 1-1/2” (38).

Nominal Fits This

Size Ceiling Dim. A. Dim. B

12” x 12” 12” x 12” 12” (305) 12” (305)
12” x 24” 12” x 24” 12” (305) 24” (610)
24” x 24” 24” x 24” 24” (610) 24” (610)

Nom.Width (Dim. A)

3/8”
(10)

11/16”

(17)

Nom.

Height

(Dim.

B)

Nom.

Height

+1”

(25)

Nom.

Size

1-5/8”

(41)

Nom.Width +1” (25)
