COPYRIGHT © CARNES CO. 2000
ALL RIGHTS RESERVED
SUPERSEDES 14168-D
14168-E
CARNES COMPANY, 448 S.Main St., P.O.Box 930040, Verona, WI. 53593-0040 Phone: 608/845-6411 Fax: 608/845-6470 E-Mail: carnes@carnes.com www.carnes.com

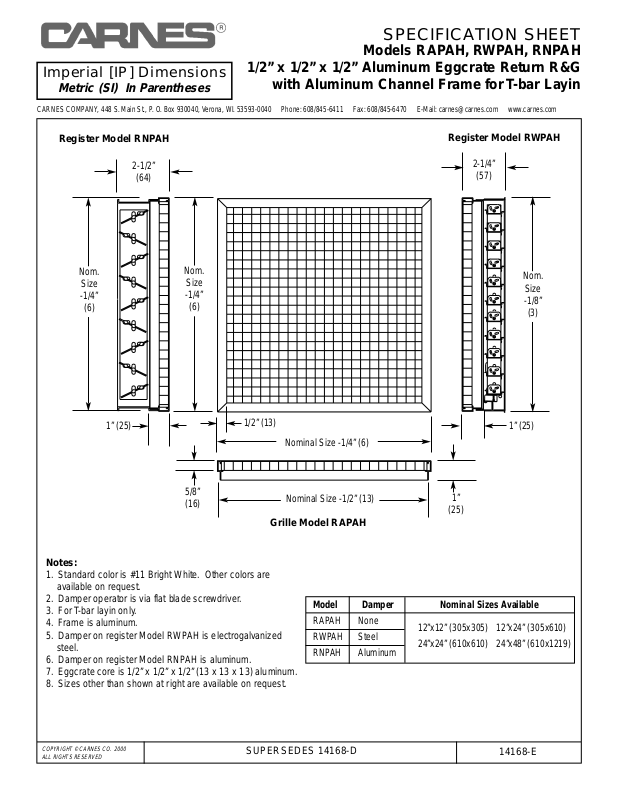

SPECIFICATION SHEET
Models RAPAH, RWPAH, RNPAH
1/2” x 1/2” x 1/2” Aluminum Eggcrate Return R&G
with Aluminum Channel Frame for T-bar Layin
Imperial [IP] Dimensions
Metric (SI) In Parentheses
Register Model RNPAH
Register Model RWPAH
Grille Model RAPAH
2-1/2”
(64)
Nom.
Size
-1/4”
(6)
Nom.
Size
-1/8”
(3)
Nom.
Size
-1/4”
(6)
1” (25)
1/2” (13)
Nominal Size -1/4” (6)
Nominal Size -1/2” (13)
5/8”
(16)
2-1/4”
(57)
1” (25)
1”
(25)
Notes:
1. Standard color is #11 Bright White. Other colors are
available on request.
2. Damper operator is via flat blade screwdriver.
3. For T-bar layin only.
4. Frame is aluminum.
5. Damper on register Model RWPAH is electrogalvanized
steel.
6. Damper on register Model RNPAH is aluminum.
7. Eggcrate core is 1/2” x 1/2” x 1/2” (13 x 13 x 13) aluminum.
8. Sizes other than shown at right are available on request.
Model Damper Nominal Sizes Available
RAPAH None
12”x12” (305x305) 12”x24” (305x610)
RWPAH Steel
24”x24” (610x610) 24”x48” (610x1219)
RNPAH Aluminum
