Imperial [IP] Dimensions
Metric (SI) in Parentheses

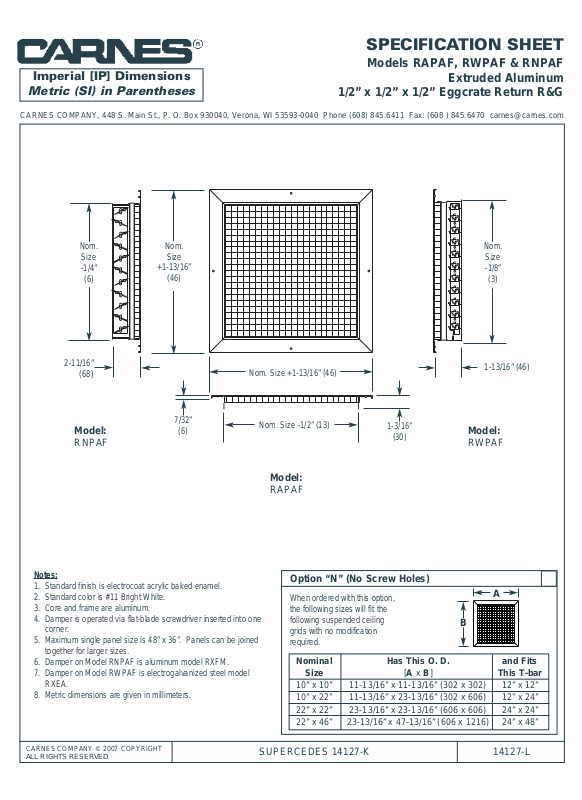

SPECIFICATION SHEET
Models RAPAF, RWPAF & RNPAF
Extruded Aluminum
1/2” x 1/2” x 1/2” Eggcrate Return R&G
CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone (608) 845.6411 Fax: (608 ) 845.6470 carnes@carnes.com
CARNES COMPANY © 2007 COPYRIGHT
ALL RIGHTS RESERVED
SUPERCEDES 14127-K 14127-L
Notes:
1. Standard finish is electrocoat acrylic baked enamel.
2. Standard color is #11 Bright White.
3. Core and frame are aluminum.
4. Damper is operated via flat-blade screwdriver inserted into one
corner.
5. Maximum single panel size is 48” x 36”. Panels can be joined
together for larger sizes.
6. Damper on Model RNPAF is aluminum model RXFM.
7. Damper on Model RWPAF is electrogalvanized steel model
RXEA.
8. Metric dimensions are given in millimeters.
Nominal Has This O. D. and Fits
Size [A x B] This T-bar
10” x 10” 11-13/16” x 11-13/16” (302 x 302) 12” x 12”
10” x 22” 11-13/16” x 23-13/16” (302 x 606) 12” x 24”
22” x 22” 23-13/16” x 23-13/16” (606 x 606) 24” x 24”
22” x 46” 23-13/16” x 47-13/16” (606 x 1216) 24” x 48”
Option “N” (No Screw Holes)
When ordered with this option,
the following sizes will fit the
following suspended ceiling
grids with no modification
required.
A
B
Nom.
Size
-1/8”
(3)
1-13/16” (46)
1-3/16”
(30)
Nom. Size +1-13/16” (46)
Nom. Size -1/2” (13)
7/32”
(6)
Nom.
Size
+1-13/16”
(46)
Nom.
Size
-1/4”
(6)
2-11/16”
(68)
Model:
RNPAF
Model:
RWPAF
Model:
RAPAF
