COPYRIGHT © CARNES CO. 2006
ALL RIGHTS RESERVED
SUPERSDES 14129-H
14129-I
DIMENSIONS LISTED IN INCHES (In Millimeter)
Front Available Sizes*
Blade Minimum Maximum
Model Damper Direction W x HWx H
RALAH None Horizontal
RALAV None Vertical 6 x 4 48 x 48
RNLAH Aluminum Horizontal (152 x 102) (1219 x 1219)
RNLAV Aluminum Vertical
*Minimum and maximum single unit sizes.
Larger sizes are furnished by butting single units together. All butted
units will be constructed of even inch sized panels unless otherwise
specified.
Maximum one piece damper will be 36” x 24”. Larger units will have
multiple dampers.
1-3/8” (35)
1-1/4”
(32)
LISTED SIZE +1-3/4” (45)
LISTED SIZE
-5/8” (16)
LISTED SIZE =
H
GRILLE
MODEL
RALM
2-5/8” (67)
LISTED SIZE +1-3/4” (45)
LISTED SIZE -5/8” (16)
3/4” (19)
LISTED SIZE =
W
1-1/4”
(32)
2-7/8” (73)
REGISTER
MODEL
RNLM
NOTES:
1. Standard screws are #6 x 1-1/4” (32) phillips countersunk
screws.
2. Standard color is Carnes Bright White. Other colors are
available on request.
3. Blades can be aligned either horizontally or vertically.
4. Center mullion is used.
5. Standard sizing is in even inch increments in both dimensions. Odd inch and fractional sizing [in 1/8” (3) incre-
ments] is available on request.
6. Aluminum damper is model RXFM opposed blade
damper.
7. The standard operator on the damper takes a medium
size flat-blade screwdriver.
8. Metric dimensions are given in millimeters.
Imperial [IP] Dimensions
Metric (SI) in Parentheses

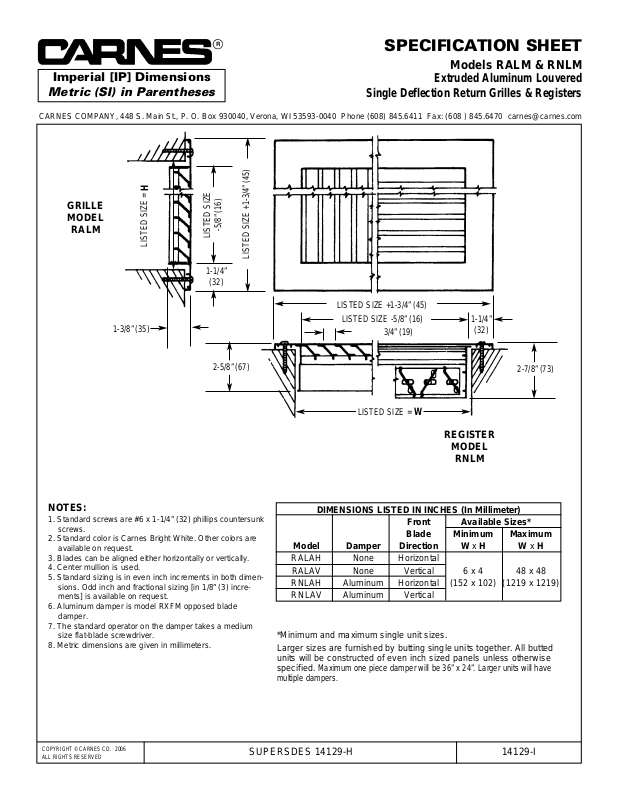

SPECIFICATION SHEET
Models RALM & RNLM
Extruded Aluminum Louvered
Single Deflection Return Grilles & Registers
CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone (608) 845.6411 Fax: (608 ) 845.6470 carnes@carnes.com
