Imperial [IP] Dimensions
Metric (SI) in Parentheses

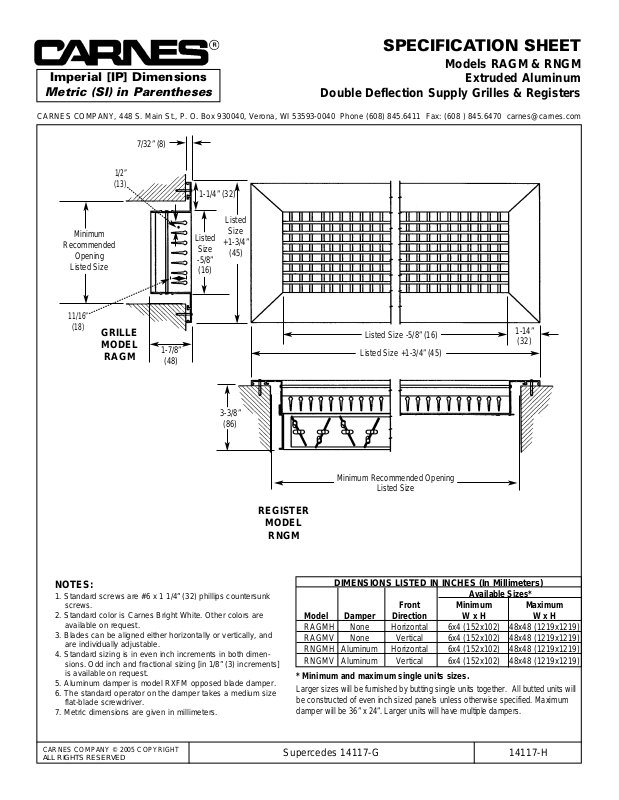

SPECIFICATION SHEET
Models RAGM & RNGM
Extruded Aluminum
Double Deflection Supply Grilles & Registers
CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone (608) 845.6411 Fax: (608 ) 845.6470 carnes@carnes.com
CARNES COMPANY © 2005 COPYRIGHT
Supercedes 14117-G 14117-H
Listed
Size
+1-3/4”
(45)
Listed
Size
-5/8” (16)
1-1/4” (32)
1/2” (13)
7/32” (8)
11/16”
(18)
Minimum
Recommended
Opening
Listed Size
1-7/8”
(48)
GRILLE MODEL
RAGM
Listed Size +1-3/4” (45)
Listed Size -5/8” (16)
1-14”
(32)
Minimum Recommended Opening
Listed Size
3-3/8”
(86)
REGISTER
MODEL
RNGM
DIMENSIONS LISTED IN INCHES (In Millimeters)
Available Sizes*
Front Minimum Maximum
Model Damper Direction W x H W x H
RAGMH None Horizontal 6x4 (152x102) 48x48 (1219x1219) RAGMV None Vertical 6x4 (152x102) 48x48 (1219x1219) RNGMH Aluminum Horizontal 6x4 (152x102) 48x48 (1219x1219) RNGMV Aluminum Vertical 6x4 (152x102) 48x48 (1219x1219)
* Minimum and maximum single units sizes.
Larger sizes will be furnished by butting single units together. All butted units will be constructed of even inch sized panels unless otherwise specified. Maximum damper will be 36” x 24”. Larger units will have multiple dampers.
NOTES:
1. Standard screws are #6 x 1 1/4” (32) phillips countersunk screws.
2. Standard color is Carnes Bright White. Other colors are available on request.
3. Blades can be aligned either horizontally or vertically, and are individually adjustable.
4. Standard sizing is in even inch increments in both dimen­sions. Odd inch and fractional sizing [in 1/8” (3) increments] is available on request.
5. Aluminum damper is model RXFM opposed blade damper.
6. The standard operator on the damper takes a medium size flat-blade screwdriver.
7. Metric dimensions are given in millimeters.
