Imperial [IP] Dimensions

Metric (SI) in Parentheses

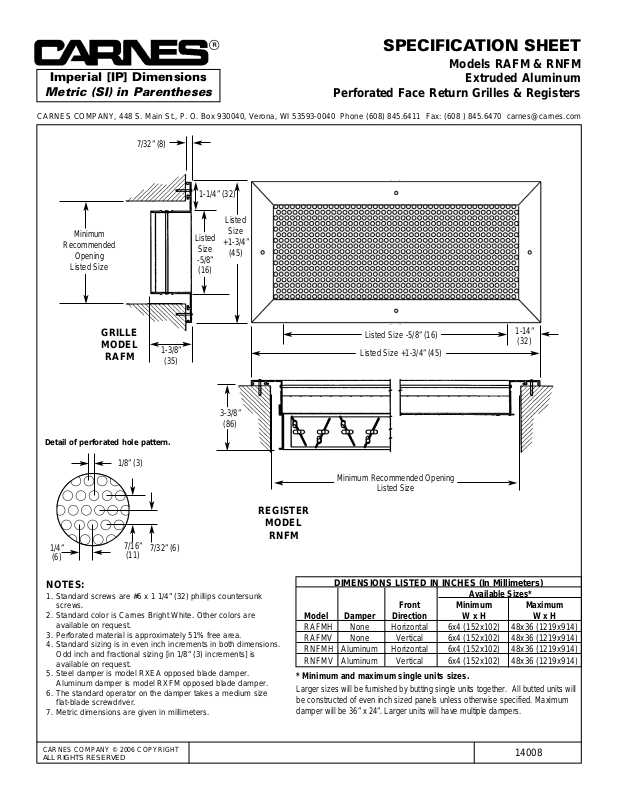

SPECIFICATION SHEET

Models RAFM & RNFM

Extruded Aluminum

Perforated Face Return Grilles & Registers

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone [phone] Fax: (608 ) 845.6470 [e-mail]

CARNES COMPANY © 2006 COPYRIGHT

ALL RIGHTS RESERVED

14008

Listed

Size

+1-3/4”

(45)

Listed

Size

-5/8”
(16)

1-1/4” (32)

7/32” (8)

Minimum

Recommended

Opening

Listed Size

1-3/8”

(35)

GRILLE
MODEL

RAFM

Listed Size +1-3/4” (45)

Listed Size -5/8” (16)

1-14”

(32)

Minimum Recommended Opening

Listed Size

3-3/8”

(86)

REGISTER

MODEL

RNFM

DIMENSIONS LISTED IN INCHES (In Millimeters)

Available Sizes*

Front Minimum Maximum

Model Damper Direction W x H W x H

RAFMH None Horizontal 6x4 (152x102) 48x36 (1219x914)
RAFMV None Vertical 6x4 (152x102) 48x36 (1219x914)
RNFMH Aluminum Horizontal 6x4 (152x102) 48x36 (1219x914)
RNFMV Aluminum Vertical 6x4 (152x102) 48x36 (1219x914)

* Minimum and maximum single units sizes.

Larger sizes will be furnished by butting single units together. All butted units will
be constructed of even inch sized panels unless otherwise specified. Maximum
damper will be 36” x 24”. Larger units will have multiple dampers.

NOTES:

1. Standard screws are #6 x 1 1/4” (32) phillips countersunk
screws.

2. Standard color is Carnes Bright White. Other colors are
available on request.

3. Perforated material is approximately 51% free area.

4. Standard sizing is in even inch increments in both dimensions.
Odd inch and fractional sizing [in 1/8” (3) increments] is
available on request.

5. Steel damper is model RXEA opposed blade damper.
Aluminum damper is model RXFM opposed blade damper.

6. The standard operator on the damper takes a medium size
flat-blade screwdriver.

7. Metric dimensions are given in millimeters.

Detail of perforated hole pattern.

1/4”

(6)

1/8” (3)

7/32” (6)

7/16”

(11)
