Carnes RAEAF User Manual

Imperial [IP] Dimensions

Metric (SI) in Parentheses

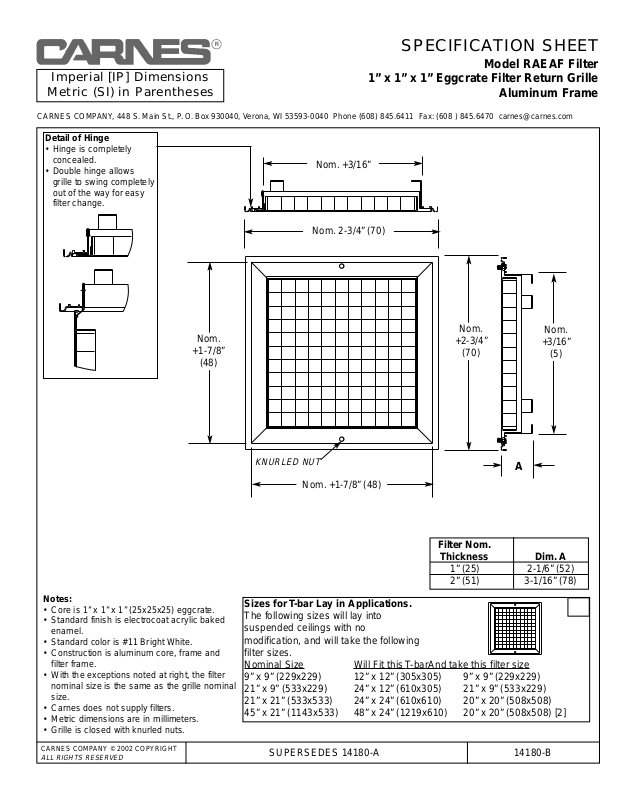

SPECIFICATION SHEET

Model RAEAF Filter

1” x 1” x 1” Eggcrate Filter Return Grille

Aluminum Frame

CARNES COMPANY, 448 S. Main St., P. O.Box 930040, Verona, WI 53593-0040 Phone [phone] Fax: (608 ) 845.6470 [e-mail]

CARNES COMPANY © 2002 COPYRIGHT

ALL RIGHTS RESERVED

SUPERSEDES 14180-A 14180-B

Notes:

• Core is 1” x 1” x 1” (25x25x25) eggcrate.

• Standard finish is electrocoat acrylic baked
enamel.

• Standard color is #11 Bright White.

• Construction is aluminum core, frame and
filter frame.

• With the exceptions noted at right, the filter
nominal size is the same as the grille nominal
size.

• Carnes does not supply filters.

• Metric dimensions are in millimeters.

• Grille is closed with knurled nuts.

Sizes for T-bar Lay in Applications.

The following sizes will lay into
suspended ceilings with no
modification, and will take the following
filter sizes.
Nominal Size Will Fit this T-barAnd take this filter size
9” x 9” (229x229) 12” x 12” (305x305) 9” x 9” (229x229)
21” x 9” (533x229) 24” x 12” (610x305) 21” x 9” (533x229)
21” x 21” (533x533) 24” x 24” (610x610) 20” x 20” (508x508)
45” x 21” (1143x533) 48” x 24” (1219x610) 20” x 20” (508x508) [2]

Detail of Hinge

• Hinge is completely
concealed.

• Double hinge allows
grille to swing completely
out of the way for easy
filter change.

Nom. +3/16”

Nom. 2-3/4” (70)

Nom.

+2-3/4”

(70)

Nom.

+1-7/8”

(48)

Nom.

+3/16”

(5)

A

Nom. +1-7/8” (48)

KNURLED NUT

Filter Nom.

Thickness Dim. A

1” (25) 2-1/6” (52)
2” (51) 3-1/16” (78)
