Models RAPAC, RATAC and RAEAC

Aluminum Eggcrate Core Only

Non-Ducted T-bar Layin

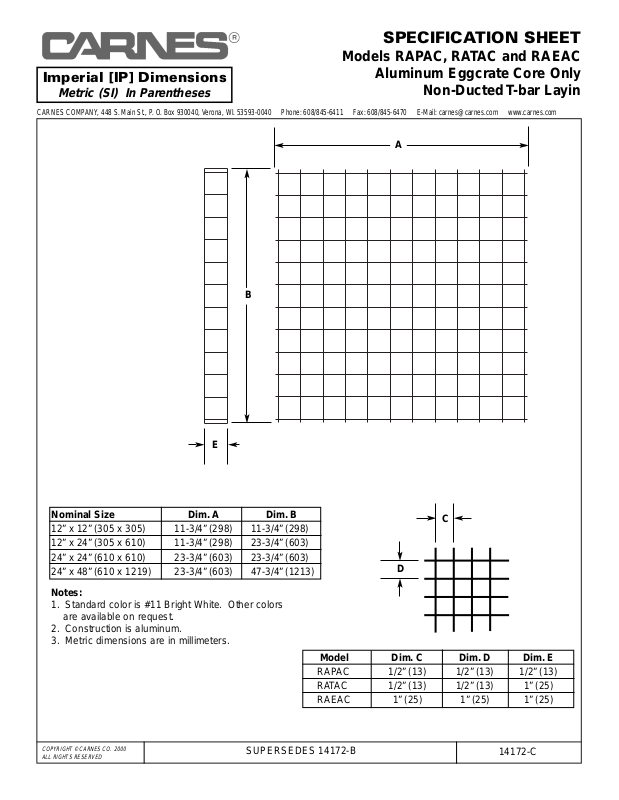

SPECIFICATION SHEET

Imperial [IP] Dimensions

Metric (SI) In Parentheses

Nominal Size Dim. A Dim. B

12” x 12” (305 x 305) 11-3/4” (298) 11-3/4” (298)
12” x 24” (305 x 610) 11-3/4” (298) 23-3/4” (603)
24” x 24” (610 x 610) 23-3/4” (603) 23-3/4” (603)
24” x 48” (610 x 1219) 23-3/4” (603) 47-3/4” (1213)

Model Dim. C Dim. D Dim. E

RAPAC 1/2” (13) 1/2” (13) 1/2” (13)
RATAC 1/2” (13) 1/2” (13) 1” (25)
RAEAC 1” (25) 1” (25) 1” (25)

Notes:

1. Standard color is #11 Bright White. Other colors
are available on request.

2. Construction is aluminum.

3. Metric dimensions are in millimeters.

C

D

E

B

A
