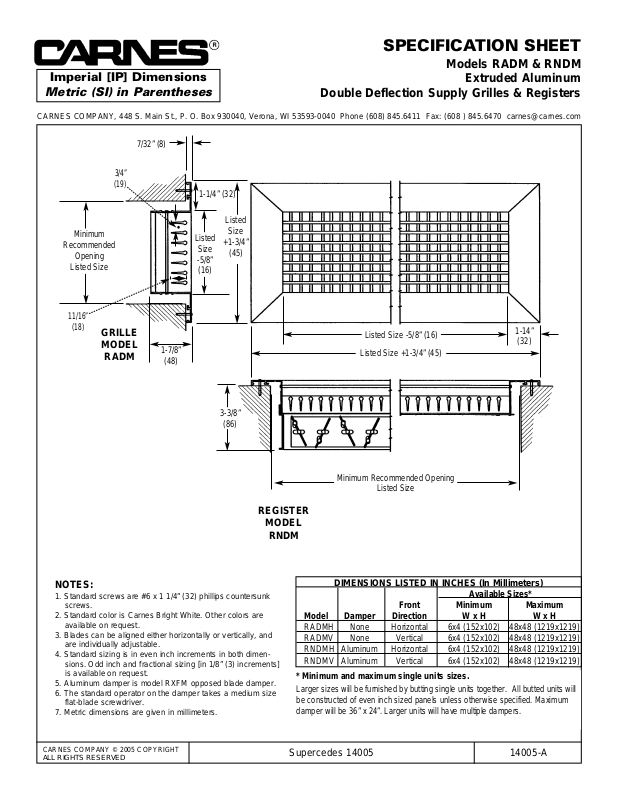

SPECIFICATION SHEET
Models RADM & RNDM
Extruded Aluminum
Double Deflection Supply Grilles & Registers
CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone (608) 845.6411 Fax: (608 ) 845.6470 carnes@carnes.com
CARNES COMPANY © 2005 COPYRIGHT
ALL RIGHTS RESERVED
Supercedes 14005 14005-A
Listed
Size
+1-3/4”
(45)
Listed
Size
-5/8”
(16)
1-1/4” (32)
3/4”
(19)
7/32” (8)
11/16”
(18)
Minimum
Recommended
Opening
Listed Size
1-7/8”
(48)
GRILLE
MODEL
RADM
Listed Size +1-3/4” (45)
Listed Size -5/8” (16)
1-14”
(32)
Minimum Recommended Opening
Listed Size
3-3/8”
(86)
REGISTER
MODEL
RNDM
DIMENSIONS LISTED IN INCHES (In Millimeters)
Available Sizes*
Front Minimum Maximum
Model Damper Direction W x H W x H
RADMH None Horizontal 6x4 (152x102) 48x48 (1219x1219)
RADMV None Vertical 6x4 (152x102) 48x48 (1219x1219)
RNDMH Aluminum Horizontal 6x4 (152x102) 48x48 (1219x1219)
RNDMV Aluminum Vertical 6x4 (152x102) 48x48 (1219x1219)
* Minimum and maximum single units sizes.
Larger sizes will be furnished by butting single units together. All butted units will
be constructed of even inch sized panels unless otherwise specified. Maximum
damper will be 36” x 24”. Larger units will have multiple dampers.
•
NOTES:
1. Standard screws are #6 x 1 1/4” (32) phillips countersunk
screws.
2. Standard color is Carnes Bright White. Other colors are
available on request.
3. Blades can be aligned either horizontally or vertically, and
are individually adjustable.
4. Standard sizing is in even inch increments in both dimensions. Odd inch and fractional sizing [in 1/8” (3) increments]
is available on request.
5. Aluminum damper is model RXFM opposed blade damper.
6. The standard operator on the damper takes a medium size
flat-blade screwdriver.
7. Metric dimensions are given in millimeters.
