Models RSDB, RTDB (Steel)

Models RADB, RWDB & RNDB (Formed Aluminum)

Double Deflection Supply Grilles & Registers

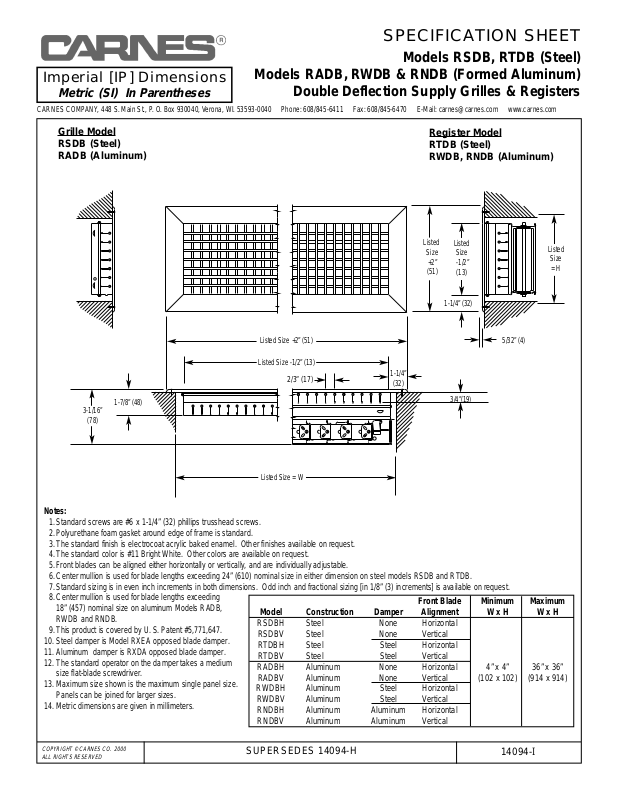

SPECIFICATION SHEET

Imperial [IP] Dimensions

Metric (SI) In Parentheses

Grille Model
RSDB (Steel)
RADB (Aluminum)

Register Model
RTDB (Steel)
RWDB, RNDB (Aluminum)

Notes:

1. Standard screws are #6 x 1-1/4” (32) phillips trusshead screws.

2. Polyurethane foam gasket around edge of frame is standard.

3. The standard finish is electrocoat acrylic baked enamel. Other finishes available on request.

4. The standard color is #11 Bright White. Other colors are available on request.

5. Front blades can be aligned either horizontally or vertically, and are individually adjustable.

6. Center mullion is used for blade lengths exceeding 24” (610) nominal size in either dimension on steel models RSDB and RTDB.

7. Standard sizing is in even inch increments in both dimensions. Odd inch and fractional sizing [in 1/8” (3) increments] is available on request.

8. Center mullion is used for blade lengths exceeding
18” (457) nominal size on aluminum Models RADB,
RWDB and RNDB.

9. This product is covered by U.S. Patent #5,771,647.

10. Steel damper is Model RXEA opposed blade damper.

11. Aluminum damper is RXDA opposed blade damper.

12. The standard operator on the damper takes a medium
size flat-blade screwdriver.

13. Maximum size shown is the maximum single panel size.
Panels can be joined for larger sizes.

14. Metric dimensions are given in millimeters.

Front Blade Minimum Maximum

Model Construction Damper Alignment W x H W x H

RSDBH Steel None Horizontal
RSDBV Steel None Vertical
RTDBH Steel Steel Horizontal
RTDBV Steel Steel Vertical
RADBH Aluminum None Horizontal 4” x 4” 36” x 36”

RADBV Aluminum None Vertical (102 x 102) (914 x 914)
RWDBH Aluminum Steel Horizontal
RWDBV Aluminum Steel Vertical

RNDBH Aluminum Aluminum Horizontal

RNDBV Aluminum Aluminum Vertical

Listed

Size

+2”

(51)

Listed Size +2” (51)

Listed

Size

-1/2”
(13)

Listed Size -1/2” (13)

Listed Size = W

Listed

Size

= H

1-1/4” (32)

1-1/4”

(32)

5/32” (4)

3/4”(19)

2/3” (17)

3-1/16”

(78)

1-7/8” (48)
