Carnes RACMH User Manual

Imperial [IP] Dimensions

Metric (SI) in Parentheses

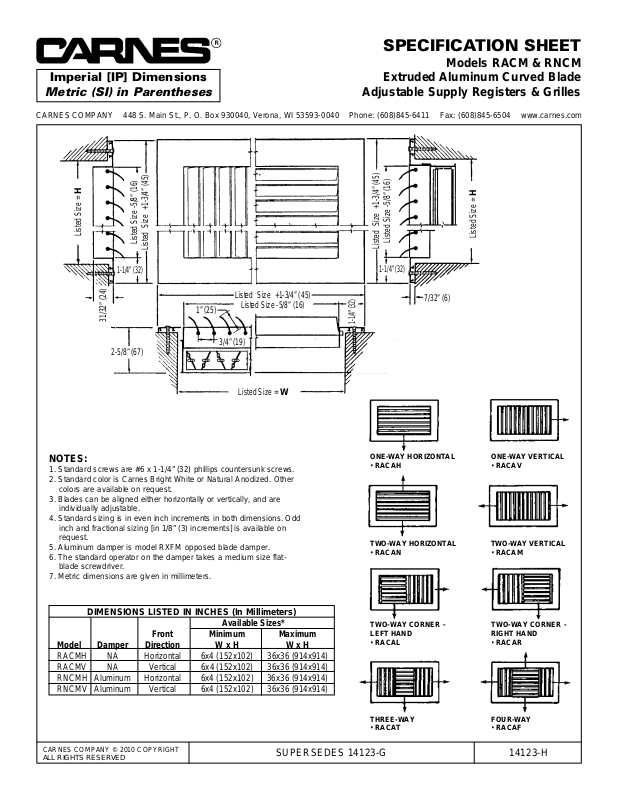

SPECIFICATION SHEET

Models RACM & RNCM

Extruded Aluminum Curved Blade

Adjustable Supply Registers & Grilles

CARNES COMPANY © 2010 COPYRIGHT

ALL RIGHTS RESERVED

SUPERSEDES 14123-G 14123-H

7/32” (6)

Listed Size +1-3/4” (45)

Listed Size -5/8” (16)

Listed Size -5/8” (16)

Listed Size +1-3/4” (45)

Listed Size +1-3/4” (45)

Listed Size -5/8” (16)

1-1/4” (32)

1-1/4” (32)

1-1/4” (32)

Listed Size =

H

Listed Size =

H

Listed Size =

W

3/4” (19)

2-5/8” (67)

31/32” (24)

1” (25)

NOTES:

1. Standard screws are #6 x 1-1/4” (32) phillips countersunk screws.

2. Standard color is Carnes Bright White or Natural Anodized. Other
colors are available on request.

3. Blades can be aligned either horizontally or vertically, and are
individually adjustable.

4. Standard sizing is in even inch increments in both dimensions. Odd
inch and fractional sizing [in 1/8” (3) increments] is available on
request.

5. Aluminum damper is model RXFM opposed blade damper.

6. The standard operator on the damper takes a medium size flat­blade screwdriver.

7. Metric dimensions are given in millimeters.

THREE-WAY FOUR-WAY

• RACAT • RACAF

TWO-WAY CORNER - TWO-WAY CORNER ­LEFT HAND RIGHT HAND

• RACAL • RACAR

TWO-WAY HORIZONTAL TWO-WAY VERTICAL

• RACAN • RACAM

ONE-WAY HORIZONTAL ONE-WAY VERTICAL

• RACAH • RACAV

DIMENSIONS LISTED IN INCHES (In Millimeters)

Available Sizes*

Front Minimum Maximum

Model Damper Direction W x H W x H

RACMH NA Horizontal 6x4 (152x102) 36x36 (914x914)
RACMV NA Vertical 6x4 (152x102) 36x36 (914x914)
RNCMH Aluminum Horizontal 6x4 (152x102) 36x36 (914x914)
RNCMV Aluminum Vertical 6x4 (152x102) 36x36 (914x914)

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com
