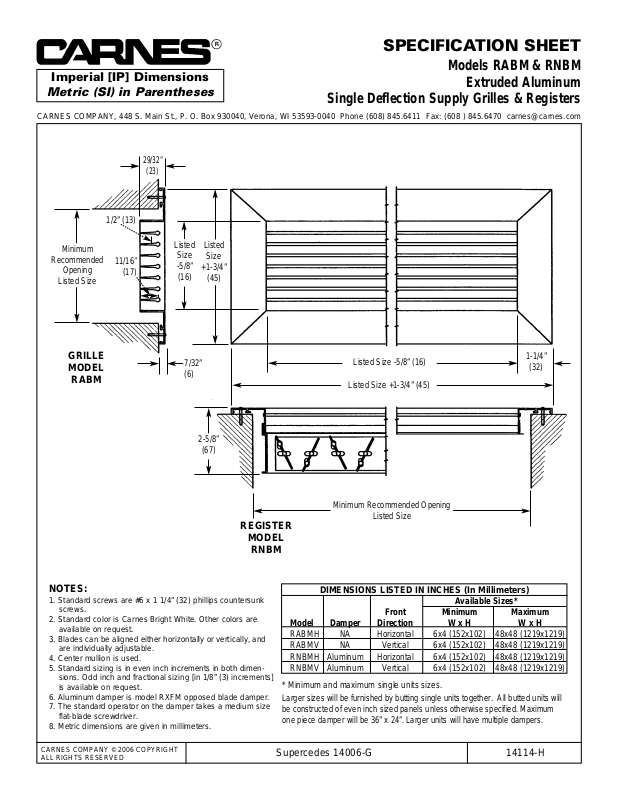

SPECIFICATION SHEET

Models RABM & RNBM

Extruded Aluminum

Single Deflection Supply Grilles & Registers

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone [phone] Fax: (608 ) 845.6470 [e-mail]

CARNES COMPANY © 2006 COPYRIGHT

ALL RIGHTS RESERVED

Supercedes 14006-G 14114-H

29/32”

(23)

1/2” (13)

11/16”

(17)

Listed

Size

+1-3/4”

(45)

Listed

Size

-5/8”
(16)

Listed Size -5/8” (16)

1-1/4”

(32)

7/32”
(6)

2-5/8”

(67)

REGISTER

MODEL

RNBM

GRILLE
MODEL

RABM

NOTES:

1. Standard screws are #6 x 1 1/4” (32) phillips countersunk
screws.

2. Standard color is Carnes Bright White. Other colors are
available on request.

3. Blades can be aligned either horizontally or vertically, and
are individually adjustable.

4. Center mullion is used.

5. Standard sizing is in even inch increments in both dimen­sions. Odd inch and fractional sizing [in 1/8” (3) increments]
is available on request.

6. Aluminum damper is model RXFM opposed blade damper.

7. The standard operator on the damper takes a medium size
flat-blade screwdriver.

8. Metric dimensions are given in millimeters.

Listed Size +1-3/4” (45)

DIMENSIONS LISTED IN INCHES (In Millimeters)

Available Sizes*

Front Minimum Maximum

Model Damper Direction W x H W x H

RABMH NA Horizontal 6x4 (152x102) 48x48 (1219x1219)
RABMV NA Vertical 6x4 (152x102) 48x48 (1219x1219)
RNBMH Aluminum Horizontal 6x4 (152x102) 48x48 (1219x1219)
RNBMV Aluminum Vertical 6x4 (152x102) 48x48 (1219x1219)

* Minimum and maximum single units sizes.

Larger sizes will be furnished by butting single units together. All butted units will
be constructed of even inch sized panels unless otherwise specified. Maximum
one piece damper will be 36” x 24”. Larger units will have multiple dampers.

Minimum

Recommended

Opening

Listed Size

Minimum Recommended Opening

Listed Size
