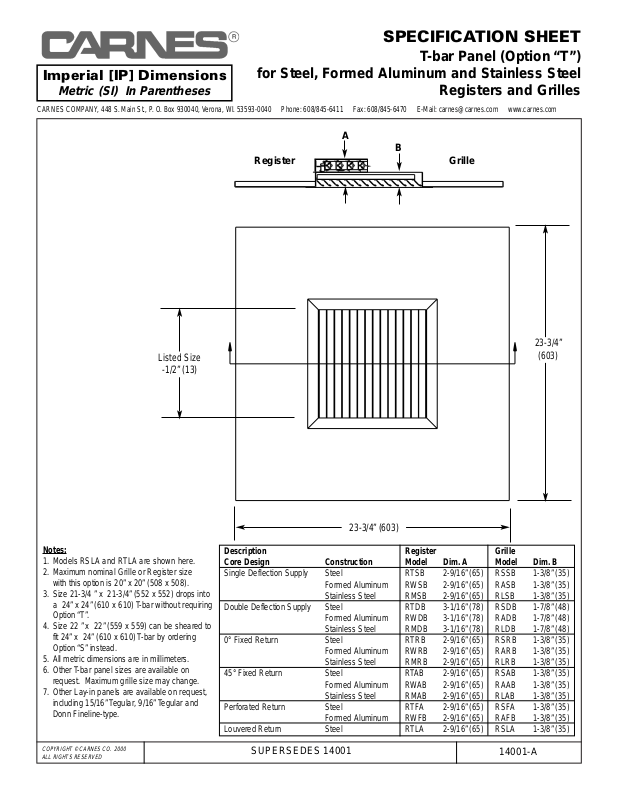

T-bar Panel (Option “T”)

for Steel, Formed Aluminum and Stainless Steel

Registers and Grilles

SPECIFICATION SHEET

Imperial [IP] Dimensions

Metric (SI) In Parentheses

Notes:

1. Models RSLA and RTLA are shown here.

2. Maximum nominal Grille or Register size
with this option is 20” x 20” (508 x 508).

3. Size 21-3/4 ” x 21-3/4” (552 x 552) drops into
a 24” x 24” (610 x 610) T-bar without requiring
Option “T”.

4. Size 22 ” x 22” (559 x 559) can be sheared to
fit 24” x 24” (610 x 610) T-bar by ordering
Option “S” instead.

5. All metric dimensions are in millimeters.

6. Other T-bar panel sizes are available on
request. Maximum grille size may change.

7. Other Lay-in panels are available on request,
including 15/16” Tegular, 9/16”Tegular and
Donn Fineline-type.

Description Register Grille
Core Design Construction Model Dim. A Model Dim. B

Single Deflection Supply Steel RTSB 2-9/16” (65) RSSB 1-3/8” (35)

Formed Aluminum RWSB 2-9/16”(65) RASB 1-3/8” (35)
Stainless Steel RMSB 2-9/16” (65) RLSB 1-3/8” (35)

Double Deflection Supply Steel RTDB 3-1/16” (78) RSDB 1-7/8” (48)

Formed Aluminum RWDB 3-1/16” (78) RADB 1-7/8” (48)
Stainless Steel RMDB 3-1/16” (78) RLDB 1-7/8” (48)

0° Fixed Return Steel RTRB 2-9/16” (65) RSRB 1-3/8” (35)

Formed Aluminum RWRB 2-9/16” (65) RARB 1-3/8” (35)
Stainless Steel RMRB 2-9/16” (65) RLRB 1-3/8” (35)

45° Fixed Return Steel RTAB 2-9/16” (65) RSAB 1-3/8” (35)

Formed Aluminum RWAB 2-9/16” (65) RAAB 1-3/8” (35)
Stainless Steel RMAB 2-9/16” (65) RLAB 1-3/8” (35)

Perforated Return Steel RTFA 2-9/16” (65) RSFA 1-3/8” (35)

Formed Aluminum RWFB 2-9/16” (65) RAFB 1-3/8” (35)

Louvered Return Steel RTLA 2-9/16” (65) RSLA 1-3/8” (35)

Listed Size

-1/2” (13)

23-3/4”

(603)

23-3/4” (603)

B

A

Register Grille
