Imperial [IP] Dimensions

Metric (SI) in Parentheses

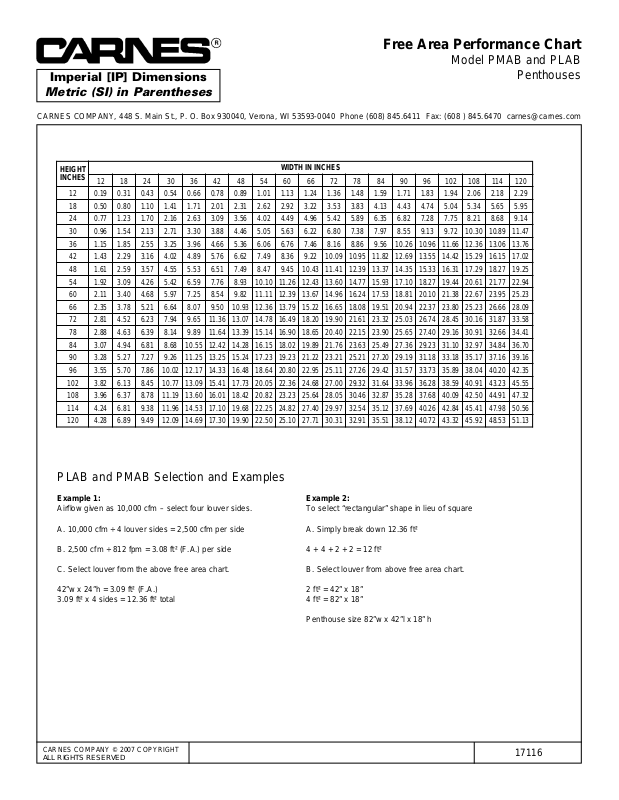

Free Area Performance Chart

Model PMAB and PLAB

Penthouses

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone [phone] Fax: (608 ) 845.6470 [e-mail]

CARNES COMPANY © 2007 COPYRIGHT

ALL RIGHTS RESERVED

17116

HEIGHT
INCHES

WIDTH IN INCHES

12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
12 0.19 0.31 0.43 0.54 0.66 0.78 0.89 1.01 1.13 1.24 1.36 1.48 1.59 1.71 1.83 1.94 2.06 2.18 2.29
18 0.50 0.80 1.10 1.41 1.71 2.01 2.31 2.62 2.92 3.22 3.53 3.83 4.13 4.43 4.74 5.04 5.34 5.65 5.95
24 0.77 1.23 1.70 2.16 2.63 3.09 3.56 4.02 4.49 4.96 5.42 5.89 6.35 6.82 7.28 7.75 8.21 8.68 9.14
30 0.96 1.54 2.13 2.71 3.30 3.88 4.46 5.05 5.63 6.22 6.80 7.38 7.97 8.55 9.13 9.72 10.30 10.89 11.47
36 1.15 1.85 2.55 3.25 3.96 4.66 5.36 6.06 6.76 7.46 8.16 8.86 9.56 10.26 10.96 11.66 12.36 13.06 13.76
42 1.43 2.29 3.16 4.02 4.89 5.76 6.62 7.49 8.36 9.22 10.09 10.95 11.82 12.69 13.55 14.42 15.29 16.15 17.02
48 1.61 2.59 3.57 4.55 5.53 6.51 7.49 8.47 9.45 10.43 11.41 12.39 13.37 14.35 15.33 16.31 17.29 18.27 19.25
54 1.92 3.09 4.26 5.42 6.59 7.76 8.93 10.10 11.26 12.43 13.60 14.77 15.93 17.10 18.27 19.44 20.61 21.77 22.94
60 2.11 3.40 4.68 5.97 7.25 8.54 9.82 11.11 12.39 13.67 14.96 16.24 17.53 18.81 20.10 21.38 22.67 23.95 25.23
66 2.35 3.78 5.21 6.64 8.07 9.50 10.93 12.36 13.79 15.22 16.65 18.08 19.51 20.94 22.37 23.80 25.23 26.66 28.09
72 2.81 4.52 6.23 7.94 9.65 11.36 13.07 14.78 16.49 18.20 19.90 21.61 23.32 25.03 26.74 28.45 30.16 31.87 33.58
78 2.88 4.63 6.39 8.14 9.89 11.64 13.39 15.14 16.90 18.65 20.40 22.15 23.90 25.65 27.40 29.16 30.91 32.66 34.41
84 3.07 4.94 6.81 8.68 10.55 12.42 14.28 16.15 18.02 19.89 21.76 23.63 25.49 27.36 29.23 31.10 32.97 34.84 36.70
90 3.28 5.27 7.27 9.26 11.25 13.25 15.24 17.23 19.23 21.22 23.21 25.21 27.20 29.19 31.18 33.18 35.17 37.16 39.16
96 3.55 5.70 7.86 10.02 12.17 14.33 16.48 18.64 20.80 22.95 25.11 27.26 29.42 31.57 33.73 35.89 38.04 40.20 42.35

102 3.82 6.13 8.45 10.77 13.09 15.41 17.73 20.05 22.36 24.68 27.00 29.32 31.64 33.96 36.28 38.59 40.91 43.23 45.55
108 3.96 6.37 8.78 11.19 13.60 16.01 18.42 20.82 23.23 25.64 28.05 30.46 32.87 35.28 37.68 40.09 42.50 44.91 47.32
114 4.24 6.81 9.38 11.96 14.53 17.10 19.68 22.25 24.82 27.40 29.97 32.54 35.12 37.69 40.26 42.84 45.41 47.98 50.56
120 4.28 6.89 9.49 12.09 14.69 17.30 19.90 22.50 25.10 27.71 30.31 32.91 35.51 38.12 40.72 43.32 45.92 48.53 51.13

PLAB and PMAB Selection and Examples

Example 1:

Airflow given as 10,000 cfm – select four louver sides.

A. 10,000 cfm ÷ 4 louver sides = 2,500 cfm per side

B. 2,500 cfm ÷ 812 fpm = 3.08 ft² (F.A.) per side

C. Select louver from the above free area chart.

42”w x 24”h = 3.09 ft² (F.A.)

3.09 ft² x 4 sides = 12.36 ft² total

Example 2:

To select “rectangular” shape in lieu of square

A. Simply break down 12.36 ft²

4 + 4 + 2 + 2 = 12 ft²

B. Select louver from above free area chart.

2 ft² = 42” x 18”
4 ft² = 82” x 18”

Penthouse size 82”w x 42”l x 18” h
