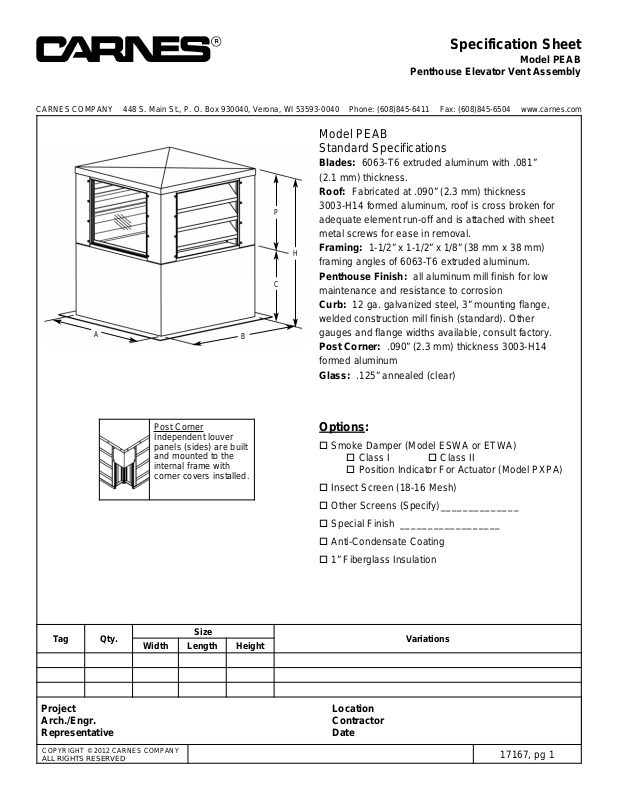

Carnes PEAB User Manual

Specification Sheet

Model PEAB

Penthouse Elevator Vent Assembly

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2012 CARNES COMPANY

ALL RIGHTS RESERVED

17167, pg 1

Tag Qty.

Size

Variations

Width Length Height

Project Location
Arch./Engr. Contractor
Representative Date

Model PEAB
Standard Specifications

Blades: 6063-T6 extruded aluminum with .081”
(2.1 mm) thickness.
Roof: Fabricated at .090” (2.3 mm) thickness
3003-H14 formed aluminum, roof is cross broken for
adequate element run-off and is attached with sheet
metal screws for ease in removal.
Framing: 1-1/2” x 1-1/2” x 1/8” (38 mm x 38 mm)
framing angles of 6063-T6 extruded aluminum.
Penthouse Finish: all aluminum mill finish for low
maintenance and resistance to corrosion
Curb: 12 ga. galvanized steel, 3” mounting flange,
welded construction mill finish (standard). Other
gauges and flange widths available, consult factory.
Post Corner: .090” (2.3 mm) thickness 3003-H14
formed aluminum
Glass: .125” annealed (clear)

Post Corner
Independent louver
panels (sides) are built
and mounted to the
internal frame with
corner covers installed.

H

A

B

P

C

Options:

 Smoke Damper (Model ESWA or ETWA)

 Class I  Class II

 Position Indicator For Actuator (Model PXPA)
 Insect Screen (18-16 Mesh)
 Other Screens (Specify) ______________
 Special Finish __________________
 Anti-Condensate Coating
 1” Fiberglass Insulation

17167, pg 2

Model PEAB Details

1/8” thick annealed
glass (clear) one
side only

12 ga. galvanized
roof curb with 1-1/2”
insulation

3” wide mounting
flange

Actuator (120v or 24V)
power open, spring
close (optional position
indicator available)

Optional:
UL Approved
smoke damper

Damper tray
