Carnes LXMAG User Manual
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 1998 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 26029-A 26029-B [S]
DIMENSIONS LISTED IN INCHES

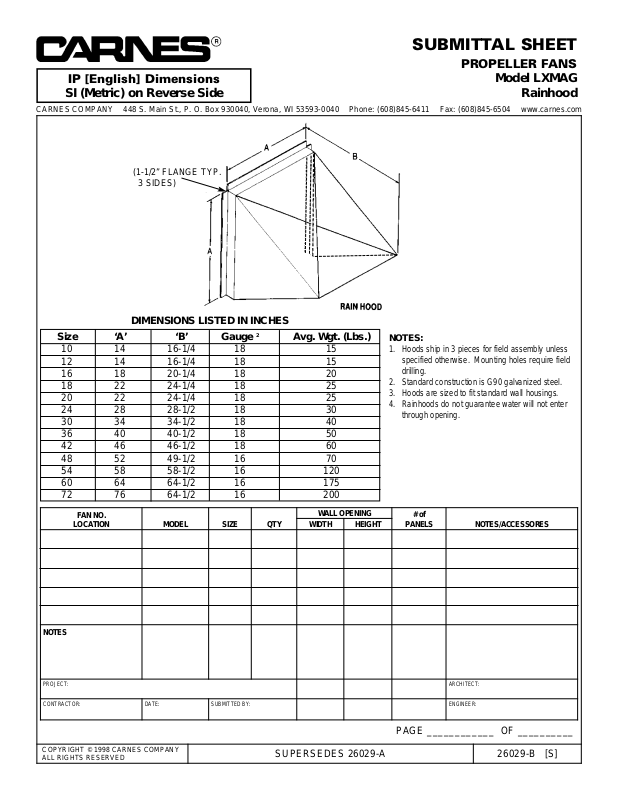

SUBMITTAL SHEET
PROPELLER FANS
Model LXMAG
Rainhood
Size ‘A’ ‘B’ Gauge
2
Avg. Wgt. (Lbs.)
10 14 16-1/4 18 15
12 14 16-1/4 18 15
16 18 20-1/4 18 20
18 22 24-1/4 18 25
20 22 24-1/4 18 25
24 28 28-1/2 18 30
30 34 34-1/2 18 40
36 40 40-1/2 18 50
42 46 46-1/2 18 60
48 52 49-1/2 16 70
54 58 58-1/2 16 120
60 64 64-1/2 16 175
72 76 64-1/2 16 200
NOTES:
1. Hoods ship in 3 pieces for field assembly unless
specified otherwise. Mounting holes require field
drilling.
2. Standard construction is G90 galvanized steel.
3. Hoods are sized to fit standard wall housings.
4. Rainhoods do not guarantee water will not enter
through opening.
(1-1/2” FLANGE TYP.
3 SIDES)
IP [English] Dimensions
SI (Metric) on Reverse Side
PAGE ____________ OF __________
FAN NO.
LOCATION
MODEL SIZE QTY
WALL OPENING
# of
PANELS
NOTES/ACCESSORES
WIDTH HEIGHT
NOTES
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER:
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 1998 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 26029-A 26029-B [M]
SUBMITTAL SHEET
PROPELLER FANS
Model LXMAG
Rainhood
PAGE ____________ OF __________
FAN NO.
LOCATION
MODEL SIZE QTY
WALL OPENING
# of
PANELS
NOTES/ACCESSORES
WIDTH HEIGHT
NOTES
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER:
DIMENSIONS LISTED IN MILLIMETERS
Size ‘A’ ‘B’ Gauge
2
Avg. Wgt. (Kg.)
10 356 413 18 7
12 356 413 18 7
16 457 514 18 9
18 559 616 18 11
20 559 616 18 11
24 711 724 18 14
30 864 876 18 18
36 1016 1029 18 23
42 1168 1181 18 27
48 1321 1257 16 32
54 1473 1486 16 54
60 1626 1638 16 79
72 1930 1638 16 91
NOTES:
1. Hoods ship in 3 pieces for field assembly unless
specified otherwise. Mounting holes require field
drilling.
2. Standard construction is G90 galvanized steel.
3. Hoods are sized to fit standard wall housings.
4. Rainhoods do not guarantee water will not enter
through opening.
(38 FLANGE TYP.
3 SIDES)
SI (Metric) Dimensions
IP [English] on Reverse Side
