CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 1998 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 26050 26050-A [S]
DIMENSIONS LISTED IN INCHES

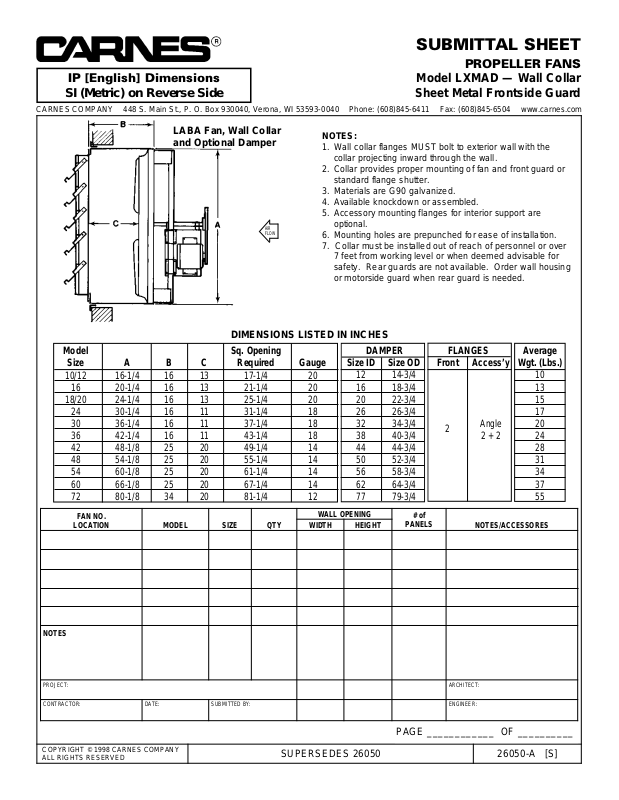

SUBMITTAL SHEET
PROPELLER FANS
Model LXMAD — Wall Collar
Sheet Metal Frontside Guard
Model Sq. Opening
Size A B C Required Gauge
10/12 16-1/4 16 13 17-1/4 20
16 20-1/4 16 13 21-1/4 20
18/20 24-1/4 16 13 25-1/4 20
24 30-1/4 16 11 31-1/4 18
30 36-1/4 16 11 37-1/4 18
36 42-1/4 16 11 43-1/4 18
42 48-1/8 25 20 49-1/4 14
48 54-1/8 25 20 55-1/4 14
54 60-1/8 25 20 61-1/4 14
60 66-1/8 25 20 67-1/4 14
72 80-1/8 34 20 81-1/4 12
DAMPER
Size ID Size OD
12 14-3/4
16 18-3/4
20 22-3/4
26 26-3/4
32 34-3/4
38 40-3/4
44 44-3/4
50 52-3/4
56 58-3/4
62 64-3/4
77 79-3/4
FLANGES
Front Access’y
2
Angle
2 + 2
Average
Wgt. (Lbs.)
10
13
15
17
20
24
28
31
34
37
55
PAGE ____________ OF __________
AIR
FLOW
LABA Fan, Wall Collar
and Optional Damper
NOTES:
1. Wall collar flanges MUST bolt to exterior wall with the
collar projecting inward through the wall.
2. Collar provides proper mounting of fan and front guard or
standard flange shutter.
3. Materials are G90 galvanized.
4. Available knockdown or assembled.
5. Accessory mounting flanges for interior support are
optional.
6. Mounting holes are prepunched for ease of installation.
7. Collar must be installed out of reach of personnel or over
7 feet from working level or when deemed advisable for
safety. Rear guards are not available. Order wall housing
or motorside guard when rear guard is needed.
IP [English] Dimensions
SI (Metric) on Reverse Side
FAN NO.
LOCATION MODEL SIZE QTY
WALL OPENING
# of
PANELS
NOTES/ACCESSORES
WIDTH HEIGHT
NOTES
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER:
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 1998 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 26050 26050-A [M]
SUBMITTAL SHEET
PROPELLER FANS
Model LXMAD — Wall Collar
Sheet Metal Frontside Guard
PAGE ____________ OF __________
FAN NO.
LOCATION MODEL SIZE QTY
WALL OPENING
# of
PANELS
NOTES/ACCESSORES
WIDTH HEIGHT
NOTES
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER:
DIMENSIONS LISTED IN MILLIMETERS
Model Sq. Opening
Size A B C Required Gauge
10/12 413 406 330 438 20
16 514 406 330 540 20
18/20 616 406 330 641 20
24 768 406 279 794 18
30 921 406 279 946 18
36 1073 406 279 1099 18
42 1222 635 508 1251 14
48 1375 635 508 1403 14
54 1527 635 508 1556 14
60 1680 635 508 1708 14
72 2035 864 508 2064 12
DAMPER
Size ID Size OD
305 375
406 476
508 578
660 679
813 883
965 1035
1118 1137
1270 1340
1422 1492
1575 1645
1956 2026
FLANGES
Front Access’y
51
Angle
51 + 51
Average
Wgt. (Kg.)
5
6
7
8
9
11
13
14
15
17
25
AIR
FLOW
LABA Fan, Wall Collar
and Optional Damper
NOTES:
1. Wall collar flanges MUST bolt to exterior wall with the
collar projecting inward through the wall.
2. Collar provides proper mounting of fan and front guard or
standard flange shutter.
3. Materials are G90 galvanized.
4. Available knockdown or assembled.
5. Accessory mounting flanges for interior support are
optional.
6. Mounting holes are prepunched for ease of installation.
7. Collar must be installed out of reach of personnel or over
7 feet from working level or when deemed advisable for
safety. Rear guards are not available. Order wall housing
or motorside guard when rear guard is needed.
SI (Metric) Dimensions
IP [English] on Reverse Side
