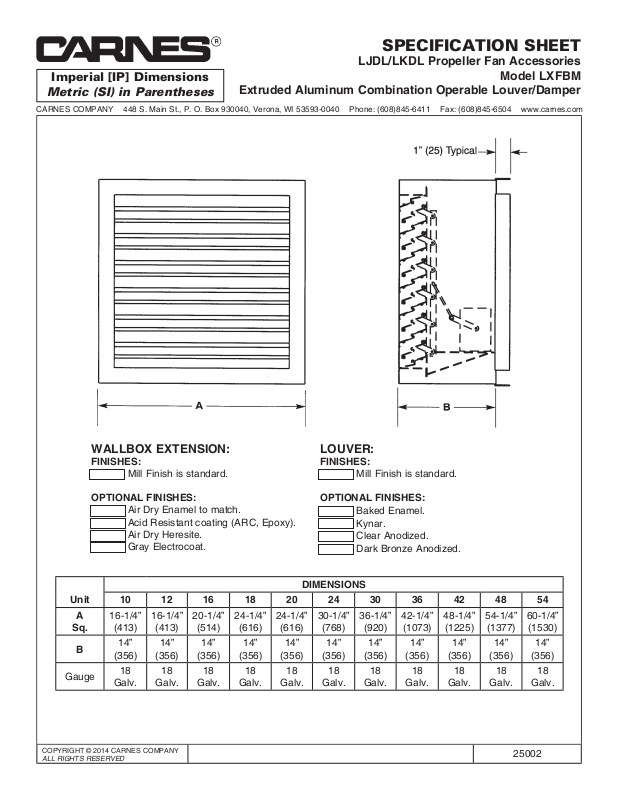

SPECIFICATION SHEET
LJDL/LKDL Propeller Fan Accessories
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
Extruded Aluminum Combination Operable Louver/Damper
Model LXFBM
WALLBOX EXTENSION:
FINISHES:
Mill Finish is standard.
OPTIONAL FINISHES:
Air Dry Enamel to match.
Acid Resistant coating (ARC, Epoxy).
Air Dry Heresite.
Gray Electrocoat.
Unit
A
Sq.
B
Gauge
10 12 16 18 20 24 30 36 42 48 54
16-1/4”
(413)
14”
(356)
18
Galv.
16-1/4”
(413)
14”
(356)
18
Galv.
20-1/4”
(514)
14”
(356)
18
Galv.
24-1/4”
(616)
14”
(356)
18
Galv.
DIMENSIONS
24-1/4”
(616)
14”
(356)
18
Galv.
LOUVER:
FINISHES:
Mill Finish is standard.
OPTIONAL FINISHES:
Baked Enamel.
Kynar.
Clear Anodized.
Dark Bronze Anodized.
30-1/4”
(768)
14”
(356)
18
Galv.
36-1/4”
(920)
14”
(356)
18
Galv.
42-1/4”
(1073)
14”
(356)
18
Galv.
48-1/4”
(1225)
14”
(356)
18
Galv.
54-1/4”
(1377)
14”
(356)
18
Galv.
60-1/4”
(1530)
14”
(356)
18
Galv.
COPYRIGHT © 2014 CARNES COMPANY
ALL RIGHTS RESERVED
25002
