CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 2002 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 26028-A 26028-B
Imperial [IP] Dimensions
Metric (SI) on Reverse

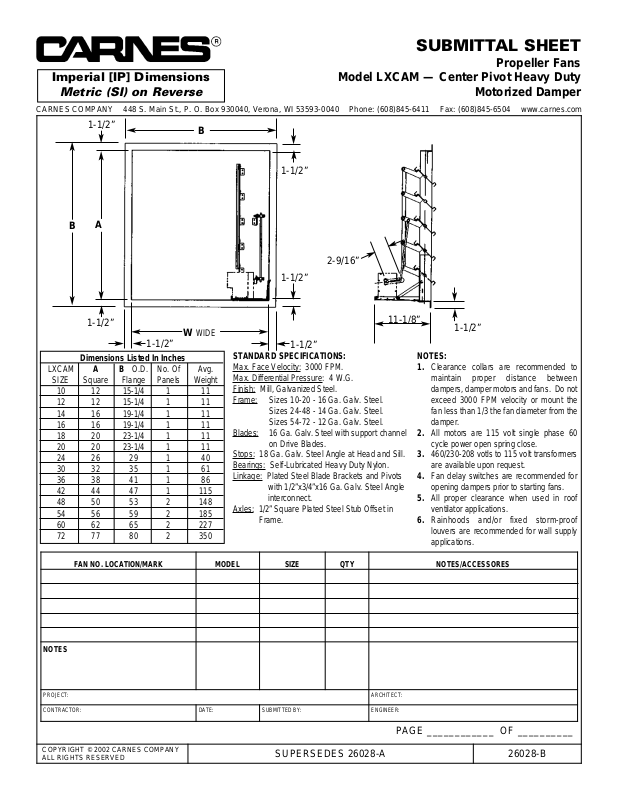

SUBMITTAL SHEET
Propeller Fans
Model LXCAM — Center Pivot Heavy Duty
Motorized Damper
B
B
A
1-1/2”
1-1/2”
1-1/2”
1-1/2”
1-1/2”
1-1/2”
1-1/2”
W
WIDE
11-1/8”
2-9/16”
Dimensions Listed In Inches
LXCAM AB O.D. No. Of Avg.
SIZE Square Flange Panels Weight
10 12 15-1/4 1 11
12 12 15-1/4 1 11
14 16 19-1/4 1 11
16 16 19-1/4 1 11
18 20 23-1/4 1 11
20 20 23-1/4 1 11
24 26 29 1 40
30 32 35 1 61
36 38 41 1 86
42 44 47 1 115
48 50 53 2 148
54 56 59 2 185
60 62 65 2 227
72 77 80 2 350
STANDARD SPECIFICATIONS:
Max. Face Velocity:
3000 FPM.
Max. Differential Pressure: 4 W.G.
Finish: Mill, Galvanized Steel.
Frame: Sizes 10-20 - 16 Ga. Galv. Steel.
Sizes 24-48 - 14 Ga. Galv. Steel.
Sizes 54-72 - 12 Ga. Galv. Steel.
Blades:
16 Ga. Galv. Steel with support channel
on Drive Blades.
Stops:
18 Ga. Galv. Steel Angle at Head and Sill.
Bearings: Self-Lubricated Heavy Duty Nylon.
Linkage: Plated Steel Blade Brackets and Pivots
with 1/2”x3/4”x16 Ga. Galv. Steel Angle
interconnect.
Axles:
1/2” Square Plated Steel Stub Offset in
Frame.
NOTES:
1. Clearance collars are recommended to
maintain proper distance between
dampers, damper motors and fans. Do not
exceed 3000 FPM velocity or mount the
fan less than 1/3 the fan diameter from the
damper.
2. All motors are 115 volt single phase 60
cycle power open spring close.
3. 460/230-208 votls to 115 volt transformers
are available upon request.
4. Fan delay switches are recommended for
opening dampers prior to starting fans.
5. All proper clearance when used in roof
ventilator applications.
6. Rainhoods and/or fixed storm-proof
louvers are recommended for wall supply
applications.
PAGE ____________ OF __________
FAN NO. LOCATION/MARK MODEL SIZE QTY NOTES/ACCESSORES
NOTES
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER:
