CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2001 CARNES COMPANY

ALL RIGHTS RESERVED

26081

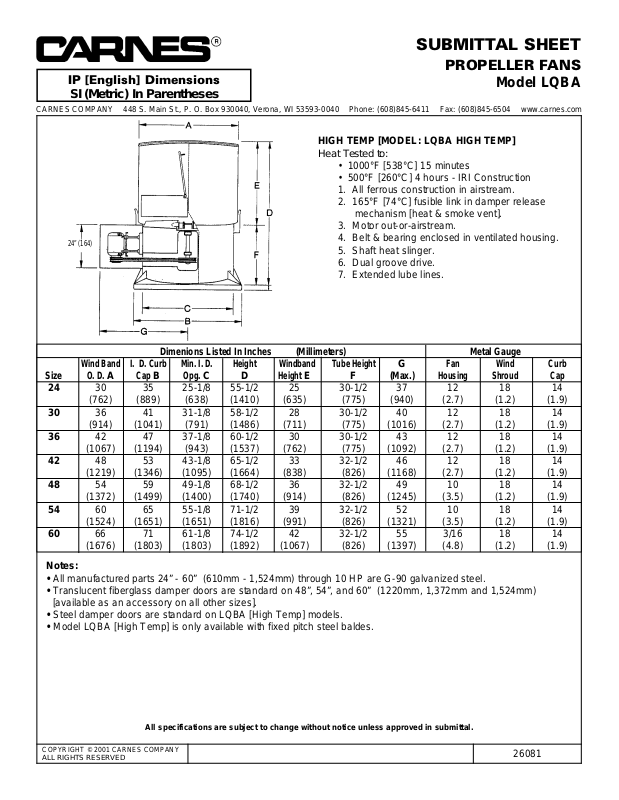

SUBMITTAL SHEET

PROPELLER FANS

Model LQBA

IP [English] Dimensions

SI (Metric) In Parentheses

Dimenions Listed In Inches (Millimeters) Metal Gauge

Wind Band I. D. Curb Min. I. D. Height Windband Tube Height

G

Fan Wind Curb

Size

O. D.

A

Cap

B

Opg.

CD

Height

EF

(Max.)

Housing Shroud Cap

24 30 35 25-1/8 55-1/2 25 30-1/2 37 12 18 14

(762) (889) (638) (1410) (635) (775) (940) (2.7) (1.2) (1.9)

30 36 41 31-1/8 58-1/2 28 30-1/2 40 12 18 14

(914) (1041) (791) (1486) (711) (775) (1016) (2.7) (1.2) (1.9)

36 42 47 37-1/8 60-1/2 30 30-1/2 43 12 18 14

(1067) (1194) (943) (1537) (762) (775) (1092) (2.7) (1.2) (1.9)

42 48 53 43-1/8 65-1/2 33 32-1/2 46 12 18 14

(1219) (1346) (1095) (1664) (838) (826) (1168) (2.7) (1.2) (1.9)

48 54 59 49-1/8 68-1/2 36 32-1/2 49 10 18 14

(1372) (1499) (1400) (1740) (914) (826) (1245) (3.5) (1.2) (1.9)

54 60 65 55-1/8 71-1/2 39 32-1/2 52 10 18 14

(1524) (1651) (1651) (1816) (991) (826) (1321) (3.5) (1.2) (1.9)

60 66 71 61-1/8 74-1/2 42 32-1/2 55 3/16 18 14

(1676) (1803) (1803) (1892) (1067) (826) (1397) (4.8) (1.2) (1.9)

HIGH TEMP [MODEL: LQBA HIGH TEMP]

Heat Tested to:

• 1000°F [538°C] 15 minutes

• 500°F [260°C] 4 hours - IRI Construction

1. All ferrous construction in airstream.

2. 165°F [74°C] fusible link in damper release
mechanism [heat & smoke vent].

3. Motor out-or-airstream.

4. Belt & bearing enclosed in ventilated housing.

5. Shaft heat slinger.

6. Dual groove drive.

7. Extended lube lines.

Notes:

• All manufactured parts 24” - 60” (610mm - 1,524mm) through 10 HP are G-90 galvanized steel.

• Translucent fiberglass damper doors are standard on 48”, 54”, and 60” (1220mm, 1,372mm and 1,524mm)

[available as an accessory on all other sizes].

• Steel damper doors are standard on LQBA [High Temp] models.

• Model LQBA [High Temp] is only available with fixed pitch steel baldes.

All specifications are subject to change without notice unless approved in submittal.

24” (164)
