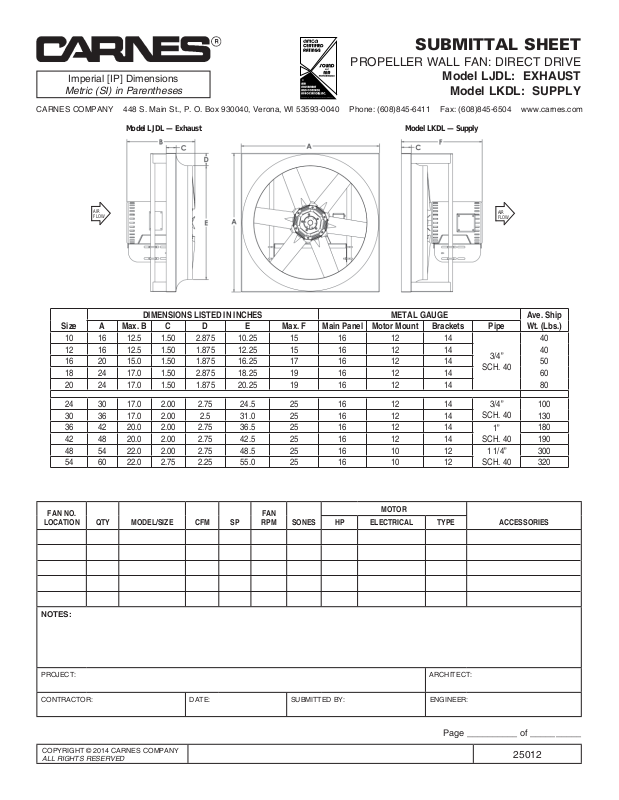

SUBMITTAL SHEET
PROPELLER WALL FAN: DIRECT DRIVE
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
Model LJDL: EXHAUST
Model LKDL: SUPPLY
Model LKDL — Supply
AIR
FLOW
Ave. Ship
Wt. (Lbs.)
Size
Model LJDL — Exhaust
AIR
FLOW
DIMENSIONS LISTED IN INCHES METAL GAUGE
A Max. B C D E Max. F Main Panel Motor Mount Brackets Pipe
10 16 12.5 1.50 2.875 10.25 15 16 12 14
12 16 12.5 1.50 1.875 12.25 15 16 12 14 40
16 20 15.0 1.50 1.875 16.25 17 16 12 14 50
18 24 17.0 1.50 2.875 18.25 19 16 12 14 60
3/4”
SCH. 40
20 24 17.0 1.50 1.875 20.25 19 16 12 14 80
24 30 17.0 2.00 2.75 24.5 25 16 12 14
30 36 17.0 2.00 2.5 31.0 25 16 12 14 130
36 42 20.0 2.00 2.75 36.5 25 16 12 14
42 48 20.0 2.00 2.75 42.5 25 16 12 14 190
48 54 22.0 2.00 2.75 48.5 25 16 10 12
54 60 22.0 2.75 2.25 55.0 25 16 10 12 320
3/4”
SCH. 40
1”
SCH. 40
1 1/4”
SCH. 40
100
180
300
40
FAN NO.
LOCATION QTY MODEL/SIZE CFM SP
NOTES:
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER:
FAN
RPM SONES
MOTOR
Page __________ of __________
COPYRIGHT © 2014 CARNES COMPANY
ALL RIGHTS RESERVED
ACCESSORIESHP ELECTRICAL TYPE
25012
SUBMITTAL SHEET
PROPELLER WALL FAN: DIRECT DRIVE
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
Model LJDL: EXHAUST
Model LKDL: SUPPLY
Model LKDL — Supply
AIR
FLOW
Ave. Ship
Wt. (Kg.)
Size
Model LJDL — Exhaust
AIR
FLOW
DIMENSIONS LISTED IN MILLIMETERS METAL GAUGE
A Max. B C D E Max. F Main Panel Motor Mount Brackets Pipe
10 406 318 38 73 260 381 16 12 14
12 406 318 38 48 311 381 16 12 14 18
16 508 381 38 48 413 432 16 12 14 23
18 610 432 38 73 464 483 16 12 14 27
19mm
SCH. 40
20 610 432 38 48 514 483 16 12 14 36
24 762 432 51 70 622 635 16 12 14
30 914 432 51 64 787 635 16 12 14 59
36 1067 508 51 70 927 635 16 12 14
42 1219 508 51 70 1080 635 16 12 14 86
48 1372 559 51 70 1232 635 16 10 12
54 1524 559 70 57 1397 635 16 10 12 145
19mm
SCH. 40
25mm
SCH. 40
32mm
SCH. 40
136
18
45
82
FAN NO.
LOCATION QTY MODEL/SIZE CFM SP
NOTES:
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER:
FAN
RPM SONES
MOTOR
Page __________ of __________
COPYRIGHT © 2014 CARNES COMPANY
ALL RIGHTS RESERVED
ACCESSORIESHP ELECTRICAL TYPE
25012
