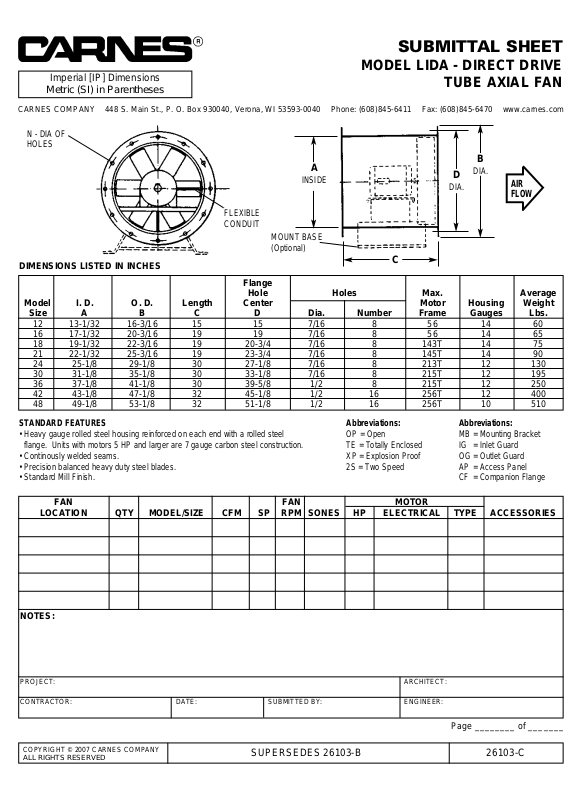

SUBMITTAL SHEET
MODEL LIDA - DIRECT DRIVE
TUBE AXIAL FAN
COPYRIGHT © 2007 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 26103-B 26103-C
N - DIA OF
HOLES
FLEXIBLE
CONDUIT
A
INSIDE
D
DIA.
B
DIA.
C
AIR
FLOW
MOUNT BASE
(Optional)
Flange
Hole Holes Max. Average
Model I. D. O. D. Length Center Motor Housing Weight
Size A B C D Dia. Number Frame Gauges Lbs.
12 13-1/32 16-3/16 15 15 7/16 8 56 14 60
16 17-1/32 20-3/16 19 19 7/16 8 56 14 65
18 19-1/32 22-3/16 19 20-3/4 7/16 8 143T 14 75
21 22-1/32 25-3/16 19 23-3/4 7/16 8 145T 14 90
24 25-1/8 29-1/8 30 27-1/8 7/16 8 213T 12 130
30 31-1/8 35-1/8 30 33-1/8 7/16 8 215T 12 195
36 37-1/8 41-1/8 30 39-5/8 1/2 8 215T 12 250
42 43-1/8 47-1/8 32 45-1/8 1/2 16 256T 12 400
48 49-1/8 53-1/8 32 51-1/8 1/2 16 256T 10 510
DIMENSIONS LISTED IN INCHES
STANDARD FEATURES
• Heavy gauge rolled steel housing reinforced on each end with a rolled steel
flange. Units with motors 5 HP and larger are 7 gauge carbon steel construction.
• Continously welded seams.
• Precision balanced heavy duty steel blades.
• Standard Mill Finish.
Abbreviations:
OP = Open
TE = Totally Enclosed
XP = Explosion Proof
2S = Two Speed
Abbreviations:
MB = Mounting Bracket
IG = Inlet Guard
OG = Outlet Guard
AP = Access Panel
CF = Companion Flange
FAN FAN MOTOR
LOCATION QTY MODEL/SIZE CFM SP RPM SONES HP ELECTRICAL TYPE ACCESSORIES
NOTES:
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER:
Page ________ of _______
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
COPYRIGHT © 2007 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 26103-B 26103-C
N - DIA OF
HOLES
FLEXIBLE
CONDUIT
A
INSIDE
D
DIA.
B
DIA.
C
AIR
FLOW
MOUNT BASE
(Optional)
Flange
Hole Holes Max. Average
Model I. D. O. D. Length Center Motor Housing Weight
Size A B C D Dia. Number Frame Gauges Kg.
12 331 411 381 381 11 8 56 14 27
16 432 512 482 482 11 8 56 14 30
18 483 563 482 527 11 8 143T 14 34
21 559 639 482 603 11 8 145T 14 41
24 638 739 761 688 11 8 213T 12 59
30 790 891 761 841 11 8 215T 12 89
36 942 1044 761 1006 13 8 215T 12 114
42 1095 1196 812 1145 13 16 256T 12 182
48 1247 1348 812 1298 13 16 256T 10 232
DIMENSIONS LISTED IN MILLIMETERS
STANDARD FEATURES
• Heavy gauge rolled steel housing reinforced on each end with a rolled steel
flange. Units with motors 5 HP and larger are 7 gauge carbon steel construction.
• Continously welded seams.
• Precision balanced heavy duty steel blades.
• Standard Mill Finish.
Abbreviations:
OP = Open
TE = Totally Enclosed
XP = Explosion Proof
2S = Two Speed
Abbreviations:
MB = Mounting Bracket
IG = Inlet Guard
OG = Outlet Guard
AP = Access Panel
CF = Companion Flange
FAN FAN MOTOR
LOCATION QTY MODEL/SIZE CFM SP RPM SONES HP ELECTRICAL TYPE ACCESSORIES
NOTES:
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER:
Page ________ of _______
SUBMITTAL SHEET
MODEL LIDA - DIRECT DRIVE
TUBE AXIAL FAN
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
