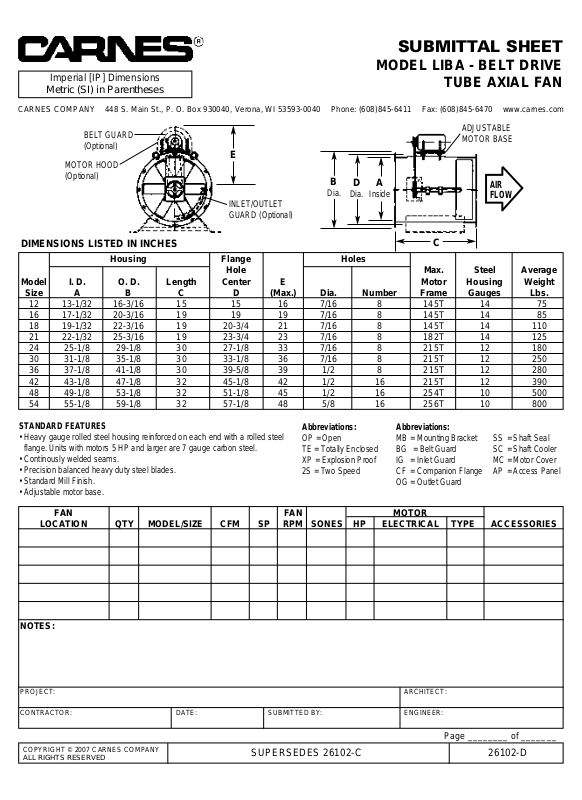

SUBMITTAL SHEET
MODEL LIBA - BELT DRIVE
TUBE AXIAL FAN
COPYRIGHT © 2007 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 26102-C 26102-D
E
BELT GUARD
(Optional)
MOTOR HOOD
(Optional)
INLET/OUTLET
GUARD (Optional)
B
Dia.
D
Dia.
A
Inside
ADJUSTABLE
MOTOR BASE
C
AIR
FLOW
Housing Flange Holes
Hole Max. Steel Average
Model I. D. O. D. Length Center E Motor Housing Weight
Size A B C D (Max.) Dia. Number Frame Gauges Lbs.
12 13-1/32 16-3/16 15 15 16 7/16 8 145T 14 75
16 17-1/32 20-3/16 19 19 19 7/16 8 145T 14 85
18 19-1/32 22-3/16 19 20-3/4 21 7/16 8 145T 14 110
21 22-1/32 25-3/16 19 23-3/4 23 7/16 8 182T 14 125
24 25-1/8 29-1/8 30 27-1/8 33 7/16 8 215T 12 180
30 31-1/8 35-1/8 30 33-1/8 36 7/16 8 215T 12 250
36 37-1/8 41-1/8 30 39-5/8 39 1/2 8 215T 12 280
42 43-1/8 47-1/8 32 45-1/8 42 1/2 16 215T 12 390
48 49-1/8 53-1/8 32 51-1/8 45 1/2 16 254T 10 500
54 55-1/8 59-1/8 32 57-1/8 48 5/8 16 256T 10 800
DIMENSIONS LISTED IN INCHES
STANDARD FEATURES
• Heavy gauge rolled steel housing reinforced on each end with a rolled steel
flange. Units with motors 5 HP and larger are 7 gauge carbon steel.
• Continously welded seams.
• Precision balanced heavy duty steel blades.
• Standard Mill Finish.
• Adjustable motor base.
Abbreviations:
OP = Open
TE = Totally Enclosed
XP = Explosion Proof
2S = Two Speed
Abbreviations:
MB = Mounting Bracket SS = Shaft Seal
BG = Belt Guard SC = Shaft Cooler
IG = Inlet Guard MC= Motor Cover
CF = Companion Flange AP = Access Panel
OG = Outlet Guard
FAN FAN MOTOR
LOCATION QTY MODEL/SIZE CFM SP RPM SONES HP ELECTRICAL TYPE ACCESSORIES
NOTES:
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER:
Page ________ of _______
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
COPYRIGHT © 2007 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 26102-C 26102-D
E
BELT GUARD
(Optional)
MOTOR HOOD
(Optional)
INLET/OUTLET
GUARD (Optional)
B
Dia.
D
Dia.
A
Inside
ADJUSTABLE
MOTOR BASE
C
AIR
FLOW
Housing Flange Holes
Hole Max. Steel Average
Model I. D. O. D. Length Center E Motor Housing Weight
Size A B C D (Max.) Dia. Number Frame Gauges Kg.
12 331 411 381 381 406 11 8 145T 14 34
16 432 512 482 482 482 11 8 145T 14 39
18 483 563 482 527 533 11 8 145T 14 50
21 559 639 482 603 584 11 8 182T 14 57
24 638 739 761 688 838 11 8 215T 12 82
30 790 891 761 841 914 11 8 215T 12 114
36 942 1044 761 1006 990 13 8 215T 12 127
42 1095 1196 812 1145 1066 13 16 215T 12 177
48 1247 1348 812 1298 1142 13 16 254T 10 227
54 1399 1501 812 1450 1218 16 16 256T 10 364
DIMENSIONS LISTED IN MILLIMETERS
STANDARD FEATURES
• Heavy gauge rolled steel housing reinforced on each end with a rolled steel
flange. Units with motors 5 HP and larger are 7 gauge carbon steel.
• Continously welded seams.
• Precision balanced heavy duty steel blades.
• Standard Mill Finish.
• Adjustable motor base.
Abbreviations:
OP = Open
TE = Totally Enclosed
XP = Explosion Proof
2S = Two Speed
Abbreviations:
MB = Mounting Bracket SS = Shaft Seal
BG = Belt Guard SC = Shaft Cooler
IG = Inlet Guard MC= Motor Cover
CF = Companion Flange AP = Access Panel
OG = Outlet Guard
FAN FAN MOTOR
LOCATION QTY MODEL/SIZE CFM SP RPM SONES HP ELECTRICAL TYPE ACCESSORIES
NOTES:
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER:
Page ________ of _______
SUBMITTAL SHEET
MODEL LIBA - BELT DRIVE
TUBE AXIAL FAN
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
