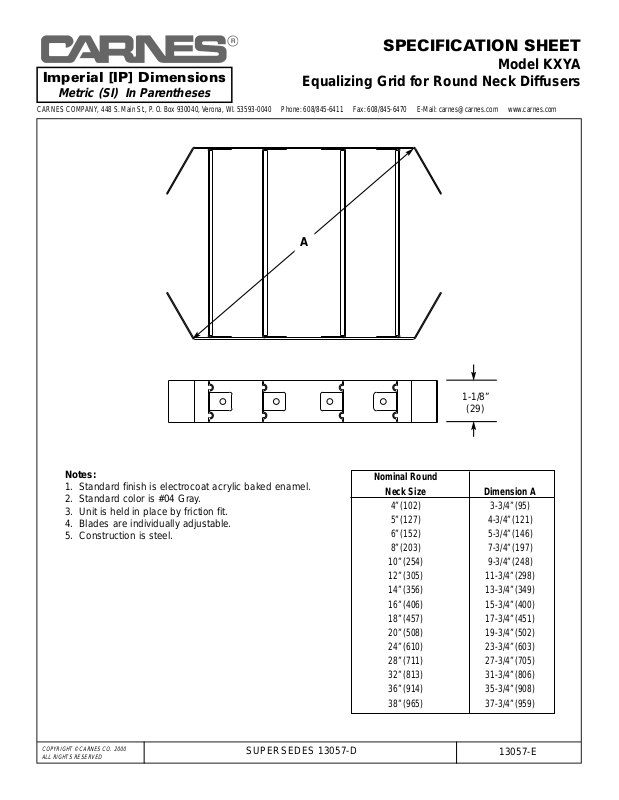

Model KXYA
Equalizing Grid for Round Neck Diffusers
SPECIFICATION SHEET
Imperial [IP] Dimensions
Metric (SI) In Parentheses
Nominal Round
Neck Size Dimension A
4” (102) 3-3/4” (95)
5” (127) 4-3/4” (121)
6” (152) 5-3/4” (146)
8” (203) 7-3/4” (197)
10” (254) 9-3/4” (248)
12” (305) 11-3/4” (298)
14” (356) 13-3/4” (349)
16” (406) 15-3/4” (400)
18” (457) 17-3/4” (451)
20” (508) 19-3/4” (502)
24” (610) 23-3/4” (603)
28” (711) 27-3/4” (705)
32” (813) 31-3/4” (806)
36” (914) 35-3/4” (908)
38” (965) 37-3/4” (959)
Notes:
1. Standard finish is electrocoat acrylic baked enamel.
2. Standard color is #04 Gray.
3. Unit is held in place by friction fit.
4. Blades are individually adjustable.
5. Construction is steel.
A
1-1/8”
(29)
