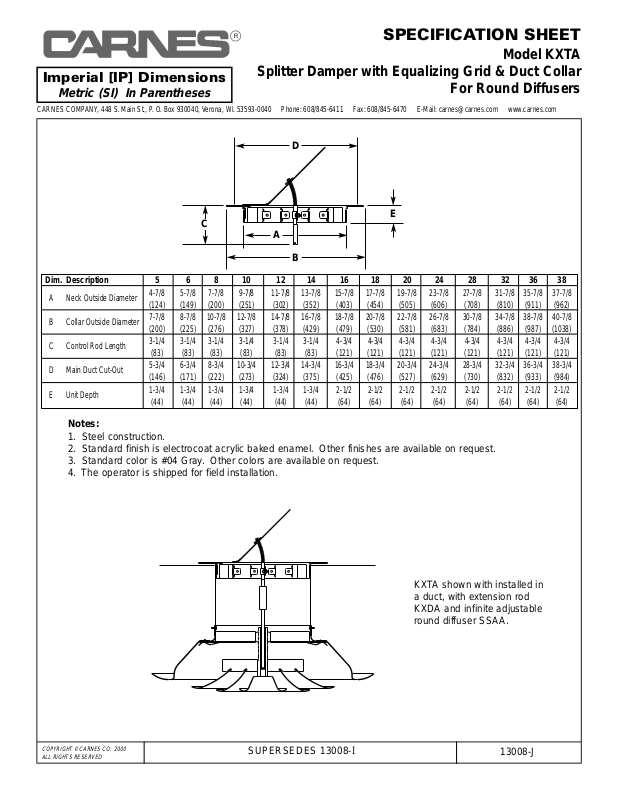

Model KXTA

Splitter Damper with Equalizing Grid & Duct Collar

For Round Diffusers

SPECIFICATION SHEET

Imperial [IP] Dimensions

Metric (SI) In Parentheses

Dim. Description 5 6 8 10 12 14 16 18 20 24 28 32 36 38

A Neck Outside Diameter

4-7/8 5-7/8 7-7/8 9-7/8 11-7/8 13-7/8 15-7/8 17-7/8 19-7/8 23-7/8 27-7/8 31-7/8 35-7/8 37-7/8
(124) (149) (200) (251) (302) (352) (403) (454) (505) (606) (708) (810) (911) (962)

B Collar Outside Diameter

7-7/8 8-7/8 10-7/8 12-7/8 14-7/8 16-7/8 18-7/8 20-7/8 22-7/8 26-7/8 30-7/8 34-7/8 38-7/8 40-7/8
(200) (225) (276) (327) (378) (429) (479) (530) (581) (683) (784) (886) (987) (1038)

C Control Rod Length

3-1/4 3-1/4 3-1/4 3-1/4 3-1/4 3-1/4 4-3/4 4-3/4 4-3/4 4-3/4 4-3/4 4-3/4 4-3/4 4-3/4

(83) (83) (83) (83) (83) (83) (121) (121) (121) (121) (121) (121) (121) (121)

D Main Duct Cut-Out

5-3/4 6-3/4 8-3/4 10-3/4 12-3/4 14-3/4 16-3/4 18-3/4 20-3/4 24-3/4 28-3/4 32-3/4 36-3/4 38-3/4
(146) (171) (222) (273) (324) (375) (425) (476) (527) (629) (730) (832) (933) (984)

E Unit Depth

1-3/4 1-3/4 1-3/4 1-3/4 1-3/4 1-3/4 2-1/2 2-1/2 2-1/2 2-1/2 2-1/2 2-1/2 2-1/2 2-1/2

(44) (44) (44) (44) (44) (44) (64) (64) (64) (64) (64) (64) (64) (64)

D

E

C

A

B

Notes:

1. Steel construction.

2. Standard finish is electrocoat acr ylic baked enamel. Other finishes are available on request.

3. Standard color is #04 Gray. Other colors are available on request.

4. The operator is shipped for field installation.

KXTA shown with installed in
a duct, with extension rod
KXDA and infinite adjustable
round diffuser SSAA.
