Carnes KXSA User Manual
Imperial [IP] Dimensions
Metric (SI) in Parentheses

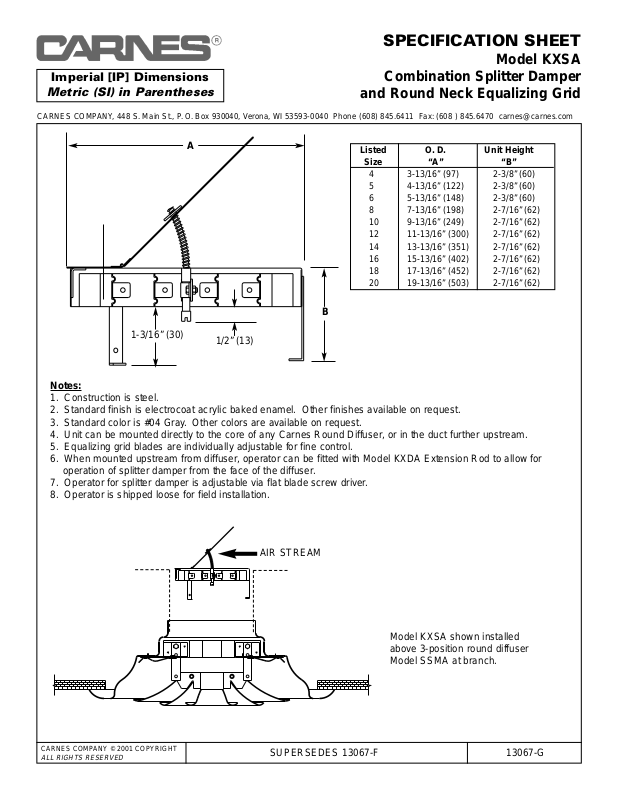

SPECIFICATION SHEET
Model KXSA
Combination Splitter Damper
and Round Neck Equalizing Grid
CARNES COMPANY, 448 S. Main St., P.O.Box 930040, Verona, WI 53593-0040 Phone (608) 845.6411 Fax: (608 ) 845.6470 carnes@car nes.com
CARNES COMPANY © 2001 COPYRIGHT
ALL RIGHTS RESERVED
SUPERSEDES 13067-F 13067-G
A
1-3/16” (30)
Listed O. D. Unit Height
Size “A” “B”
4 3-13/16” (97) 2-3/8” (60)
5 4-13/16” (122) 2-3/8” (60)
6 5-13/16” (148) 2-3/8” (60)
8 7-13/16” (198) 2-7/16” (62)
10 9-13/16” (249) 2-7/16” (62)
12 11-13/16” (300) 2-7/16” (62)
14 13-13/16” (351) 2-7/16” (62)
16 15-13/16” (402) 2-7/16” (62)
18 17-13/16” (452) 2-7/16” (62)
20 19-13/16” (503) 2-7/16” (62)
Notes:
1. Construction is steel.
2. Standard finish is electrocoat acrylic baked enamel. Other finishes available on request.
3. Standard color is #04 Gray. Other colors are available on request.
4. Unit can be mounted directly to the core of any Carnes Round Diffuser, or in the duct further upstream.
5. Equalizing grid blades are individually adjustable for fine control.
6. When mounted upstream from diffuser, operator can be fitted with Model KXDA Extension Rod to allow for
operation of splitter damper from the face of the diffuser.
7. Operator for splitter damper is adjustable via flat blade screw driver.
8. Operator is shipped loose for field installation.
B
1/2” (13)
AIR STREAM
Model KXSA shown installed
above 3-position round diffuser
Model SSMA at branch.
