Imperial [IP] Dimensions
Metric (SI) in Parentheses

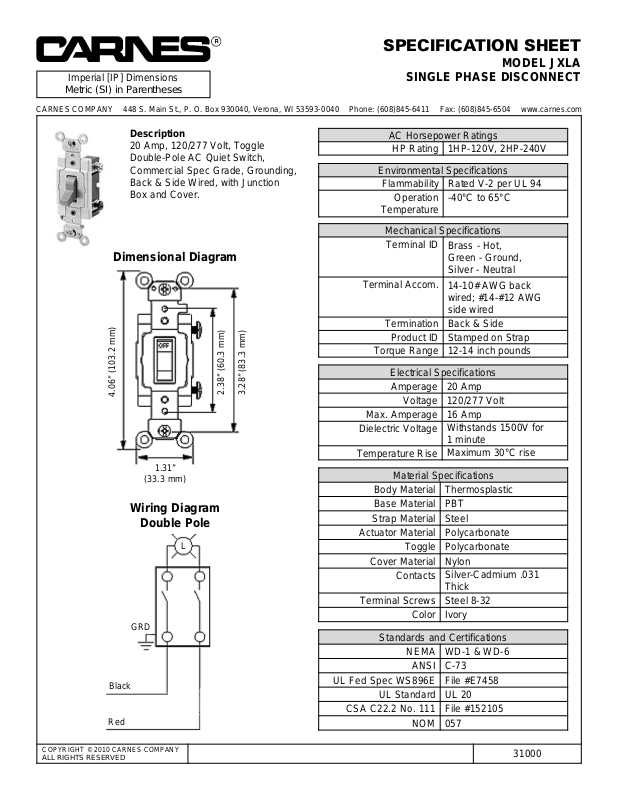

SPECIFICATION SHEET
MODEL JXLA
SINGLE PHASE DISCONNECT
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 2010 CARNES COMPANY
ALL RIGHTS RESERVED
31000
Description
20 Amp, 120/277 Volt, Toggle
Double-Pole AC Quiet Switch,
Commercial Spec Grade, Grounding,
Back & Side Wired, with Junction
Box and Cover.
Mechanical Specifications
Terminal ID
Brass - Hot,
Green - Ground,
Silver - Neutral
Terminal Accom.
14-10# AWG back
wired; #14-#12 AWG
side wired
Termination Back & Side
Product ID Stamped on Strap
Torque Range 12-14 inch pounds
Environmental Specifications
Flammability Rated V-2 per UL 94
Operation
Temperature
-40°C to 65°C
AC Horsepower Ratings
HP Rating 1HP-120V, 2HP-240V
Electrical Specifications
Amperage 20 Amp
Voltage 120/277 Volt
Max. Amperage 16 Amp
Dielectric Voltage
Withstands 1500V for
1 minute
Temperature Rise
Maximum 30°C rise
Material Specifications
Body Material Thermosplastic
Base Material PBT
Strap Material Steel
Actuator Material Polycarbonate
Toggle Polycarbonate
Cover Material Nylon
Contacts
Silver-Cadmium .031
Thick
Terminal Screws
Steel 8-32
Color Ivory
Standards and Certifications
NEMA WD-1 & WD-6
ANSI C-73
UL Fed Spec WS896E File #E7458
UL Standard UL 20
CSA C22.2 No. 111 File #152105
NOM
057
Dimensional Diagram
Wiring Diagram
Double Pole
Red
Black
GRD
L
1.31”
(33.3 mm)
3.28” (83.3 mm)
2.38” (60.3 mm)
4.06” (103.2 mm)
