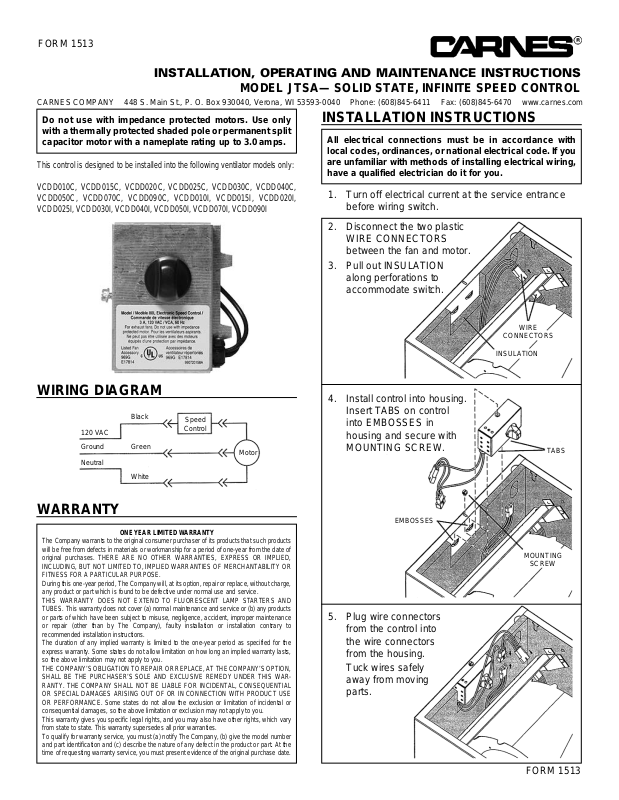

Carnes JTSA Installation Manual

INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS

MODEL JTSA— SOLID STATE, INFINITE SPEED CONTROL

FORM 1513

FORM 1513

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

1. Turn off electrical current at the service entrance
before wiring switch.

2. Disconnect the two plastic
WIRE CONNECTORS
between the fan and motor.

3. Pull out INSULATION
along perforations to
accommodate switch.

4. Install control into housing.
Insert TABS on control
into EMBOSSES in
housing and secure with
MOUNTING SCREW.

5. Plug wire connectors
from the control into
the wire connectors
from the housing.

Tuck wires safely
away from moving
parts.

ONE YEAR LIMITED WARRANTY

The Company warrants to the original consumer purchaser of its products that such products
will be free from defects in materials or workmanship for a period of one-year from the date of
original purchases. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, The Company will, at its option, repair or replace, without charge,
any product or part which is found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS AND
TUBES. This warranty does not cover (a) normal maintenance and service or (b) any products
or parts of which have been subject to misuse, negligence, accident, improper maintenance
or repair (other than by The Company), faulty installation or installation contrary to
recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the
express warranty. Some states do not allow limitation on how long an implied warranty lasts,
so the above limitation may not apply to you.
THE COMPANY’S OBLIGATION TO REPAIR OR REPLACE, AT THE COMPANY’S OPTION,
SHALL BE THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WAR­RANTY. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL
OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE
OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary
from state to state. This warranty supersedes all prior warranties.
To qualify for warranty service, you must (a) notify The Company, (b) give the model number
and part identification and (c) describe the nature of any defect in the product or part. At the
time of requesting warranty service, you must present evidence of the original purchase date.

WARRANTY

WIRING DIAGRAM

120 VAC
Ground

Neutral

Black

Green

White

Speed

Control

Motor

This control is designed to be installed into the following ventilator models only:
VCDD010C, VCDD015C, VCDD020C, VCDD025C, VCDD030C, VCDD040C,

VCDD050C, VCDD070C, VCDD090C, VCDD010I, VCDD015I, VCDD020I,
VCDD025I, VCDD030I, VCDD040I, VCDD050I, VCDD070I, VCDD090I

Do not use with impedance protected motors. Use only
with a thermally protected shaded pole or permanent split
capacitor motor with a nameplate rating up to 3.0 amps.

All electrical connections must be in accordance with
local codes, ordinances, or national electrical code. If you
are unfamiliar with methods of installing electrical wiring,
have a qualified electrician do it for you.

INSTALLATION INSTRUCTIONS

WIRE

CONNECTORS

INSULATION

TABS

EMBOSSES

MOUNTING

SCREW
