COPYRIGHT © 2007 CARNES COMPANY
ALL RIGHTS RESERVED
11214 [S]
Standard Dimensions
(Metric on Reverse Side)

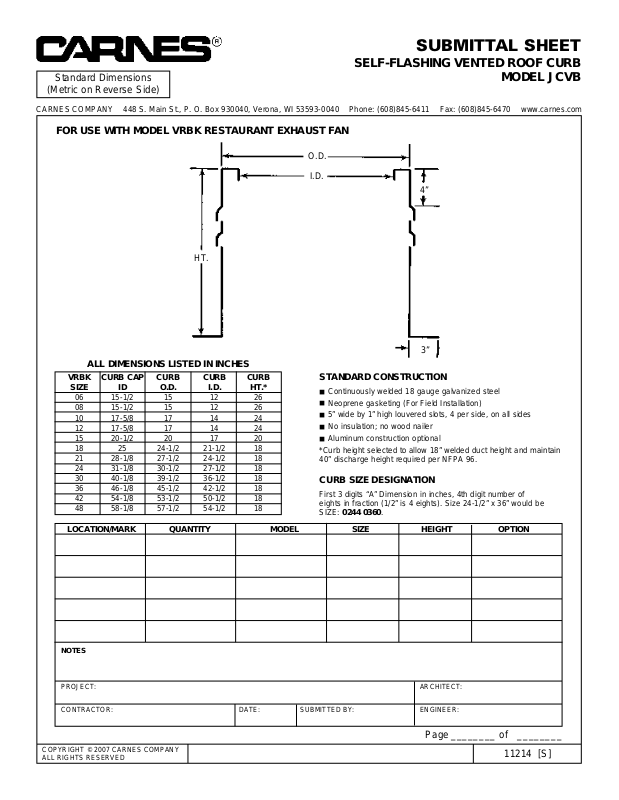

SUBMITTAL SHEET
SELF-FLASHING VENTED ROOF CURB
MODEL JCVB
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
VRBK CURB CAP CURB CURB CURB
SIZE ID O.D. I.D. HT.*
06 15-1/2 15 12 26
08 15-1/2 15 12 26
10 17-5/8 17 14 24
12 17-5/8 17 14 24
15 20-1/2 20 17 20
18 25 24-1/2 21-1/2 18
21 28-1/8 27-1/2 24-1/2 18
24 31-1/8 30-1/2 27-1/2 18
30 40-1/8 39-1/2 36-1/2 18
36 46-1/8 45-1/2 42-1/2 18
42 54-1/8 53-1/2 50-1/2 18
48 58-1/8 57-1/2 54-1/2 18
ALL DIMENSIONS LISTED IN INCHES
STANDARD CONSTRUCTION
Continuously welded 18 gauge galvanized steel
Neoprene gasketing (For Field Installation)
5” wide by 1” high louvered slots, 4 per side, on all sides
No insulation; no wood nailer
Aluminum construction optional
*Curb height selected to allow 18” welded duct height and maintain
40” discharge height required per NFPA 96.
CURB SIZE DESIGNATION
First 3 digits “A” Dimension in inches, 4th digit number of
eights in fraction (1/2” is 4 eights). Size 24-1/2” x 36” would be
SIZE: 0244 0360.
LOCATION/MARK QUANTITY MODEL SIZE HEIGHT OPTION
NOTES
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER:
Page ________ of ________
FOR USE WITH MODEL VRBK RESTAURANT EXHAUST FAN
HT.
3”
O.D.
I.D.
4”
COPYRIGHT © 2007 CARNES COMPANY
ALL RIGHTS RESERVED
11214 [M]
Metric Dimensions
(Standard on Reverse Side)
SUBMITTAL SHEET
SELF-FLASHING VENTED ROOF CURB
MODEL JCVB
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
VRBK CURB CAP CURB CURB CURB
SIZE ID O.D. I.D. HT.*
06 394 381 305 660
08 394 381 305 660
10 448 432 356 610
12 448 432 356 610
15 521 508 432 508
18 635 622 546 457
21 714 699 622 457
24 791 775 699 457
30 1019 1003 927 457
36 1172 1156 1080 457
42 1375 1359 1283 457
48 1476 1461 1384 457
ALL DIMENSIONS LISTED IN MILLIMETERS
STANDARD CONSTRUCTION
Continuously welded 18 gauge galvanized steel
Neoprene gasketing (For Field Installation)
127mm wide by 25mm high louvered slots, 4 per side, on all sides
No insulation; no wood nailer
Aluminum construction optional
*Curb height selected to allow 18” welded duct height and maintain
40” discharge height required per NFPA 96.
LOCATION/MARK QUANTITY MODEL SIZE HEIGHT OPTION
NOTES
PROJECT: ARCHITECT:
CONTRACTOR: DATE: SUBMITTED BY: ENGINEER:
Page ________ of ________
FOR USE WITH MODEL VRBK RESTAURANT EXHAUST FAN
HT.
76mm
O.D.
I.D.
102mm
