Carnes JCFA User Manual

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 1997 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 11194-A 11194-B [S]

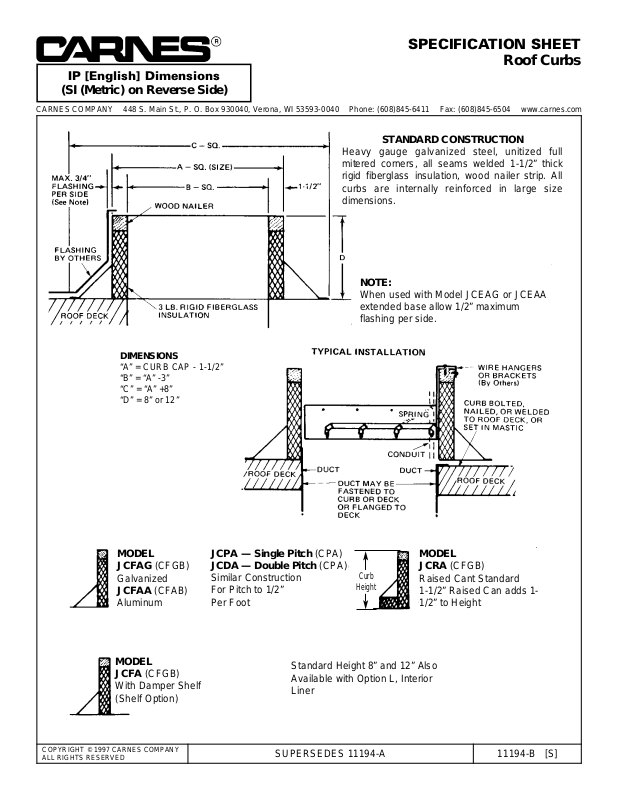

SPECIFICATION SHEET

Roof Curbs

Curb

Height

IP [English] Dimensions

(SI (Metric) on Reverse Side)

DIMENSIONS

“A” = CURB CAP - 1-1/2”
“B” = “A” -3”
“C” = “A” +8”
“D” = 8” or 12”

STANDARD CONSTRUCTION

Heavy gauge galvanized steel, unitized full
mitered corners, all seams welded 1-1/2” thick
rigid fiberglass insulation, wood nailer strip. All
curbs are internally reinforced in large size
dimensions.

NOTE:

When used with Model JCEAG or JCEAA
extended base allow 1/2” maximum
flashing per side.

MODEL
JCFAG (CFGB)

Galvanized

JCFAA (CFAB)

Aluminum

MODEL
JCRA (CFGB)

Raised Cant Standard
1-1/2” Raised Can adds 1­1/2” to Height

MODEL
JCFA (CFGB)

With Damper Shelf
(Shelf Option)

JCPA — Single Pitch (CPA)
JCDA — Double Pitch (CPA)

Similar Construction
For Pitch to 1/2”
Per Foot

Standard Height 8” and 12” Also
Available with Option L, Interior
Liner

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 1997 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 11194-A 11194-B [M]

SPECIFICATION SHEET

Roof Curbs

38mm

MAX. 19mm
FLASHING
PER SIDE
(See Note)

DIMENSIONS

“A” = CURB CAP - 38mm
“B” = “A” -76mm
“C” = “A” +203mm
“D” = 203mm or 305mm

STANDARD CONSTRUCTION

Heavy gauge galvanized steel, unitized full
mitered corners, all seams welded 38mm thick
rigid fiberglass insulation, wood nailer strip. All
curbs are internally reinforced in large size dimen­sions.

NOTE:

When used with Model JCEAG or JCEAA
extended base allow 13mm maximum
flashing per side.

MODEL
JCFAG (CFGB)

Galvanized

MODEL
JCRA (CFGB)

Raised Cant Standard
(38mm Raised Cant)

MODEL
JCFA (CFGB)

With Damper Shelf
(Shelf Option)
38mm Roof Products

50.4mm Thycurb

JCPA — Single Pitch (CPA)
JCDA — Double Pitch (CPA)

Similar Construction
For Pitch to 38mm
Per Foot

Curb

Height

THIS STILL APPLIES

Standard Height 203mm and 305mm
Available with Option L, Interior
Liner

SI (Metric) Dimensions

(IP [English] on Reverse Side)
