Imperial [IP] Dimensions

Metric (SI) in Parentheses

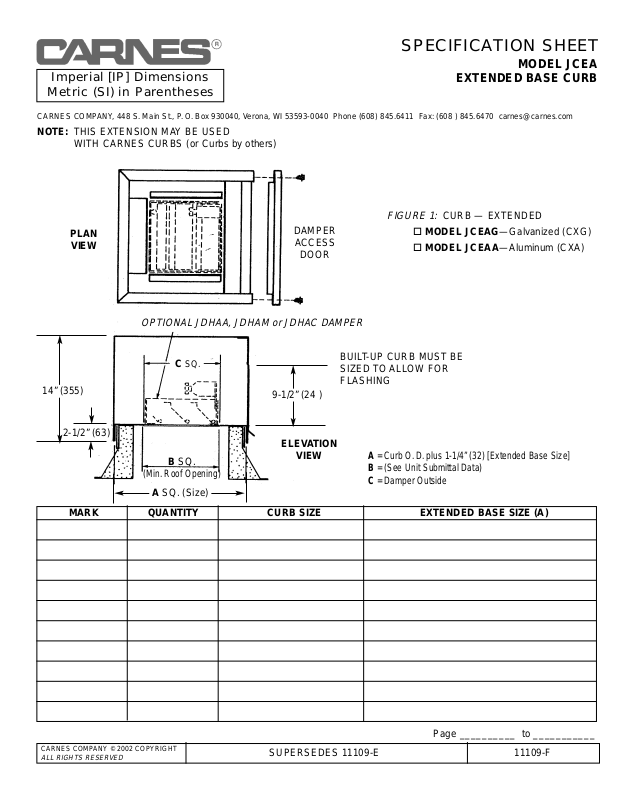

SPECIFICATION SHEET

MODEL JCEA

EXTENDED BASE CURB

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone [phone] Fax:(608 ) 845.6470 [e-mail]

CARNES COMPANY © 2002 COPYRIGHT

ALL RIGHTS RESERVED

SUPERSEDES 11109-E 11109-F

NOTE: THIS EXTENSION MAY BE USED

WITH CARNES CURBS (or Curbs by others)

PLAN

VIEW

ELEVATION

VIEW

DAMPER

ACCESS

DOOR

FIGURE 1:

CURB — EXTENDED

 MODEL JCEAG—Galvanized (CXG)
 MODEL JCEAA—Aluminum (CXA)

OPTIONAL JDHAA, JDHAM or JDHAC DAMPER

9-1/2” (24 )

2-1/2” (63)

14” (355)

A SQ. (Size)

B SQ.

(Min. Roof Opening)

BUILT-UP CURB MUST BE
SIZED TO ALLOW FOR
FLASHING

A = Curb O.D. plus 1-1/4” (32) [Extended Base Size]
B = (See Unit Submittal Data)
C = Damper Outside

MARK QUANTITY CURB SIZE EXTENDED BASE SIZE (A)

Page __________ to ___________

C

SQ.
