Carnes JCAAG User Manual
Imperial [IP] Dimensions
Metric (SI) in Parentheses

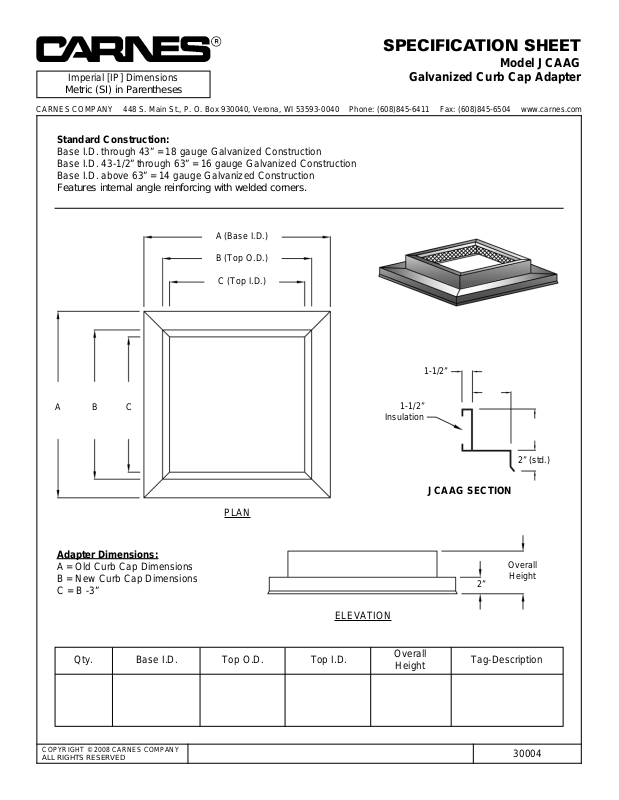

SPECIFICATION SHEET
Model JCAAG
Galvanized Curb Cap Adapter
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
COPYRIGHT © 2008 CARNES COMPANY
ALL RIGHTS RESERVED
30004
Standard Construction:
Base I.D. through 43” = 18 gauge Galvanized Construction
Base I.D. 43-1/2” through 63” = 16 gauge Galvanized Construction
Base I.D. above 63” = 14 gauge Galvanized Construction
Features internal angle reinforcing with welded corners.
Qty. Base I.D. Top O.D. Top I.D.
Overall
Tag-Description
Height
Adapter Dimensions:
A = Old Curb Cap Dimensions
B = New Curb Cap Dimensions
C = B -3”
A (Base I.D.)
B (Top O.D.)
C (Top I.D.)
A
B C
PLAN
ELEVATION
2”
Overall
Height
2” (std.)
1-1/2”
1-1/2”
Insulation
JCAAG SECTION
